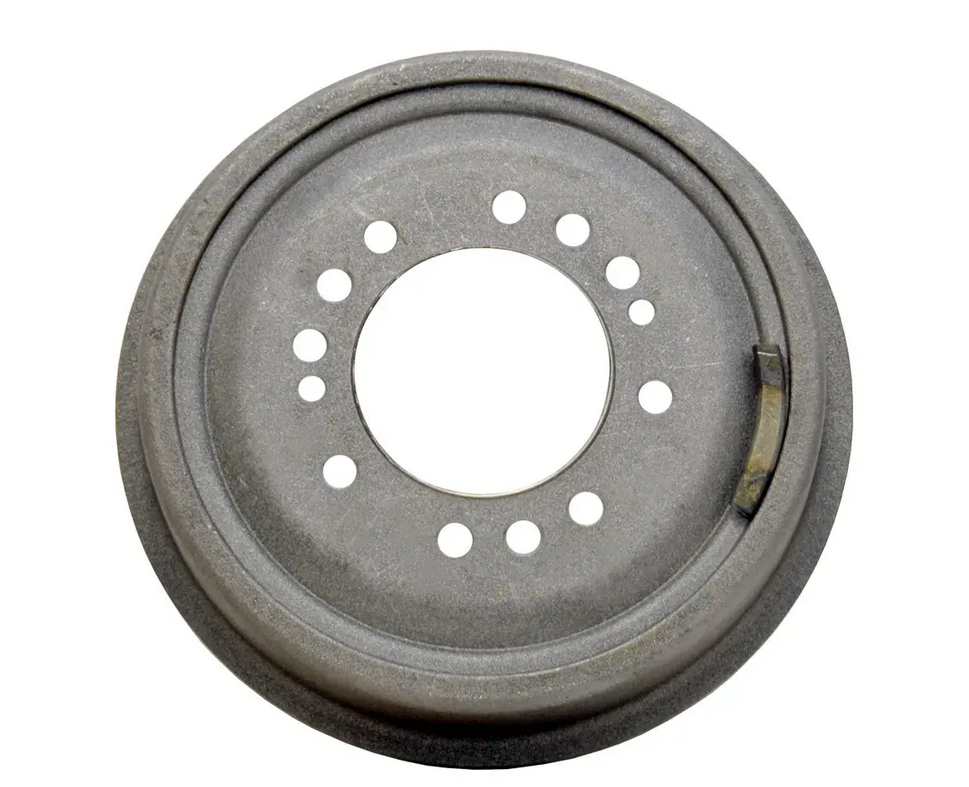

QU80307 Dana 44 Front Brake Drum
Discontinued. No Longer Available.
Description
QU80307 12-1/8" x 2" Front Brake Drum for 1956-1975 Ford F250, F350 with the 3300# Dana 44 Standard Closed Knuckle Front Axles are OE spec front brake drums for 1956-1975 F-250 4x4 trucks and 1956-1966 F-350 4x4 trucks with Dana 44 standard front axles. These 3300# axles will have 8 bolt wheels and use internally splined wheel hubs with internally mounted lockout hubs.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Specs
Applications
Tech Note 1: Specs
To verify if this is the correct drum for your truck, measure your drum and compare it to these specs:
Brake Shoe Size: 12-1/8" x 2"
Maximum "Turn To" Diameter: 12.190"
Brake Drum Thickness: 3.12"
Overall Drum Outside Diameter: 14.13"
Center Mounting Hole Diameter: 4.756"
Bolt Holes: 8
Ford:
F250 with Standard 3300# Dana 44 Closed Knuckle Front Axle: 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
F350 with Standard 3300# Dana 44 Closed Knuckle Front Axle: 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966
Warranty
Delivery & Returns
Shipping times are estimated in your cart.
More info can be found at the link below.
QU80307 12-1/8" x 2" Front Brake Drum for 1956-1975 Ford F250, F350 with the 3300# Dana 44 Standard Closed Knuckle Front Axles are OE spec front brake drums for 1956-1975 F-250 4x4 trucks and 1956-1966 F-350 4x4 trucks with Dana 44 standard front axles. These 3300# axles will have 8 bolt wheels and use internally splined wheel hubs with internally mounted lockout hubs.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Specs
Applications
Tech Note 1: Specs
To verify if this is the correct drum for your truck, measure your drum and compare it to these specs:
Brake Shoe Size: 12-1/8" x 2"
Maximum "Turn To" Diameter: 12.190"
Brake Drum Thickness: 3.12"
Overall Drum Outside Diameter: 14.13"
Center Mounting Hole Diameter: 4.756"
Bolt Holes: 8
Ford:
F250 with Standard 3300# Dana 44 Closed Knuckle Front Axle: 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
F350 with Standard 3300# Dana 44 Closed Knuckle Front Axle: 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966
