QK7004 12" Bendix Parking Brake Lever Replacement Small Parts Kit

QK7004 12" Bendix Parking Brake Lever Replacement Small Parts Kit for 1972-1993 Dodge and 1968-1997 Ford 3/4 and 1 ton trucks equipped with Dana or Sterling full floating rear axles and 2" to 3.5" wide Bendix 12" diameter drum brakes. Includes 1 each of spring, washer, pivot bushing, pivot bolt, and lock nut. USA Made. Order 1 QK7004 Kit per side. Do NOT use the nut to install pivot bolt!!!

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Components
Locknuts and Bolts
Matching Parts
Applications

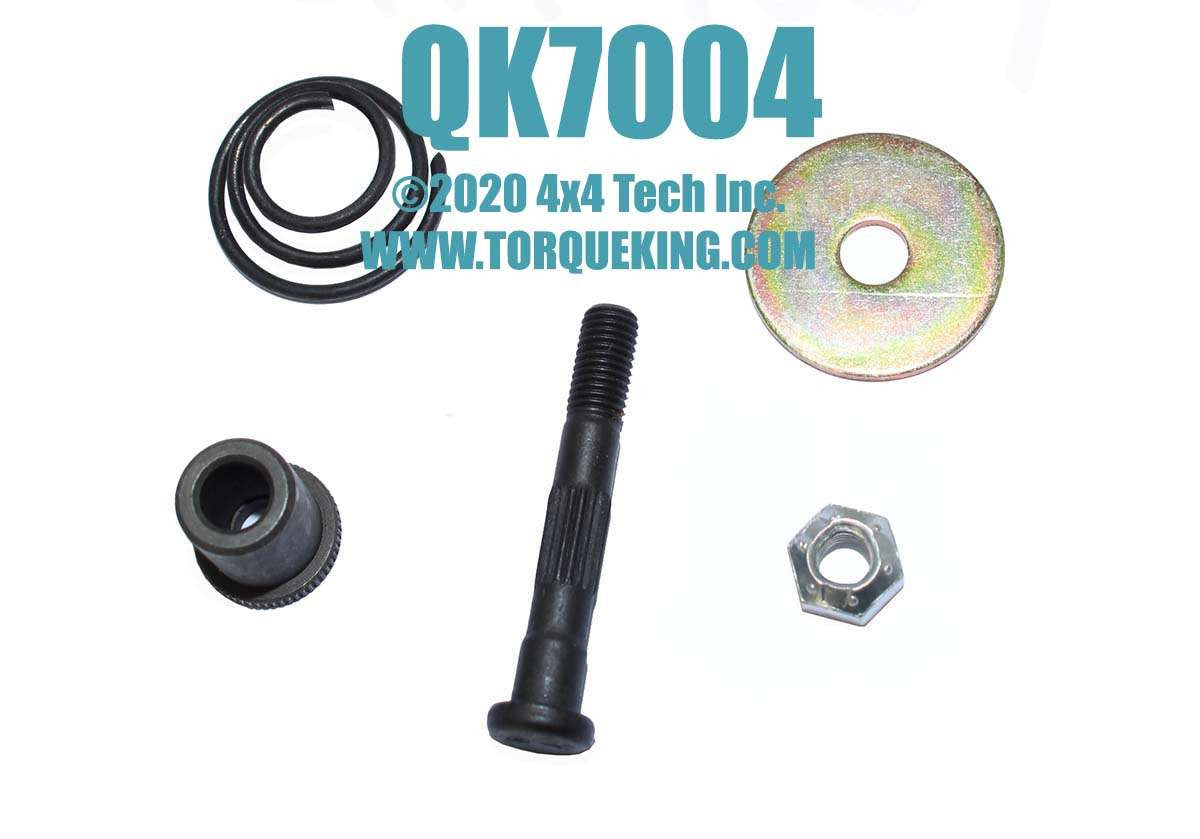

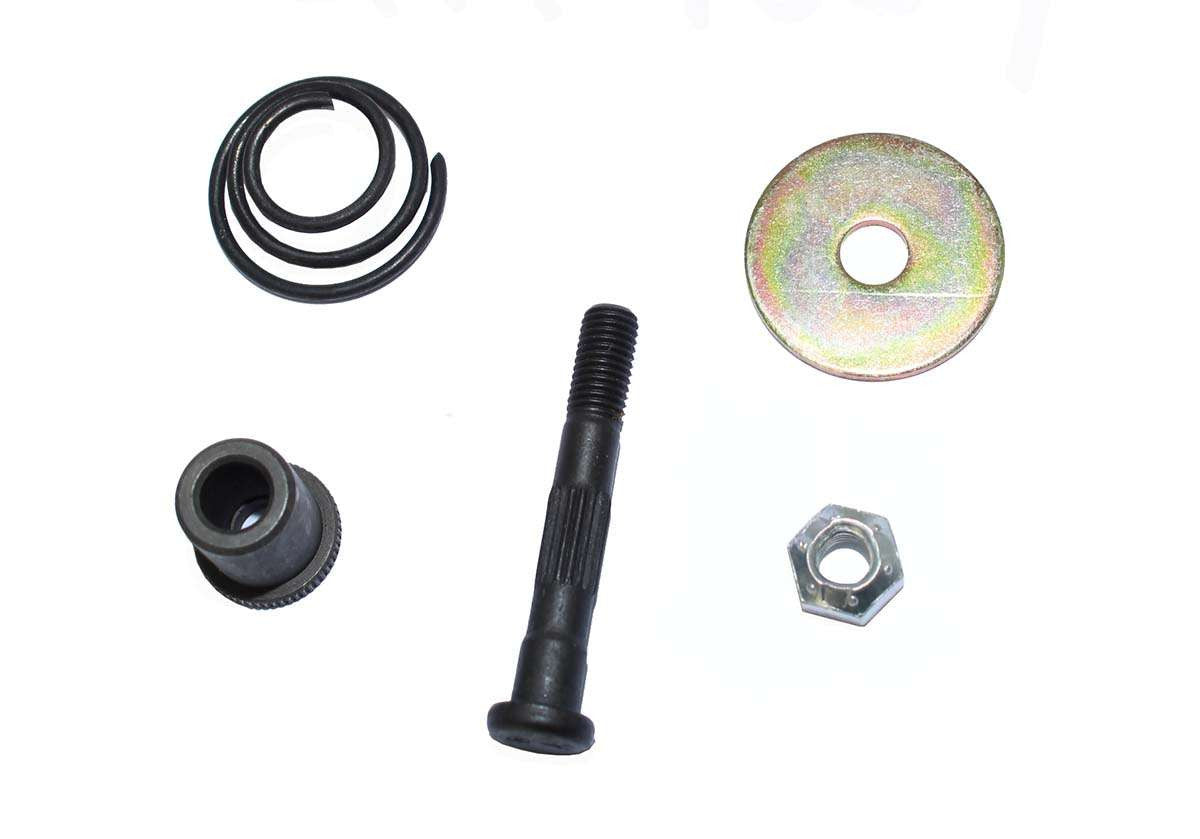

Tech Note 1: Kit Components
QU20012 Park Lever Spring
QU20013 Park Brake Lever Washer
QU20015 Park Brake Lever Pivot Bushing
QU20055 Parking Brake Lever Pivot Bolt
QU95033 Class C 1/4" SAE Locknut

Tech Note 2: Locknuts and Bolts

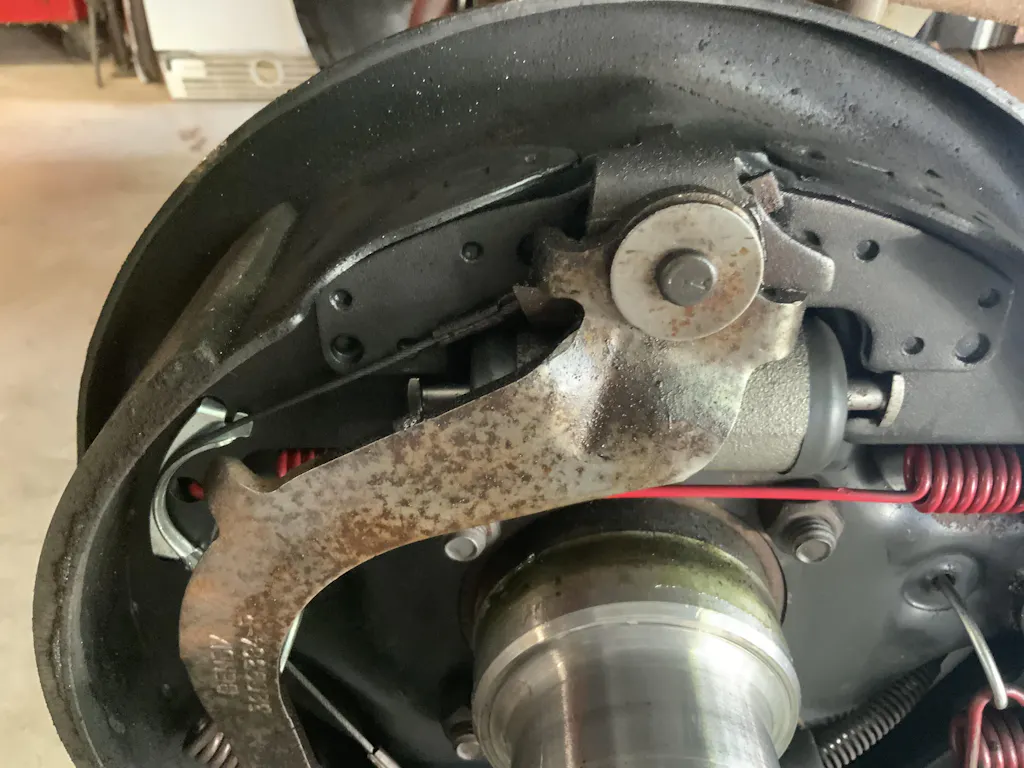

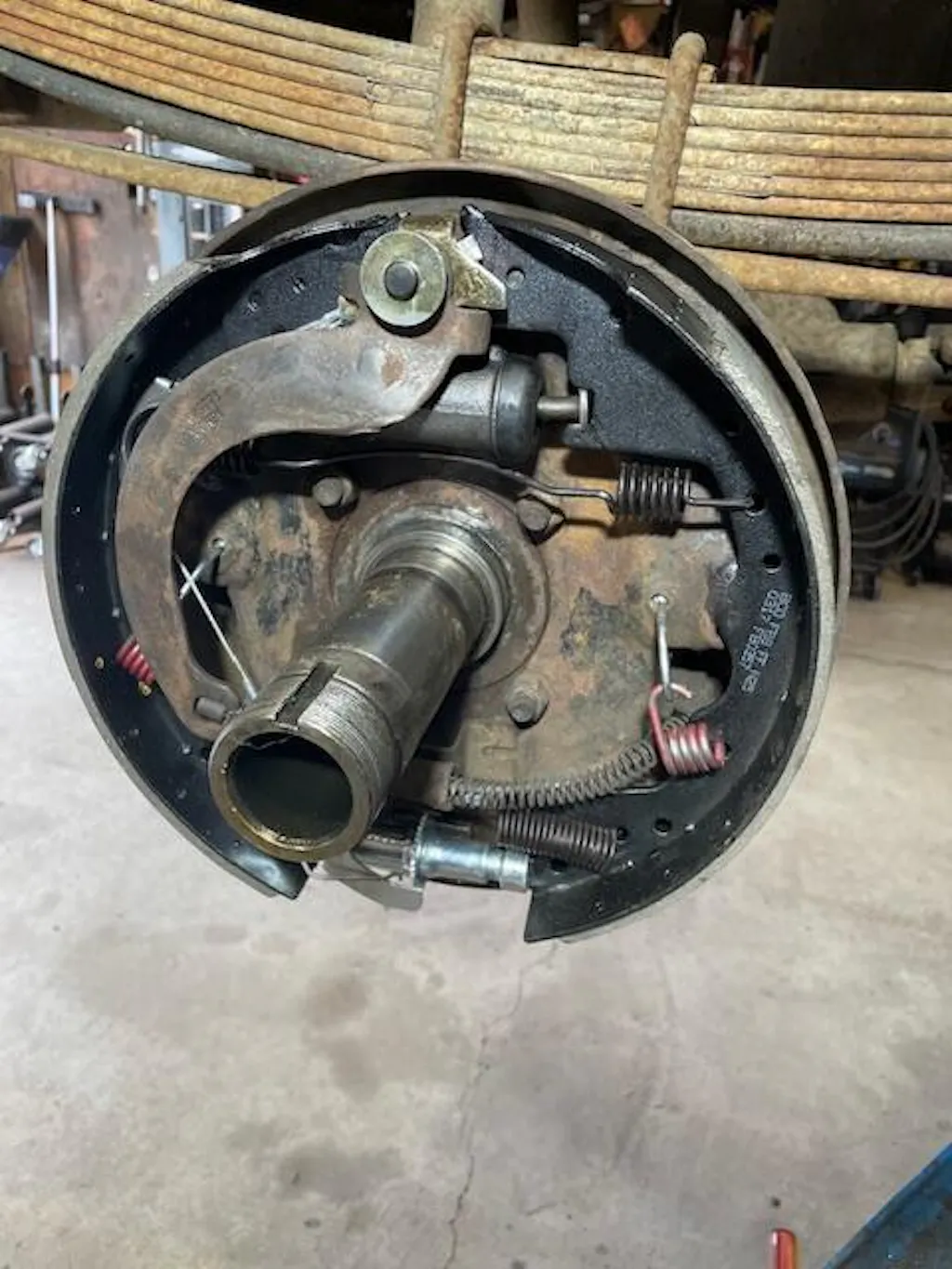

To replace the wheel cylinders on these Bendix 12" brake systems, you have to remove the Park Brake Lever from the backing plate. To do this, you take off QU95033 Locknut and drive or pry QU20055 Pivot Bolt from the backing plate. Since both parts were designed as single use components, they should be replaced for maximum retention and safety.

Tech Note 3: Matching Parts
QU20176 1986-1987 F250, F350 Left Brake Lever
QU40290 ABS Tone Ring
Dodge & Ram Shop Manuals
Ford Shop Manuals

Applications

Dodge:
Dodge 3/4 ton and 1 ton trucks with Bendix 12"x2". 12"x2.5", 12"x3", or 12x3.5" Rear Brake Systems: 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Ford:
Ford 3/4 ton and 1 ton trucks with Bendix 12"x2". 12"x2.5", 12"x3", or 12" x 3.5" Rear Brake Systems: 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
