QU30213U Used 1/2 ton Disc Brake Caliper Shield for 1972.5-1974 GM, 1974-1979 Jeep
When in stock, this part will have a live Add To Cart Button
Description

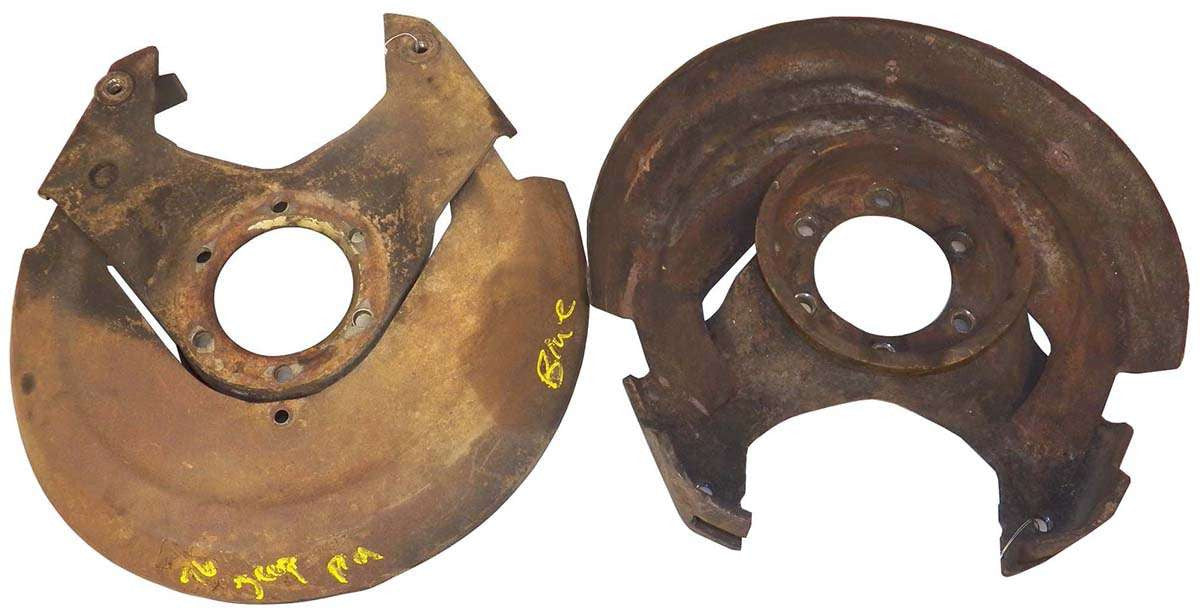

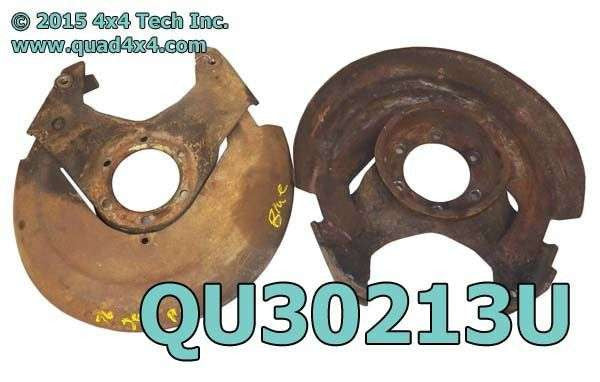

QU30213U Used Caliper Support with Light Gauge Welded Brake Shield for 1971-1974 GM and 1974-1979 Jeep Dana 44 1/2 ton front axles with front Disc Brake Caliper Anchor Plate that has a light gauge, welded stamped steel brake shield. The shields have a bolt hole that allows the shield to be stabilized by the knuckle with a 1/4" bolt. Sold individually. Left and Right shields are the same, order 2 shields per vehicle.
The Shield on these used parts may require rewelding to the anchor plate!
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Matching Parts
Applications
Tech Note 1: Matching Parts
Exploded View XV1053 1974-1977.5 Jeep 1/2 Ton Dana 44 Front Axle-Disc
QU95035 3/8" Fine Thread Class C Lock Nut for Front Spindle (uses 6 per side)
QU40054 3/8" SAE x 1-1/2" Long Front Spindle to Knuckle Bolt (uses 6 per side)
QU15023 Dana 44 Front Spindle Kit for 1974-1977.5 Jeep 1/2 Ton
QU15018U Used Left Steering Knuckle for 1974-1977.5 Jeep Dana 44
QU15019U Used Right Steering Knuckle for 1974-1977.5 Jeep Dana 44
Applications Here
