QU50207 Rear Output Bearing for 1996-2002 NP241DHD Transfer Case

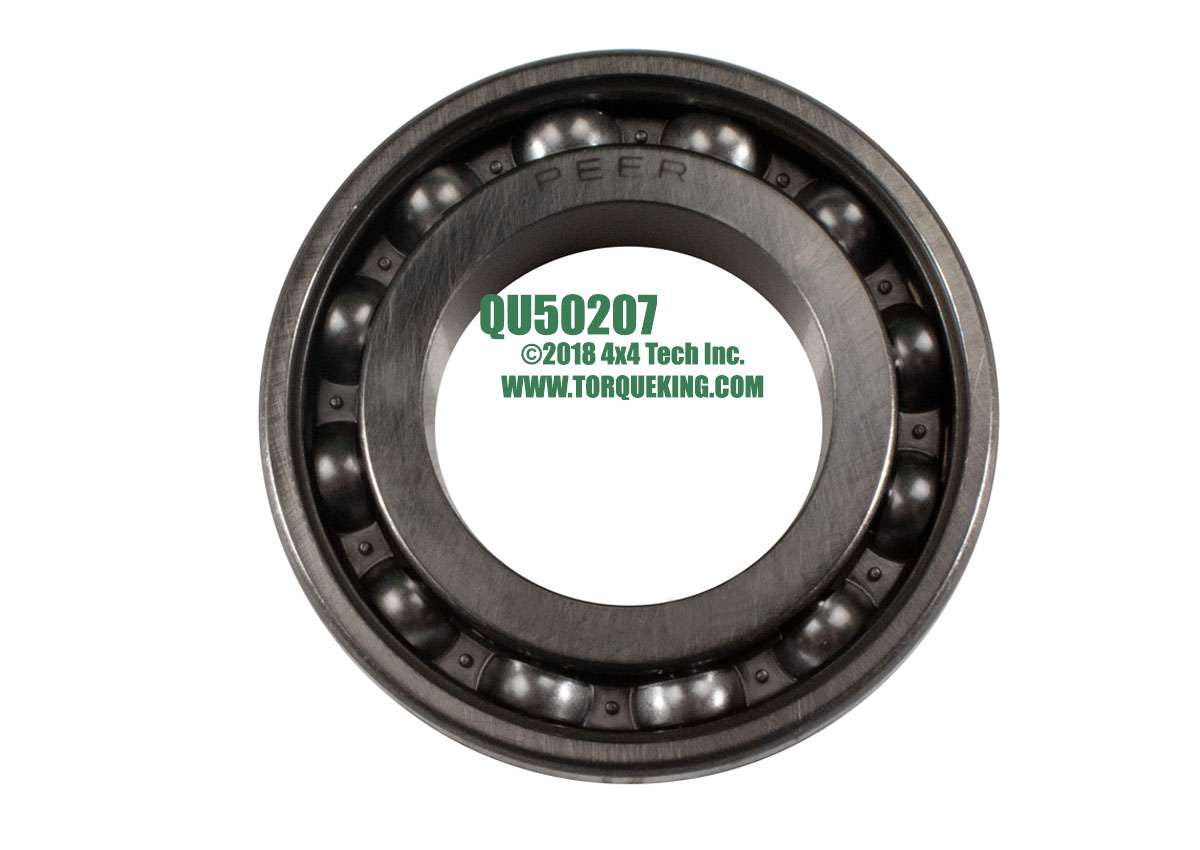

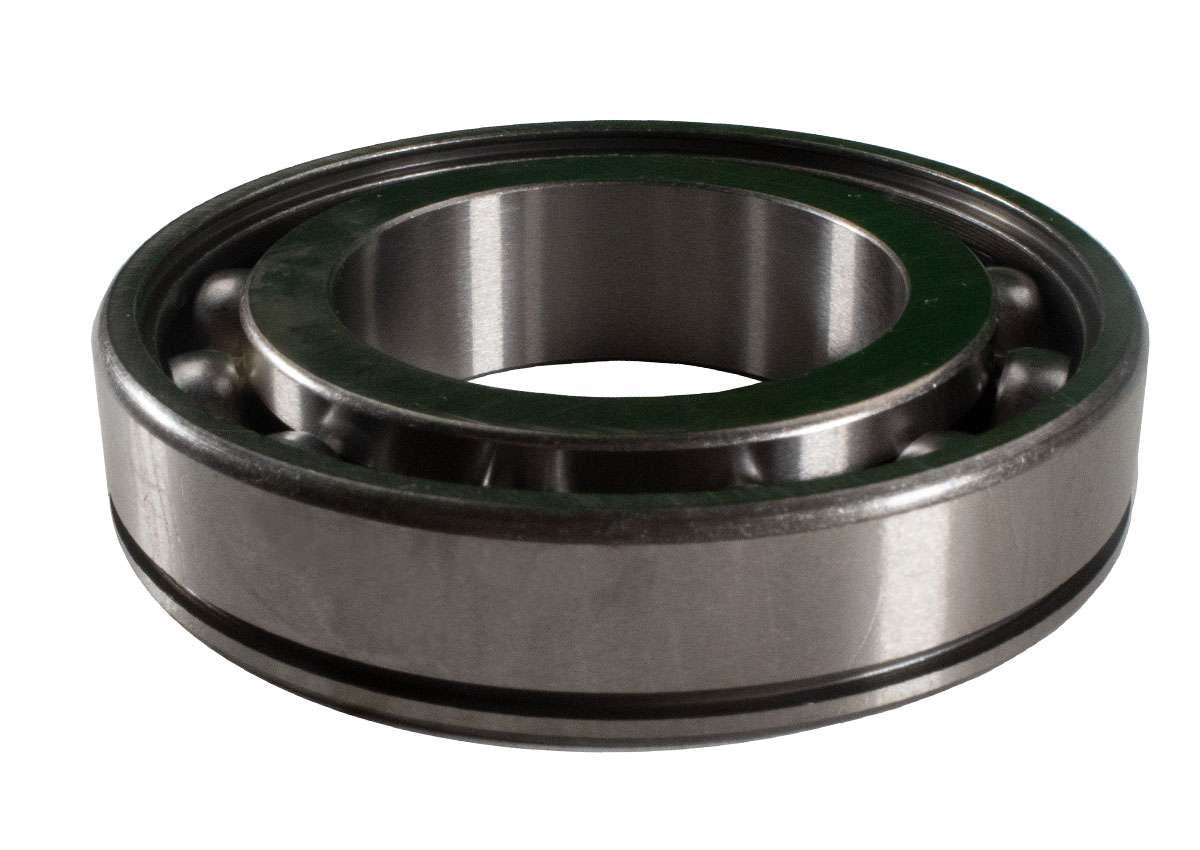

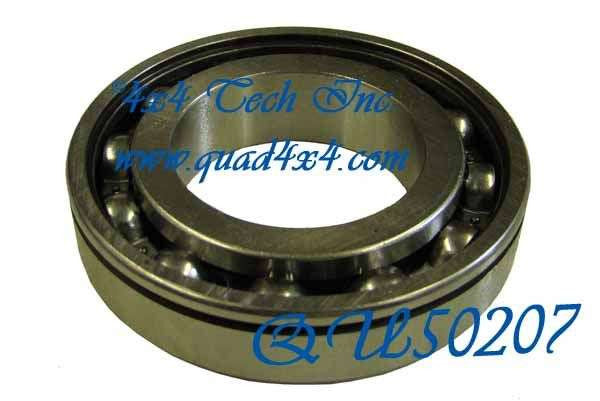

QU50207 Rear Output Bearing for 1996 to 2002 New Process NP241DHD Transfer Cases with 31 spline output shafts is located on the mainshaft by 2 QU10817 snap rings. It is secured in the tailshaft housing by QU10815 Snap Ring which fits the groove in the outer race. This genuine, current production, original equipment bearing is imported.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
When Installing
Lubricate
Matching Parts for 1996.5-1997 NP241DHD
Matching Parts for 1998-2002 NP241DHD
Applications

Tech Note 1: When Installing
Getting the QU10815 Snap Ring to engage the bearing groove can be tricky as the Snap Ring is installed in the tailshaft or extension housing. When installing the tailshaft housing, you need to expand the ring and pull the output shaft a bit upward as you move the extension housing towards TK10586 Shim Gasket. Once the housing is against the gasket, you release tension on the Snap ring and it should snap into the bearing groove. An awful lot of NP241DHD Transfer Case parts are wrecked by people screwing up this step, so take your time and do the job right the first time!

Tech Note 2: Lubricate
Squirt a little Transfer Case oil on the bearing balls to provide start up lubrication.

Tech Note 3: Matching Parts for 1996.5-1997 NP241DHD
Exploded View XV4001 1996.5-1997 Dodge Ram NP241DHD Transfer Case
QU10872 Synchro Hub to Mainshaft Snap Ring
QU10820 Synchro Strut Tension Spring
QU11166 Synchro Hub
QU10821 Synchro Strut
QU50354 Synchro Sleeve
QU10819 Synchro Ring
QU50000 Drive Chain
QU10921 Upper Chain Drive Sprocket
QU50177 Oil Pump Seal
QU10936 Oil Pump
QU10817 Rear Output Shaft to Rear Bearing Snap Ring
QU10815 Rear Output Bearing to Case Snap Ring

Tech Note 4: Matching Parts for 1998-2002 NP241DHD
Exploded View XV4003 1998-2002 Dodge Ram NP241DHD Transfer Case
QU10872 Synchro Hub to Mainshaft Snap Ring
QU10820 Synchro Strut Tension Spring
QU11166 Synchro Hub
QU10821 Synchro Strut
QU50354 Synchro Sleeve
QU10819 Synchro Ring
QU50000 Drive Chain
QU10921 Upper Chain Drive Sprocket
QU50523 Rear Output Mainshaft
QU50177 Oil Pump Seal
QU10936 Oil Pump
QU10817 Rear Output Shaft to Rear Bearing Snap Ring
QU10815 Rear Output Bearing to Case Snap Ring
QU40354 Rear Output Slip Yoke
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 3-1/4 Quarts to Fill

Applications
Dodge:
NP241DHD Transfer Cases with one piece QU50422 or QU50566 tailshaft housings
