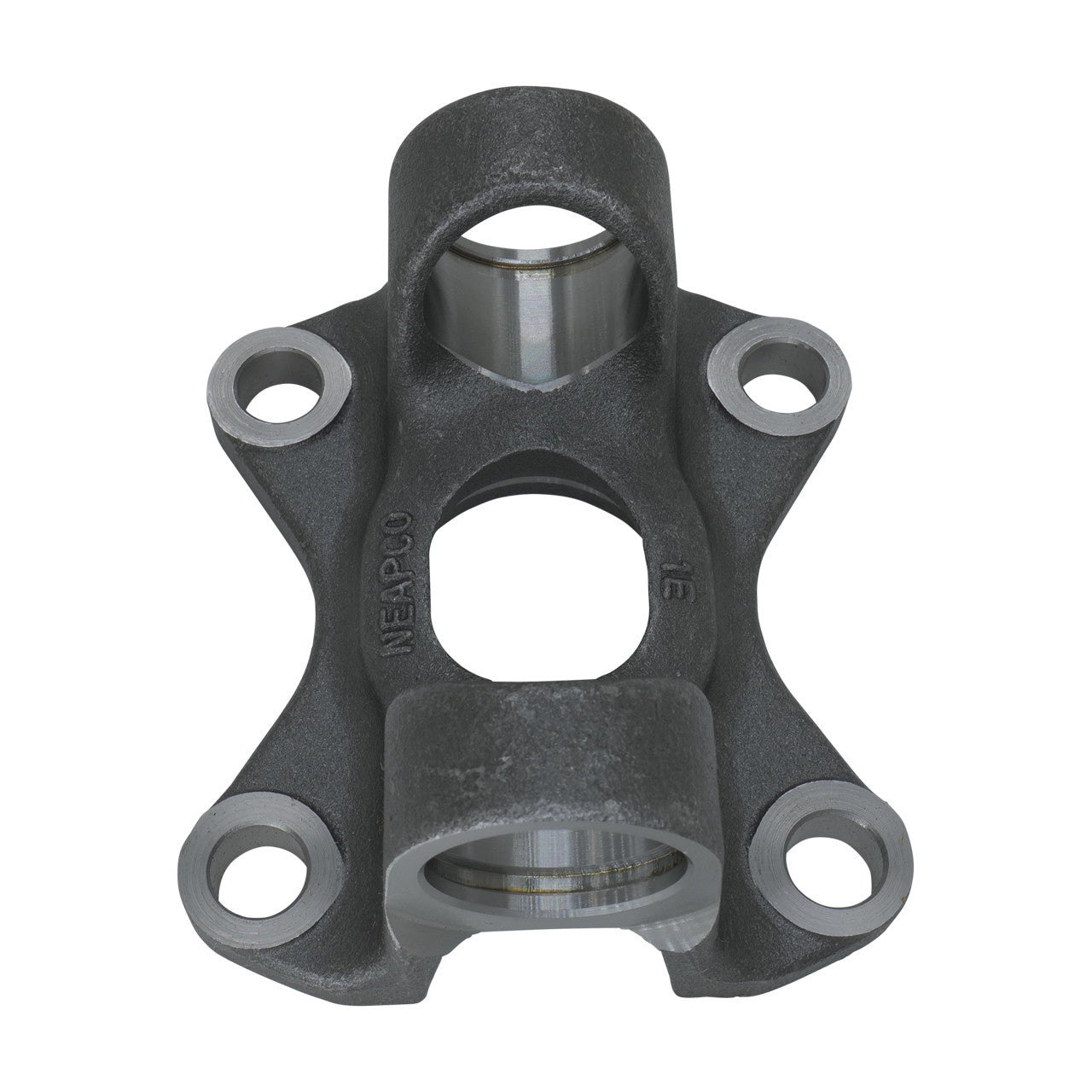

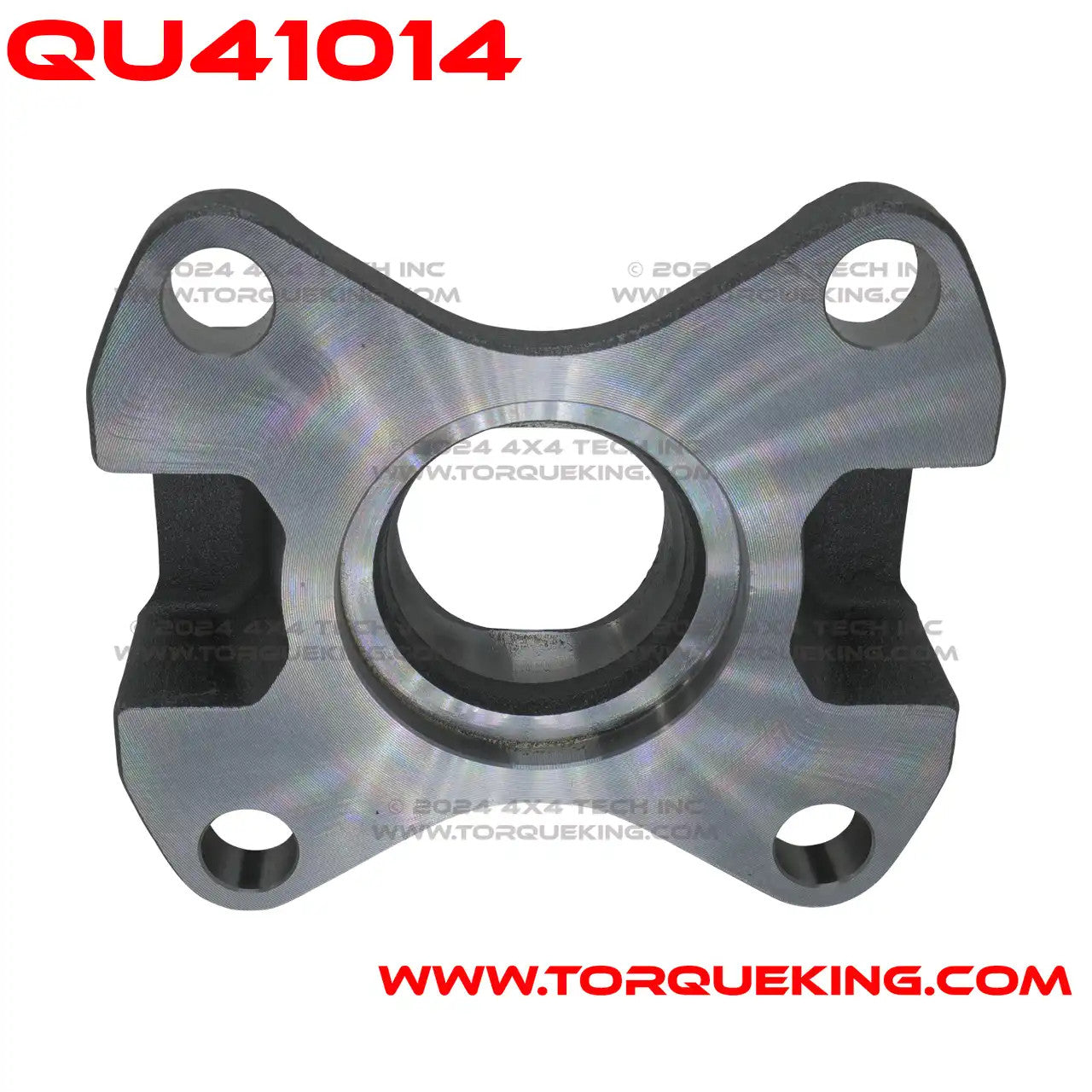

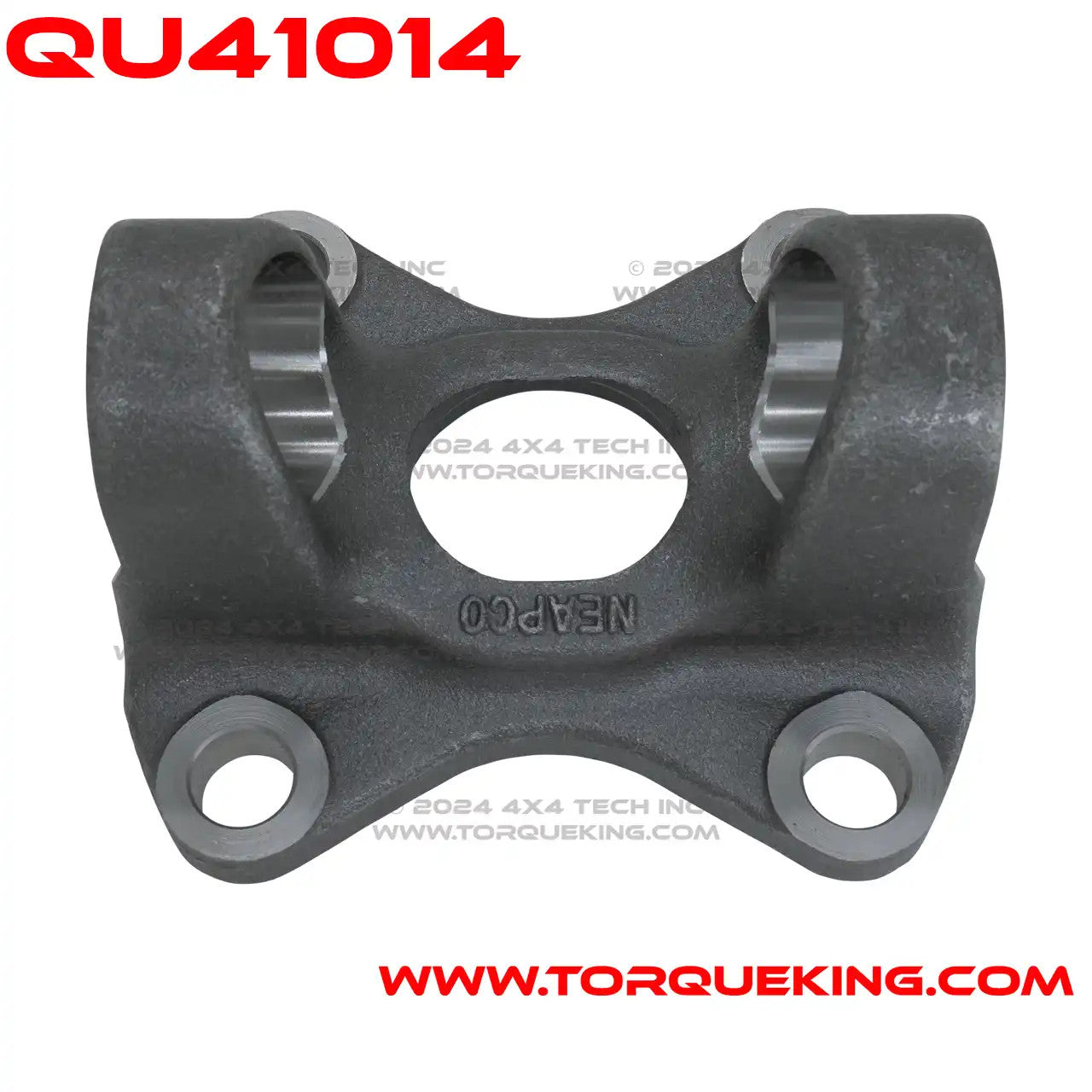

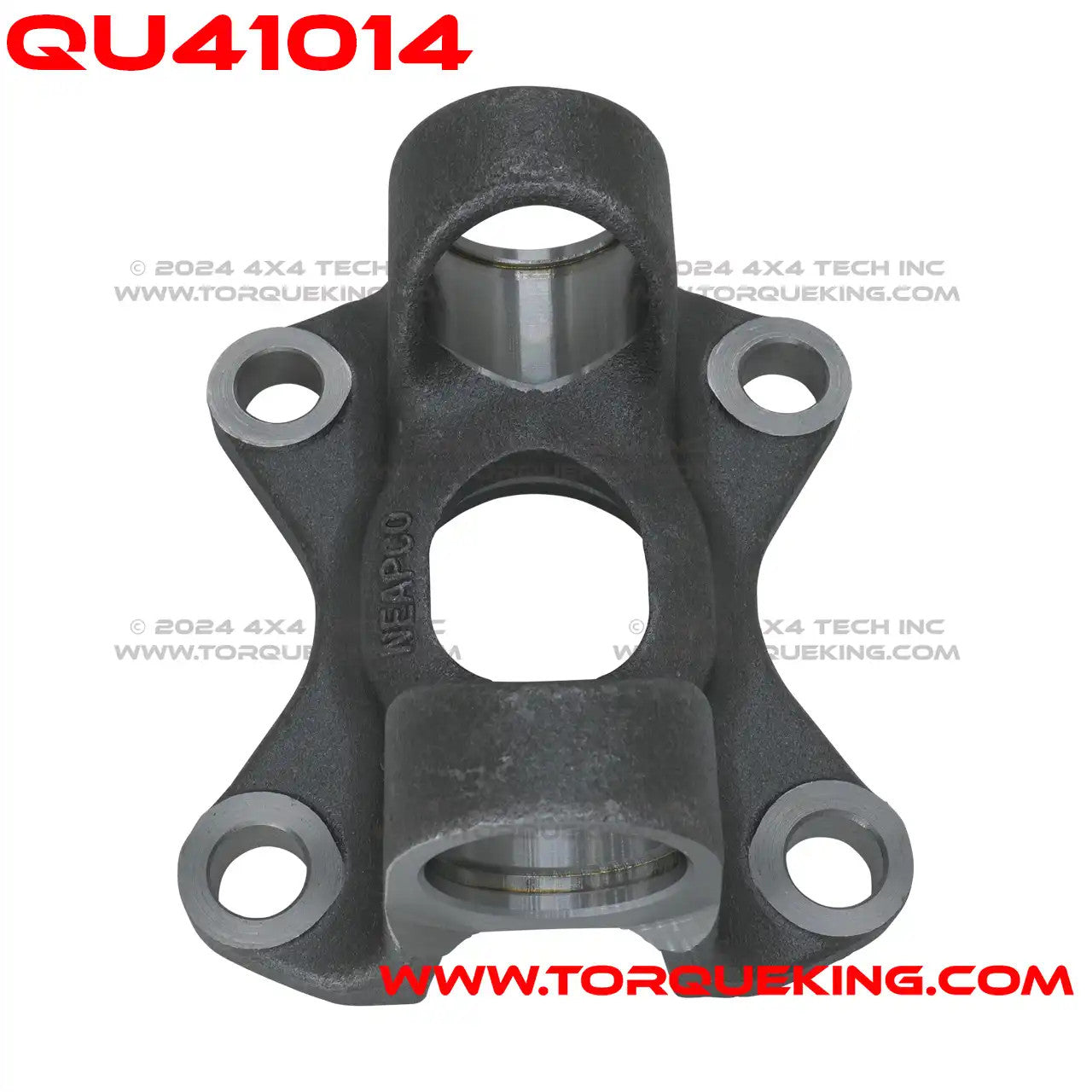

QU41014 1350 Ford Flange Yoke
Non-Stock Special Order 3-5 Days
Description
QU41014 Rear Driveshaft 1350 Series Flange Yoke for Ford trucks with 8.8" rear ends. Flange Face to Centerline is 1.625"
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
U-Joint Specs
Yoke Specs
Where Used
Matching Parts
Applications
Tech Note 1: U-Joint Specs
The universal joint for QU41014 yoke will have 1-3/16" (1.1875" 30.18 mm) diameter cups. The overall width of the joint is 3-5/8" (3.625" 92.08 mm). External snap rings are used to retain the U-Joint.
Tech Note 2: Yoke Specs
QU41014 has a 2" ID Female Pilot. The matching Axle Companion Flange must have a matching male pilot.
Applications
Ford:
