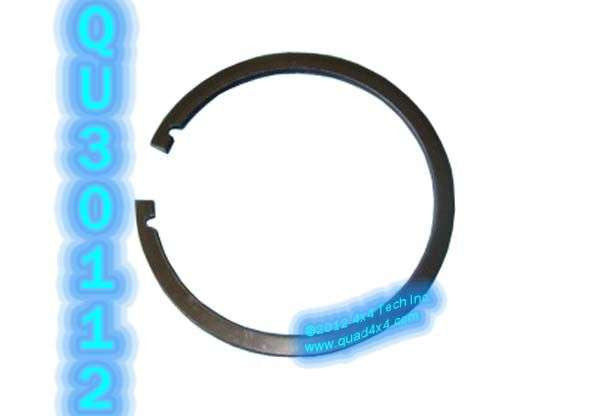

QU30112 Outer Wheel Bearing to Hub Snap Ring GM 14 Bolt Rear Axle

QU30112 Hub Snap Ring for Outer Wheel Bearing Cup on 1973-2010 AAM/GM 14 Bolt 10-1/2" Ring Gear and 2001-2010 AAM/GM 11-1/2" Full Float Rear Axles. Also fits 1973-1991 Chevy/GM Dana 70 series Full Float Rear Axles with 2" outer spindle threads.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Installing Snap Ring
Matching Parts
Re-using Snap Ring
Dana 70 Rear Axle
Rename
Applications

Tech Note 1: Installing Snap Ring
The GM 14 Bolt Full Floating Rear Axle Hub is designed so the outer wheel bearing and cup are installed from the BACKSIDE of of the hub before the inner wheel bearing components are assembled. Therefore, installation of the outer wheel bearing requires three tools (besides a driver handle) instead of one. The flat side of QT1801 Cup Installer is used to drive/press the outer cup in until it clears the snap ring groove. The Snap Ring is then installed in the hub groove with snap ring pliers. Next you use a suitable tool to drive/press the cup back against the snap ring. Inner Wheel Bearing and Seal installation is done in the conventional manner.

Tech Note 2: Matching Parts
QU40036 Spindle Nut 1973-1981 (Uses 2 per side)
QU40038 Inner Spindle Thrust Washer 1973-1981 (used with QU40036 Nuts and QU40037 Lock Washer)
QU30111 Spindle Nut, Single Type (Used on some 1980-1981 and 1982-2010)
QU30110 Spindle Nut Key (used with QU30111)
QU30109 Spindle Nut Retainer Ring (1 or 2 per side depending upon year, used with QU30111)
TK8310 Rear Wheel Bearing and Seal Kit 1973-2000
TK8012 SRW Master Rear Wheel Bearing Kit for 10.5" or 11.5" 2001-2010
TK8009 DRW Master Rear Wheel Bearing Kit for 11.5" 2001-2010
QU30010 Axle Flange Gasket for 1973-1987
QU30108 Axle Shaft Flange Gasket for 1988-2010
Chevy/GMC Shop Manuals

Tech Note 3: Re-using Snap Ring
QU30112 Retaining Ring is reusable if it is in good condition. Replace any Ring that is misshapen or damaged in any way!

Tech Note 4: Dana 70 Rear
Dana 70 Heavy Duty (70HD) axles were used in both Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) 1 ton pickups and pickup based cab and chassis applications as an alternative to GM 14 bolt 10.5" rear axles. Conventional Van and Panel Van based models may have Dana 70B, 70U, or 70HD axles depending upon the year, Gross Vehicle Weight (GVW), and chassis model.

Tech Note 5: Rename
In 1994, General Motors sold it's axle division to a group of investors who renamed their new acquisition American Axle Manufacturing (AAM). The AAM 14 Bolt, 10-1/2" Ring Gear full floater rear axle is what used to be called the GM corporate 14 Bolt, 10-1/2" Ring Gear full float rear axle.

Applications:
Chevy/GM:
Dana 70 series Full Float Rear Axles with 2" outer spindle threads: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
AAM 14 Bolt 10-1/2" Ring Gear: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
AAM 11-1/2" Full Float Rear Axles: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
