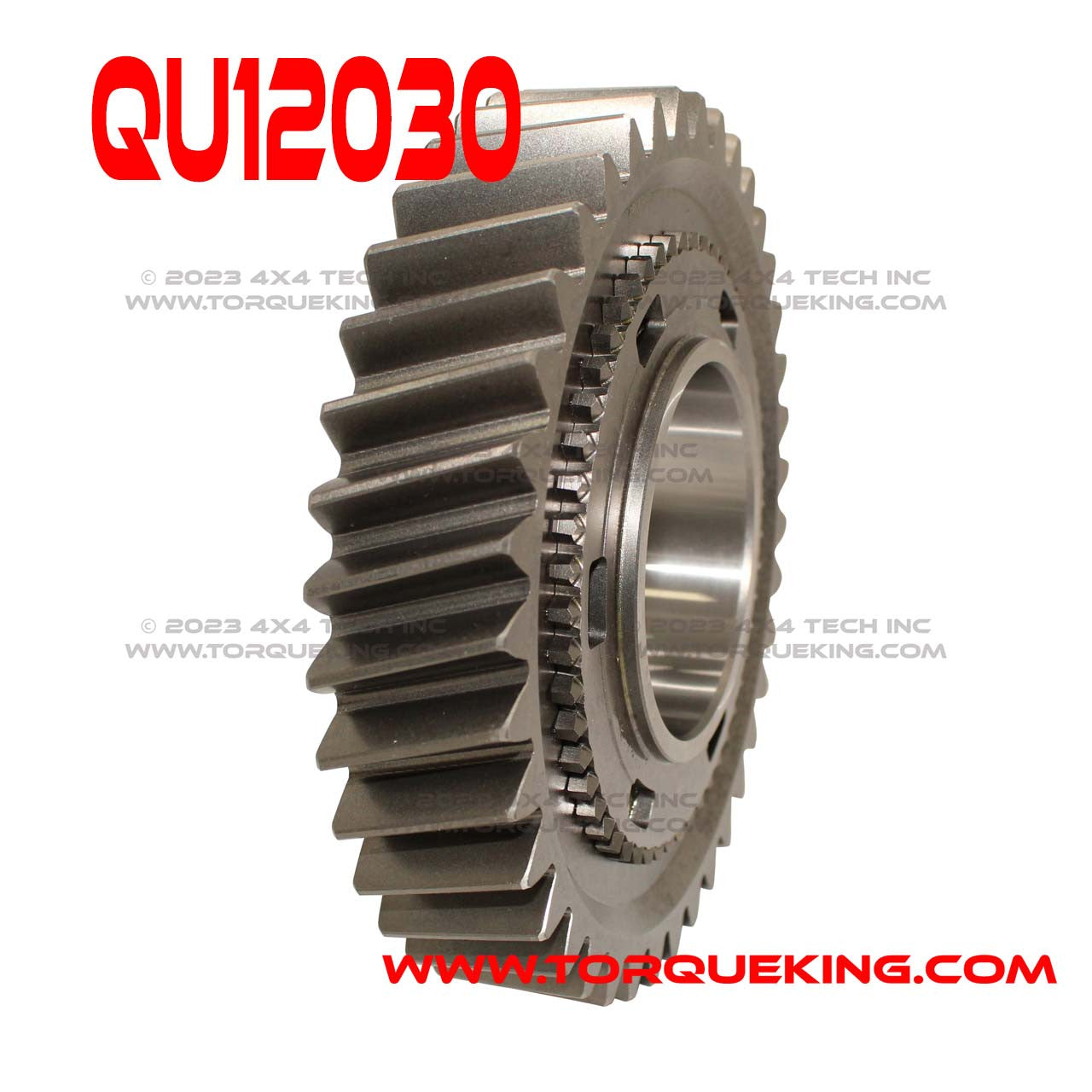

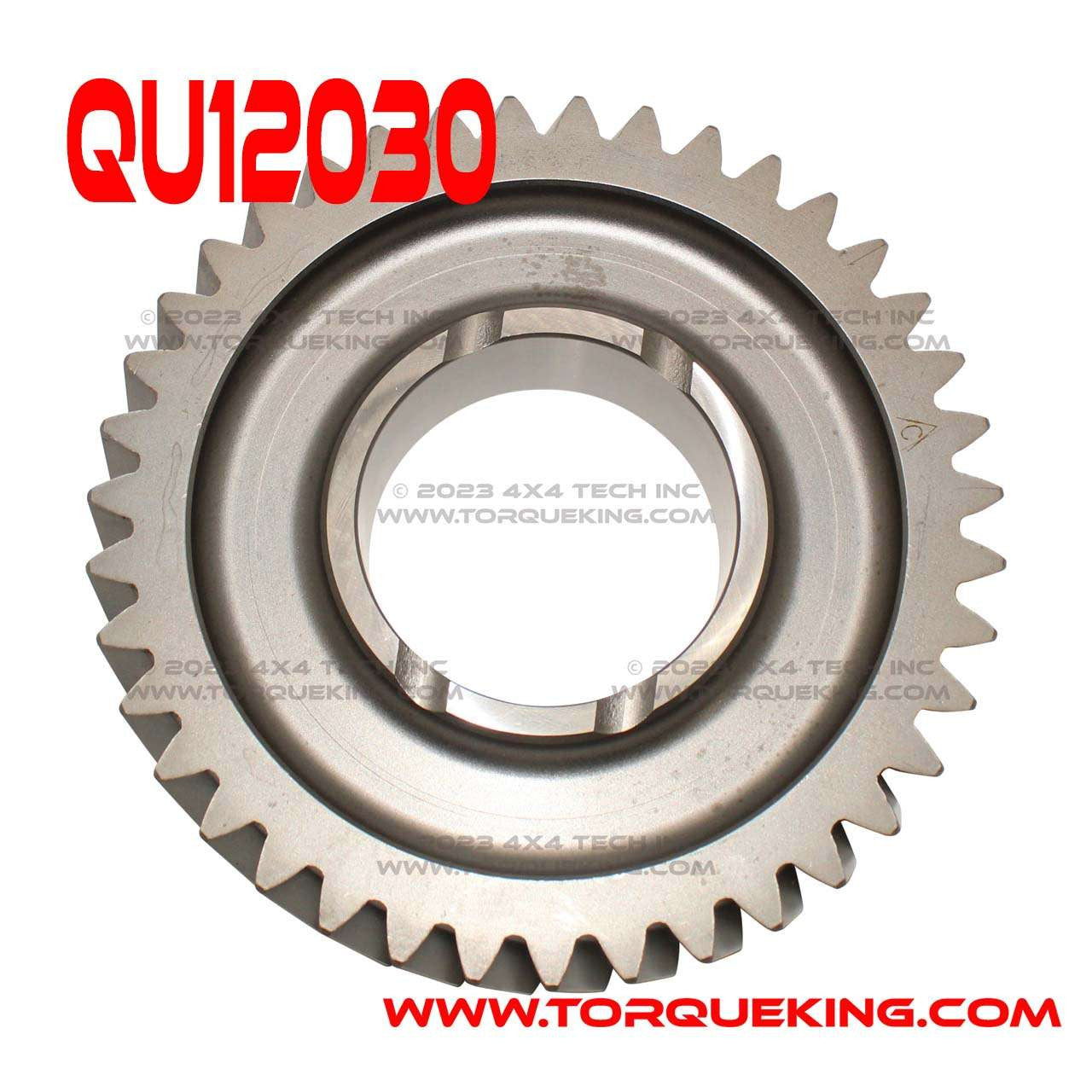

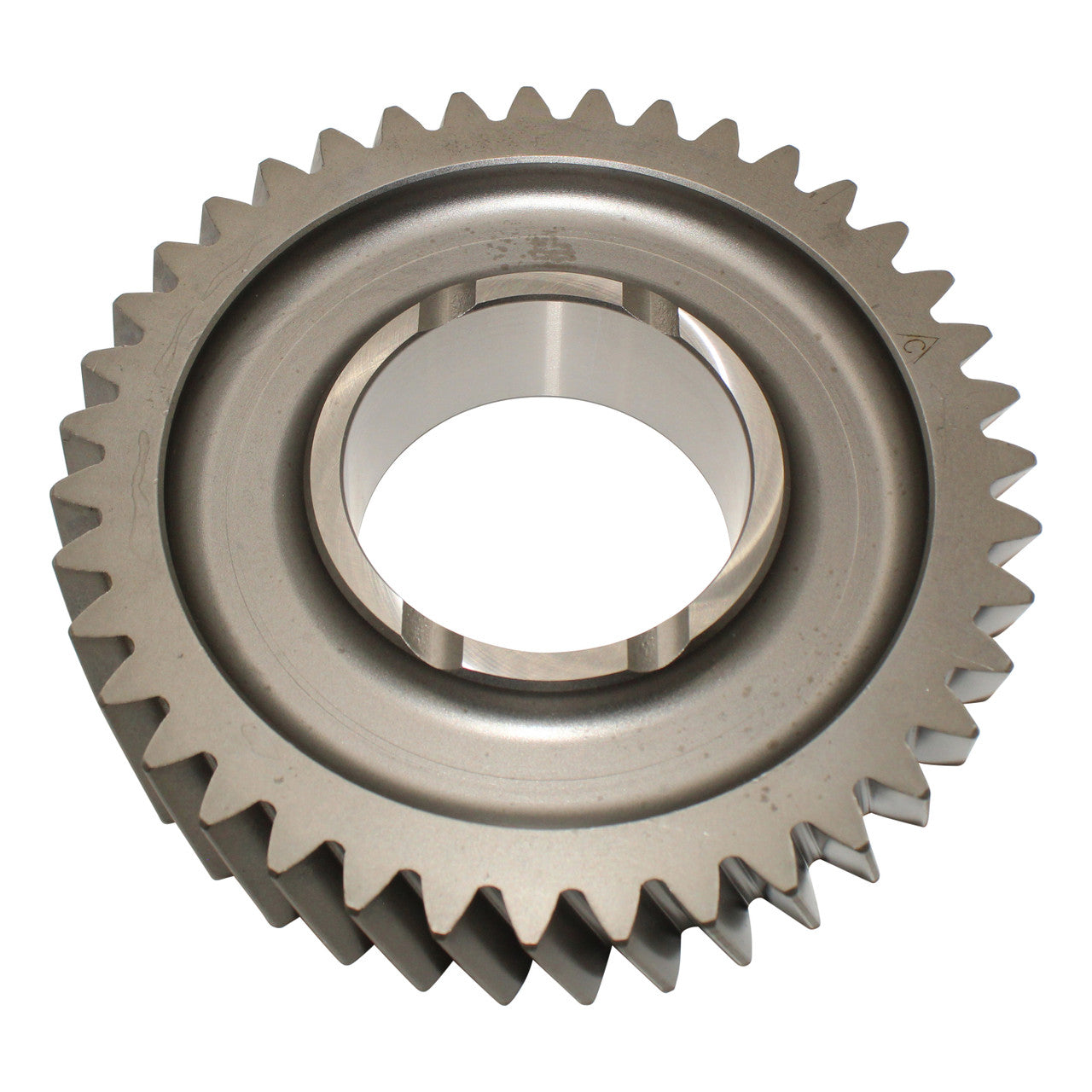

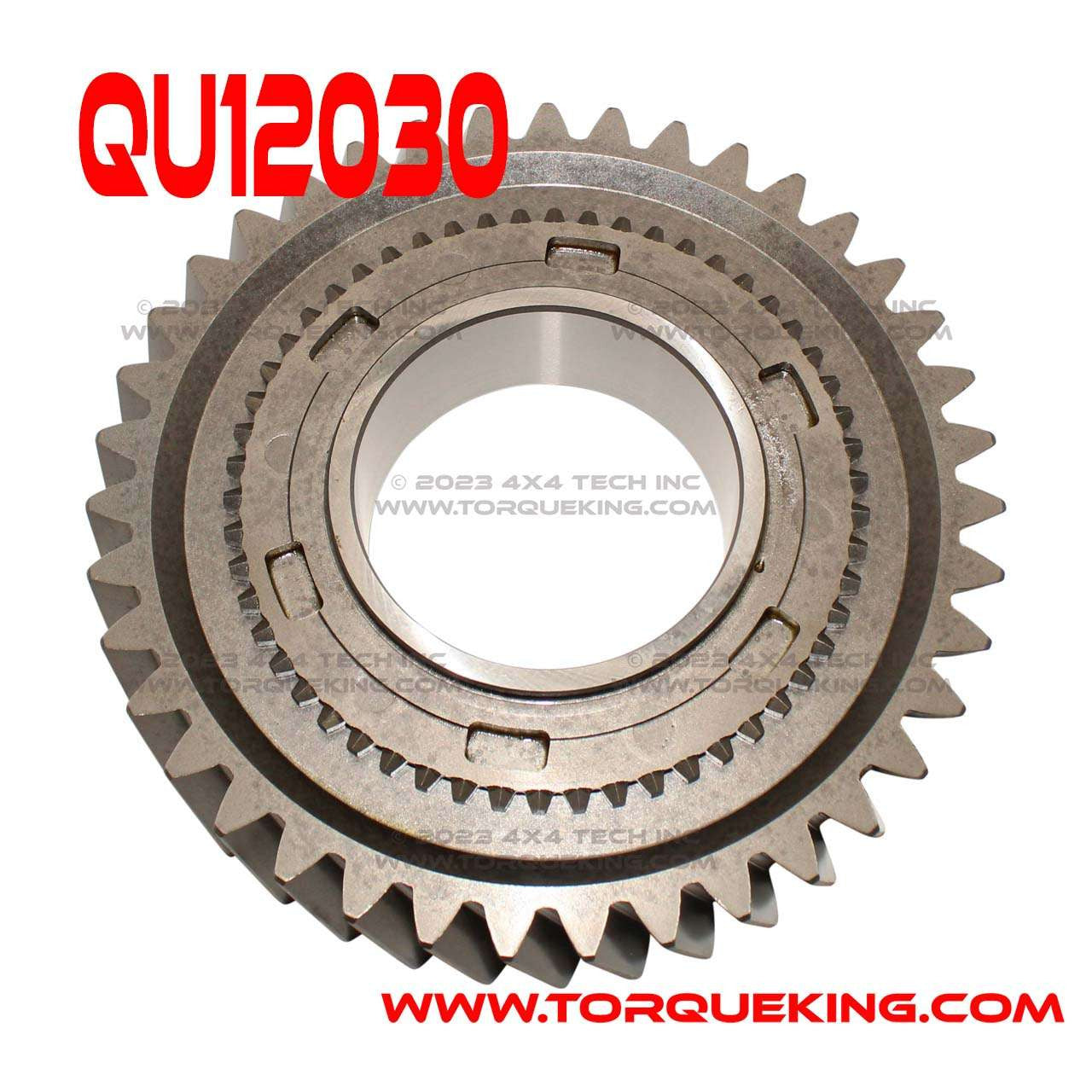

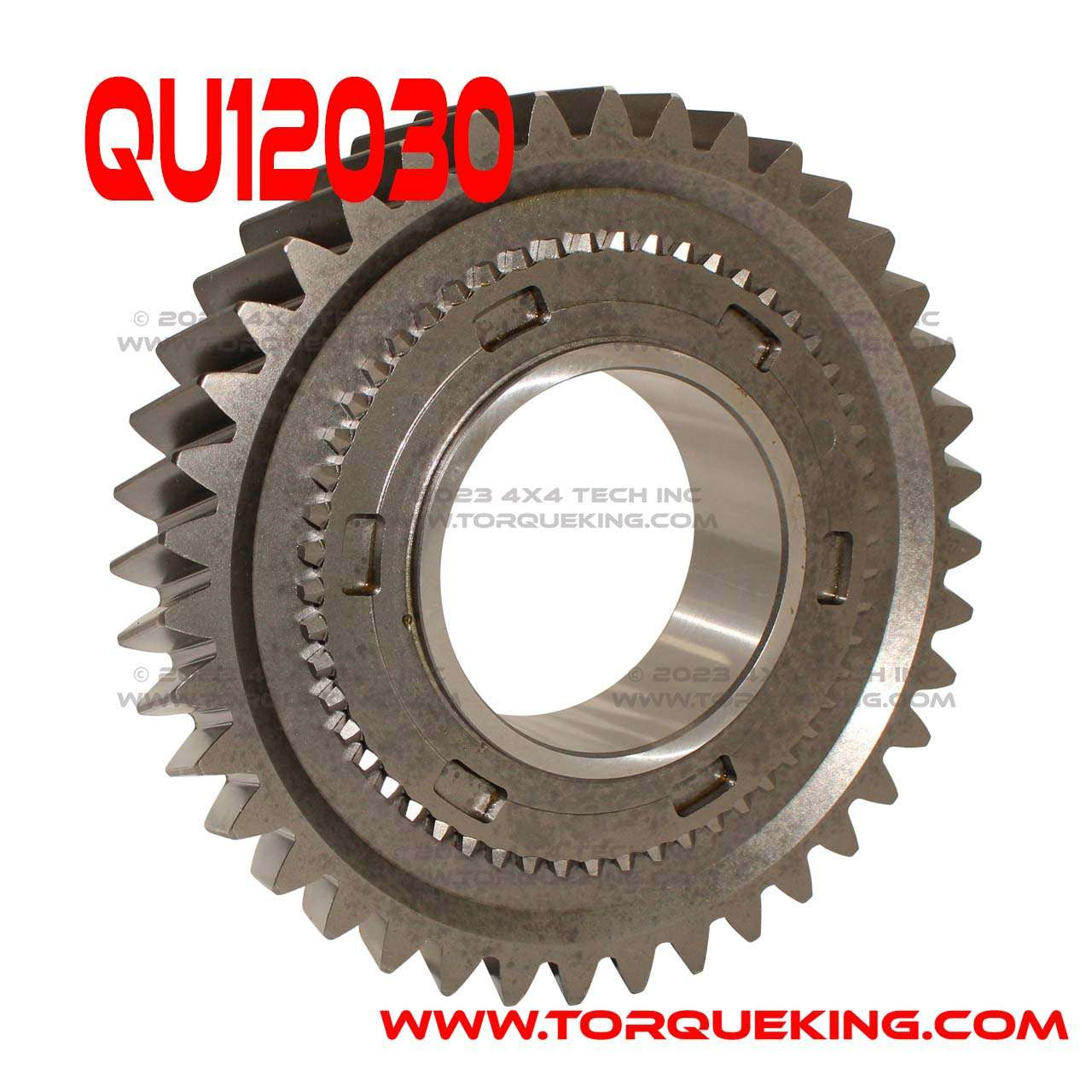

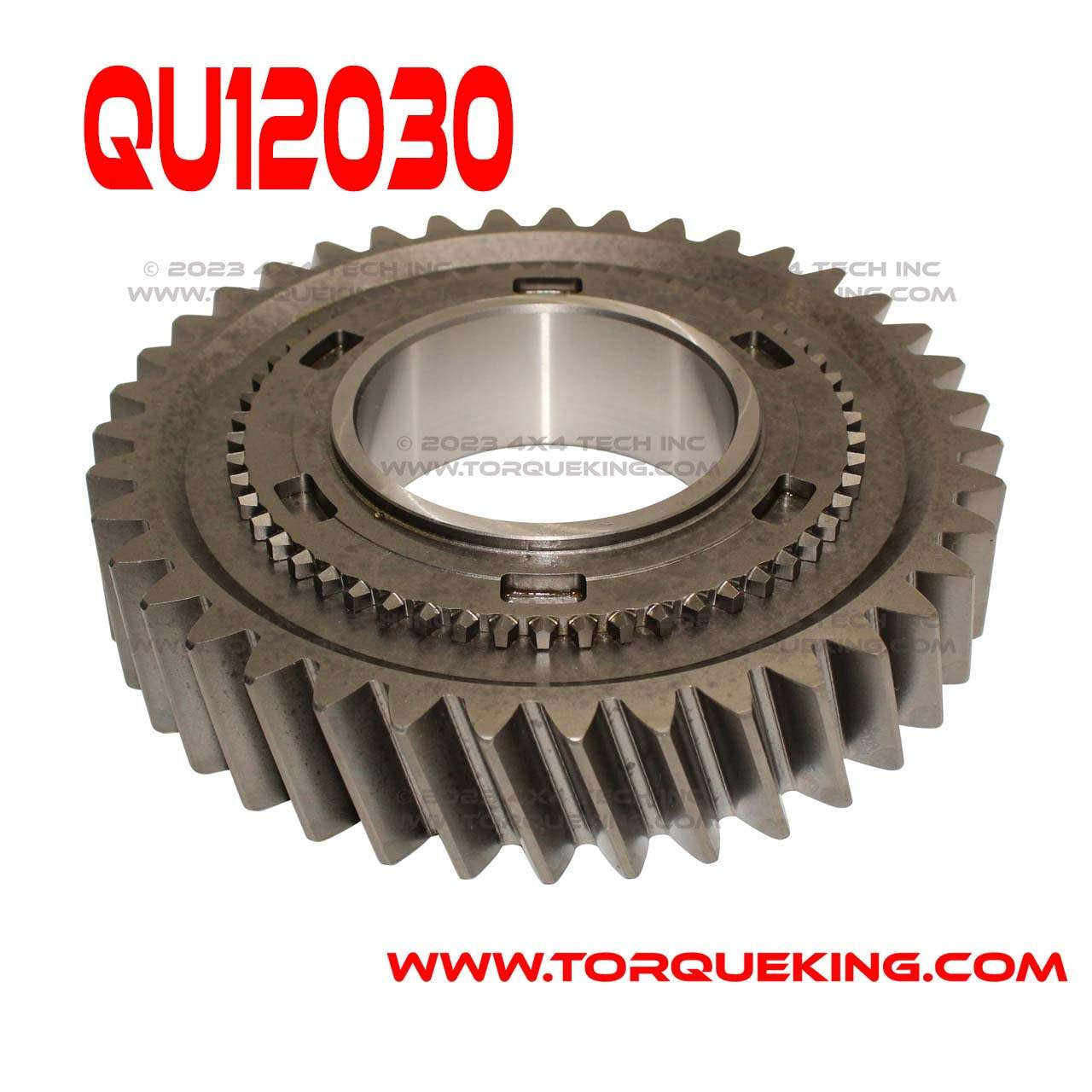

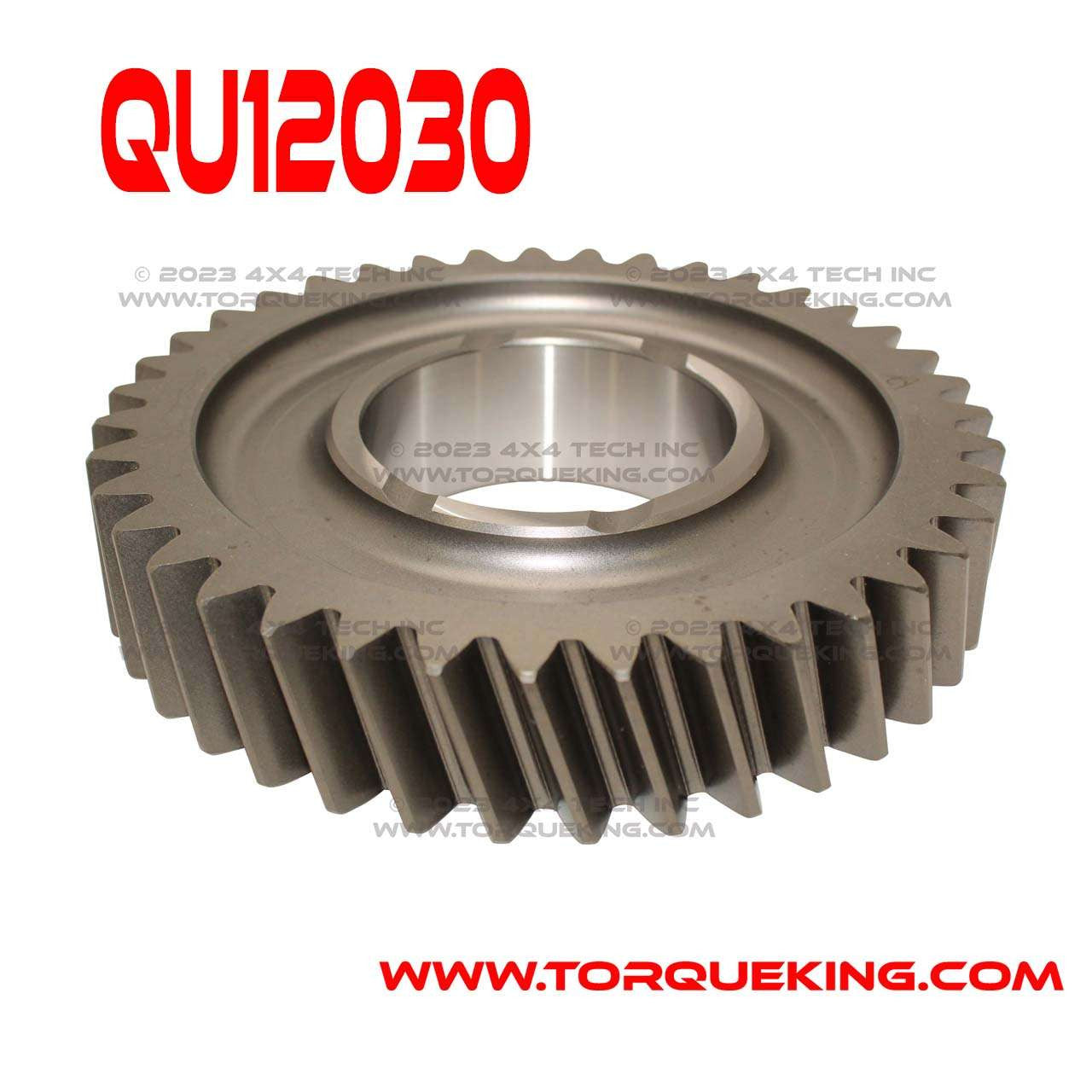

QU12030 Mainshaft 2nd Gear for 2001.5-2005 NV5600 Transmissions

QU12030 Mainshaft 2nd Gear for 2001.5-2005 NV5600 Transmissions has 39 teeth like your first gear, but the overall diameter is 6-1/2", about 1" smaller than the 7-12" diameter 1st Gear. Imported. This gear can can be used on 1999-2001.5 transmissions if synchronizer ring is also replaced. See Synchronizer below.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
1999-2001.5 NV5600
Applications

Tech Note 1: 1999-2001.5 NV5600
1999-2000, plus some early 2001 NV5600 transmissions used a unique synchronizer ring that was discontinued long before New Venture went belly up. To the best of my knowledge, no one currently makes rings for those early transmissions. What you need to do is replace the matching gear with a late model gear and purchase a late model ring for that gear. For instance, if your 5th and 6th synchros are out, you need to get a new style QU12001 Main Drive Gear (Input Shaft), QU12013 Mainshaft 6th gear, and 2 QU10408 Synchro Rings.

Applications:
Dodge:
Ram 2500 and Ram 3500 with New Venture NV5600 6 Speed Manual Transmissions: 2001.5, 2002, 2003, 2004, 2005
