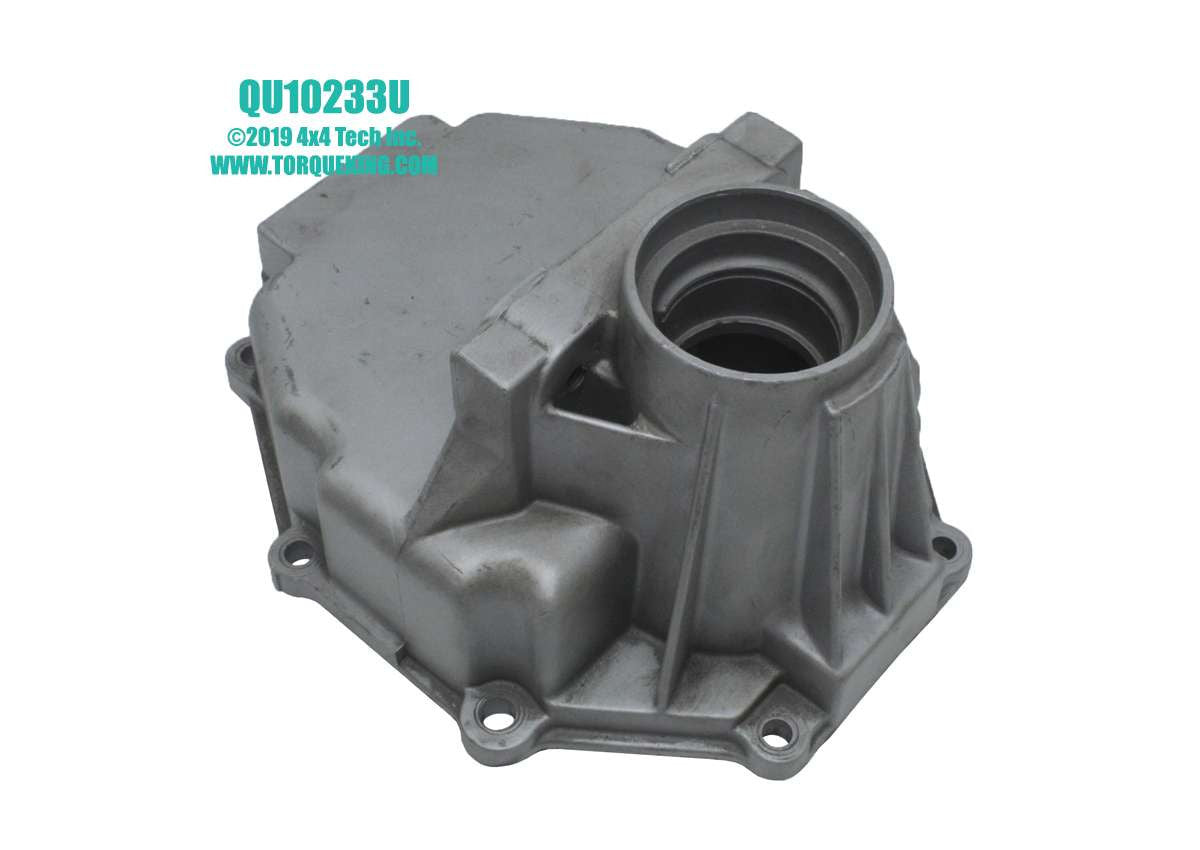

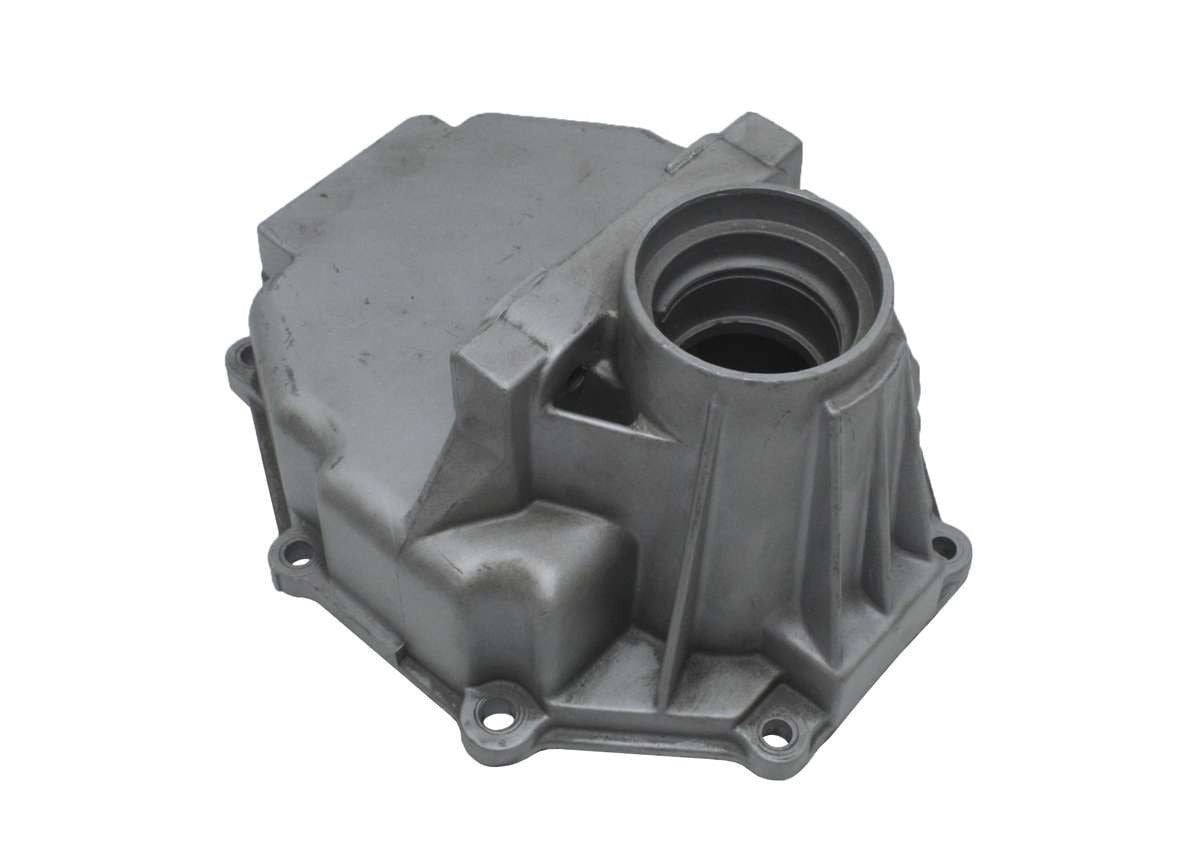

QU10233U Used BARE 1999-2007 GM NV4500 4x2 C-Truck Rear Housing

Used
No reviews yet Write a Review
$100.00
SKU:
5510233
UPC:
198345197346
Shipping:
Calculated at Checkout
Availability: When in stock, this part will have a live Add To Cart Button

Description

QU10233U Used BARE 1999-2007 GM NV4500 4x2 C-Truck Rear Housing for 1999-2007 C2500, and C3500 Chevy Silverado and GMC Sierra trucks with fixed output yoke and a screw-in speedometer sensor. Available while supplies last.

Also See: QU10233 New C-Truck Rear Housing

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Product Note
Housing Specs
Speedometer Sensors
Sealants

NV4500 Tools
Rear Output Applications
Matching Parts
Applications

Tech Note 1: Product Note
Since these housings are from used transmissions, there will be some RTV sealant you will need to clean off the mating surfaces.

Tech Note 2: Housing Specs
QU10233U GM NV4500 Tailshaft housing is approximately 6-3/8"” long. The casting number is 25868. The bolt pattern on the front is the universal NV4500 8 bolt main case to rear housing pattern. The rear of the housing will need QU50155 output shaft support bearing, QU10319 Bearing Snap Ring, and QU10720 rear output seal.

Tech Note 3: Speedometer Sensors
4x2 GM NV4500 transmissions in C-Series trucks were built with two types of Speedometer Sensors. QU10227 Bolt-In or Push-In type speedometer Sensor first appeared in 1992 and it was used until early 2002 in C-Series GM trucks with the GMT400 body. The Speedometer Sensor is grooved for an o-ring and it is installed by pushing it into a smooth hole in the rear output housing. The sensor has an integeral metal tab that is secured to the tailshaft housing with a bolt.

For the 1999 model year, GM introduced the C-Series, GMT800 body style and it was offered until 2007 with a NV4500 tailshaft housing that uses QU10228 Screw-In Speedometer Sensor. QU10233 is made to work with the screw-in speedometer sensor.

Tech Note 4: Sealants
Early production NV4500 Transmissions used an anaerobic sealant (QU90003) to seal between the main case and input bearing retainer, top cover, and rear housing. Mid-production units used anaerobic sealant just on the input retainer and RTV for everything else. Later production transmissions used black RTV sealant (QU90006 or QU90005) for everything. Either type of sealant works fine (except the PTO covers ALWAYS should be sealed with RTV), but I prefer RTV for all components. Regardless of which sealant you use, make sure excess sealant does not block the lube access hole at the top of input retainer pilot that fits into the transmission case. Also, the threaded holes in the main case for the four retainer bolts and 12 PTO bolts are open ended, so you must use new bolts with factory applied theadlocker or apply Threadlocker (S24200) to your existing bolts to prevent oil seepage past the bolt threads. See my TM1003 NV4500 Shop Manual or VSG1003DVD NV4500 Overhaul Video for more information.

Tech Note 5: NV4500 Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual. You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

TOOLS for SPECIFIC NV4500 MODELS

Component 23 Spline
Dodge 4x4
NV4500LD
29 Spline
Dodge 4x4
NV4500HD
30 Spline
Dodge 4x2
NV4500LD
31 Spline
Dodge 4x2
NV4500HD
32 Spline
GM 4x4
35 Spline
GM 4x2
Mainshaft Nut QT2002 QT2001
QT2036
QT2002 QT2001
QT2036
QT2002
QT2028
1-1/2" Hex
Socket
Mainshaft Holding NLA QT2000 NLA QT2011 N/A N/A
5th Gear Nut
Torx® Cross Bolt
N/A QT9205 N/A QT9205 N/A N/A
Output Seal Installer N/A QT1801 N/A QT2058
CALL
Not Used Not Used
Tailshaft Bushing Remover and Installer Not Used Not Used Not Used QT2044 Not Used Not Used

TOOLS For ALL NV4500 MODELS

Countershaft
Front Bearing Cup Installer
QT1802 Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal
Countershaft Front Bearing Installer QT2004 Can also use to press 3-4 Synchro Hub on original equipment mainshafts
Input Bearing & Countershaft Rear Bearing Installer QT2005 Can also use to install Input Seal
Input Bearing Cup Installer QT1801 Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle.
Countershaft Support QT2006 Use to support front of countersahft when installing countershaft rear bearing
1-2 Synchronizer Support QT2008 Use to support 1-2 synchronizer hub during synchronizer assembly
10mm 1/2" Drive 12 Point Socket QT1020 USA Made Impact Socket for Factory Tailshaft Housing Bolts
Long Shank Punch for Shift Lug QT9300 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin



Tech Note 6: Rear Output Applications
NV4500 Transmissions are frequently used for conversion applications. The Table below lists the most popular rear output applications and their associated parts.

Component 23 Spline
Dodge 4x4
29 Spline
Dodge 4x4
31 Spline
Dodge 4x2
w/Speedo
31 Spline
Dodge 4x2
No Speedo
32 Spline
GM 4x4
35 Spline
GM 4x2
Short*
35 Spline
GM 4x2
Long*
Mainshaft  QU10214 QA1045 or
QU10011
QU10013 QU10013 QU10098 QU10719 QU10212
Rear Housing QU10057U QU10057U QU10024 QU10083 QU10716 QU10233 QU10217
5th Gear** QU10007
QU10086
QU10067 QU10067 QU10067 QU10007
QU10086
QU10007
QU10086
QU10007
QU10086
5th Gear
Nut Set
QK1093
QU10097
QU10069 QU10069 QU10069 QK1093
QU10097
See Yoke
Nut
See Yoke
Nut
Speedometer
Drive
Not Used Not Used QU10027
QK1143
Not Used Not Used QU10177 QU10177
Speedometer
Snap Ring
Not Used Not Used QU10330
QK1143
Not Used Not Used Not Used Not Used
Speedometer
Sender
Not Used Not Used Contact
Dealer
Not Used Not Used QU10228 QU10228
Speedometer
O-Ring
Not Used Not Used QU10678 Not Used Not Used incl. with
QU10228
incl. with
QU10228
Spacer Not Used Not Used Not Used Not Used QU10172
QU10173
Not Used QU10738
Bushing or
Bearing
Not Used Not Used QU10025 QU10025 Not Used QU50155 QU50155
Bearing
Snap Ring
Not Used Not Used Not Used Not Used Not Used QU10319 QU10319
Output Seal QU10123 QU10123 QU10023 QU10023 Not Used QU10720 QU50204
Gasket TK10519 TK10519 Not Used Not Used TK30052 Not Used Not Used
Yoke Not Used Not Used QU40700
QU40354
QU40495
QU40700
QU40354
QU40495
Not Used QU10184
QU10727
QU30094
QU40902
Yoke
Spline Seal
Not Used Not Used QU10026 QU10026 Not Used QU30009 QU30009
Yoke Washer Not Used Not Used Not Used Not Used Not Used QU30095 QU30095
Yoke Nut See 5th
Gear Nut
See 5th
gear Nut
See 5th
Gear Nut
See 5th
Gear Nut
See 5th
Gear Nut
QU10181 QU10181

 *Electronic, Screw-In Speedometer Sensor
**22 Tooth Mainshaft 5th Gears listed for 1992-2005 Dodge and 1995-2007 GM with 5.61:1 1st gear ratio. 1992-1994 GM with 6.34:1 first gear ratio use 19 Tooth QU10728 Gear. QU10728 is NOT compatible with Dodge 29 and 31 Spline Output Shafts.

Tech Note 7: Matching Parts
Matching Parts for QU10233U GM NV4500 4x2 Rear Housing:
QU10106 12 Point Metric Tailshaft Housing Bolt with factory applied Threadlocker
QU10146 Tailshaft Housing Alignment Dowell
NV4500L Transmission Main Case for 1997-2007 GM
QU10184 1350 Series Rear Output Yoke
QU10727 1350 Series Rear Output Yoke with Dampener
QU30094 1410 Series Rear Output Yoke
QU10184 1410 Series Rear Output Yoke with Dampener
QU10228 Screw-In Speedometer Sensor
QU90003 Anerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Threadlocker
S9978 1 gram Threadlocker
QU90020 NV4500 Manual Transmission Oil
TM1003 NV4500 Shop Manual
VSG1003DVD NV4500 Overhaul Video
Chevy & GMC Shop Manuals

Applications

Chevy and GMC:
C2500, C3500 series Silverado and Sierra GMT800 Body Style: 1999, 2000, 2001, 2002
C2500, C3500 series Silverado and Sierra: 2003, 2004, 2005, 2006
C2500 series Silverado Classic and Sierra Classic: 2007

Warranty

Used parts are sold As-IS with no warranty. However, Used Parts may be returned for any reason within 30 days of purchase.
