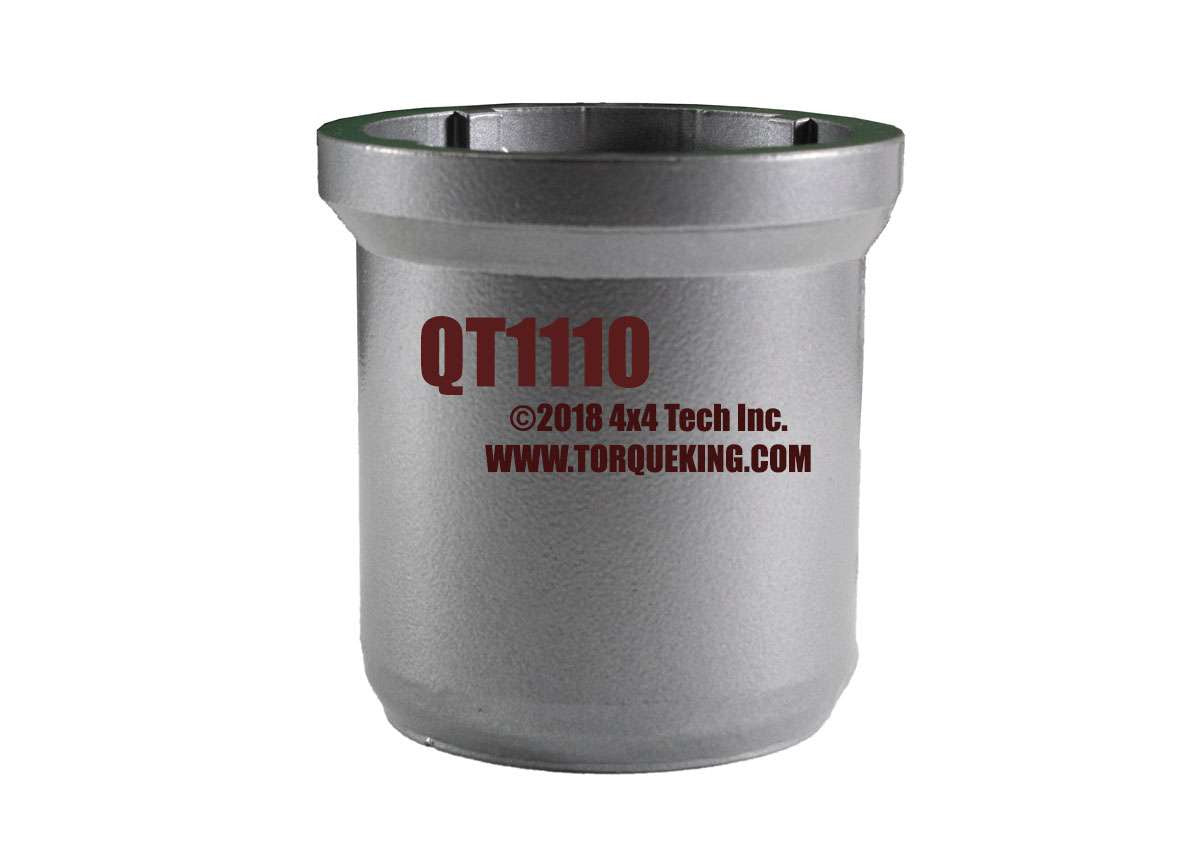

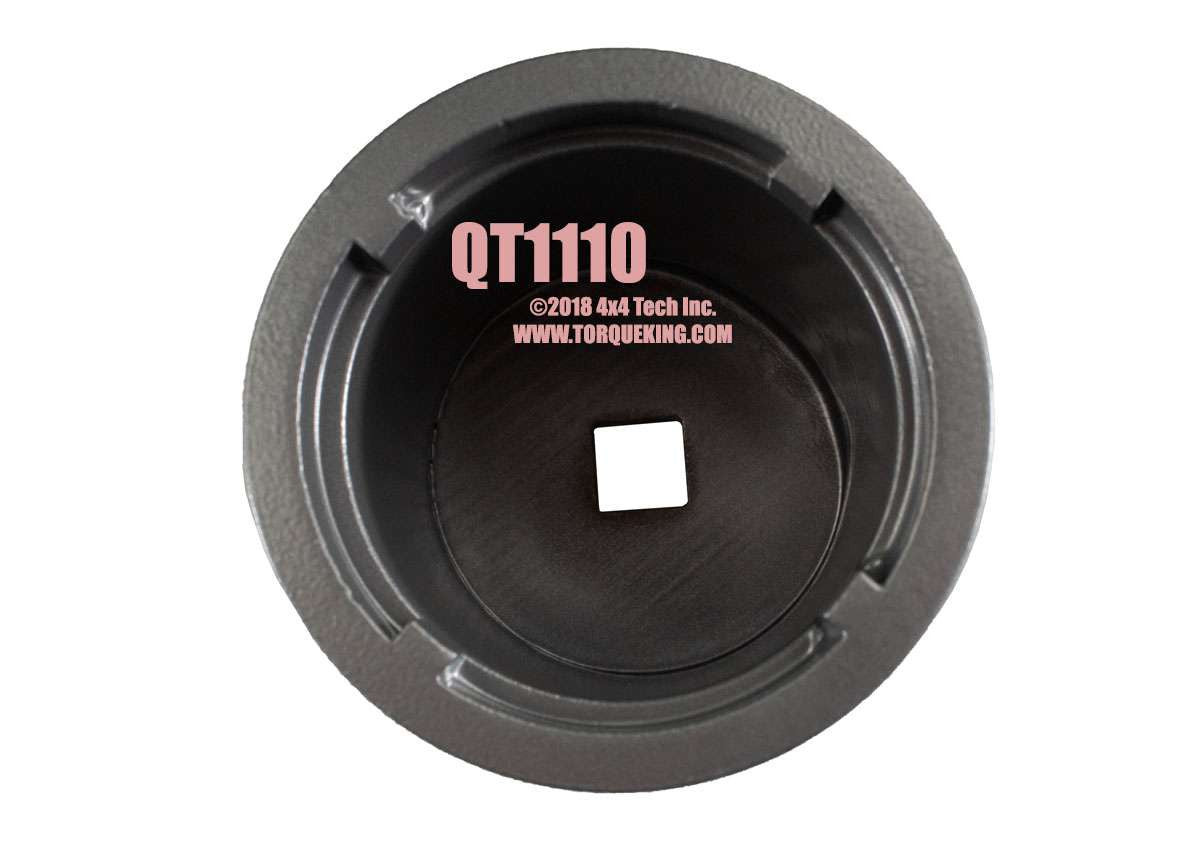

QT1110 USA Made 4 Lug Spindle Nut Socket Dana 50, Dana 60 Front Axles

Tools - Standard
No reviews yet Write a Review
$69.28
SKU:
1110
UPC:
198345077068
Condition:
New
Shipping:
Calculated at Checkout
Availability: Out of Production. No Longer Available. Order QT1110i

Description

QT1110 USA Made, Heavy Duty, 1/2" Drive, USA Made 4 Lug Spindle Nut Wrench for Dana 50 and Dana 60 Front Axles fits Dana Spicer 50, 60, and 61 front drive axles with 4 slot double spindle nuts (QK4729) and serviceable wheel bearings from 1981-1997. Reinforced, heavy-duty, ½" drive socket works on all round, 4 slot double nuts found on 1980s and 1990s Chevy, Dodge, Ford, and GMC 1 ton and heavy duty 3/4 ton 4x4 trucks.

Also Available: QT1110i Heavy Duty 4 Prong Spindle Nut Wrench for Dana 50 and Dana 60 Front Axles. Imported.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
High Torque Optional Socket
1982-1991 Chevy/GMC K3 Series Dana 60 4x4 Front Axle
1990.5-1993 Dodge W250, W350 Dana 60, Dana 61 4x4 Front Axle
1984-1997 Ford F250 and 1984-1985.5 Ford F350 Dana 50IFS Front Axle

1985-1997 F350 Dana 60 Front Axle
Applications

Tech Note 1: High Torque Socket
For trucks with 4 Slot Double Spindle Nut Sets (QK4729) and automatic hub-locks with 5 bolt caps, QT1110 or QT1110i High-Torque Sockets are recommended over QT1018/QT1018i standard sockets due to the higher torque specifications called for on auto hub equipped trucks. Both QT1018 and QT1110 series sockets work equally well on axles with manual hubs. The open lug design of QT1018/QT1018i is the better choice when working on an axle that some previous person used a chisel on the nuts instead of a socket as the raised burrs will not affect the socket engagement.

Tech Note 2: 1982-1991 Chevy/GMC K3 Series Dana 60 4x4 Front Axle
GM used 4-piece, 6-Notch QK4728 Spindle Nut Set for 1977-1981 which is not compatible with the automatic hub locks GM introduced for the 1982 model year. QT1110 fits 1982-1991 GM Dana 60 front axles with auto or manual hub locks. QT1110 or QT1110i High-Torque Sockets are the preferred choices for auto hub equipped axles due to the high 160-205 lb.-ft. outer nut torque value required for auto hub equipped models.
Matching Parts for QT1110 Spindle Nut Wrench with 1982-1991 Dana 60 Front Axles in Chevy or GMC 1 ton K30, K35, K3500, V3500, CUCV 4x4s:
Exploded View XV1006 1977-1991 Chevy/GMC 1 Ton Dana 60 Front Axle
QK4729 3 Piece Spindle Nut Set  incls. QU40163, QU40164, QU40166
QU40166 Inner Spindle Nut with Pin
QU40164 Spindle Lock Washer
QU40163 Outer Spindle Nut
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA4962 New Front Wheel Hub for 1977-1991 GM SRW
QU40293 New Premium OEM Spindle
Y440293 Replacement Spindle
QU90018 Pyroplex Synthetic Grease
QU90021 Spicer Ultra Premium Synthetic Grease
QT5500 Wheel Bearing Packer
QT1505 Wheel Seal Installer
QT1801 Outer Bearing Cup Installer
QT1804 Inner Bearing Cup Installer
QT1018i Optional Standard 4 Lug Spindle Nut Socket (not recommended for auto hub applications)
Chevy & GMC Shop Manuals

Tech Note 3: 1990.5-1993 Dodge W250, W350 Dana 60, Dana 61 4x4 Front Axle
Dodge used a Double Hex Nut Spindle Nut for Dodge Dana 60/61 axles prior to late production 1990 axles. The hex nut lock washer is hard to bend over the spindle nut with the internally splined wheel hubs used on 1990-1993 Dodge Dana 60 axles so Dodge switched to QK4729 Round Nut and Washer Set during late 1990-1991. The Dodge Parts Book only shows the round nuts for 1992 and 1993, but I worked on a few 1990 and a lot a 1991 trucks that also had them. Spicer lists the round nut set as far back as 1989, but I never worked on a 1989 model year truck that had the round nuts.
Matching Parts for QT1110 Spindle Nut Wrench with 1991.5-1993 Dodge Dana 60 or Dana 61 4x4 Front Axles in W250 (Diesel or Snowplow Package) and W350 4x4 Trucks
Exploded View XV1004 1990-1993 Dodge W250, W350 Dana 60/61 Front Axle
QK4729 3 Piece Spindle Nut Set  incls. QU40163, QU40164, QU40166
QU40166 Inner Spindle Nut with Pin
QU40164 Spindle Lock Washer
QU40163 Outer Spindle Nut
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
QU50216 8 Bolt Hub Gasket 1975-1990
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA4962 New Front Wheel Hub for 1990.5-1993 Dodge SRW
QU40293 New Premium OEM Spindle
Y440293 Replacement Spindle
QU90018 Pyroplex Synthetic Grease
QU90021 Spicer Ultra Premium Synthetic Grease
QT5500 Wheel Bearing Packer
QT1505 Wheel Seal Installer
QT1801 Outer Bearing Cup Installer
QT1804 Inner Bearing Cup Installer
QT1018i Optional Standard 4 Lug Spindle Nut Socket
Dodge & Ram Shop Manuals

Tech Note 4: 1984-1997 Ford F250 and 1984-1985.5 Ford F350 Dana 50IFS Front Axle
Ford lists QK4729 4 Slot Round Spindle Nut Set first being used in Dana 50IFS axles for the 1985 model year. Spicer Bill of Material listings show it back to 1981. My memory is we started seeing the 4 Slot Spindle Nuts in Fords around 1983 or 1984. If you have the 4 Slot Nut, QT1110 is correct. If you have the Nuts with 6 Notches, use QT1025. QT1110 or QT1110i High-Torque Sockets are the preferred choices for 1991-1995 trucks with auto hubs with 5-Bolt caps, due to the high outer spindle nut torque value required for these hubs. In 1995, Ford introduced a new 3-Bolt Cap auto hub that uses a single, rounded hex spindle nut. See the exploded view below if your 1995-1997 4x4 has the rounded hex nut.
Matching Parts for QT1110 Spindle Nut Wrench with 1980-1997 Ford F250 and 1980-1985 Ford F350 Dana 50IFS Front Axles.
Exploded View XV1014 1983.5-1994 Ford Dana 50IFS Front Axle
Exploded View XV1010 1995-1997 Ford Dana 50IFS Front Axle
QK4729 3 Piece Spindle Nut Set  incls. QU40163, QU40164, QU40166
QU40166 Inner Spindle Nut with Pin
QU40164 Spindle Lock Washer
QU40163 Outer Spindle Nut
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA20332 New Front Wheel Hub for 1978-1994 Ford SRW
TKA4923 New Front Wheel Hub for 1995-1997 Ford SRW
TK20227 New Premium USA Made Hardened Spindle for 1980-1997 Ford Dana 50IFS
QK4729 4 Slot Spindle Nut Set 1985-1997 Except Auto Hubs with 3 Bolt Caps
QU90021 Spicer Ultra Premium Synthetic Grease
QU90018 Pyroplex Synthetic Grease
QT5500 Wheel Bearing Packer
QT1505 Wheel Seal Installer
QT1801 Outer Bearing Cup Installer
QT1018i Optional Standard 4 Lug Spindle Nut Socket
Ford Shop Manuals

Tech Note 5: 1985-1997 F350 Dana 60 Front Axles
All 1985-1997 Ford F350 Dana 60 Front Axles with Manual Hub Locks use QK4729 4 Slot Spindle Nut Set as do 1991-1995 5-Bolt Cap Auto Hub equipped trucks. QT1110 or QT1110i High-Torque Sockets are the preferred choices for 1991-1995 trucks with auto hubs with 5-Bolt caps, due to the high outer spindle nut torque value required for these hubs.  In 1995, Ford introduced a new 3-Bolt Cap auto hub that uses a single, rounded hex spindle nut. See the exploded view below if your 1995-1997 4x4 has the rounded hex nut.
Matching Parts for QT1110 Spindle Nut Wrench with 1978-1979 Ford F250, 1979 F350 and 1985-1997 F350 Dana 60 Front Axles
Exploded View XV1015 1985-1991 Ford F350 Dana 60 Front Axle
Exploded View XV1013 1992-1994 Ford F350 Dana 60 Front Axle
Exploded View XV1011 1995-1997 Ford F350 Dana 60 Front Axle
QK4729 3 Piece Spindle Nut Set  incls. QU40163, QU40164, QU40166
QU40166 Inner Spindle Nut with Pin
QU40164 Spindle Lock Washer
QU40163 Outer Spindle Nut
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA20332 New Front Wheel Hub for 1985-1994 Ford SRW
TKA4923 New Front Wheel Hub for 1995-1997 SRW
QU40169 New Premium OEM Spindle for 1985-1991
Y440169 Replacement Spindle for 1985-1991
QU40420 New Premium OEM Spindle for 1992-1997
Y440169 Replacement Spindle for 1992-1997
QU90018 Pyroplex Synthetic Grease
QT5500 Wheel Bearing Packer
QT1505 Wheel Seal Installer
QT1801 Outer Bearing Cup Installer
QT1804 Inner Bearing Cup Installer
QT1018i Optional Standard 4 Lug Spindle Nut Socket
Ford Shop Manuals

Applications:

Chevy/GMC:
1 Ton K30, K35, K3500, V3500 Square Body Style 1 ton 4x4: 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Dodge:
W-350, Diesel W-250: 1992, 1993

Ford with Manual Hub Locks:
F-250 with Model 50IFS Front Axle and 4 slot spindle nuts: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
F-350 with Model 50IFS front axle and 4 slot spindle nuts: 1985
F-350 with Model 60 front axle and 4 slot spindle nuts: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
