Shop now for Spindles and Spindle Parts for Dana 60 Front Axles in 1977-1991 Chevy and GMC K30, K35, K3500, and V3500 1 Ton 4x4 Trucks. In stock. Quick shipping.

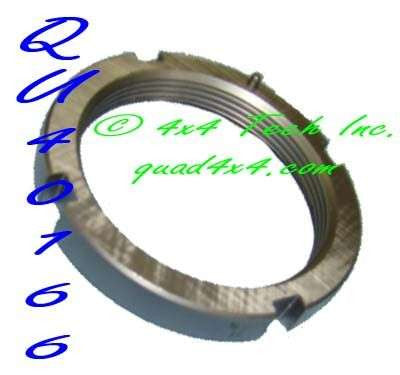

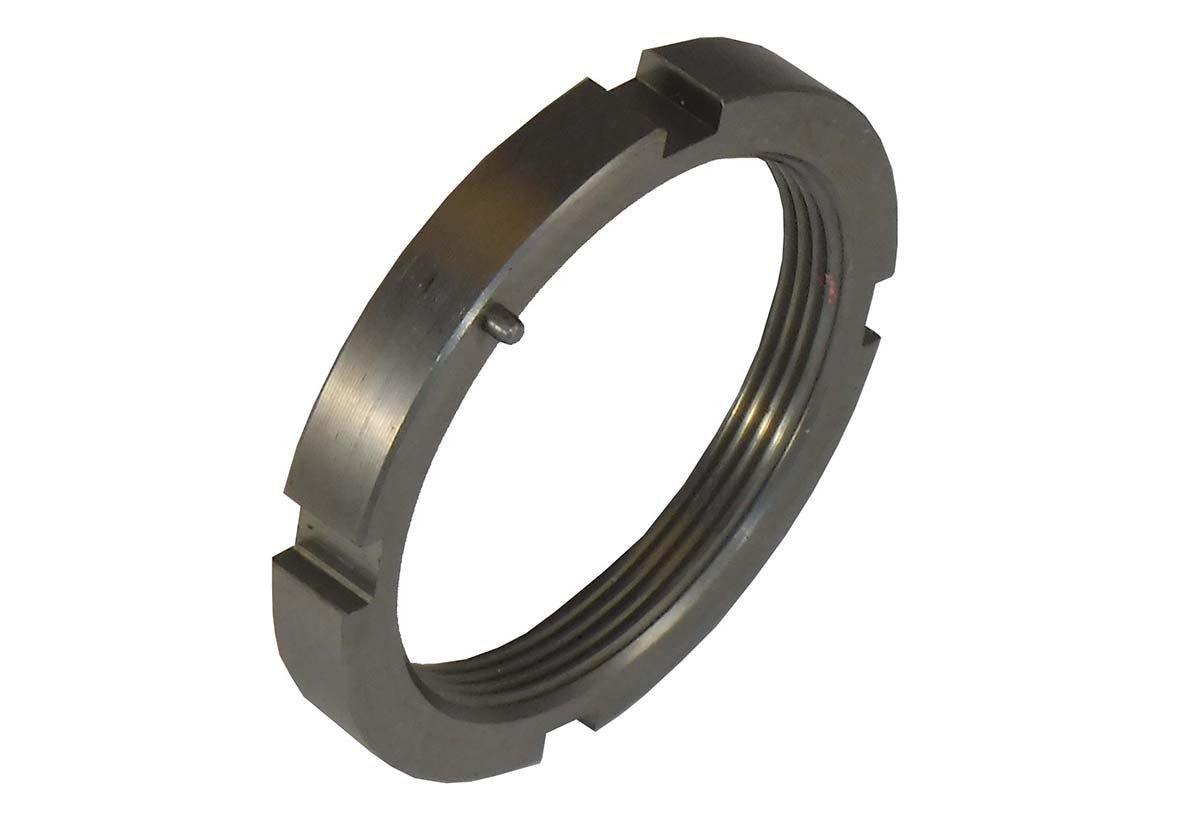

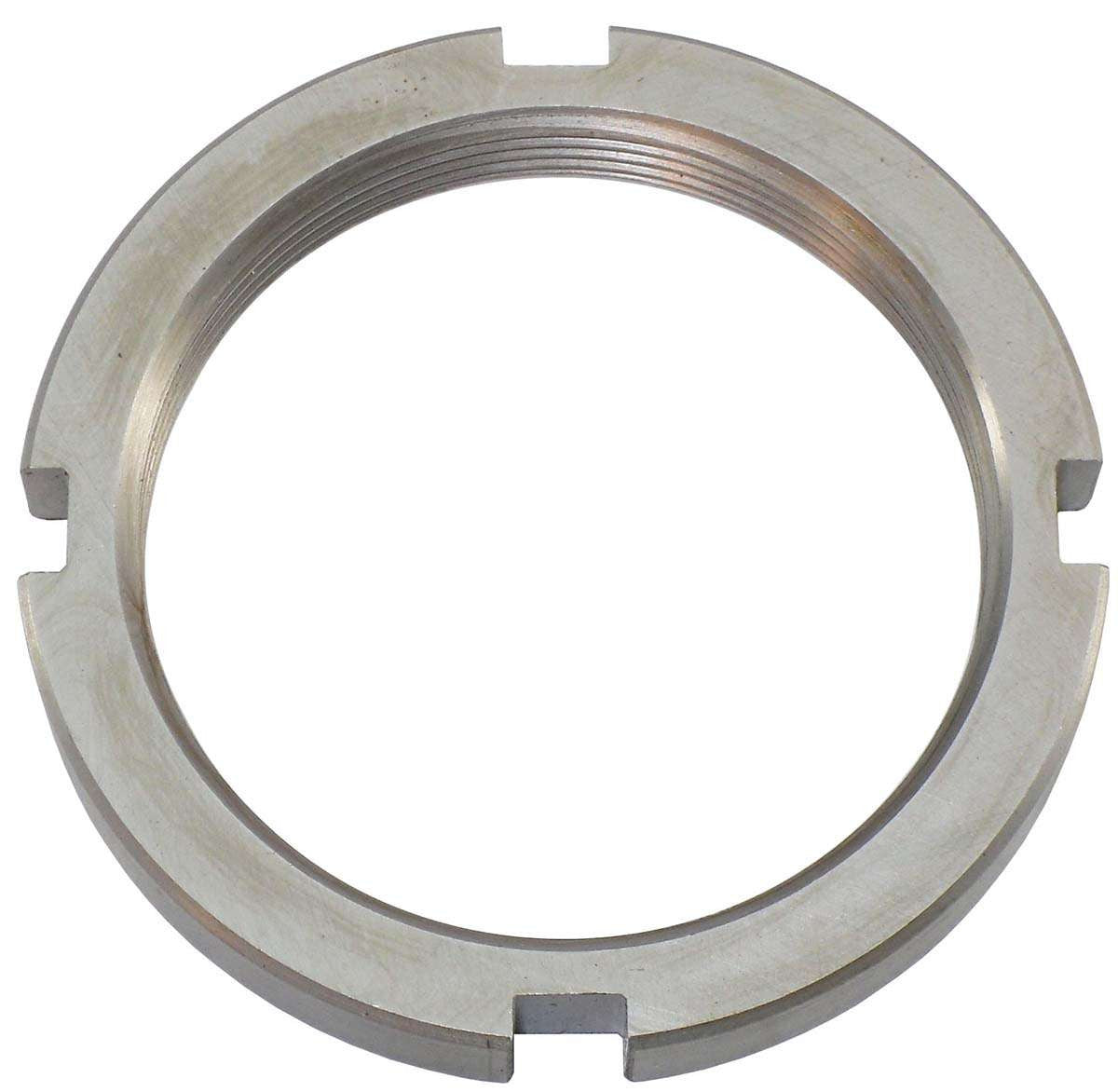

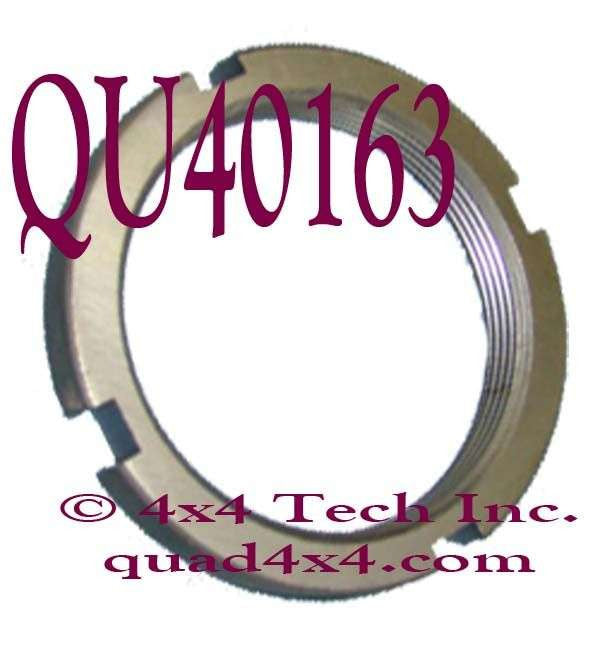

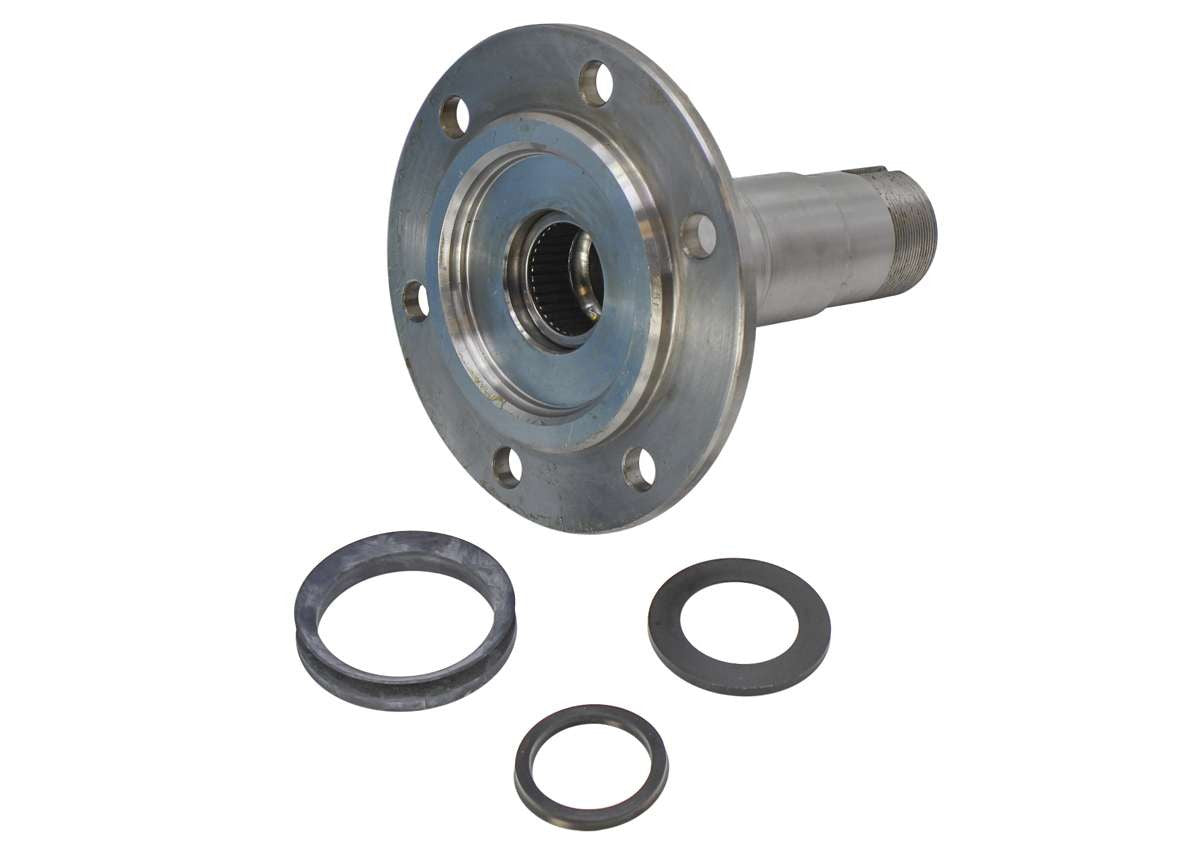

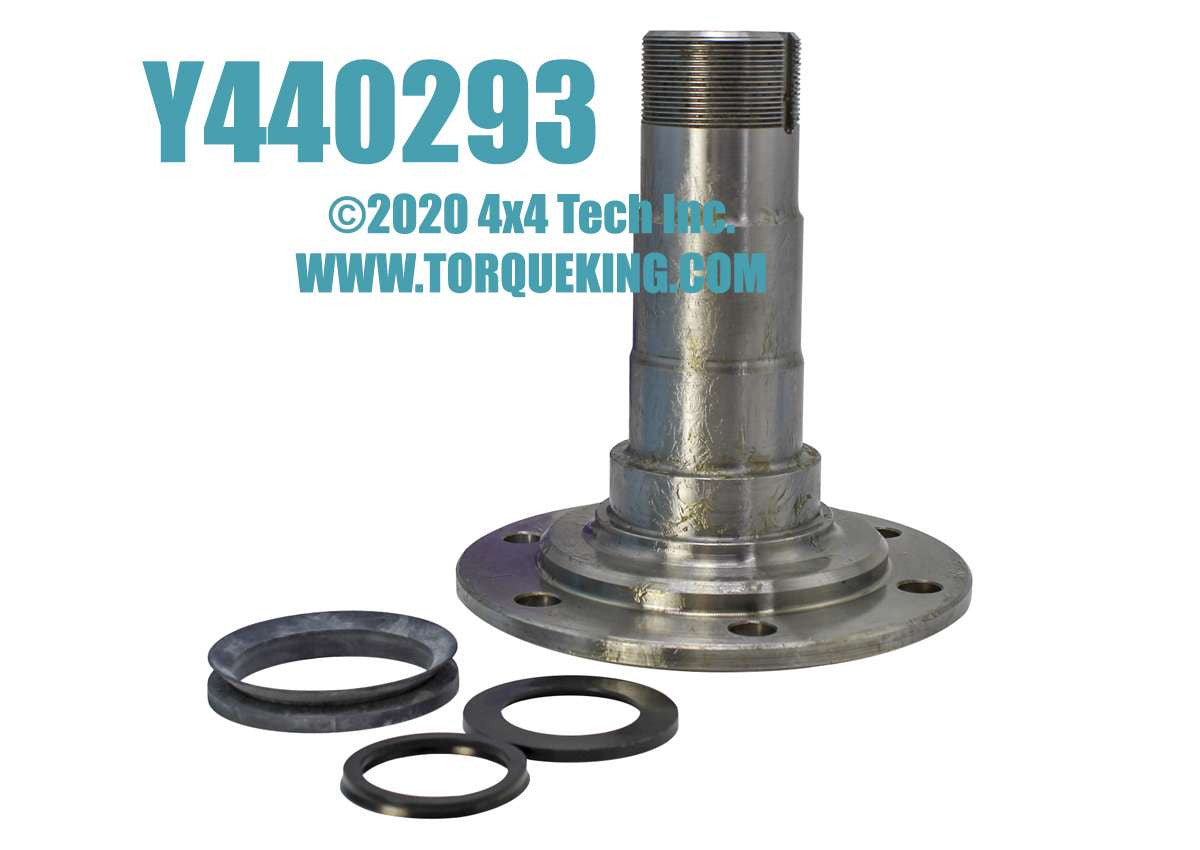

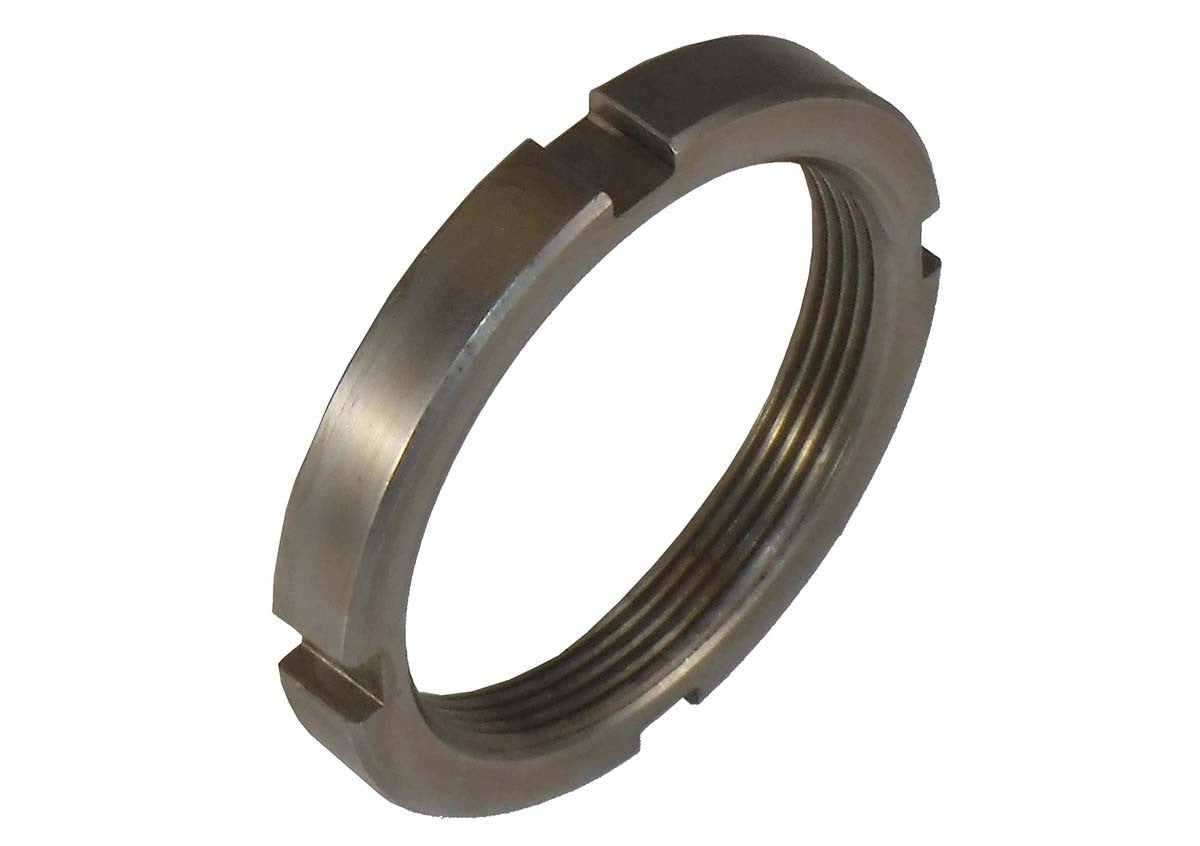

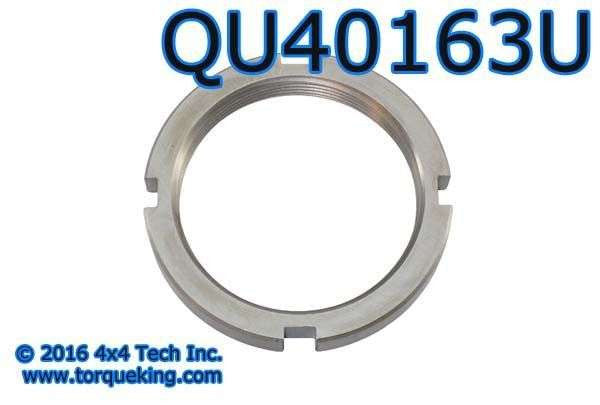

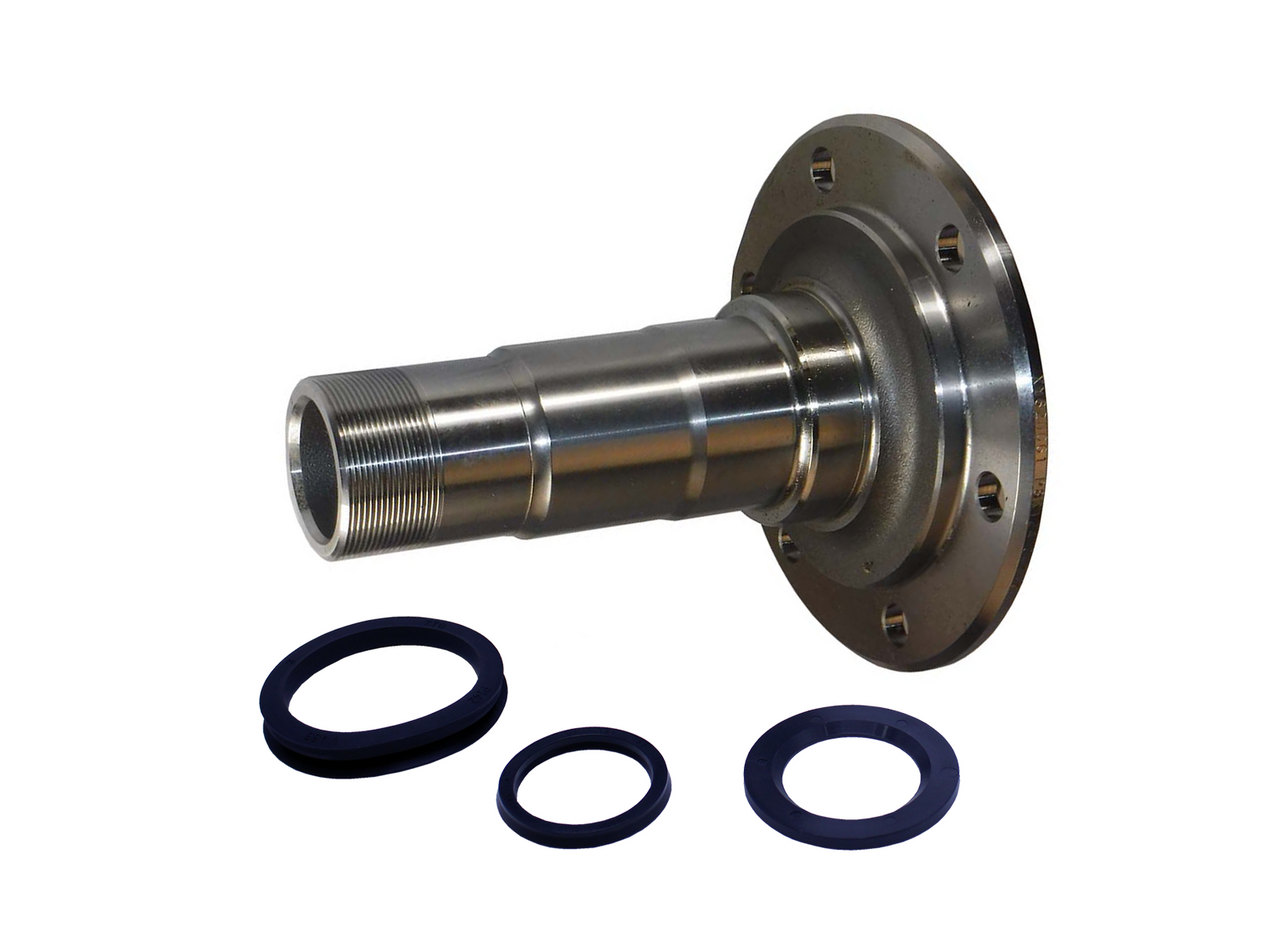

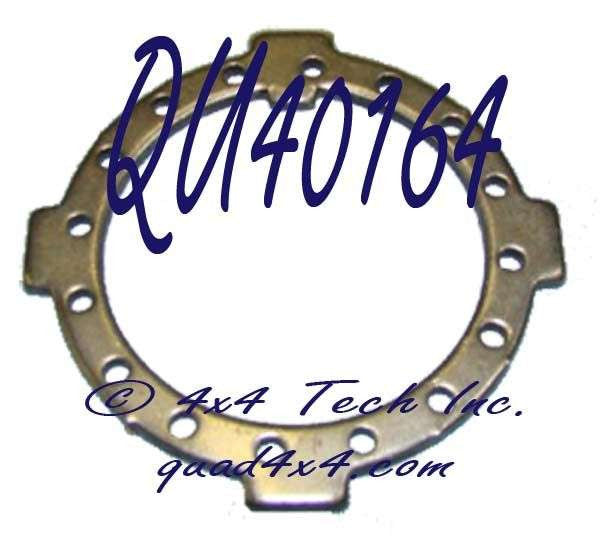

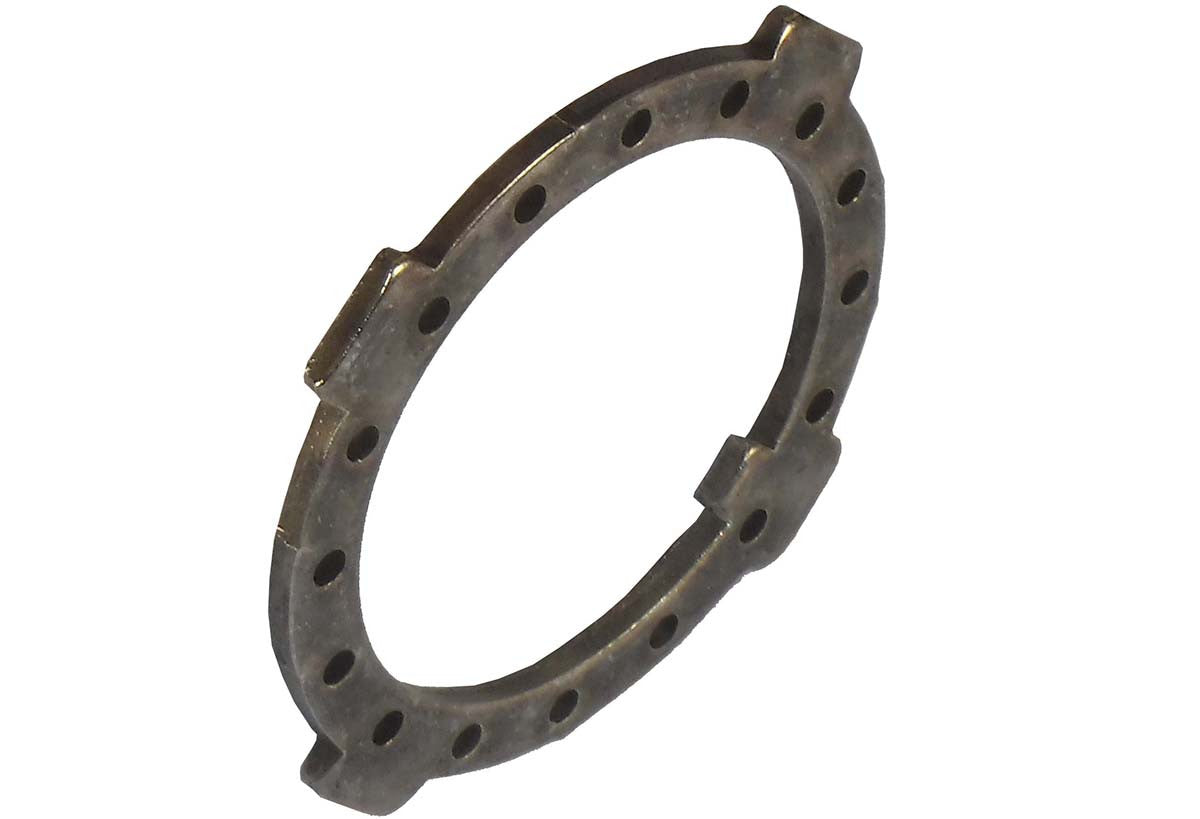

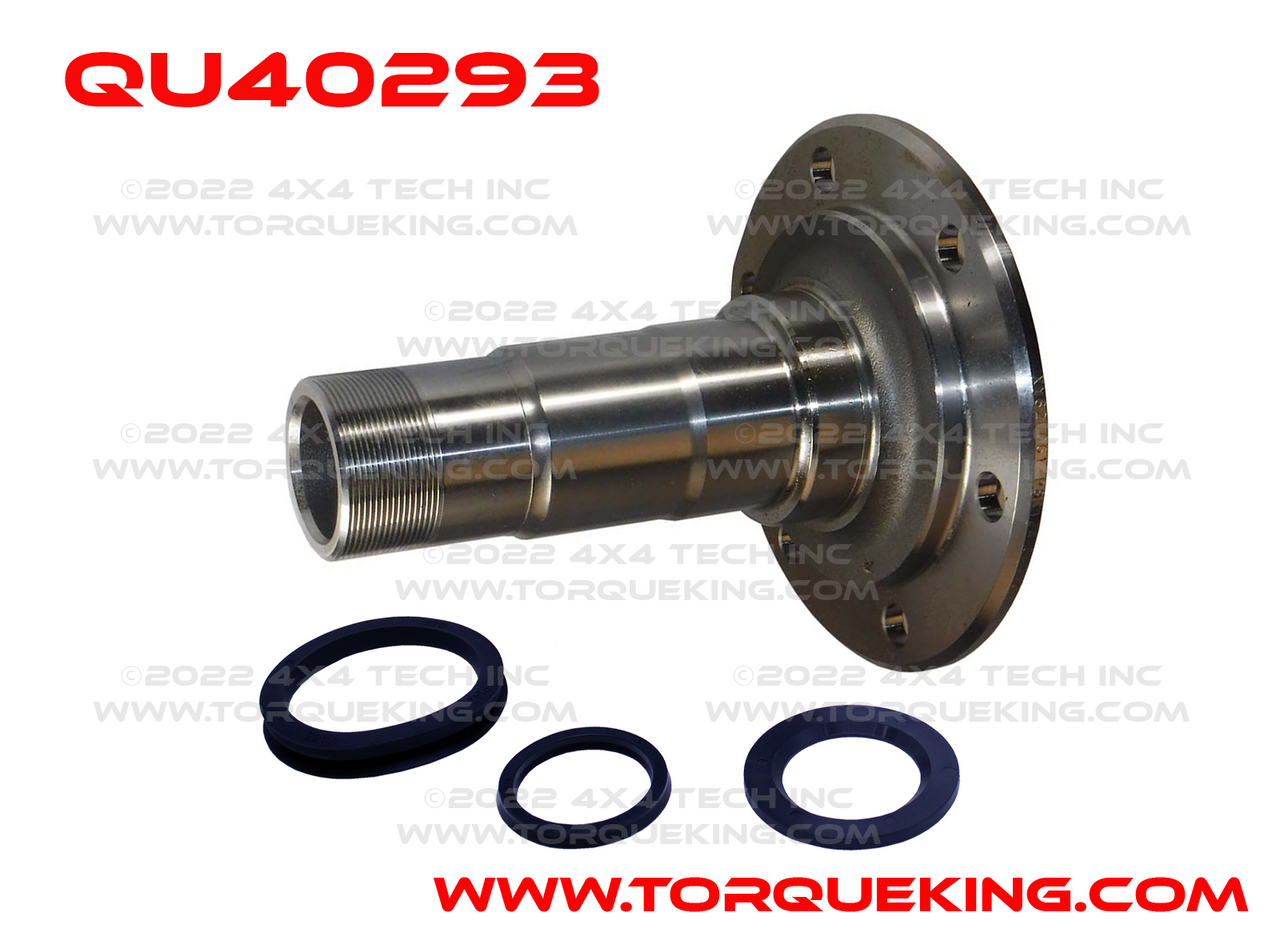

General Motors use the same QU40293C front spindle on all 1977 to 1991 K30, K35, K3500, and V3500 one ton 4x4 trucks with the Model 60 open knuckle front drive axle. Spindle nuts are a different story. GM used a 6 slot spindle nut set with a thrust washer and bend over tab lockwasher from 1977 to 1981. For 1982 to 1991, a round 4 slot nut double nut design was used except on 1984 trucks with factory auto hubs which had a drag nut set that is no longer available. The good news is most of those unreliable auto hubs were junked years ago, so you can use the 3 piece round nut set with manual hubs.

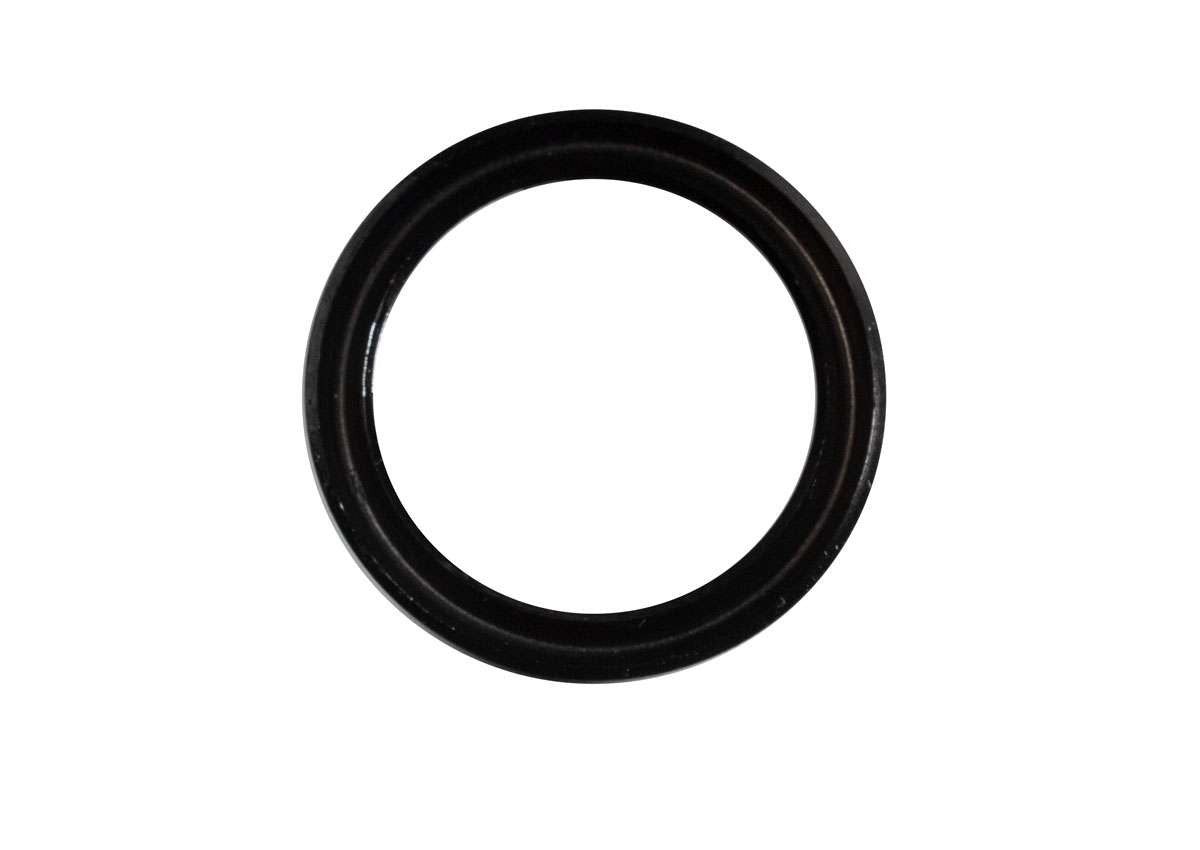

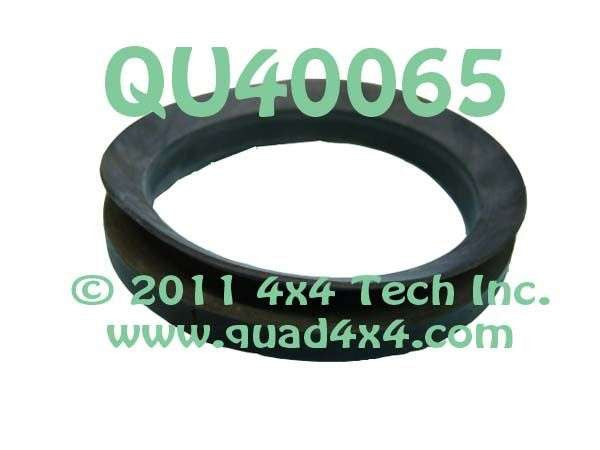

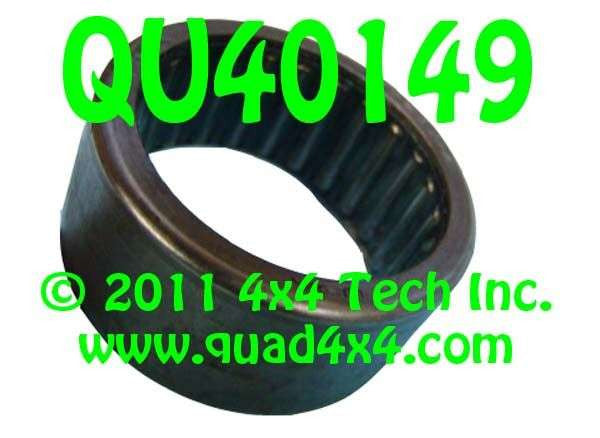

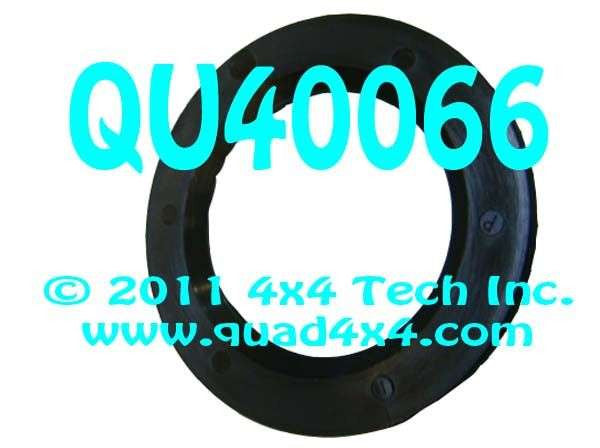

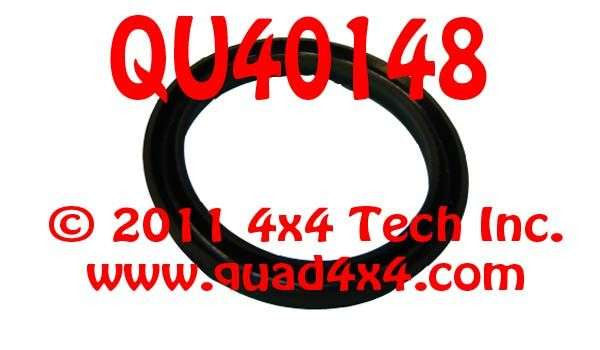

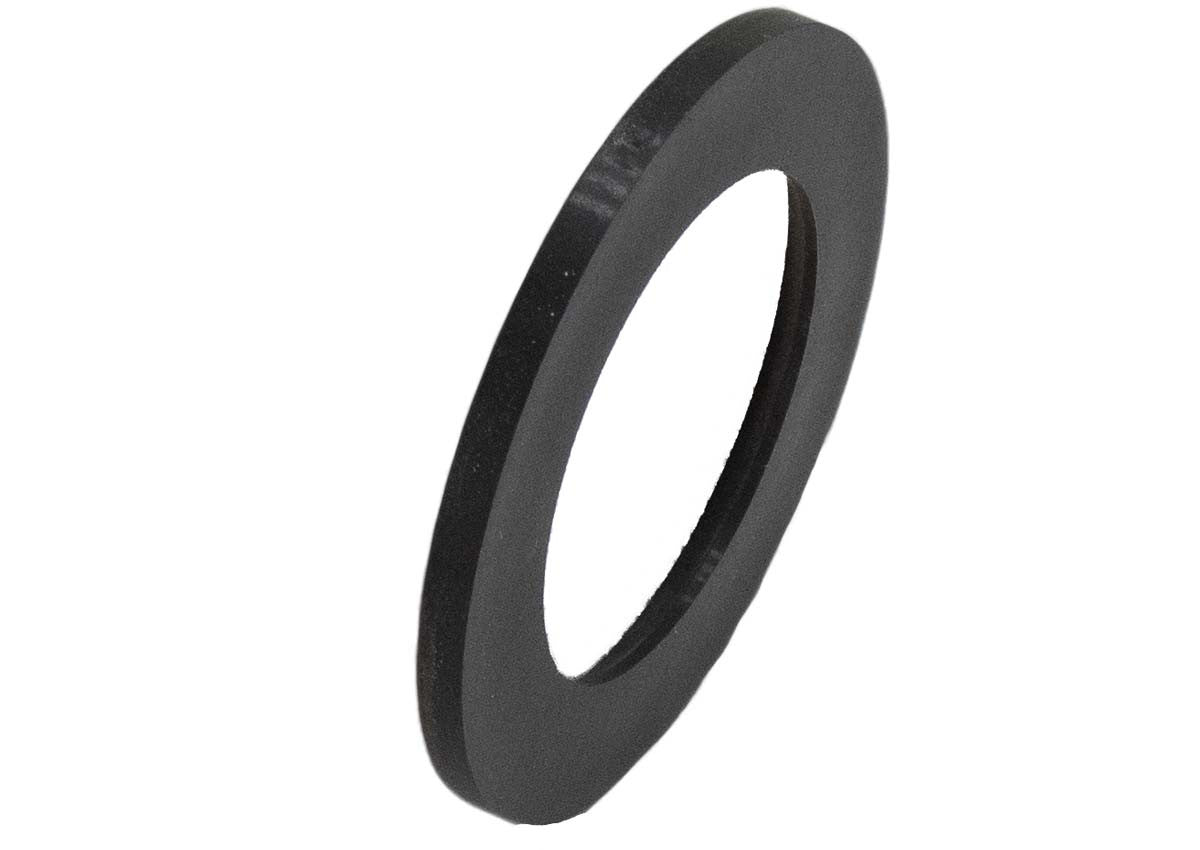

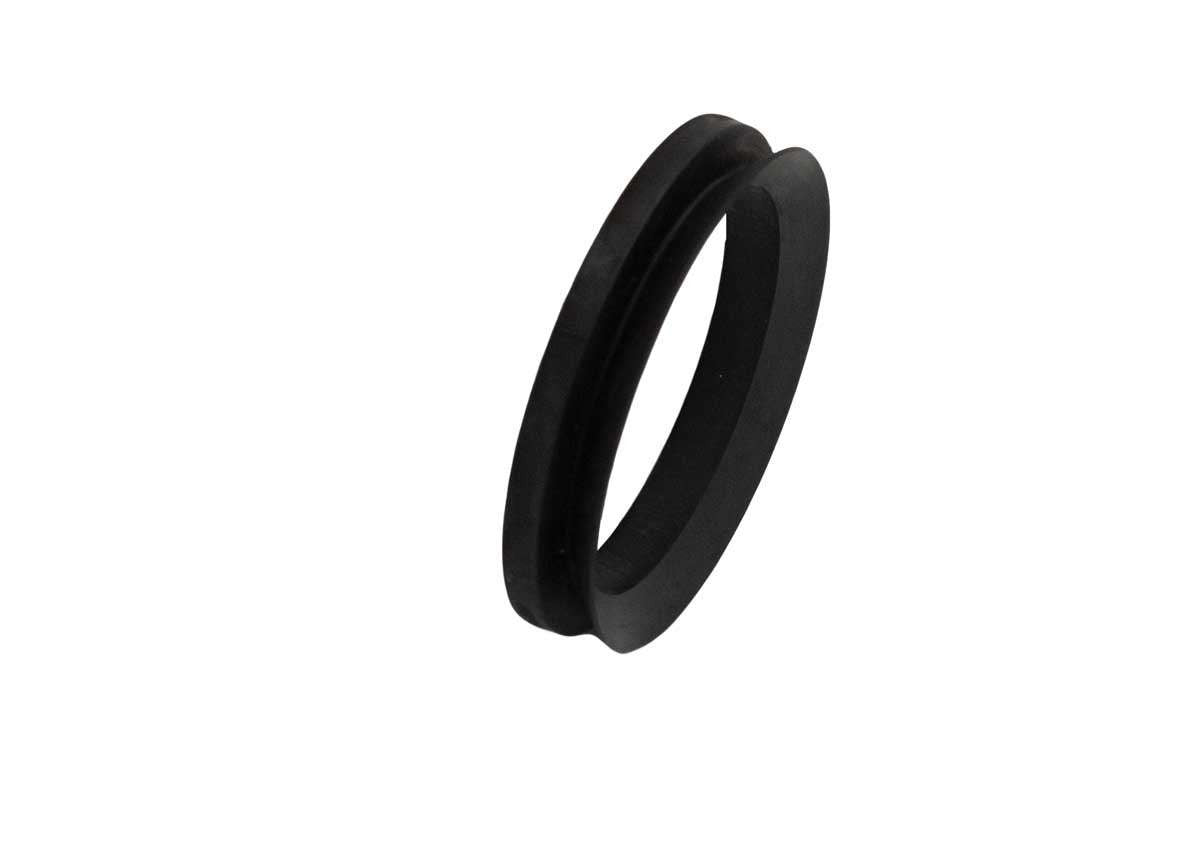

The dead spindle design of the 1977-1991 era GM Dana 60 series axles uses QU40149 needle bearing to support QU40330 outer axle shaft. To protect the bearing and control axial thrust, a 4 piece set consisting of QU40064 Slinger, QU40065 Large V-Seal, QU40148 Small V-Seal, and QU40066 Thrust Washer was used. We have both Kits and individual exact replacement Dana-Spicer Spindle small parts for your hard-working GM.
