Description
TS4851 Ball Joint Tool Set for 2003-up Dodge Ram 2500 & 3500 with Greaseable Ball Joints This 6 Piece Ball Joint Press Set is specifically tailored to press out and press in most aftermarket greaseable Ball Joints in your 2003 to 2011 heavy-duty Dodge Ram 2500 or Ram 3500 4x4 truck (See Tech Note below). These tools are an absolute essential investment for anyone installing/replacing greaseable Ball Joints on the big Dodge 4x4's equipped with the AAM 9.25 front drive axle as the Ball Joints are a very tight press fit in the axle "C" forging. QT1065M Press is imported. Adapters are Made by us here in Montana from U.S. produced steel.

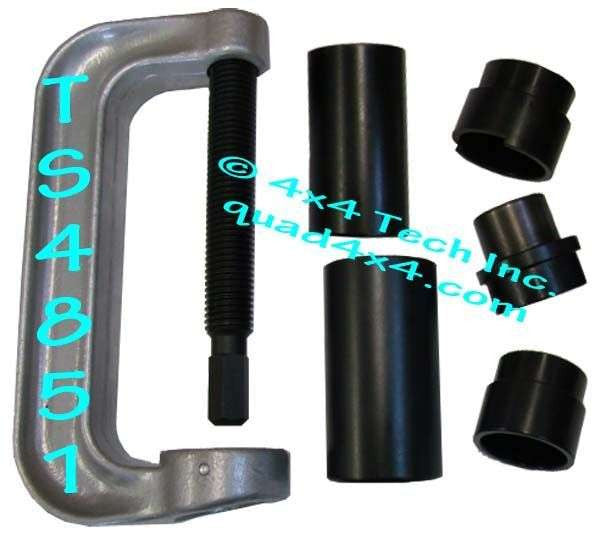

TS4851 Tool Set Includes:
QT1065M C-Frame Press
QT1067 Upper Ball Joint Installer
QT1148 Adapter Sleeve
QT1152 Press Stub
QT1153 Ball Joint Receiver
QT1154 Notched Upper Ball Joint Installation Receiver
Also See TS5005 for this Tool Set WITHOUT Press
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
QT1065M Specs
Adapters Fit
QT1153 Specs
Applications
Tech Note 1: QT1065M Specs
CQT1065M C-Frame Press Specifications: 8¾" Throat, 7/16" Rotating Tip, 1-1/8" Screw Thread, 2-1/8" Tool Hole, (Replaceable Rotating Tips are supported by a hardened ball).
Tech Note 2: Adapters Fit
The removal adapters in TS4851 fit original equipment AAM and most aftermarket greaseable Ball Joints for your AAM front axle. For installation, QT1067 is used for most greaseable upper and lower Ball Joints. Original equipment AAM/Dodge Lower Ball Joints are best installed with our QT1155 Adapter which can be purchased separately or as part of TS1082 Tool Set.
Tech Note 3: QT1153 Specs
QT1153 Ball Joint Receiver can accommodate Ball Joints up to a maximum outside diameter of 2.225" (56.515mm). All AAM and most aftermarket Ball Joints do not exceed this size.
Applications:
Dodge:
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 Dodge Ram 2500 and Ram 3500 4x4 trucks with most makes of greaseable Ball Joints
