TK2570 Roxor 1350 Yoke Conversion Kit

TK2570 1350 Series Yoke Conversion Kit for Roxor transfer case.

This kit includes 2 new output yokes, 2 seals, 2 strap kits, and 2 nuts to convert from factory 1310 to larger 1350 U-joints for upgraded driveshaft or axle applications. Custom driveshaft configurations also available by request.

*INSTALL NOTE: drive new seals in just deep enough so that new felt dust shields will be flush.

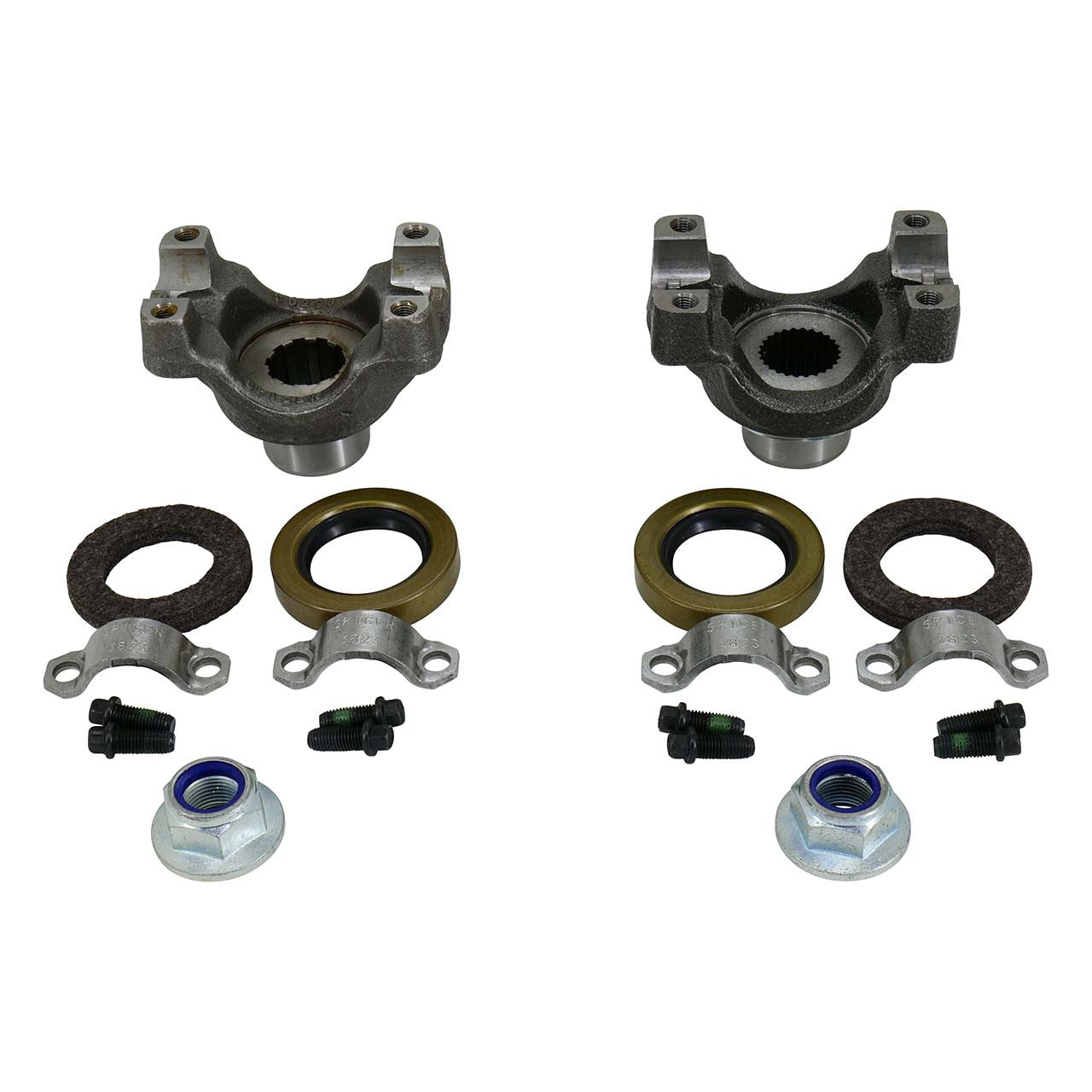

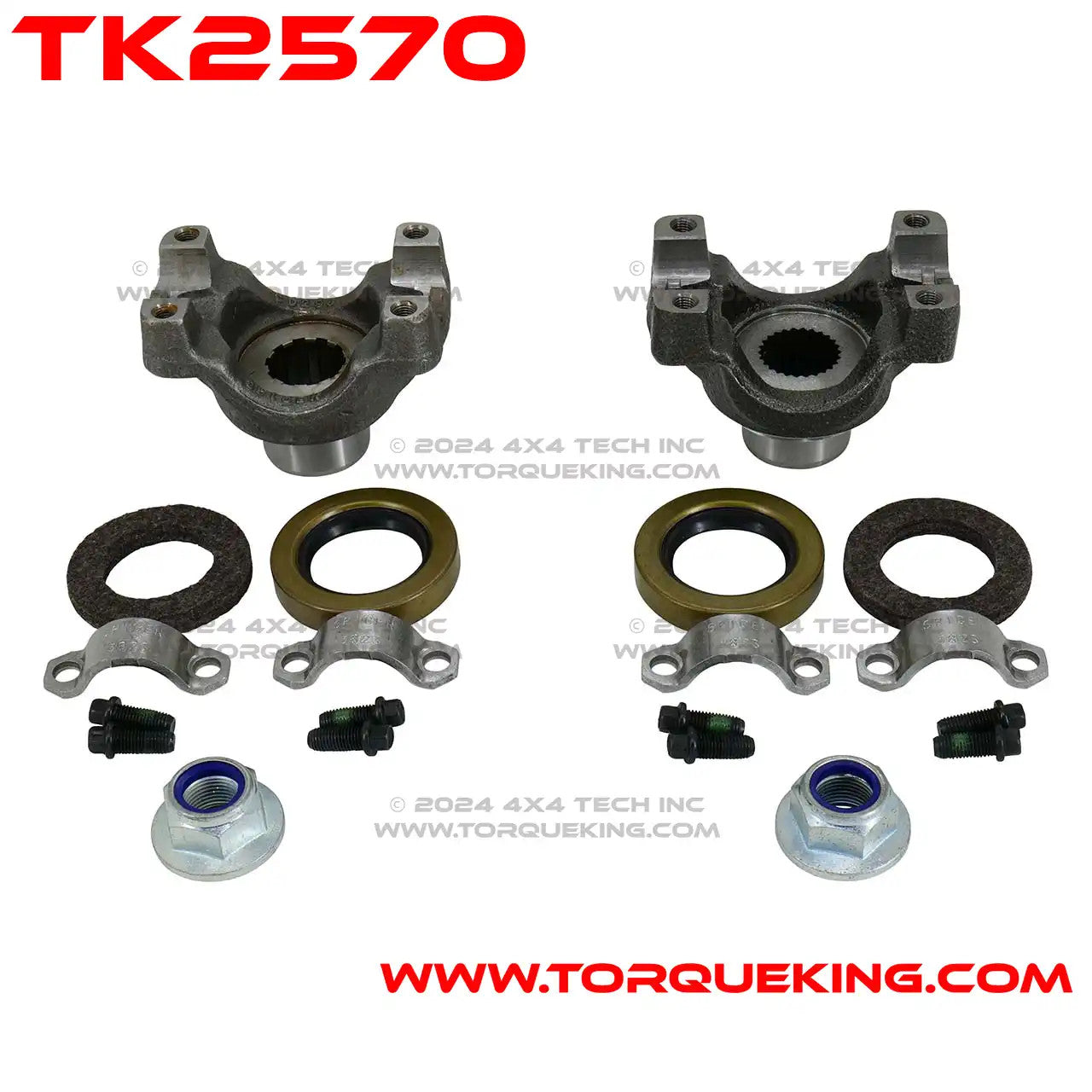

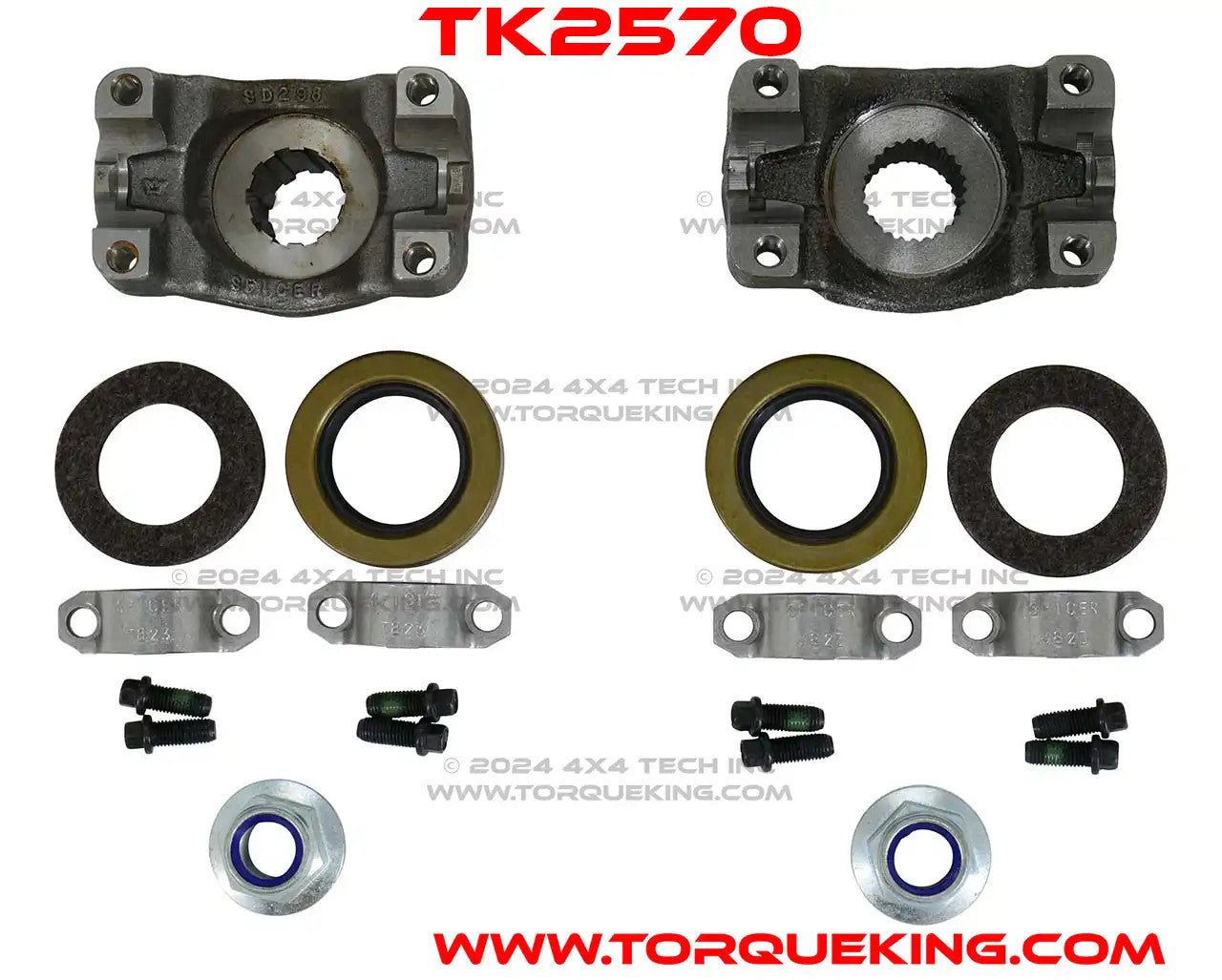

In the kit:

QU40934 Front output yoke

TK15541 Rear output yoke

QU15523 Seal kit to match yokes

QU40709 x2 Strap and bolt kits

QU15193 x2 Nuts

We also have various components to match axle swaps to 1350 joints. Contact us for other sizes or options not listed below.

Dana 44/Roxor axle:

QU40934 Pinion Yoke 1350

D440107 Pinion Seal- Roxor Front

QU40215 Pinion Seal- D44/ Roxor Rear

QU40709 Strap and Bolt Kit

Dana 60/70:

QU40935 Pinion Yoke 1350

QU40022 Pinion Nut

QU40023 Pinion Nut Washer

QU40097 Pinion Seal

QU40709 Strap and Bolt Kit

14 bolt/10.5/11.5:

QU50510 Pinion Yoke 1350

QU50725 Pinion Nut GM

QU10877 Pinion Nut Ram

QU10876 Pinion Nut Washer Ram

QU50719 1988-newer Crush Sleeve GM

QU50614 1987-older Crush Sleeve GM

QU50746 Crush Sleeve some  Ram 10.5 03-13

QU10867 Crush Sleeve Ram 03-13 most 10.5, all 11.5 (slightly longer than QU50719 GM)

A560739 Crush Sleeve Ram 14-18 11.5

SK CSGM14T Crush Sleeve Eliminator (should also fit most Ram, extra shims may be required)

QU50508 Strap and Bolt Kit

QU50572 Pinion Seal *up to 2013 Ram and 2019 GM, contact us for newer axles
