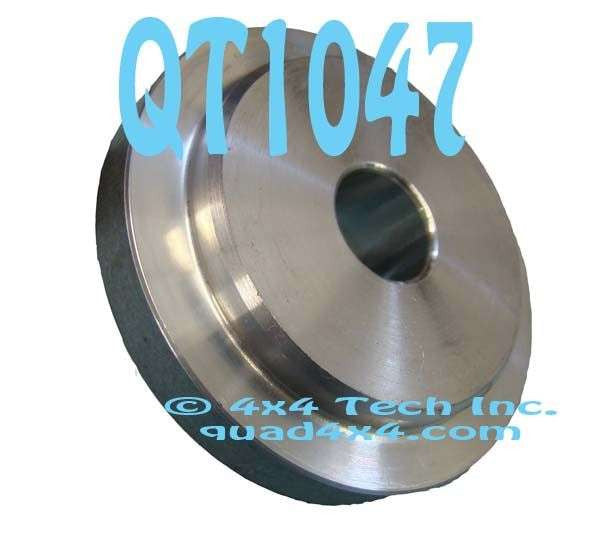

QT1047 Axle End Thrust Plate for 1994-1999 Dodge Ram Front Inner Axle Seal Replacement

QT1047 Axle End Thrust Plate for Dodge Ram 1988-2001 Dana 44 and 1994-1999 Dana 60 Front Axles with CAD is placed on the outer end of the axle tube to act as a thrust plate during axle shaft seal installation on 1994-2001 Dodge Ram 1500 and 1994 to 1999 Dodge Ram 2500/3500 4x4 trucks. Also fits 1988-1993 Ramcharger, Trailduster, W150, and W-250 4x4s with the Dana Spicer model 44 drive axle. QT1047 is made to fit 1988-2001 Dodge Axles with 2-1/8" Axle Tube inside diameters. 5/8" ID center hole accepts QT1048 Press Rod. Made in Roberts, Montana, U.S.A. QT1047 is included in and QK4620 Seal/Tool Kit and TS4620 Tool Set.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Centers Pull Rod
Tech Help
Applications
CAD Drawing

Tech Note 1: Centers Pull Rod
QT1047 is stepped so when you place pilot step in the end of the axle tube, it will center the pull rod which insures your seal will be installed square to the axle bore. Also See our QT1002, QT1029, QT1190, and QT1136 Seal Installers along with QT1048 Press Screw.

Tech Note 2: Tech Help
Need tech help on how to perform inner axle seal replacement on your 1994 to 1999 Dodge Ram 2500 or 3500? Get my TSB4620 Inner Axle Seal Replacement Tech Service Bulletin, a fully illustrated, 8 page publication with 31 color photos. Includes step by step service procedures, tool recommendations, and torque specifications for replacing those pesky front axle shaft seals on all 1994 to 1999 Dodge Ram 4x4 trucks with Dana-Spicer Model 60 front drive axles. Available in print version.

Applications
Dodge:
Dodge Ram Charger and Plymouth Trailduster: 1988, 1989, 1990, 1991, 1992, 1993
Dodge W-150: 1988, 1989, 1990, 1991, 1992, 1993
Dodge W-250 with gas engine: 1988, 1989, 1990, 1991, 1992, 1993
Dodge Ram 1500: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Dodge Ram 2500 and Ram 3500: 1994, 1995, 1996, 1997, 1998, 1999

CAD Drawing is a Large File and may take Longer to Load. Click HERE to reload Drawing
