QU40744W CV Ball Replacement Kit with TSB3503 Tech Service Bulletin

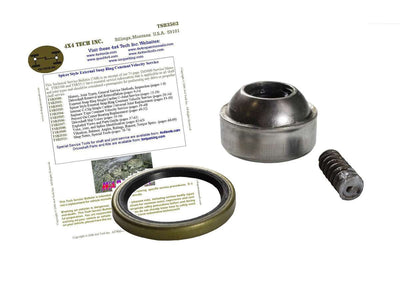

QU40744W CV Ball Replacement Kit with TSB3503 Tech Service Bulletin fits most mid 1980's to current domestic 4x4 front and rear driveshafts with Spicer-Type, non-greaseable and 2005-up Dodge Ram greaseable Double-Cardan Constant Velocity joints. This money-saving Kit allows you to reuse the cast iron CV centering yoke. Kit includes QU40744 CV Ball and socket with needle bearings, spring (under red shipping protector), and seal. USA Made. Also included with this kit is our 16 page Tech Service Bulletin TSB3503 Spicer Style External Snap Ring Constant Velocity Service with 63 color photos.

Only need the Kit without the Tech Service Bulletin? Order QU40744
Only need the the Tech Service Bulletin? Order TSB3503

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Puller Needed
Install Tool
Matching Parts, General
Matching Parts for 2005-2016 Ford Super Duty
Matching Parts for 2003-2018 Dodge Ram
Matching Parts-Saved for Future Use
Matching Parts-Saved for Future Use
Applications

Tech Note 1: Puller Needed
If your CV Flange casting is OK, you can save money by replacing just the worn ball and seat with this Kit. Be advised you will need a 1"-1¼" blind hole bearing puller and a hydraulic press.

Tech Note 2: Install Tool
Installing this CV Kit can be challenging unless you have an install tool. A good, makeshift tool to press against the New Socket is your old, worn out socket without the ball.

Tech Note 3: Matching Parts, General
QU40704 CV Ball Dust Seal
QU40829 Replacement CV Ball Grease Seal
QU40803 1350 Series CV Flange Yoke for Dodge Ram
QU40131 1330 CV Flange Yoke for Dodge Ram
QU40805 135 Series Front CV Flange Yoke for Ford
QU40824 1350 Series Rear CV Flange Yoke for Ford
QU40835 Replacement CV Ball Tension Spring
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals
Ford Shop Manuals
Jeep Shop Manuals

Tech Note 4: Matching Parts for 2005-2016 Ford Super Duty
Exploded View XV514 2005-2016 Ford Super Duty Front CV Driveshaft
QU20103 Driveshaft Bolt
QU40805 Replacement CV Flange Yoke
QU40524 OE CV Flange Yoke
QU40829 CV Ball Seal
QU40835 CV Joint Tension Spring
QU40800 CV Center Yoke
QU40704 CV Joint Ball Seal
QU40825 CV Ball Stud Tube Weld Yoke
QU40863 CV Joint Head Assembly
TK40981 Premium 2.75" x 0.083" DOM Driveshaft Tubing
QU20373U Used Splined Slip Yoke Socket
QU50586 Boot Clamp
QU20138 Boot Kit
QU20372 Splined Slip Yoke Shaft
QU40874 Replacement Slip Stub
QU40802 Screw-On Slip Yoke Seal
QU40875 Slip Yoke
QU40709 Strap and Bolt Kit
TK40719 Premium U-Joint
QU40731 Greaseable U-Joint
QU40873 EZ-Grease U-Joint

Tech Note 5: Matching Parts for 2003-2018 Dodge Ram
Exploded View XV508 2003-2013 Ram 2500 and Ram 3500 Front CV Driveshaft
Exploded View XV509 2013-2018 Ram 2500 and Ram 3500 Front CV Driveshaft
QU40131 1330 Series Front CV Flange Yoke Assembly
QU40803 1350 Series CV Flange Yoke Assembly
QU40953 1410 Series Double Cardan CV Head Assembly
QU40829 CV Ball Seal
QU40835 CV Joint Tension Spring

Tech Note 6: Matching Parts
Saved for Future Use

Tech Note 7: Matching Parts
Saved for Future Use

Applications
QU40744 is a Replacement part for the following 4x4 vehicles equipped with Spicer-Type original equipment front CV Driveshafts:

Chevy-GMC
All with Spicer Type Double-Cardan Front CV Shaft: 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

Dodge-RAM
all Ram 1500, Ram 2500, Ram 3500 with Double-Cardan Front CV Shaft: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
Dakota: 1987, 1998
Ram 4500, Ram 5500: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 2500, Ram 3500 with 1410 Series Front Driveshaft: 2013, 2014, 2015, 2016, 2017, 2018

Ford:
Explorer: 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
F-350: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Super Duty*: 1998, 1999, 2000, 2001, 2002, 2003, 2004
Excursion*: 2000, 2001, 2002, 2003, 2004, 2005
All Super Duty: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
*Dan the Gear Man® Tech Note: Some Excursions and early Super Duty's also came with Saginaw type CV shafts which use a different type CV Ball Kit

Jeep
All Jeeps with Double-Carden Spicer-Type CV shafts: 1995.5, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Dan the Gear Man® Tech Note: Some early 1995 Jeeps came equipped with a greaseable CV Ball. Use QU40743 for those applications and ALL Jeeps with greaseable CV shafts: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
