QU40430 Dana 80 Trac-Lok Dana Inner Differential Parts Overhaul Kit

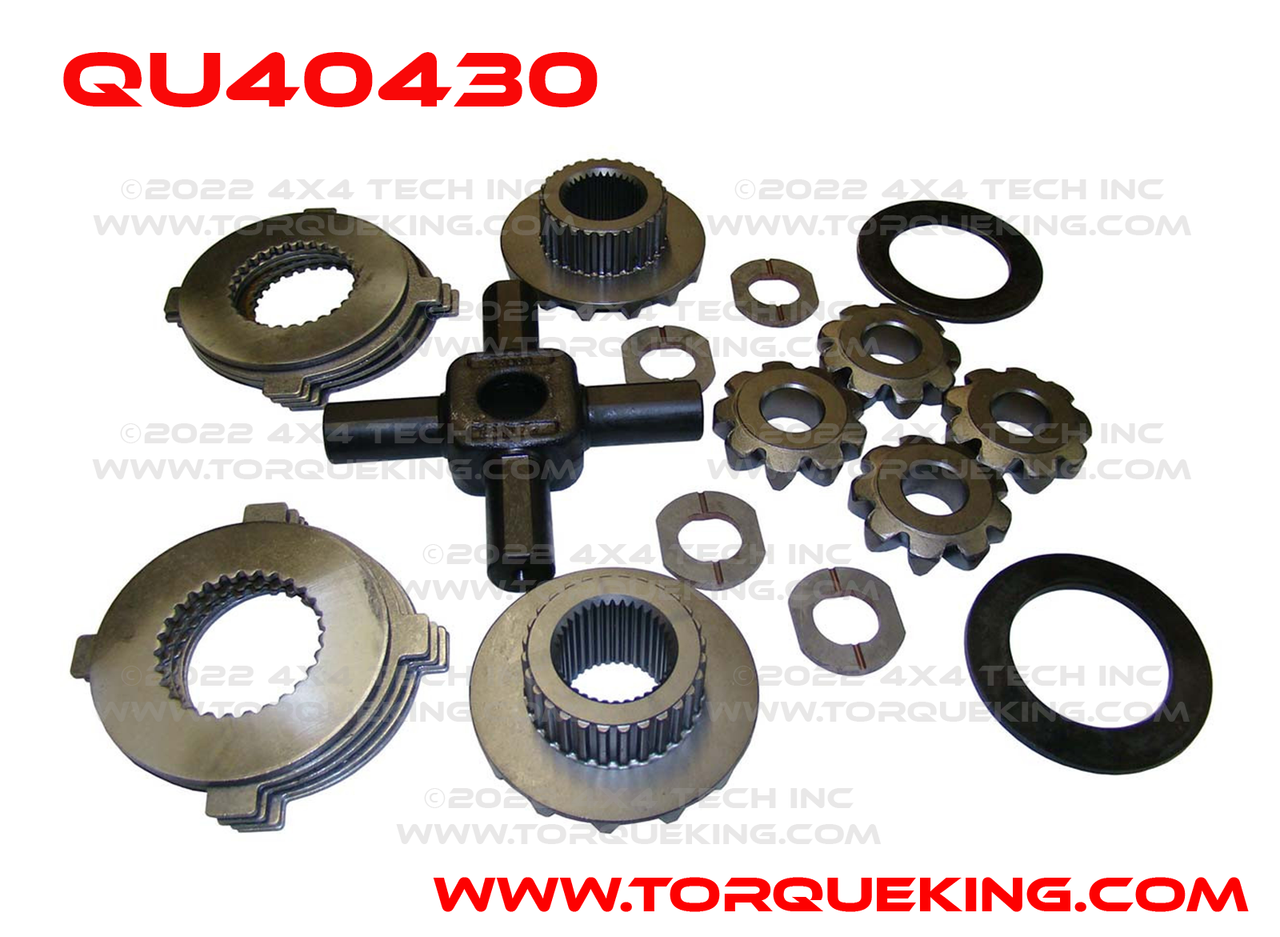

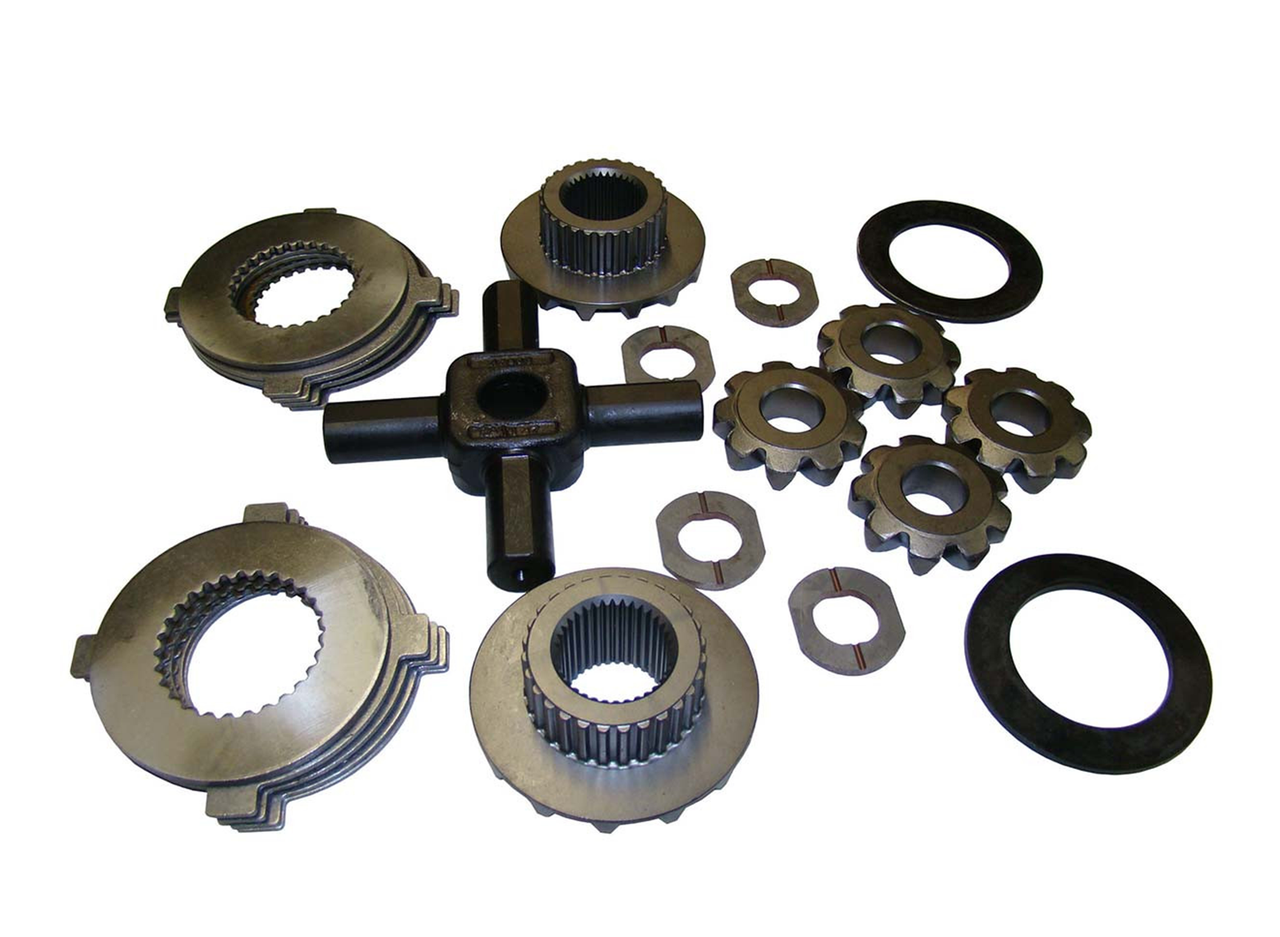

QU40430 Dana 80 Trac-Lok™ Dana Inner Differential Parts Overhaul Kit for your early 1999-2002 Ram 2500 or Ram 3500 and 1999-2010 Ford F350 Super Duty with the factory Dana 80 Trac-Lok™ Differential. Includes complete set of genuine Dana replacement clutch discs, cross, 4 pinion mate gears, 4 pinion mate thrust washers, 2 side gears, and 2 disc washers. This Kit has the parts you need to restore the limited slip to your Trac-Lok™ differential.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Dodge Powr-Lok or Track-Lok
Ford Track-Lok
Clutch Disc Components
Before Assembly
Matching Parts for Dodge
Matching Parts for Ford
4x4 Tech Help Publication
Pinion Depth
Applications

Tech Note 1: Dodge Powr-Lok or Track-Lok
During the 1994 to 2002 model years, Dodge Ram 2500 and 3500 trucks using Dana-Spicer rear axles were available with an optional clutch-type Limited Slip differential DANA 80: Both the Powr-Lok™ and Trac-Lok™ were used in the Model 80. Powr-Lok™ differentials were an option for 1994 to very early 1999 model years. Starting early in the 1999 model year, the Dodge Dana 80 limited slip option was the Trac-Lok™. Externally, Model 80 Powr-Lok™ and Trac-Lok™ cases look similar as both are of a two-piece design, however, they are easily identified by the shape of the cross-shaft pin ends. The Powr-Lok™ pins are oval with one side angled. Trac-Lok™ pin ends are round.
Early 1999 Axle Tags Numbers with a Powr-Lok Diff: 605982, 605983, 605984, 605985, 606064
1999 Axle Tag Numbers with a Trac-Lok Diff: 606150, 606151, 606152, 606153, 606154

Tech Note 2: Ford Track-Lok
During the 1999 to 2010 model years, Dana 80 rear axles in Ford F-350 Dual Rear Wheel (DRW) Super Duty trucks were available with an optional Dana Trac-Lok™ clutch-type Limited Slip differential. We stock replacement clutches and internal overhaul Kits for the F-350 Trac-Lok™. We do not stock any parts for the factory limited slip used on the F-450. No factory limited slip was available for the F53 motorhome chassis.

Tech Note3: Clutch Disk Components
Dana changed the clutch disc components for Dana 80 Trac-Lok differentials around 2003. A Dana factory drawing showing the new disc sequence is included with this Kit.

Tech Note 4: Before Assembly
Limited Slip clutch discs MUST be soaked in limited slip lube or a mix of limited slip lube and gear oil before assembly.

Tech Note 5: Matching Parts for Dodge
QU40096 Ring Gear Bolts
QU40343 Differential Cap Retaining Bolts
QU40306 Axle Shaft Flange Bolts
QU40260 Outboard Differential Bearing Spacers
QU40218 Limited Slip Lubricant
QU40118 Stock Locking Spindle Nut (NEVER reuse stock type spindle nuts)
QU40115 Spindle Nut Lock Wedge (NEVER reuse spindle nut lock wedges)
TK8356 Wheel Bearing Kits for Single Rear Wheels
TK8324 Wheel Bearing Kit for Dual Rear Wheels
S82194 RTV Sealant
S24200 Threadlocker
QU90008 Gear Marking Compound
QT9404 Brush
QT1032 Differential Case Spreader

Tech Note 6: Matching Parts for Ford
QU40096 Ring Gear Bolts
QU40343 Differential Cap Retaining Bolts
QU40218 Limited Slip Lubricant
QU40102 Ratchet Spindle Lock Nut
QU20084 Axle Shaft O-Ring
TK8002 Wheel Bearing Kit for 1999-2004 and 2006-2010 Dual Rear Wheel F350
S82194 RTV Sealant
S24200 Threadlocker
QU90008 Gear Marking Compound
QT9404 Brush
QT1032 Differential Case Spreader

Tech Note 7: 4x4 Tech Help Publication
Do the job right the first time. See my 26 page, color illustrated TM4400 Pinion and Differential Bearing Service On Dana-Spicer Monobeam Axles with over 75 photos for the correct differential bearing replacement and adjustment service procedures.

Tech Note 8: Pinion Depth
If you are changing gear sets, your new Pinion Depth must be set before calculating the differential shim pack thicknesses. After setting the pinion depth, use a dial indicator and QT1099 Master Bearings to determine the amount of shims required to get the required gear lash and differential bearing preload.

Applications:
Dodge:
Dodge Ram 2500 with V-10 or Diesel Engine, a Manual Transmission, and limited slip rear axle: 1999, 2000, 2001, 2002
Dodge Ram 3500 with all engine, transmission combinations and limited slip rear axle: 1999, 2000, 2001, 2002

Ford:
F-350 with Dual Rear Wheels (except some 5.4L gas engine trucks): 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
