QU80016 12" Rear Brake Drum for SRW Dodge Trucks
Special Order-Usually ships within 5-7 business days
Description

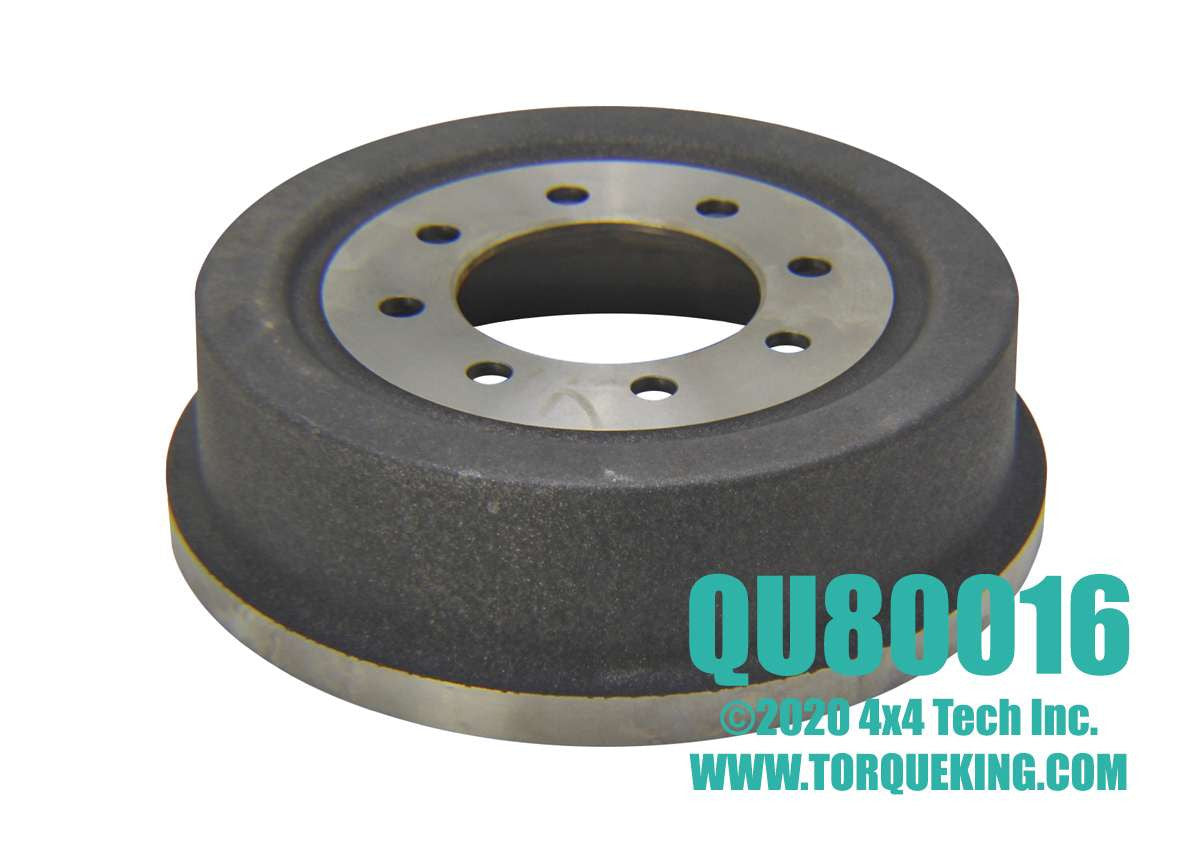

QU80016 Rear 12" 8 Bolt Inboard Mounted Brake Drum for Dodge 1972-1980 D/W200, 1981-1993 D/W250 trucks and with Dana 60 Full-Floating Rear Axles with 12" x 2.5" or 12" x 3" rear brakes. QU80016 Drum is about 4" thick and it fits 5200 and 5800 pound rated Dana 60 rear axles. Matching 1/2" stud is QU80034.
Note: 1972-1993 Dodge 6200 pound and higher rated Dana 60HD, Dana 70 SRW rear axles also came with either 2.5" or 3" wide brakes, but QU80000 top-hat type drum for these axles is about 6-1/4" thick.
