XV400 1998-2002 Dodge Ram NP241DHD Transfer Case Input Shaft Charts

Chart 1
1998-2002 Dodge Ram 2500, Ram 3500
New Process NP241DHD
Transfer Case Input Shaft Fitment Chart
for Stock Applications

Transfer Case
Tag Number

USA
Made
 OE Shaft
  See
Note 10

Import
 Replacement
Shaft
See
Note 10

NLA
See
Note 6

Transfer Case
Tag Number

 QU50640

QU52100

Chart 5
Notes for 1998-2002 Dodge NP241DHD Stock, Replacement, and Conversion Input Shaft Chart

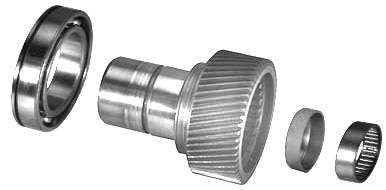

Note 2: NP241DHD Transfer Case Input Shaft Length: For the 1998-2002 model years, an input shaft with an approximate over all length of  4-5/16” is used with all 46RE and 47RE automatic transmissions. Manual transmission applications have input shafts that are about 5-3/64” long. To provide a simpler reference dimension, some of our parts descriptions and notes may refer to the 4-5/16" shaft as a 4-1/4" shaft. Likewise, a 5-3/64" shaft may be referred to as a 5" or 5-1/8" shaft length.

Note 3: Input Bearing Width: NP241DHD Transfer Cases were built with input shafts  using either a narrow (5/8” wide) or wide (15/16” wide) Input Ball Bearing. While a narrow bearing cannot be used on an input made for the wide bearing and visa-versa, the combined matching bearings and shafts are totally interchangeable. For example, If you are doing a manual transmission swap on a 1998 Automatic transmission equipped Cummins powered truck with NP241DHD Assembly number 52105028, you can replace the original QU50640 23 Spline Input Shaft/QU50874 Narrow Bearing with QU10889 29 Spline Input Shaft/QU50873 Wide Bearing. See IDN-401 for more information.

Note 4: The Input Shaft Range Clutch Teeth are machined inside the back of the Input Shaft. The Sliding Clutch Collar will engage the Range Clutch Teeth in High Range. Single Cut  or 1-Way teeth are beveled in one direction. Double Cut or 2-Way Teeth are beveled the same to left and right. Input Shafts with 1-Way Synchro teeth were only used on 1999.5 to 2002 NP241DHD models on vehicles with automatic transmissions and some 2002 cases in manual transmission Ram trucks. See IDN-402 for more information.

Note 5: 1998-2002 Only: The conversion chart covers transfer case input changes for 1998-2002 model year transmission swaps in Dodge Ram trucks with NV4500, NV5600, 46RE, and 47RE transmissions. Other applications may require different parts.

Note 6: OE Shaft Replacement: 1998-1999 Genuine NPG 23 Spline Input for 52105026 assembly. QU50638OE original equipment, narrow bearing input shaft for this application is No Longer Available (NLA). For a USA made, genuine NPG input shaft, order QU50637 Input + QU50873 Wide Bearing.

Note 7: 23 Spline Input with 1 Way Clutch Teeth: For 1999.5-2002 automatic transmission equipped Ram 2500, Ram 3500 4x4s with NP241DHD Transfer Cases and wide input bearings, New Process used  QU10179 4-5/16” long input shaft with 1-Way Synchro Clutch Teeth (See Note 4). At this time, the aftermarket does not make a 23 spline 4-5/16” long input shaft for the wide input bearing. We recommend you use QU10179 Genuine NPG Input for these applications, but you can also use QU52100 Aftermarket Input plus QU50874 Narrow Bearing.

Note 8: Front Case Includes: QU11143 New NP241DHD Front Case Sub-Assembly includes The Front Case Half, Annulus Gear, Annulus Gear Snap Ring, 15/16” Wide Input Bearing, Input Bearing to Case Snap Ring, Front Output Bearing, Front Output Bearing to Case Snap Ring, and Front Output Seal. To Use this Case Half with a narrow bearing Input Shaft, also order QU50874 Bearing.
Also available while supplies last: QU11223 New Takeout Bare NP241DHD Front Case Half.

Note 9: Input Shaft to Mainshaft Pilot Bearing: Two totally Interchangeable Bearing Types were used. QU50114 is a unitized, closed end needle bearing. Also used was X10000 Open End Needle Bearing plus QU50083 Cup Type Soft Plug. In most cases, the factory also used Bearing Lock on the Outside Diameter of the Bearing and Soft Plug to minimize the possibility of oil seepage between the transmission and Transfer Case.

 OE NPG
vs
Aftermarket

Note 10: USA Made vs Import Input Shafts are made by Magna Powertrain, who owns the production rights for New Process Original Equipment parts and assemblies. These USA made shafts INCLUDE the Needle Pilot Bearing Assembly. Imported Replacement Shafts are just the shaft itself, they do NOT include the Needle Pilot Bearing Assembly
