TS1531 Knuckle to Axle Shaft Seal Installer for 2005-Current Ford F450/F550

QuadTool
No reviews yet Write a Review
$154.33
SKU:
991531
UPC:
198345849382
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: Stocking Item-Usually ships within 1-2 business days
Current Stock:Only left:

Description

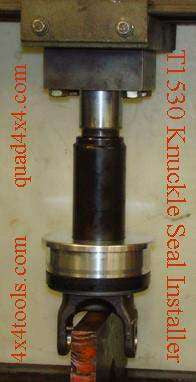

TS1531 Knuckle to Axle Shaft Seal Installer for 2005 and newer Ford Super Duty® F-450, F550 4x4 Trucks Use to install those easily damaged and expensive axle shaft to knuckle seals on your outer axle shaft. TS1531 is also used to correctly seat the seal and shaft assembly into the steering knuckle at the correct depth. Heavy duty, CNC precision machined tools are built to last. TS1531 works on 2005 and newer F450 and F550 trucks. TS1531 includes QT1531 Installer Head, QT1541 Handle, and QU40414 Snap Ring. Made in Roberts, Montana USA. Need a Tool Set for a 2005-up Super Duty® F250 or F350? Use our TS1530.

If your installing a seal for 2017-up Super Duty, order QT1551 and QU20052 Seal Installation Spacer separately.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Installing Seal
Seat the Axle Shaft
F250, F350
Installers Purchased After June 4, 2009
Applications

Tech Note 1: Installing Seal
2005 and newer Ford F450, F550 Super Duty® axle shaft to knuckle seals are of a complicated unitized design that is easily damaged without the correct installer. To function with any longevity, QU20052 Seal must be installed to a specific depth on both the axle shaft and in the knuckle. An improperly installed or damaged seal will allow water to enter and vacuum to escape.

Tech Note 2: Seat the Axle Shaft

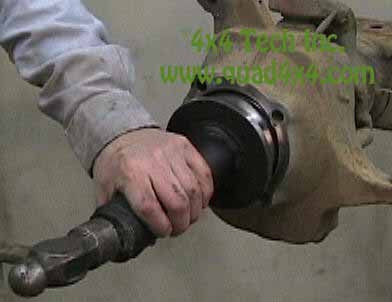

TS1531 is by necessity, a two piece tool. After you install the new seal on your axle shaft, you need to seat the axle shaft in the steering knuckle. The outer axle shaft MUST be supported and attached to the Installer during installation to prevent jamming the seal's internal sealing components. QT1531 Installer Head is attached to your outer axle shaft with the supplied QU40414 Snap Ring. You can then put QT1541 Handle in place and drive the Axle Shaft/Seal Assembly in until QT1531 Head stops against the Steering Knuckle. Remove the tool components and continue reassembling your front Dana Super 60 axle.

Tech Note 3: F250, F350
TS1531 cannot be used on 2005 and newer Super Duty® F-250, F-350 front axles as the Seal is set much shallower from the outer knuckle face. Please see TS1530 for 2005-up F250, F350 axles.

Tech Note 4: Installers Purchased After June 4, 2009
If you already have one of our TS1530 Installers purchased after June 4, 2009, you only need to order QT1531 Installer Head to install seals on F-450, F-550 4x4s as your QT1541 Driver Handle will fit both QT1530 and QT1531 Installer Heads!

Applications:
Ford F-450, F-550 Super Duty® 4x4 with Dana Super 60 Front Axles: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017*, 2018*, 2019*, 2020*
*2017- and newer Super Duty also requires Ford HC34-1660-AA Installation Spacer be placed between QU20052 Seal and QT1531 Installer Head which will seat the Seal approximately 0.030" deeper in the Knuckle as called for in 2017 and newer Ford Service Manuals
