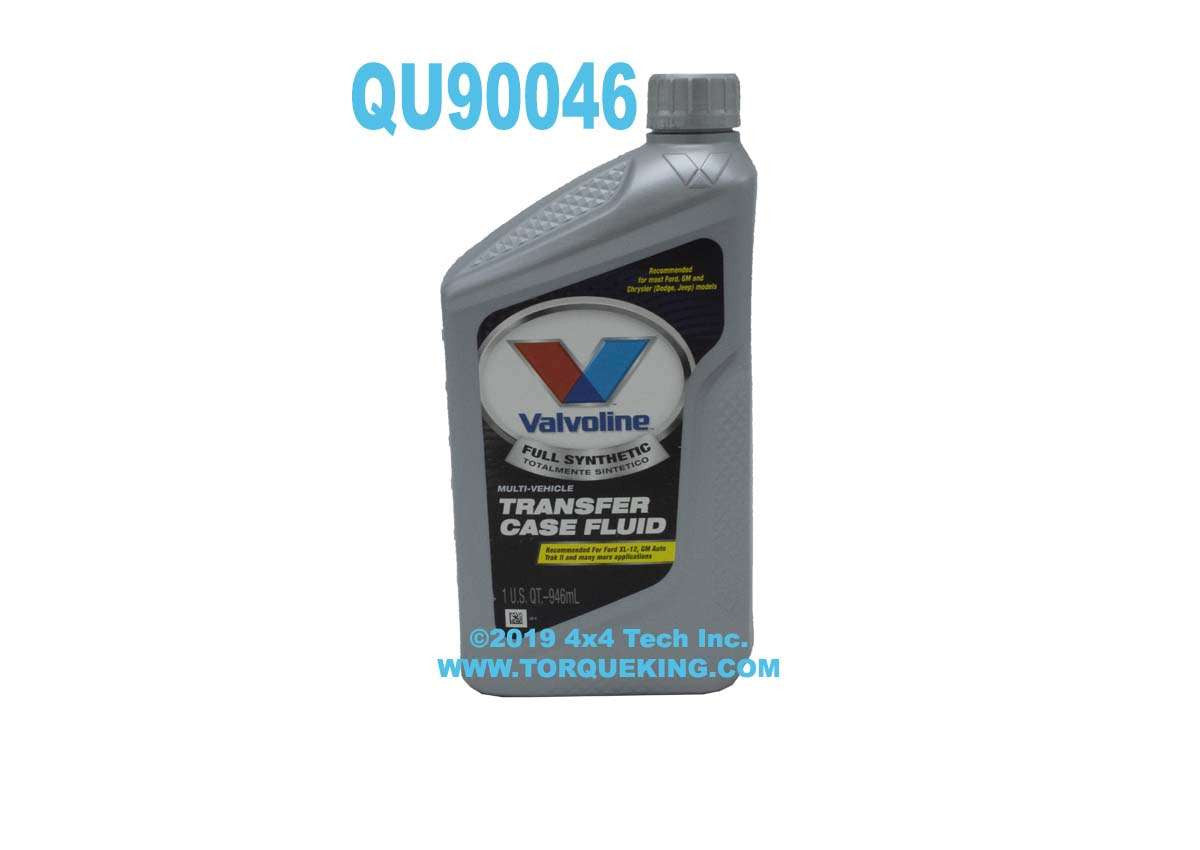

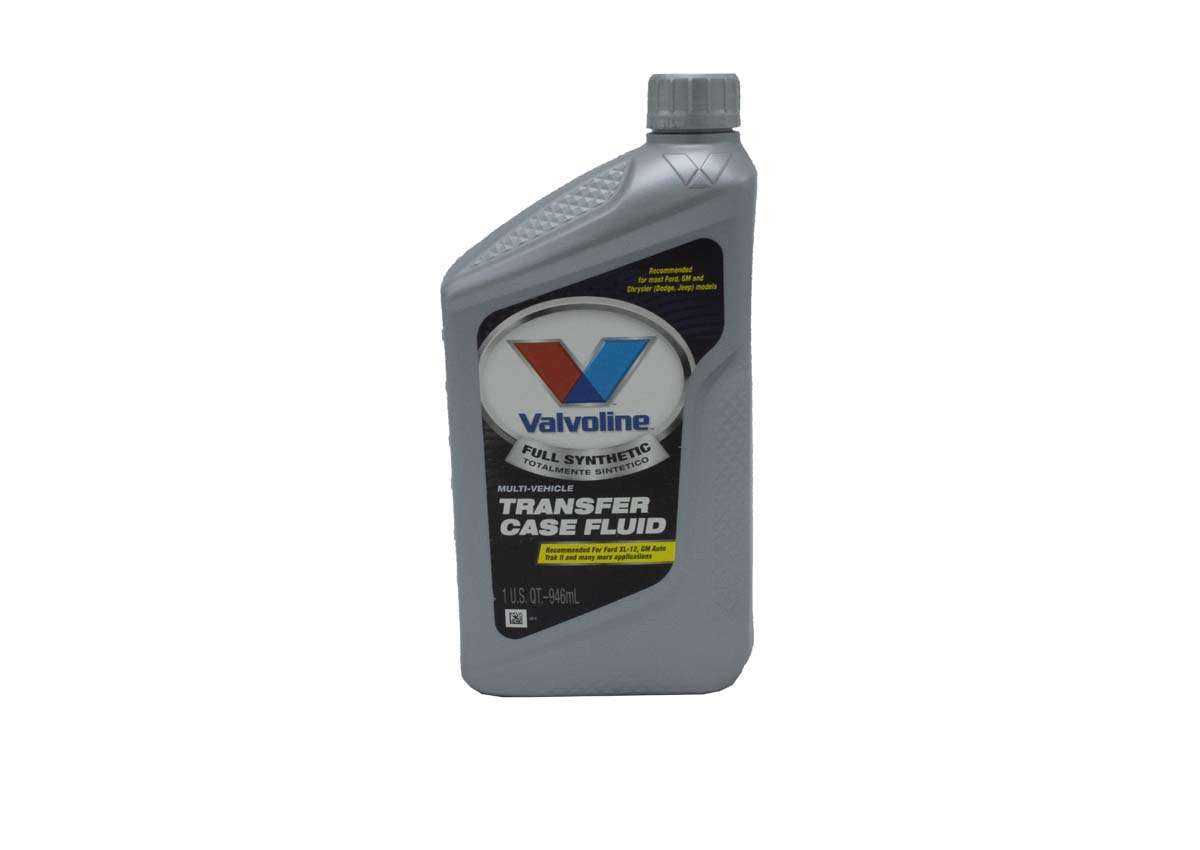

Valvoline QU90046 Transfer Case Fluid

QU90046 1 Quart Valvoline Full Synthetic Transfer Case Fluid is the recommended transfer case oil replacement for XL-12 Motorcraft Oil for most 1980 to current Ford 4x4 trucks and truck based SUVs with Part-Time, AWD, or Torque on Demand transfer cases. Valvoline Transfer Case Fluid is for use in late model transfer cases that already require XL-12 plus those older transfer cases where Dexron® II, MERCON® or Mercon® II ATF was previously recommended. Valvoline® Transfer Case Fluid is a high-tech lubricant manufactured using man-made base oils and additives that are optimized to provide optimum lubrication for transfer case bearings, chains, and shafts.

*XL-12 Transfer Case Fluid has been discontinued by Motorcraft®.  Use QU90046 Valvoline Transfer Case Fluid for a direct replacement.

Need More Info? Read:

Dan the Gear Man® Tech Notes:
Use with
Synthetic?
About
What about Mercon V?
Do Not Use In
California Proposition 65
Safety Data Sheet
Applications

Tech Note 1: Use with
For use in all 1980-current conventional Ford chain drive transfer cases and pre-2012 MY Torque on Demand transfer cases. A partial list of compatible Ford Transfer Cases:
Borg Warner: 1345, 1350, 1354, 1356, 1359, 4403, 4404, 4405, 4406, 4407, 4410, 4411, 4412, 4414, 4416, 4417, 4418, 4419
New Process: NP208
New Venture: NV271F, NV273F

Tech Note 2: Synthetic?
Yes, Valvoline® is a full synthetic fluid.

Tech Note 3: About
Valvoline^® Transfer Case Fluid is manufactured with high-viscosity index, premium-quality, hydroprocessed base oils and specially designed performance additives to provide increased protection against deposit, rust, corrosion, and wear. XL-12 will maintain proper viscosity at extreme temperatures. Need a Material Safety Data Sheet for Valvoline Transfer Case Fluid? Click Here

Tech Note 4: What about Mercon V?
The current formulation of Mercon, Mercon® V is NOT recommended for use in transfer cases.

Tech Note 5: Do Not Use In
Do not use Valvoline^® Transfer Case Fluid in automatic transmissions, manual transmissions, power take off units (PTU) or fluid couplers. Do not use in transfer cases where MERCON^® LV ATF is recommended. Do Not use in pre 1980 transfer cases including Dana 20, Dana 21, Dana 24, NP203, or NP205 models!

Also do not use Valvoline Transfer Case Fluid in 2017 and newer Ford Super Duty F250, F350, F450, and F550 4x4 trucks with Borg Warner 44-64 Electric Shift and 44-65 Manual Shift Transfer Cases!

Tech Note6: California Proposition 65
This product is recognized on California Proposition 65. (found on the Safety Data Sheet)
Source: SDS Version 01; Issue Date: 08-30-2018

Tech Note 7: Safety Data Sheet
SDS

Applications:
Full Size
Bronco:
1980-1986 NP208F
1981-1986 BW1345
1987-1996 BW1356

Excursion:
2000-2005 NV273F

Expedition and Navigator:
1997, 1998, 1999, 2000, 2001, 2002 BW4406
2003, 2004, 2005, 2006 BW4416
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 BW4417

F-150:
1980, 1981, 1982, 1983, 1984, 1985, 1986 NP208F
1982, 1983, 1984, 1985, 1986, 1987 BW1345
1987-1996 BW1356
1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 BW4406
2009, 2010,2011 BW4418
2009, 2010, 2011, 2012, 2013, 2014, 2015 BW4419
2010, 2011, 2012, 2013, 2014, 2015 BW4417

F250, F350:
1980, 1981, 1982, 1983, 1984, 1985, 1986 NP208F
1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987 BW1345
1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 BW1356
1996, 1997 BW 4407
1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, -2016 NV271F, NV273F

Mid-Sizes Models:
Bronco II:
1980, 1981, 1982, 1983, 1984 BW1350
1990 BW1356

Explorer and Mountaineer:
1991, 1992, 1993, 1994, 1995 BW1354
1995, 1996, 1997, 1998, 1999, 2000, 2001 BW4405
1996, 1997, 1998, 1999, 2000, 2001 BW4404
1999, 2000, 2001 BW4403
2002. 2003, 2004, 2005 BW4410
2006, 2007, 2008, 2009, 2010 BW4414
2006, 2007, 2008, 2009, 2010 BW4412

Ranger:
1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993 BW1350
1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 BW1354
1995, 1996, 1997 BW4405
