TS4830 Dana 44 Inner Axle Seal Tool Set for 1970's to 1980's vintage 4x4s

TS4830 Dana 44 Axle Seal Tool Set with Adjustable Depth Axle Seal Installer Quickly and easily installs original equipment design, NOK manufactured seals such as our QU40159 Inner Axle Seal in 1970's to 1980's vintage Chevy, Dodge, Ford, GMC, and Jeep 4x4s with Dana 44 front axles. Our unique installer design will press in your new original equipment design, NOK manufactured seals such as our QU40159 Inner Axle Seal without damage because the CNC Precision Machined Installation Tool cups the seal so force is only applied on the steel seal shell. QT1029 Installer tool does not have a depth stop, so you can offset the seal to clear a worn spot in the axle shaft, however, for a reference point, you will need to check the depth of the old seals before removing them. Custom Machined in USA to fit the original equipment design, NOK manufactured seals such as our QU40159 Inner Axle Seal.

See QK4830 for our Kit with Seals.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Teardown
Inspect
Dana Model 44 Seals
Custom Installer
Adjustable Depth Installer
Remove old seals
Replace badly grooved or rust pitted axle shafts
Kit Contents
Matching Parts
Applications

Tech Note 1: Teardown:
Your brakes, wheel hubs, axle shafts, and differential must be removed from the housing to replace your QU40159 inner axle shaft seals.

Tech Note 2: Inspect:
When replacing your inner axle seals, ALWAYS inspect your Ball Joints, Axle Universal Joints, Differential Bearings, and Wheel Bearings/Hubs for wear or damage. The extra time needed to replace these components is minimal since you already have the axle apart to do the axle seals.

Tech Note 3: Dana Model 44 Seals:
The inner axle seals used on Chevy, Dodge, Ford, GMC, IHC, and Jeep closed and open knuckle Dana Model 44 Front Axles will vary by year and model. Refer below to our model specific applications.

Tech Note 4: Custom Installer:
Due to the way we have to make the tool to function, your Seal Installer and Seal MUST match. QT1029 Installer will only work with original equipment design, NOK manufactured seals such as our QU40159. Seals manufactured by other seal manufacturers WILL NOT WORK WITH THIS INSTALLER!!!! We make our Tool EXACT so it will fit the seal and install super easy & perfectly in the axle housing. We like a professional installation in super quick time with no 'do overs'.

Tech Note 5: Adjustable Depth Installer:
TS4830 includes QT1029 Seal Installer which allows you to install optional QU40159 Seals to a slightly deeper depth to miss a worn spot or groove or other damage on the axle shaft from your old seal. *However, YOU MUST be careful you do not set the seal TOO DEEP which may place the seal beyond the axle shaft seal surface!
To offset the seal:
First-temporarily place the seal installer in your old seal before you knock it out.
Mark the depth of our tool in your housing.
Remove the tool and old seals.
When you install your new seal(s), offset it from the original depth by pressing it in slightly more or less than the original seal depth as indicated by your depth mark.

Tech Note 6: Remove old seals:
Once the axle is disassembled, the old seals can be easily removed with our QK4647 Seal Remover Tool Set or other suitable tool such as a length of sturdy pipe that will fit inside the axle tube. You will also need to clean the inside of the axle tube to remove dirt and crud that could get pushed into your new seal during reassembly.

Tech Note 7: Replace badly grooved or rust pitted axle shafts:
Upon removal, check you axle shafts for damage in the seal contact area. If your axle shafts are badly grooved or rust pitted you will need to replace your axle shaft to prevent oil seeps or leaks. Less severe damage can be cleaned up with super-fine abrasive cloth and you can slightly offset the seal with our adjustable depth tool design so the seal lip will contact an undamaged surface.

Tech Note 8: Kit Contents:

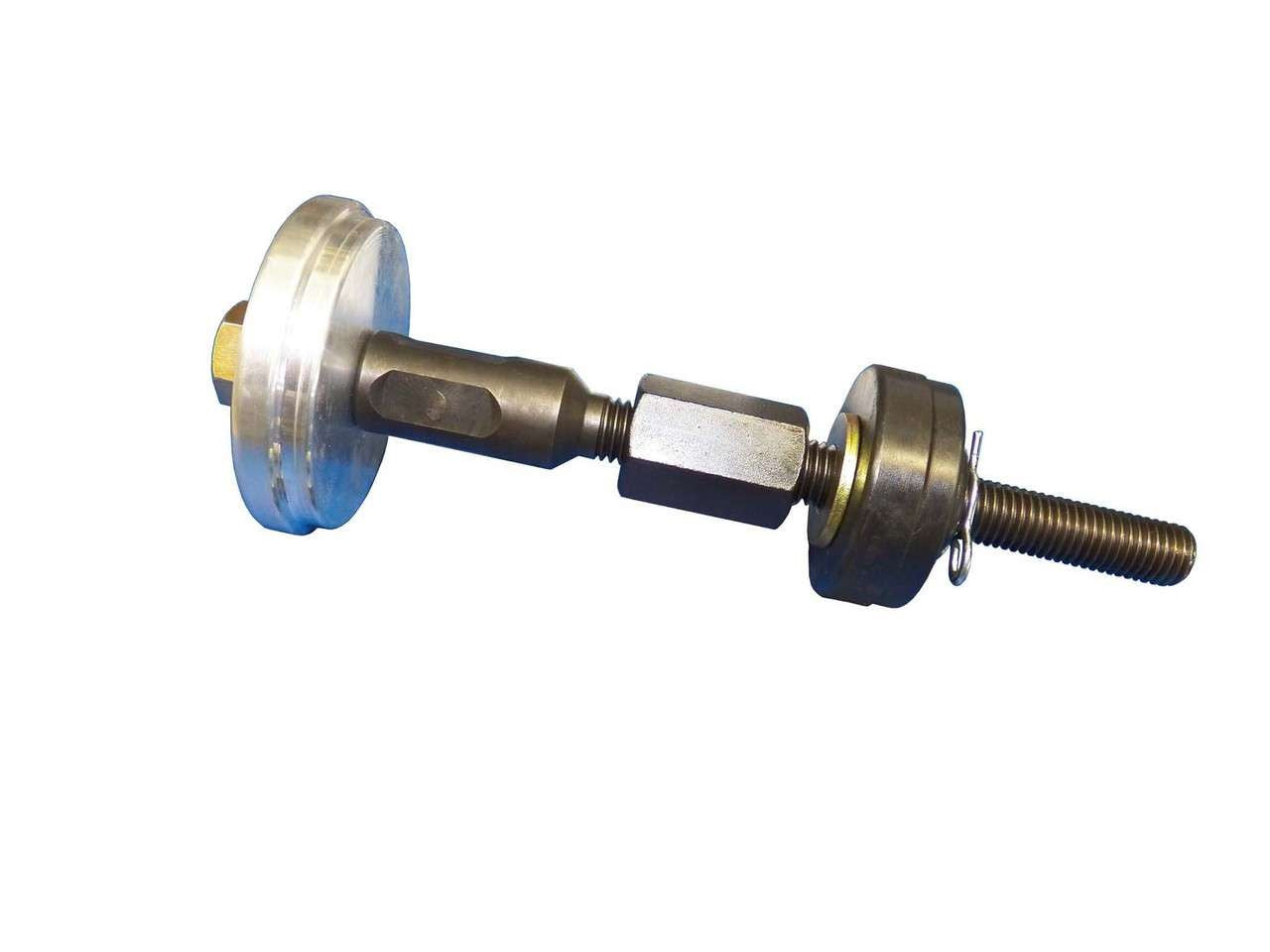

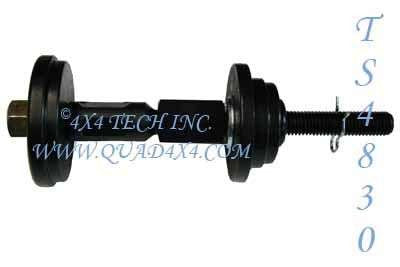

QT1029 Model 44 Seal Installer
QT1189 Model 44 Press Screw Assembly
QT1161 Model 44 Specific Thrust Plate

Tech Note 9: Matching Parts:
QK4647 Seal Remover Tool Set
QK4830 Inner Axle Seal Kit (with seals)

Applications

Chevy/GMC:
K20/25: 1970
K5, K10/15, K20/25 w/model 44 axle: 1978, 1979, 1980

Dodge:
Ramcharger W-150, W-250: 1977.5, 1978, 1979, 1980, 1981, 1982, 1983, 1984

Ford:
F-150 Super Cab, F-250 (Model 44 Axle only): 1979

Jeep:
Wide Track Full Size Cherokee: 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
J10, J20: 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
