QT1530 Knuckle to Axle Shaft Seal Installer Head for 2005-up F-250, F350

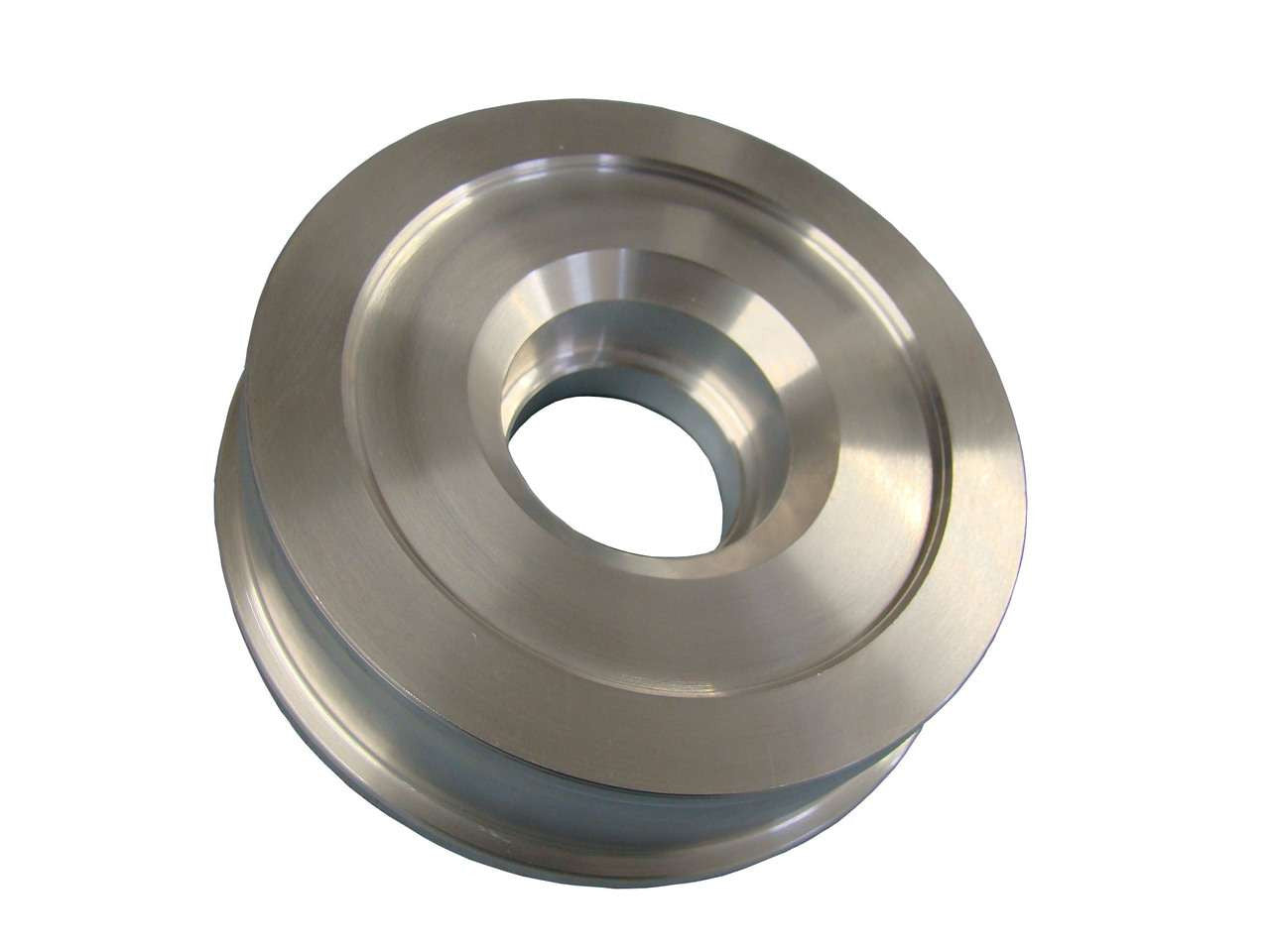

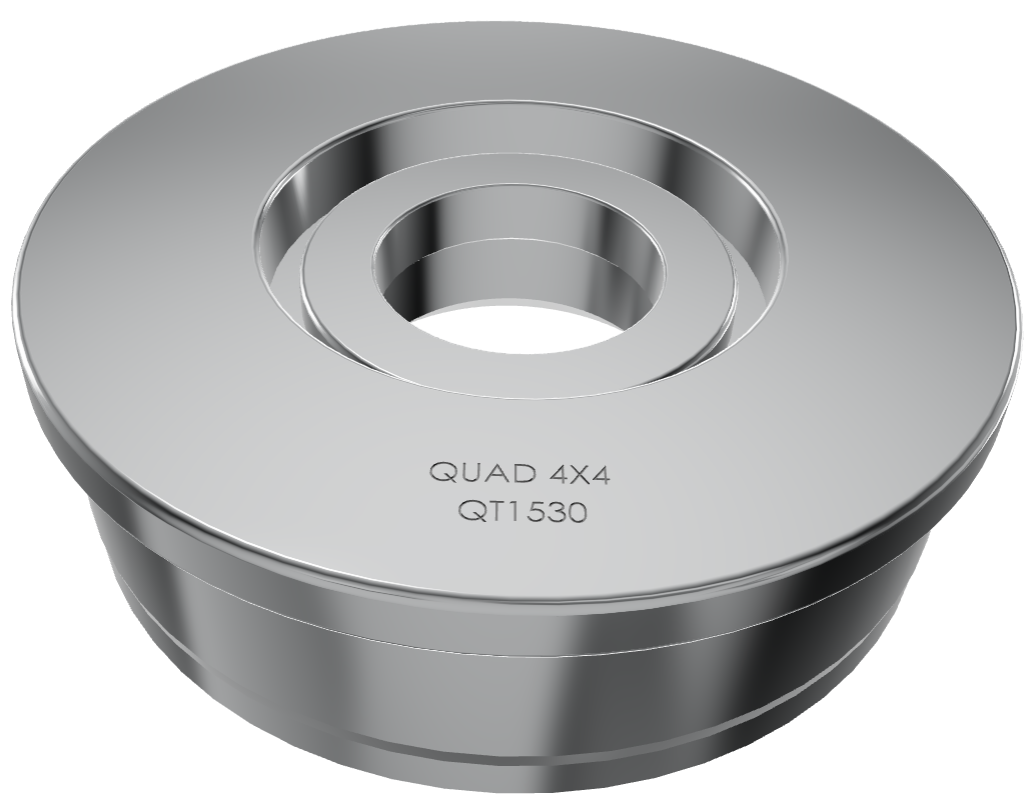

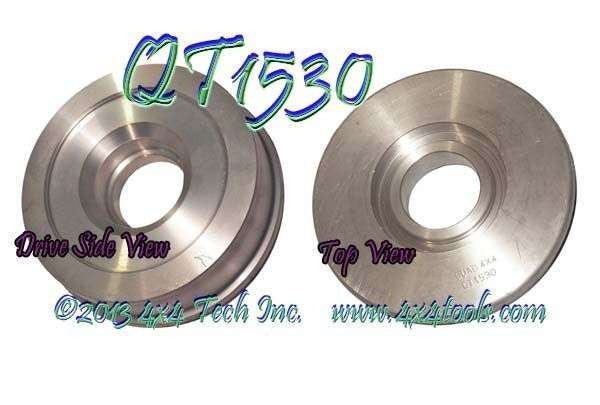

QT1530 Knuckle to Axle Shaft Seal Installer Head Only for 2005-up Ford Super Duty® F-250, F350 4x4 Trucks Use to install those easily damaged and expensive axle shaft to knuckle seals on your outer axle shaft. QT1530 is also used to correctly seat the seal and shaft assembly into the steering knuckle at the correct depth. Heavy duty, CNC precision machined tools are built to last. QT1530 works on 2005 and newer F250 and F350 trucks. Made in Roberts, Montana, USA.

Also See TS1530 Complete Installer Set includes QT1530 Installer Head, QT1541 Handle, and QU40414 Snap Ring
Need a Tool Set for a 2005-up Super Duty® F450 or F550? Use our TS1531

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Installing Seal
Included in TS1530
F450, F550
TS1531 Installers Purchased After June 4, 2009
Applications

Tech Note 1: Installing Seal
2005 and newer Ford F250, F350 Super Duty® axle shaft to knuckle seals are of a complicated unitized design that is easily damaged without the correct installer. To function with any longevity, QU20052 Seal must be installed to a specific depth on both the axle shaft and in the knuckle. An improperly installed or damaged seal will allow water to enter and vacuum to escape.

Tech Note 2: Included in TS1530

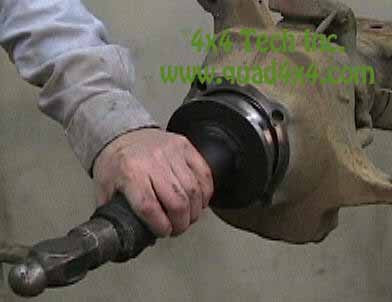

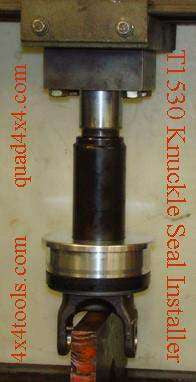

TS1530 is by necessity, a two piece tool. After you Install The New Seal on your axle shaft, you need to Seat the Axle Shaft in the steering knuckle. The outer axle shaft MUST be supported and attached to the Installer during installation to prevent jamming the Seal's internal sealing components. QT1530 Installer Head is attached to your outer axle shaft with the supplied QU40414 Snap Ring. You can then put QT1541 Handle in place and drive the Axle Shaft/Seal Assembly in until QT1530 Head stops against the Steering Knuckle. Remove the tool components and continue reassembling your front Dana Super 60 axle.

Tech Note 3: F-450-F550
QT1530 cannot be used on 2005 and newer Super Duty® F-450, F-550 front axles as the Seal needs to be set much farther in from the outer knuckle face. Please see TS1531 for 2005-up F450, F550 axles.

Tech Note 4: TS1531 Installers Purchased After June 4, 2009
If you already have one of our TS1531 Installers purchased after June 4, 2009, you only need to order QT1530 Installer Head to install seals on F-250, F350 4x4s as your QT1541 Driver Handle will fit both QT1530 and QT1531 Installer Heads.

Applications:
Ford Super Duty® F-250, F-350** front axles: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017*, 2018*, 2019*, 2020*
*2017- and newer Super Duty also requires Ford HC34-1660-AA Installation Spacer be placed between QU20052 Seal and QT1531 Installer Head which will seat the Seal approximately 0.030" deeper in the Knuckle as called for in 2017 and newer Ford Service Manuals

**NOTE: If you have a "Fat Boy" "Extended Track" or "Tow Boss" F350, your front axle has a mix of F350 and F450 front axle parts. The correct Installer to order is QT1531.
