TK8368 Ram Dual Rear Wheel Master Rear Wheel Bearing Kit with Tools

TK8368 Dual Rear Wheel Torque King® Master Rear Wheel Bearing and Seal Kit with Tools for 2003-2018 Dodge AAM 14 Bolt 11.5" Full Float Rear Axles and 2013-2018 14 Bolt 11.8" Rear Axles In 2003-2018 Dodge Ram 3500 trucks with Dual Rear Wheels includes 4 Timken® Bearings with Cups, 2 Oil Bath Wheel Seals, 2 Axle Shaft Flange Gaskets, 2 Spindle Nuts, 2 Spindle Nut Lock Rings, 2 Locking Keys for Spindle Nuts, 16 Axle Shaft Flange Bolts, plus 4 installation tools and blue threadlocker. Tools manufactured in Montana, U.S.A.

Also See:
TK8028 Torque King® Master Rear Wheel Bearing Kit without tools
TK8363 Rear Wheel Bearing and Seal Kit

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Includes
Lubrication
Oil Bath Seal
Axle Vent
Matching Parts
Applications

Tech Note 1: Kit Includes

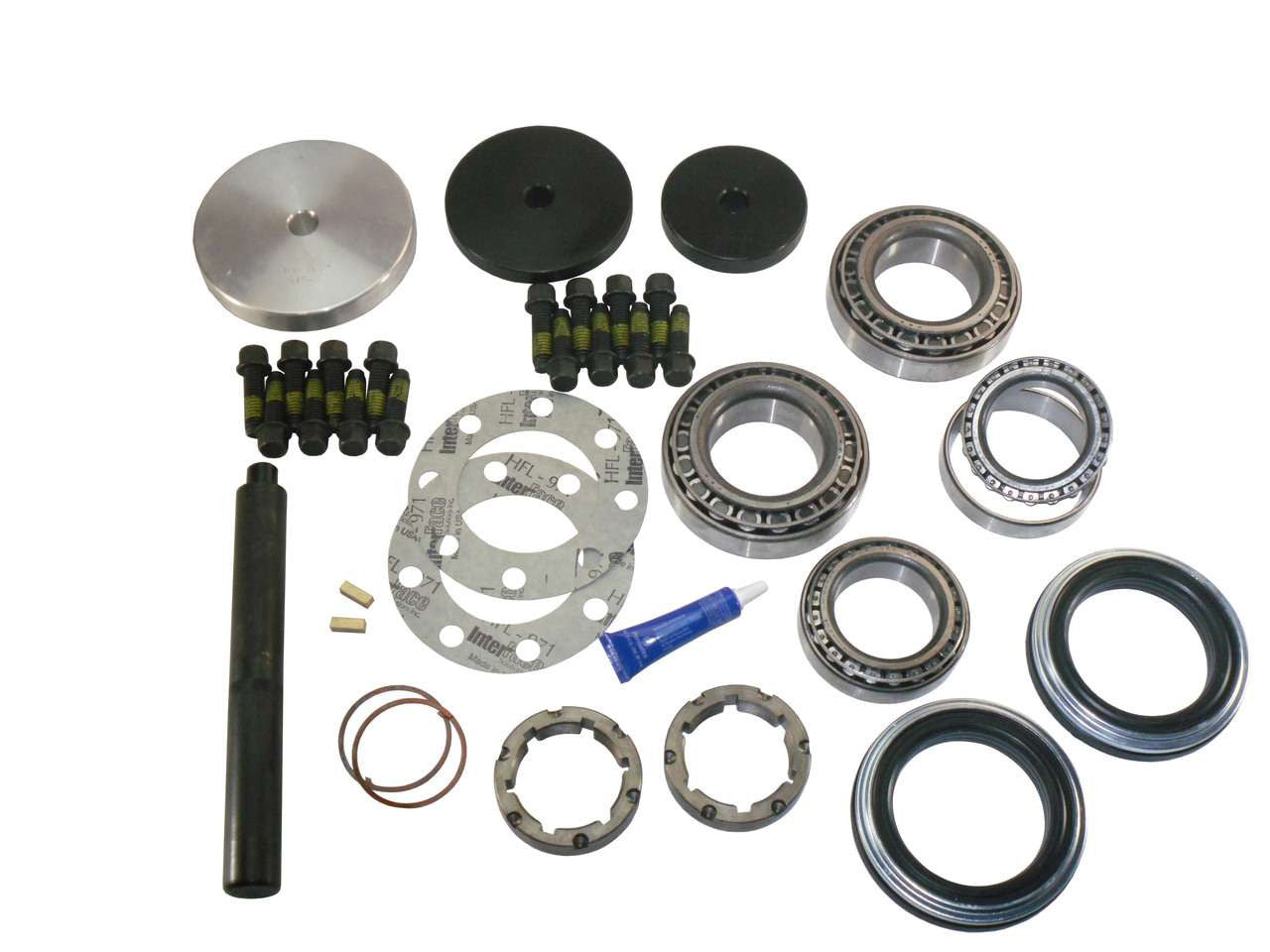

TK8368 Dual Rear Wheel Master Bearing Kit & Seal Kit with Tools includes these components:
2 QU50376 Timken® Inner Wheel Bearing
2 QU50377 Timken® Inner Wheel Bearing Cup
2 QU50412 Timken® Outer Wheel Bearing
2 QU50411 Timken® Wheel Bearing Cup
2 QU50246 Rear Wheel Seal
2 QU10847 Axle Shaft Flange Gasket
2 QU10846 Spindle Nut
2 QU10845 Spindle Nut Lock Key
2 QU10866 Spindle Nut Lock Ring
16 QU11121 Axle Shaft Bolt
QT1801 Outer Wheel Bearing Cup Installer
QT1806 Inner Wheel Bearing Cup Installer
QT1546 Inner Wheel Seal Installer
QT1100 1" x 8" Driver Handle
S24200 Medium strength Blue Threadlocker for the axle shaft flange bolts

Tech Note 2: Lubrication
Under operating conditions, the rear wheel bearings are bathed in oil from the differential, but they do need to be pre-lubricated to provide initial lubrication.

Tech Note 3: Oil Bath Seal
QU50246 is a unitized Oil Bath type rear wheel seal. The rotating sealing surface is inside the seal. Both the ID of the seal is a tight fit on the spindle and the OD is a press fit in the wheel hub. In operation the outer portion of the seal rotates around the inside component. Oil Bath wheel seals can be easily damaged during installation by make-shift or wrong tooling. For best results, I strongly recommend you use optional QT1546 Wheel Seal Installer and either QT1100 1"or QT1116 1-1/4" diameter Driver Handles.

Tech Note 4: Axle Vent
Many wheel seal leaks are caused by pressure building in the axle due to a clogged axle vent system. Always check and clear the vent system. Other common causes of leaking seals include improper wheel bearing adjustment, poor installation techniques/tools (See Tech Note 3), and damaged spindle surface or hub bore.

Tech Note 5: Matching Parts
QU11176 DRW Hub 2003-2011 Ram 3500
QU11144 DRW Hub 2012-2018 Ram 3500
Mopar 68218657AA 75w140 Axle Lubricant
QT1025 Spindle Nut Socket
Dodge & Ram Shop Manuals

Applications:
Dodge and Ram with Dual Rear Wheels (DRW)
Ram 3500 with AAM 1150 11.5" Ring Gear 14 Bolt Leaf Spring Rear Axles: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 3500 with AAM 1180 11.8" DRW Ring Gear 14 Bolt Leaf Spring Rear Axles: 2013, 2014, 2015, 2016, 2017, 2018
