TK8308 Master SRW Wheel Bearing & Tool Kit 1994-2002 Ram 2500, 3500

TK8308 Torque King® Master Rear Wheel Bearing and Seal Kits with Installation Tools for 1994-2002 Dodge Dana 60, Dana 70 and Dana 80 Single Rear Wheel Axles features premium Timken® bearings and original equipment quality wheel seals because when it comes to rear wheel bearings and seals, only the best will do to safely support the heavy loads your truck hauls. Kit includes Wheel Bearing Cup Installers, Wheel Seal Installer, Driver Handle, Timken® Inner and Outer Wheel Bearings/Bearing Cups, Inner Wheel Seals, Steel Axle Shaft Flange Gaskets, and Threadlocker for the axle shaft flange bolts. These Kits fit 1994 to 2002 Dodge Ram 4x2 and 4x4 2500 and 3500 series trucks with Single Rear Wheel Dana 60, Dana 70, or 80 full float Rear Drive Axles.

For a Kit without Tools, see TK8356.

This kit includes Flangeless Seals. See Tech Note 1.
For a Kit with Flanged Seals, See: TK8359

Available Spindle Nut Options: (Do Not Reuse Your 1994-2002 Original Spindle Nuts, Below!)
Stock Spindle Nut Kits: QK4008/QK4009
Double Spindle Nut Kit: TK4011/TK4012

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Interchangeable Wheel Seal Types
Kit Includes
Lubrication
Matching Parts
Applications

Tech Note 1: Interchangeable Wheel Seal Types
There is conflicting application information for rear Wheel Seal replacement between Dana and Dodge on 1994-2002 Dodge Ram Dana 60-70-80 Single Rear Wheel (SRW) rear axles because Dana used two different, but functionally interchangeable Wheel Seals in this era Dodge Ram SRW Full Float Rear Axles. As the two Seals are interchangeable, this is not a big issue, but you should know the facts. Dodge parts books list QU40450 Flangeless Seal as the replacement Seal for all 1994-1996 Dana 60, 70, 80 SRW axles and QU40449 Flanged Seal as the replacement seal for all 1997-2002 axles. Dana however, lists all 1994-2002 Dana 60 axles using QU40449 Flanged Seal. Dana catalogs QU40450 Flangeless Seal for all 1994-2002 Dana 70, 80 SRW axles EXCEPT the following 1996-1999 axles having Axle Tag Numbers which were built with QU40449 Flanged Seal:
Dana 70: 605879, 605880, 605901, 605981, 606012, 606013, 606055, 606063, 606094, 606095, 606148, 606149, 606164, 606165.
Dana 80: 606905, 605985, 606056, 606064, 606150, 606151
So Take your choice:
Order TK8359 Kit if you prefer QU40449 Flanged Seal (Kit will also include QT1503 Wheel Seal Installer)
Order TK8308 Kit if you prefer QU40450 Flangeless Seal (Kit will also include QT1510 Wheel Seal Installer)

Tech Note 2: Kit Includes

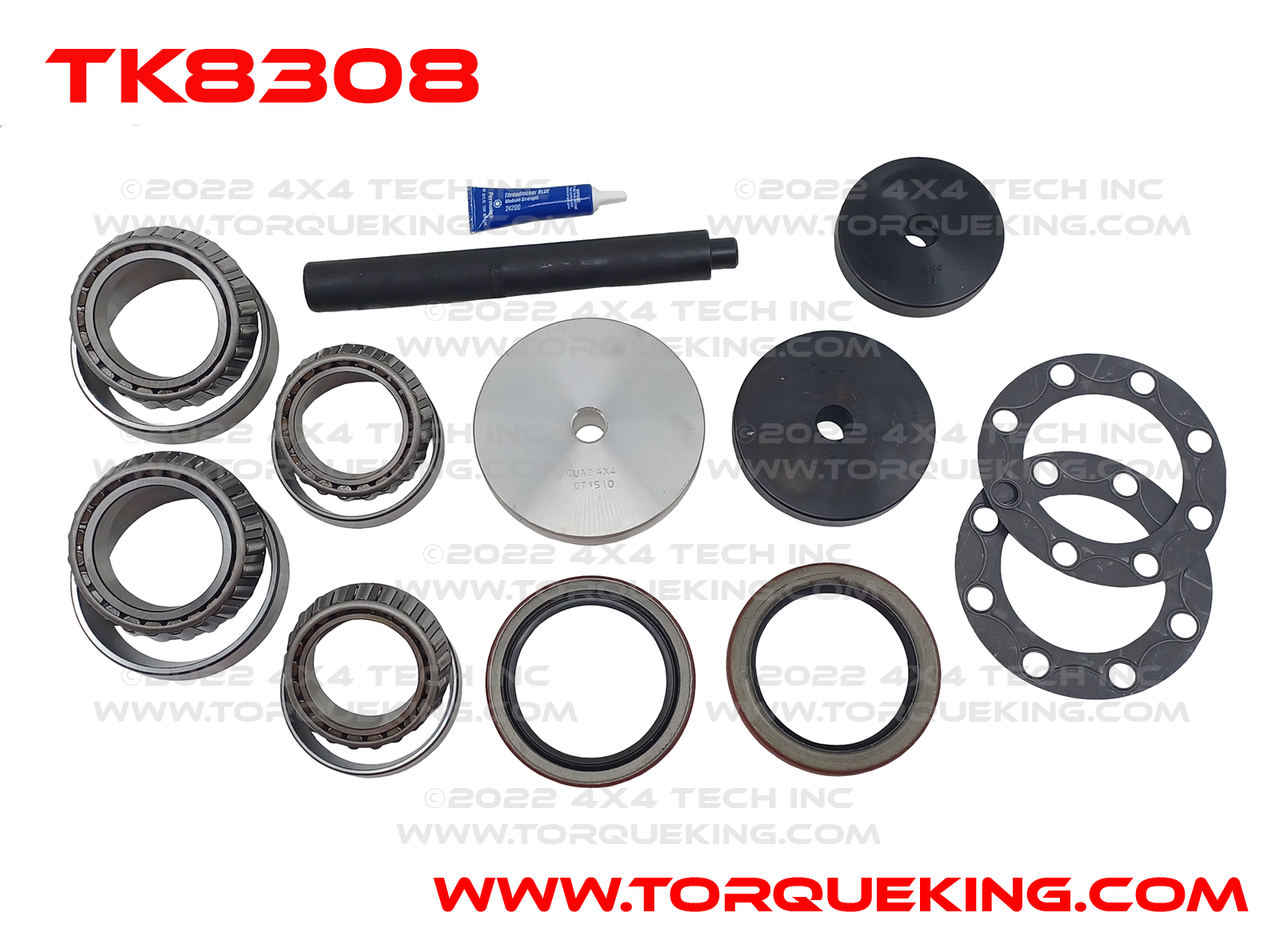

TK8308 Rear Wheel Bearing Kit with Tools Includes These Components:
QT1801 Outer Wheel Bearing Cup Installer
QT1804 Inner Wheel Bearing Cup Installer
Inner Wheel Seal Installer QT1510
QT1100 1" x 8" Driver Handle
2 each Timken ® Wheel Bearings/Cups: QU50411, QU50412, QU50413, QU50414
2 Inner Wheel Seals: QU40450
2 Dana 60, 70, 80 Axle Shaft Flange Gasket: QU40078
Plus S24200 Medium strength blue Threadlocker for the axle shaft flange bolts

Tech Note 3: Lubrication
Under operating conditions, the rear wheel bearings are bathed in oil from the differential, but they do need to be pre-lubricated with grease or oil to provide initial lubrication.

Tech Note 4: Matching Parts
Matching Parts for TK8308 Master Kit in 1994-2002 Dodge and Ram Dana 60, Dana 70, Dana 80 SRW Rear Axle Applications:
Exploded View XV2011 2000-2002 Dodge Ram 2500, Ram 3500 Dana 80 Rear Axle
Exploded View 2000-2002 Dodge Dana 60, 70, 80 Rear Hub
QU40118 Spindle Lock Nut for
QU40115 Spindle Nut Lock Wedge
TK4011 Double Spindle Nut Upgrade Kit
QU11392U Rear Wheel Hub 1994-1999
TK11112 Rear Wheel Hub 2000-2001 SRW with Drum Brakes
QU90018 Pyroplex Synthetic Grease
QU42029 Dana 60 Reusable Differential Cover Gasket
QU40367 Dana 70 Differential Cover Gasket
QU42030 Dana 70 Reusable Differential Cover Gasket
QU42031 Dana 80 Reusable Differential Cover Gasket
QT1510 Rear Wheel Seal Installer for QU40450 Seal
QT1503 Rear Wheel seal Installer for QU40449 Seal
QT1009i Spindle Nut Socket
QT5500 Wheel Bearing Packer
TSB4008 Service Bulletin 1994-2002 Dodge Rear Wheel Bearing Adjustment
Dodge & Ram Shop Manuals

Applications:
Dodge or Ram:
Ram 2500, Ram 3500 with Dana 60, Dana 70, or Single Rear Wheel Dana 80 Rear Axles: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
