TK8307 DRW Master Rear Wheel Bearing Kit & Tools 1994-2002 Ram 3500

TK8307 Torque King® Master Rear Wheel Bearing and Seal Kit with Installation Tools for 1994-2002 Dodge Ram Dana 80 Dual Rear Wheel Axles features premium Timken® bearings and original equipment quality wheel seals because when it comes to rear wheel bearings and seals, only the best will do to safely support the heavy loads your truck hauls. Kit includes Wheel Bearing Cup Installers, Wheel Seal Installer, Driver Handle, Timken® inner and outer wheel bearings/bearing cups, inner wheel seals, steel axle shaft flange gaskets, and Threadlocker for the axle shaft flange bolts. This Kit fits 1994 to 2002 Dodge Ram 4x2 and 4x4 3500 series trucks with DUAL Rear Wheel Dana 80 full float Rear Drive Axles.

For a Kit without Tools, see TK8324.

Available Spindle Nut Options: (Do Not Reuse Your 1994-2002 Original Spindle Nuts, See Tech Notes Below!)
2-9/16" Rounded Hex Stock  Spindle Nut Kits: QK4008/QK4009
Double Spindle Nut Kits with 2-1/2" Hex Spindle Nuts: TK4011/TK4012
Double Spindle Nut Kits with 2-9/16" Rounded Hex Spindle Nuts: TK8373/TK8374

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Safety Warning! Do Not Reuse Stock Nuts
Safety Warning! Do Not Reuse Spindle Nut Lock Washers
Wheel Bearing Lubrication
Kit Includes
Matching Parts
Applications

Tech Note 1: Safety Warning! Do Not Reuse Stock Nuts
Dan the Gear Man Safety Warning: Stock Elastic Stop Spindle Nuts and Lock Wedges used on 1994-2002 Dodge Ram Dana 60, Dana 70, and 80 rear axles are designed to be installed once and only once! For safety reasons, you must discard both the nut and wedge if they are removed from the spindle for any reason. Both parts lose a percentage of their resistance of coming off when they are removed. You may hear of cases where this type of factory nut has come off while the truck was being driven. Invariably, these failures involve nuts and wedges that have been reused or improperly installed. NEVER REUSE FACTORY ELASTIC STOP SPINDLE NUTS and LOCK WEDGES!!!!!

Tech Note 2: Safety Warning! Do Not Reuse Spindle Nut Lock Washers
Customer Statement: "Nonreusable? Dan what are you talking about? I always reuse them until all the tabs break off!" Well guys, for safety reasons, these lock washers must be discarded after every use. That means any time you bend up a tab to readjust or remove the spindle nuts. Why? Metal fatigue. The lock tabs lose some of their strength after they are straightened out. Also, the inside tab that fits in the spindle keyway has a tendency to shear when the outer nut is tightened against it more than one time. Reusing a bend over tab lockwasher may save you a few dollars, but by doing so you might kill yourself and others when you lose a hub and wheel going 75 mph down the Interstate.

Tech Note 3: Wheel Bearing Lubrication
Under operating conditions, the rear wheel bearings are bathed in oil from the differential, but they do need to be pre-lubricated to provide initial lubrication.

Tech Note 4: Kit Includes

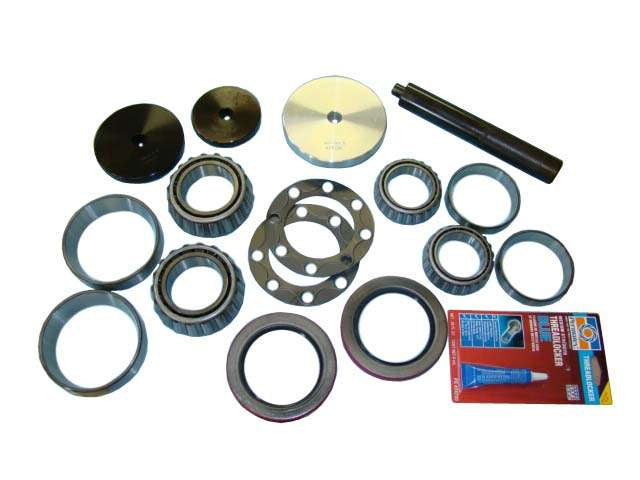

TK8307 Rear Wheel Bearing Kit with Tools Includes These Components:
QT1801 Outer Wheel Bearing Cup Installer
QT1806 Inner Wheel Bearing Cup Installer
QT1538 Inner Wheel Seal Installer
QT1100 1" x 8" Driver Handle
2 each Timken ® Wheel Bearings/Cups: QU50411, QU50412, QU50377, QU50376
2 Dana Inner Wheel Seals: QU50075
2 Dana 80 Axle Shaft Flange Gasket: QU40078
Plus S24200 Medium strength blue Threadlocker for the axle shaft flange bolts

Tech Note 5: Matching Parts
QK4008 Stock Spindle Nut Kit with Socket
QK4009 Stock Spindle Nut Kit
TK8373 Double Rounded Hex Spindle Nut Kit with Socket
TK8374 Double Rounded Hex Spindle Nut Kit
QU11220U Used DRW Hub 1994-1999
QU11113 DRW Hub 2000-2001 for Drum Brakes
QU11162 DRW Hub 2001-2002 for Disc Brakes
QU40306 Axle Shaft Bolt
QT1009i or QT1009 Rounded Hex Spindle Nut Socket
QT1116 1-1/4" x 8" Driver Handle
QU90018 Pyroplex Protection ES Synthetic Grease
QU90021 Spicer Ultra Premium Synthetic Grease
68218657AA Mopar 75w140 Synthetic Gear Lube

Exploded View XV2011 2000-2002 Dodge Ram 2500, Ram 3500 Dana 80 Rear Axle

Applications:
Dodge:
Ram 3500 with Dual Rear Wheels: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
