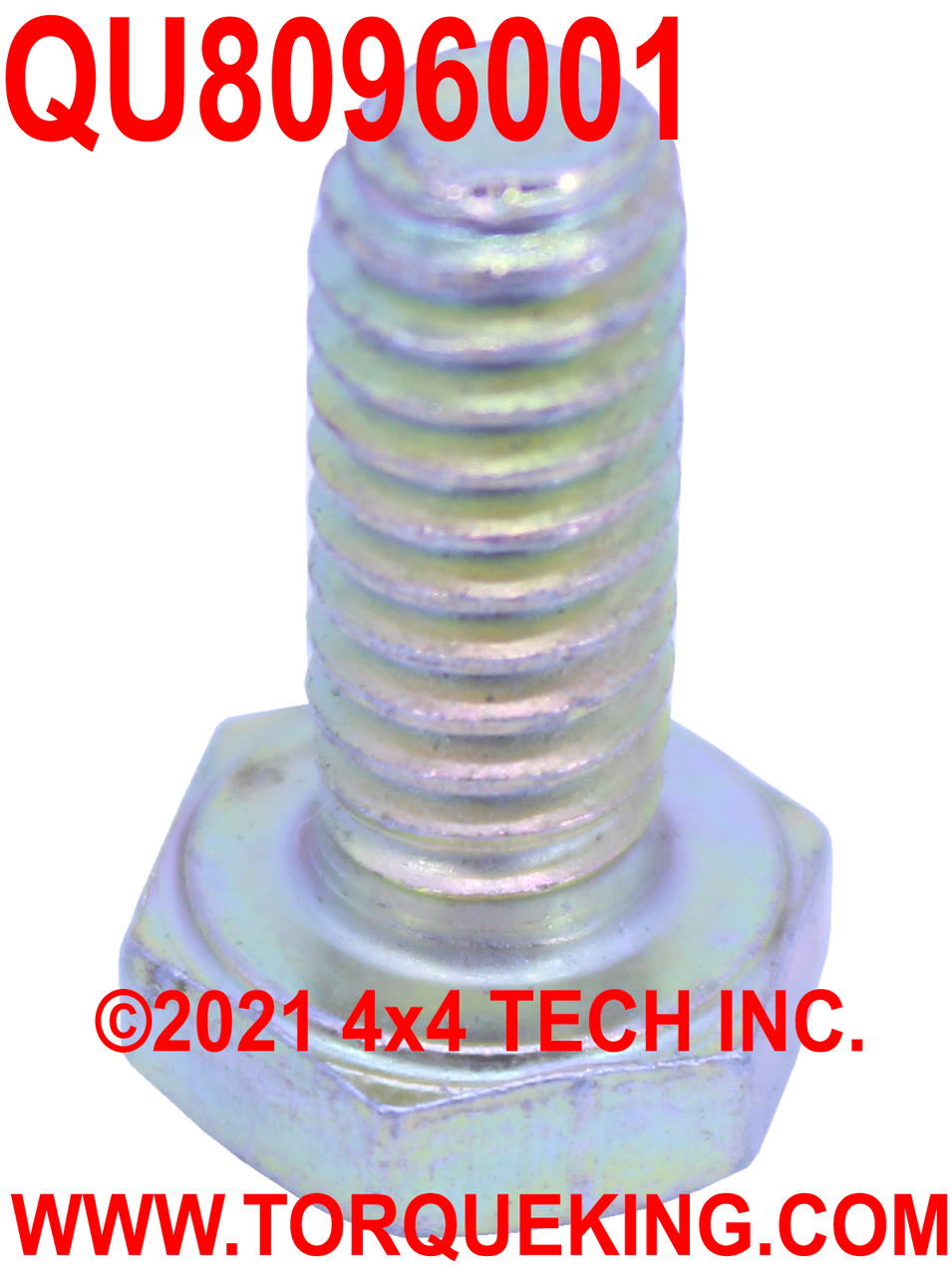

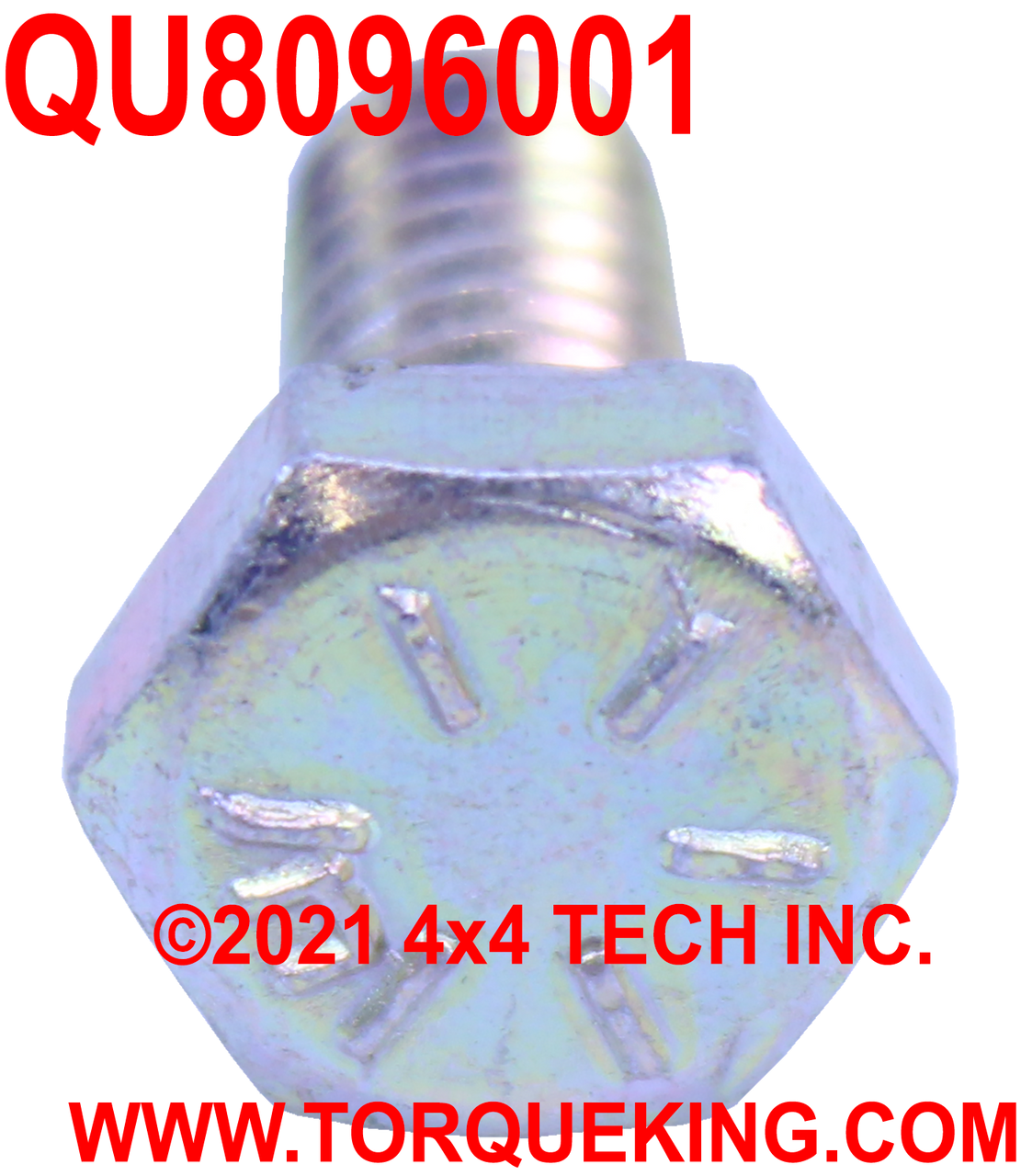

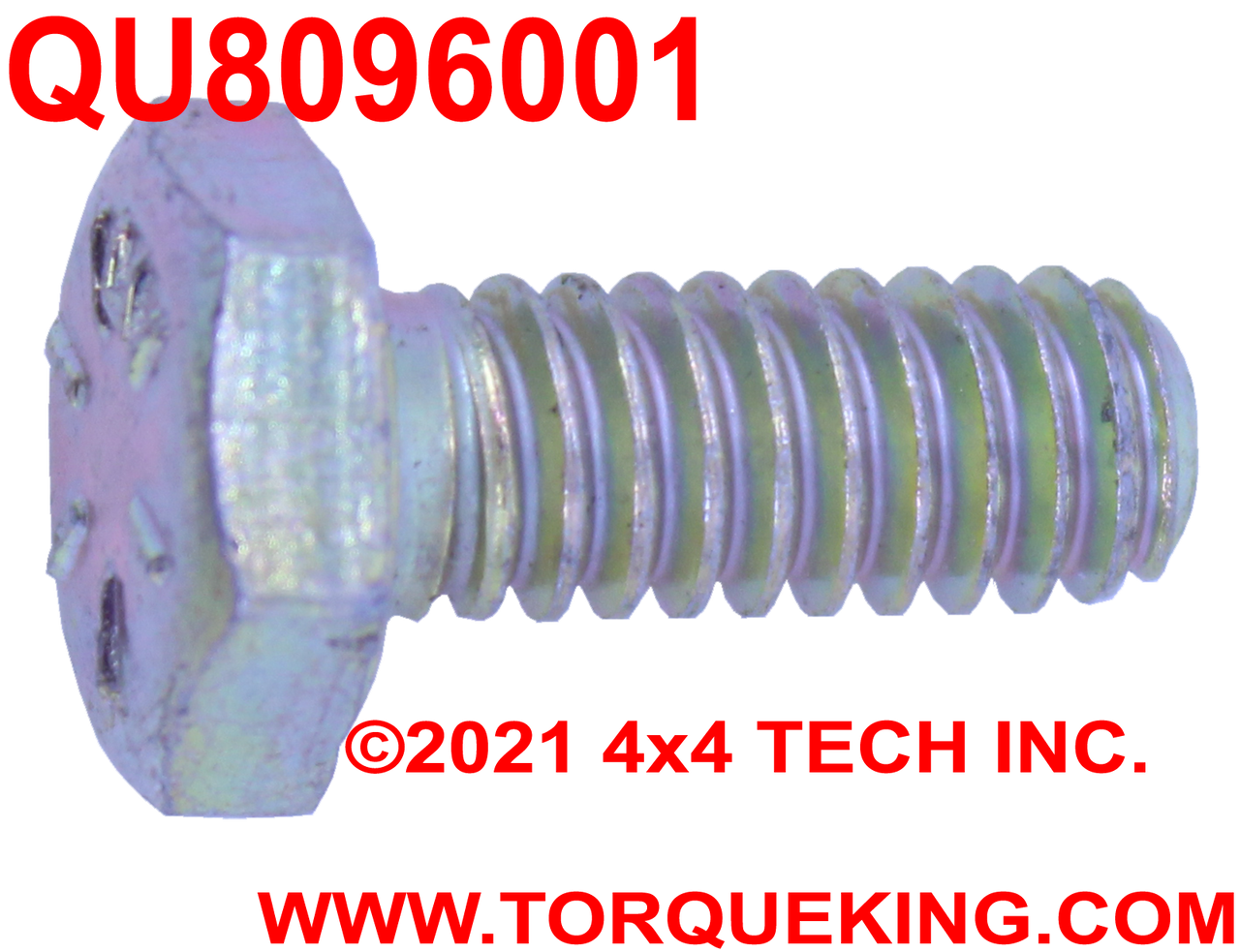

QU8096001 1/4-20 x 5/8 UNC Grade 8 Coarse Thread Hex Head Bolt

QU8096001 1/4-20 x 5/8 USA Made Grade 8 Coarse Thread Hex Head Bolt

• Made of heat treated alloy steel
• Tensile strength: minimum 150,000 psi
• Cold rolled, Class 2A threads, washer faced, machine pointed
• Rockwell hardness: C32-38
• Meets SAE J429 Grade 8, ASTM A354 and ANSI B18.2.1 specifications
• Yellow zinc plated for corrosion resistance
• Mil Spec Equiv.: UNC - NASM90728
• Size: 1/4-20 x 5/8

Exploded View XV1001 1975-1989 Dodge Dana 60/61 Front Axle
Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle

Note: For 1975-1993 Dodge Front Outer Brake Hose Brackets, order (1) QU8096001 Bolt + (1) QU95045 Flat Washer to replace the original combination nut/washer.
