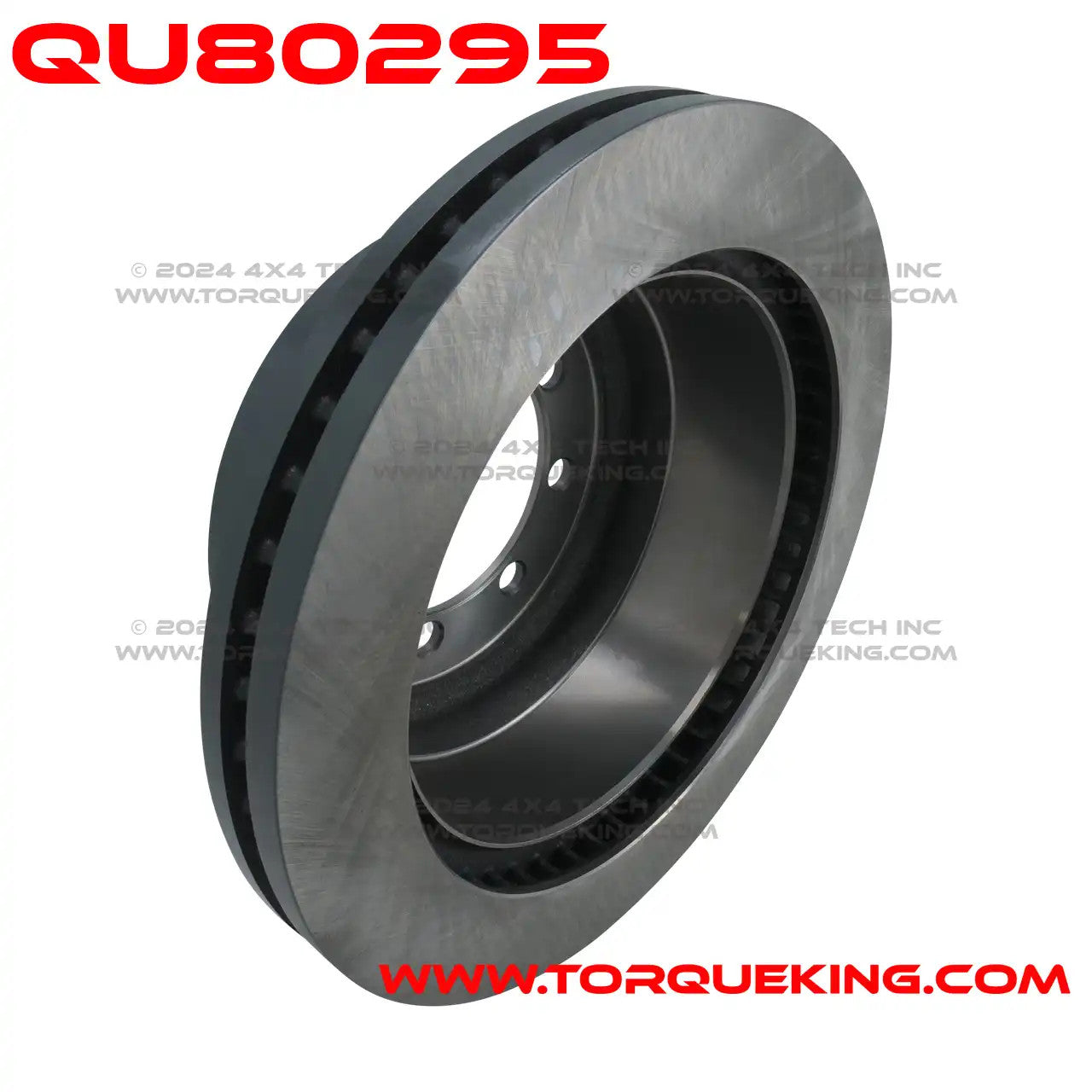

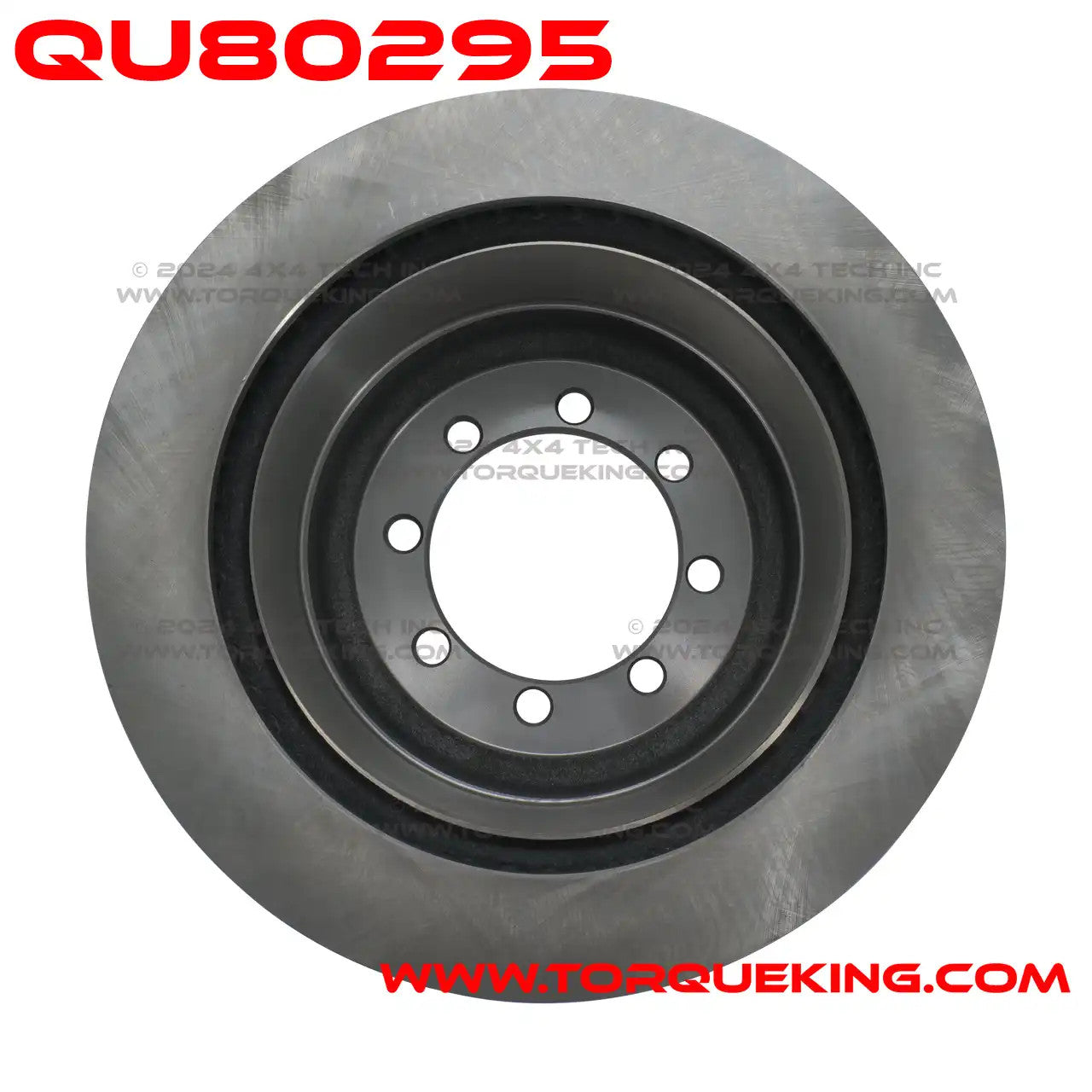

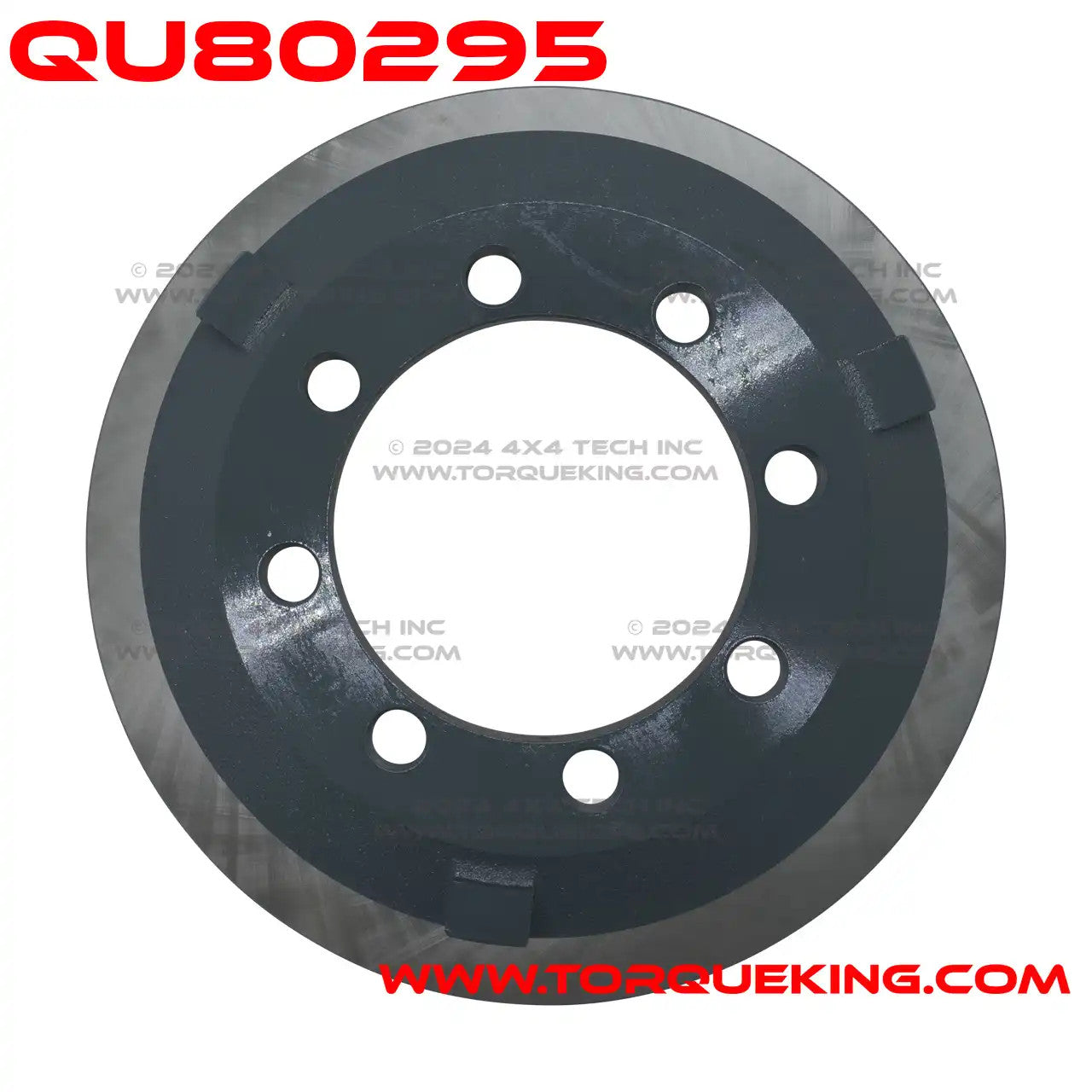

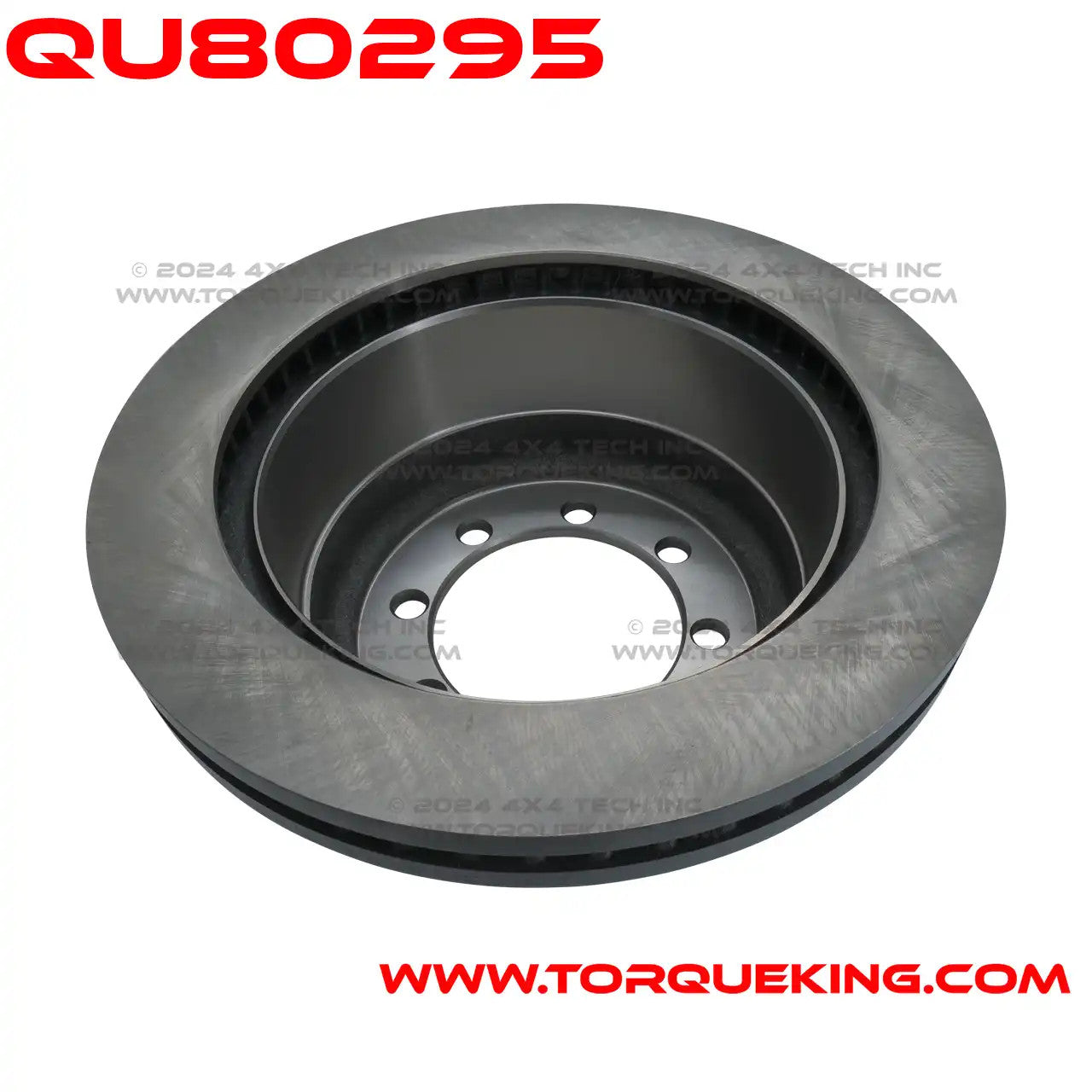

QU80295 DRW Rear Brake Rotor for 2019-up Ram 3500 Pickup with HO Cummins

QU80295 DRW Rear Brake Rotor for 2019-current Ram 3500 Pickup trucks with AAM 12" rear axles AND the Cummins Diesel High Output Engine. QU80295 is a quality aftermarket replacement Rear Brake Rotor for your big Ram 3500 Dually pickup with the Cummins High Output Diesel Engine (engine option code ETM) with the American Axle Manufacturing (AAM) 12.0" rear axle. QU80295 Rotor is unique to the AAM 12" integral housing rear axle with 2.5" spindle ends which is only used in the the Ram 3500 DRW Pickup with the High Output Cummins engine. Imported. Also see TK11850 Original Equipment Brake Rotor.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Specs
Matching Parts
Applications

Tech Note 1: Specs
Bolt Circle Diameter: 156.000mm
Bolt Hole Diameter: 16.500mm
Bolt Hole Quantity: 8
Center Hole Diameter: 128.050mm
Discard Thickness: 36.400mm
Height: 134.100mm
Nominal Thickness: 38.000mm
Outside Diameter: 365.000mm

Tech Note 2: Matching Parts
TK11837 Inner Wheel Bearing
TK11834 Inner Wheel Bearing Cup
TK11833 Outer Wheel Bearing
TK11836 Outer Wheel Bearing Cup
TK11839 Axle Shaft O-Ring
TK11716 Spindle Nut
QU30123 Spindle Nut Lock Key
TK11838 Spindle Nut Lock Ring
TK11840 Axle Shaft Bolt
S24200 Medium strength Blue Threadlocker for the axle shaft flange bolts
TK11835 DRW Hub

Applications
RAM:
Ram 3500 Pickup Trucks with AAM 12" DRW Rear Axles with the High Output Cummins Engine (Engine code ETM): 2019, 2020
