05CM1-HDCL-X FX400 Ceramic Single Disc Clutch Kit without Flywheel, 1-1/4, NV4500

05CM1-HDCL-X FX400 Ceramic Single Disc Clutch Masters Clutch Kit without Flywheel.
FXT100: 13” Clutch conversion kit: 1-1/4” Input Shaft

If you do not have a 13" flywheel you will need to order: 05CM1-HDCL-SK

This Product does not qualify for Free Shipping.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Includes
Specs
Torque Rating
Applications
1994-2002 Clutch Service Videos

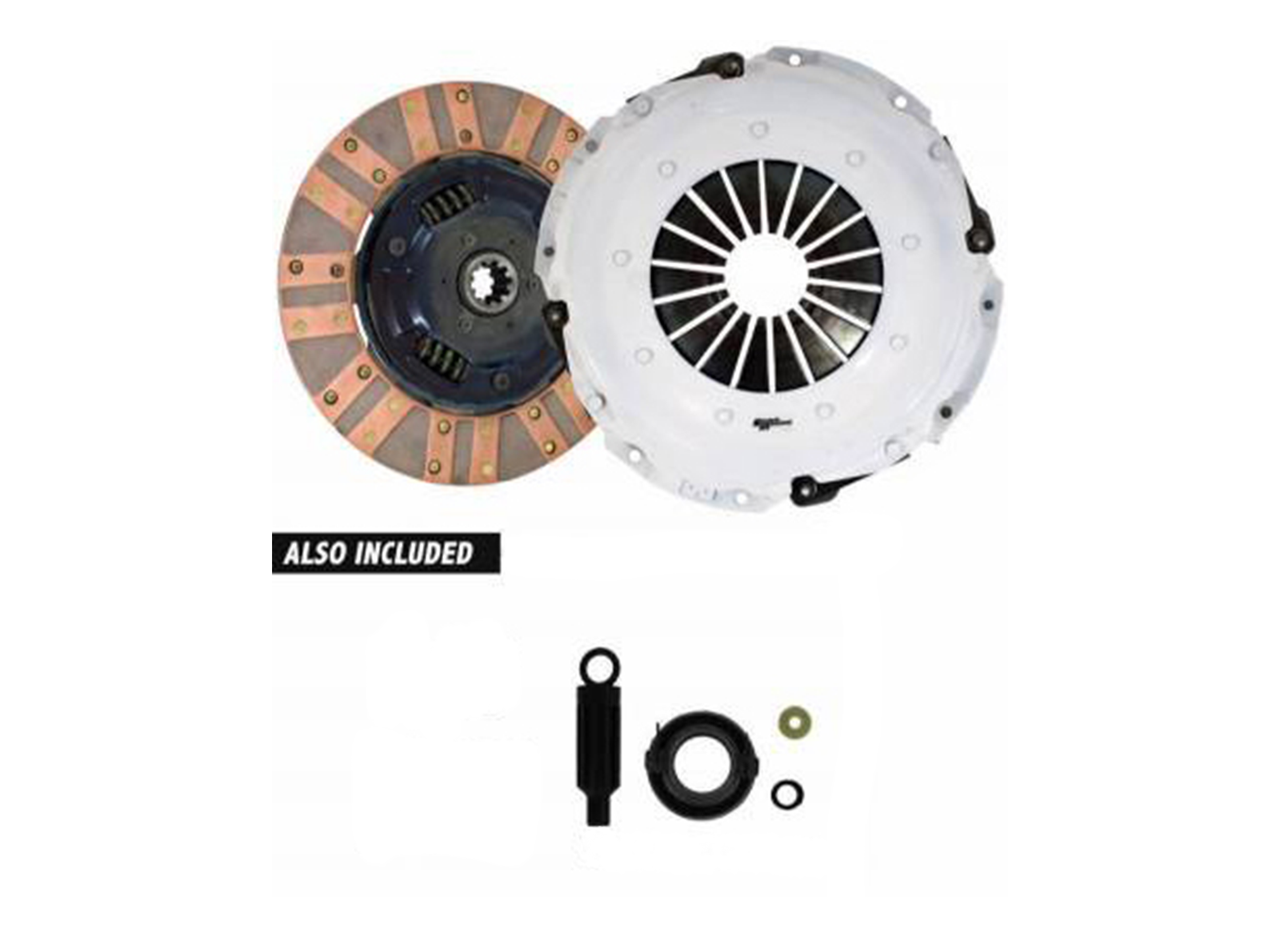

Tech Note 1: Includes
Heavy duty pressure plate (3300lbs clamp Load)
13” Performance sprung ceramic disc (3” wide facing)
Pilot bearing
Release bearing
Mounting hardware
Alignment tool

Tech Note 2: Specs
The Clutch Masters FXT Series single disc conversion kit for the Dodge Ram is an excellent upgraded unit to replace the Original self-adjusting pressure plate and dual-mass flywheel. The factory Dual-Mass flywheel is prone for failure under heavy towing and if any power modifications are made to the vehicle. Thankfully the Clutch Masters conversion kit solves the problem by using a single mass steel flywheel (not included in this kit) that will handle more torque, higher towing capacity, and can be resurfaced. The Clutch Masters 13” pressure plate offers a higher clamping force as well as a wider casting to accept the upgraded 3” wide disc. Steel backed; full faced ceramic disc is available for the 13” Single disc conversion kit. Also included is the release bearing, and an alignment tool for an easy install.

Tech Note 3: Torque Rating
Torque Rating: 925 ft. lbs.
If your application is running less than 826 ft. lbs see: 05CM1-HD00-X.

Applications
94-04 Dodge/Ram 2500/3500 with NV4500 and 1-1/4” Input Shaft

1994-2002 Clutch Service Video
