Name: QU70005 6 Bolt PTO Cover
Brand: New Process NPG
SKU: 70005
Price: 7.98 USD

Description
Warranty
Delivery & Returns
Product Reviews

Description

No Longer Available. See QU70113 HD PTO Cover.

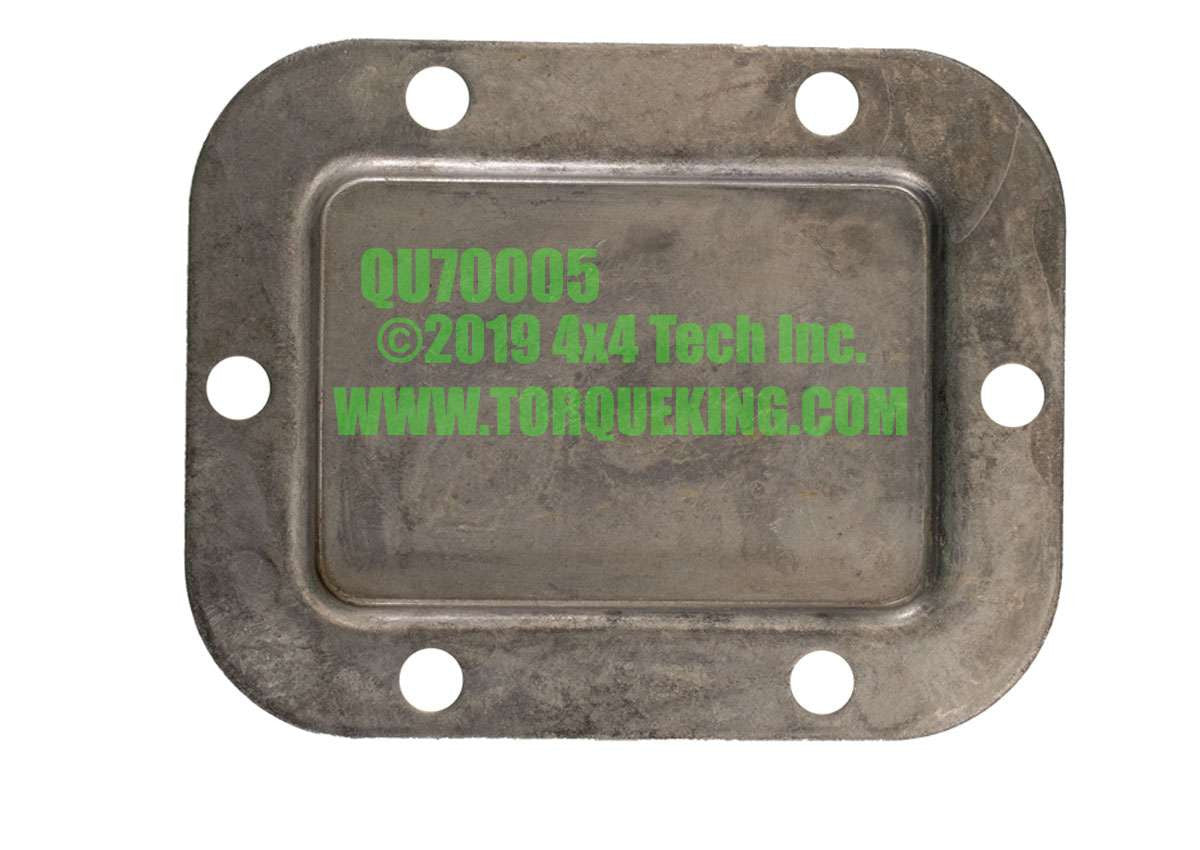

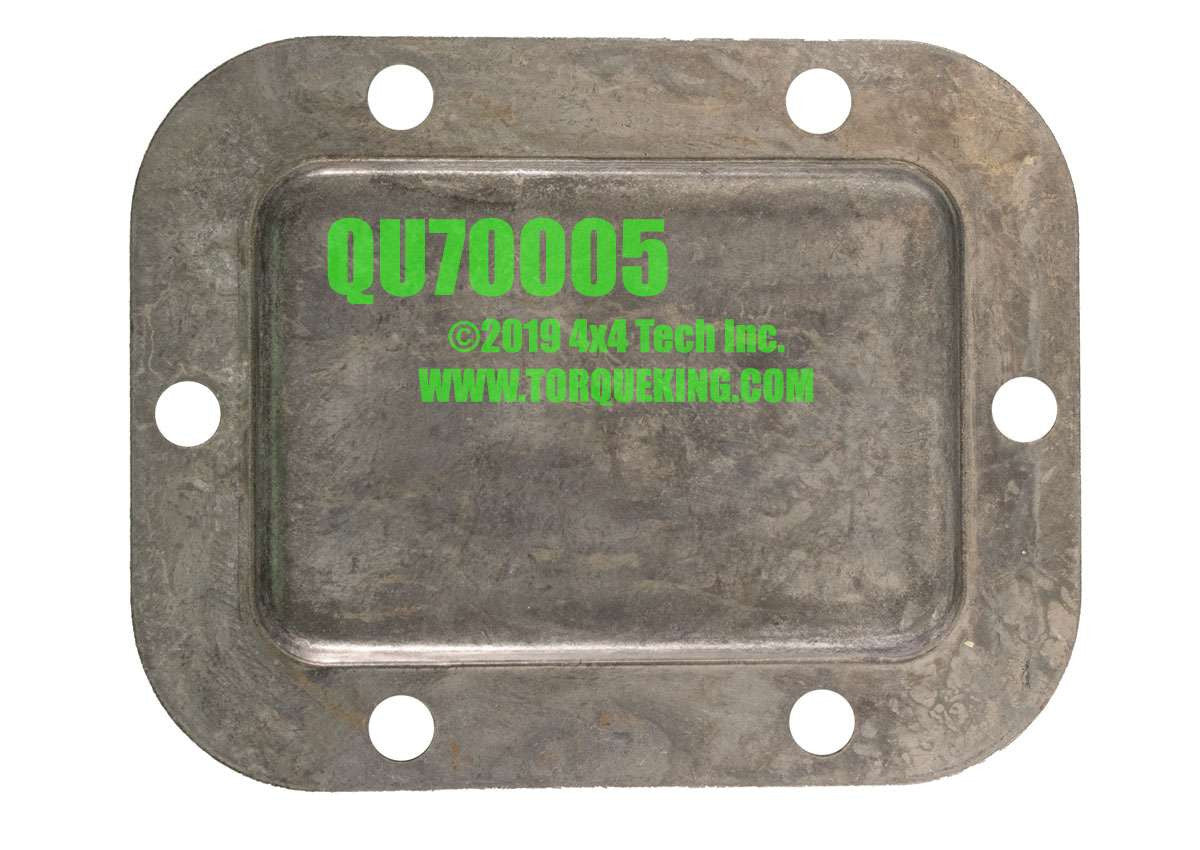

QU70005 6 Bolt PTO Cover is a brand new, genuine New Process stamped steel cover for most 4, 5, and 6 speed manual transmissions and many heavy-duty transfer cases. Although often mistaken for an "inspection" cover, these covers really cover the SAE 6 Bolt Power Take Off (PTO) mounting location on transmissions and transfer cases made to accept a PTO. USA Made.

Also see: QU70005U Used PTO Cover and QU70005NTO New Take Out PTO Cover

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Capable Transmissions
Sealing Options
Matching Parts
NV4500 Tools
Applications

Tech Note 1: Capable Transmissions
These covers are made to standard SAE 6 Bolt Power Take Off (PTO) bolt pattern which is used on almost all 4x4 and light truck transmissions and transfer cases that can drive a PTO. Some of the more popular PTO capable transmissions using this cover include Borg Warner T18, T19/T98, Muncie SM465, New Process NP435, and New Venture NV4500/NV5600. The same cover size is also found on imported Getrag G360 and ZF 5 or 6 speed transmissions. For Transfer Cases both the NP205 and NP241DHD along with some of the heavier Borg Warner units have identical 6 Bolt SAE PTO covers.

Tech Note 2: Sealing Options
You can use either RTV sealant (QU90005 or QU90006), a cork gasket (QU50039), or paper gasket (QU50178). All three sealing methods were used over the years with different gear boxes.

Tech Note 3: Matching Parts
Matching Parts for QU70005 PTO Cover:
Exploded View XV4000 1994-1996.5 Dodge Ram NP241DHD Transfer Case
Exploded View XV4001 1996.5-1997 Dodge Ram NP241DHD Transfer Case
Exploded View XV4003 1998-2002 Dodge Ram NP241DHD Transfer Case
QK2012 PTO Cover Kit with Cover, Bolts, Star Washers, and Ultra Black
QK2174 PTO Cover Kit with Cover, Gasket, Bolts, and Ultra Black
QK2168 Set of 6 PTO Cover Bolts
QU10245 Flange Head PTO Cover Bolt with Sealant on Threads
NV4500GME 1992-1995 GM NV4500 Transmission Case
NV4500E 1994-1996 Dodge, 1996 GM NV4500 Transmission Case
NV4500L 1997-2007 Dodge, GM NV4500 Transmission Case
QU50633 Large Bore NP205 Case for GM and Dodge
QU50634 Small Bore NP205 Case for GM and Dodge
QU20263U Used NP205 Case for Ford
QU50716U Used Remote Mount NP205 Case for Dodge
QU20314U Used Remote Mount NP205 Case for Ford
QU11143 Dodge NP241DHD Front Case Half
QU10103 Square Chip Magnet
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals
Ford Shop Manuals
Jeep Shop Manuals

Tech Note 4: NV4500 Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual.

You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

TOOLS for SPECIFIC NV4500 MODELS
Component	23 Spline Dodge 4x4 NV4500LD	29 Spline Dodge 4x4 NV4500HD	30 Spline Dodge 4x2 NV4500LD	31 Spline Dodge 4x2 NV4500HD	32 Spline GM 4x4	35 Spline GM 4x2
Mainshaft Nut	QT2002	QT2001 QT2036	QT2002	QT2001 QT2036	QT2002 QT2028	1-1/2" Hex Socket
Mainshaft Holding	NLA	QT2000	NLA	QT2011	N/A	N/A
5th Gear Nut Torx® Cross Bolt	N/A	QT9205	N/A	QT9205	N/A	N/A
Output Seal Installer	N/A	QT1801	N/A	QT2058 CALL	Not Used	Not Used
Tailshaft Bushing Remover and Installer	Not Used	Not Used	Not Used	QT2044	Not Used	Not Used
TOOLS For ALL NV4500 MODELS
Countershaft Front Bearing Cup Installer	QT1802	Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal
Countershaft Front Bearing Installer	QT2004	Can also use to press 3-4 Synchro Hub on original equipment mainshafts
Input Bearing & Countershaft Rear Bearing Installer	QT2005	Can also use to install Input Seal
Input Bearing Cup Installer	QT1801	Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle.
Countershaft Support	QT2006	Use to support front of countersahft when installing countershaft rear bearing
1-2 Synchronizer Support	QT2008	Use to support 1-2 synchronizer hub during synchronizer assembly
10mm 1/2" Drive 12 Point Socket	QT1020	USA Made Impact Socket for Factory Tailshaft Housing Bolts
Long Shank Punch for Shift Lug	QT9300	3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin

Applications

Any Transmission or Transfer Case with the SAE standard 6 bolt PTO mounting

Specific Applications Include:

Chevy and GMC:
Muncie SM420 4 Speed Manual Transmission: 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967
New Process NP435 4 Speed Manual Transmission: 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Muncie SM465 4 Speed Manual Transmission: 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
New Venture NV4500 5 Speed Manual Transmission: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
ZF6-650 6 Speed Manual Transmission: 2001, 2002, 2003, 2004, 2005, 2006, 2007
New Process NP205 Transfer Case: 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
New Process NP203 Transfer Case: 1973, 1974, 1975, 1976, 1977, 1978, 1979

Dodge, Plymouth, Ram, Sterling:
New Process NP420 4 Speed Manual Transmission: 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968
New Process NP435 4 Speed Manual Transmission: 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
New Process NP445 4 Speed Manual Transmission: 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
Getrag G360 5 Speed Manual Transmission: 1989, 1990, 1991, 1992, 1993
New Venture NV4500 5 Speed Manual Transmission: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
New Venture NV5600 6 Speed Manual Transmission: 1999, 2000, 2001, 2002, 2003, 2004, 2005
New Process NP205 Transfer Case: 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
New Process NP203 Transfer Case: 1974, 1975, 1976, 1977, 1978, 1979
New Processs NP241DHD Transfer Case: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

Ford:
Borg Warner T98 4 Speed Manual Transmission: 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
New Process NP435 4 Speed Manual Transmission: 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Borg Warner T18 4 Speed Manual Transmission: 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Borg Warner T19 Transmission: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
ZF S5-42 5 Speed Manual Transmission: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
ZF S5-47 5 Speed Manual Transmission: 1996, 1997, 1998, 1999, 2000, 2001
ZF S6-650 6 Speed Manual Transmission: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
ZF S6-750 6 Speed Manual Transmission: 2008, 2009, 2010
New Process NP205 Transfer Case: 1973, 1974, 1975, 1976, 1977, 1978, 1979
New Process NP203 Transfer Case: 1974, 1975, 1976, 1977, 1978, 1979
Borg Warner 1356 Transfer Case with PTO Gear: 1992, 1993, 1994, 1995, 1996
Borg Warner 4407 Transfer Case with PTO Gear: 1996, 1997

International:
Borg Warner T98 4 Speed Manual Transmission: 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969
New Process NP435 4 Speed Manual Transmission: 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
Borg Warner T18 4 Speed Manual Transmission: 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
New Process NP205 Transfer Case: 1969, 1970, 1971, 1972, 1973, 1974, 1975

Jeep:
Borg Warner T98 4 Speed Manual Transmission: 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
Borg Warner T18 4 Speed Manual Transmission: 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
