QK1145 1996-2007 NV4500 Manual Transmission Top Cover Service Kit for 1996-2007 New Venture NV4500 5 speed manual transmissions in Chevy, Dodge, and GMC trucks. These mid and late production transmissions have shift covers that use Cup type Shift Rail Plugs. This Kit greatly simplifies disassembly of your NV4500 transmission top cover. All Kit parts are USA Made.
See QK1144 For 1992 to 1995 transmissions
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
See TM1003 Manual for Instructions
Early and Late Kits
Matching Parts
Lubricants, Sealants, Threadlockers
Tools
Applications
Tech Note 1: See TM1003 Manual for Instructions

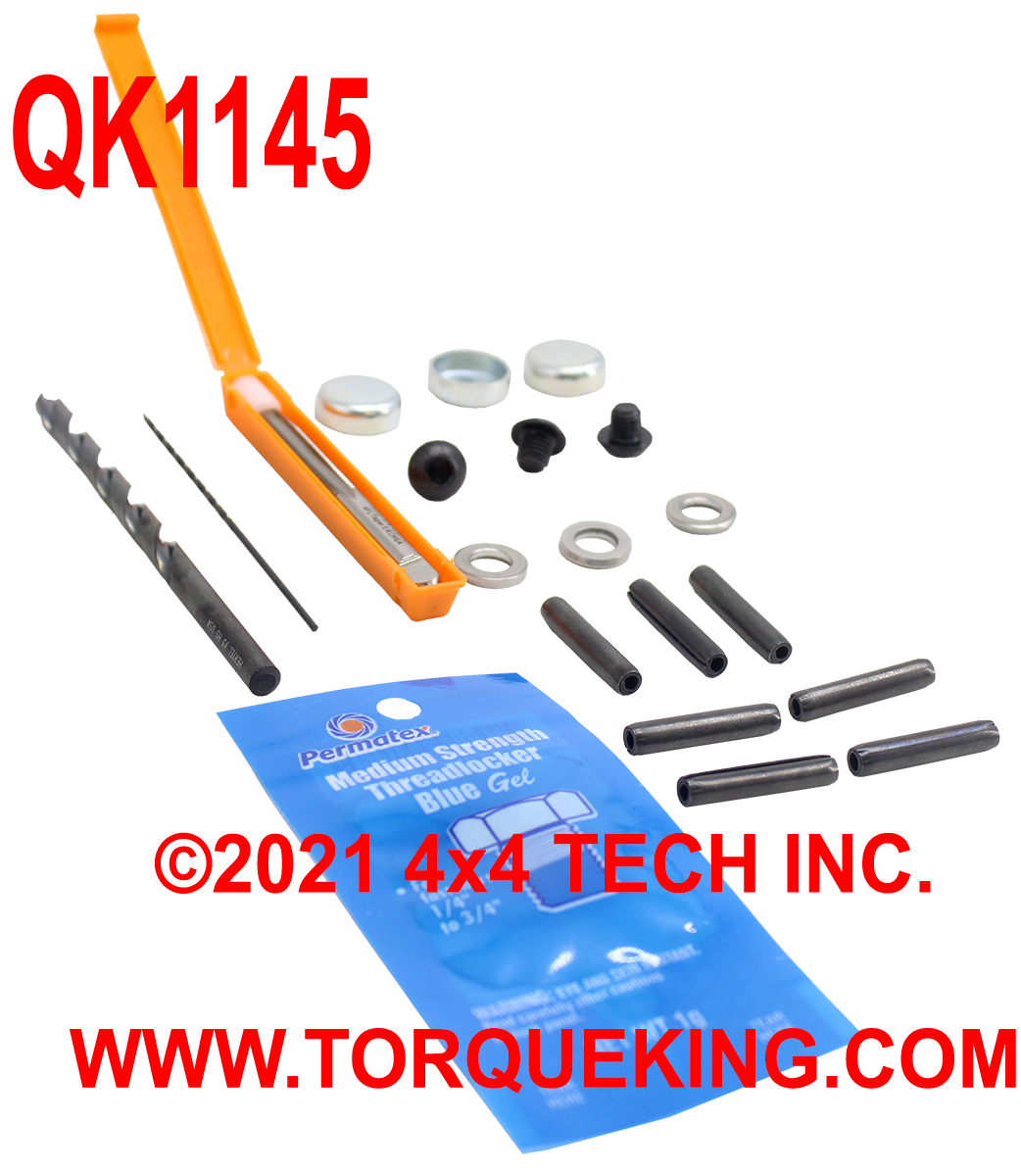

The NV4500 Top Cover was not designed to allow for replacement of the 3-4 and 1-2 Shift Forks. As detailed in my TM1003 NV4500 Service Manual, we have come up with a way to easily service your NV4500 Top Cover using one of these Kits. Each Kit includes 3 Cup Type Shift Rail Bore Plugs, 7 Roll Pins for the Shift Forks/Lugs, 3 Alloy Steel Button Head Screws, 3 Stainless Steel Sealing Washers, 2 Drill Bits, Tap, and 242 Threadlocker. 100% U.S.A. Made.
Tech Note 2: Early and Late Kits
The difference between QK1144 Early and QK1145 Late NV4500 Top Cover Service Kits is the type and size of the expansion plugs used to seal the shift rail bores. Early (1992-1995) covers have convex dish type plugs. 1996 and newer covers have cup type plugs with a sealant ring. Since most NV4500 transmissions have been rebuilt or swapped by now, it is always a good idea to verify the plug type your cover has before ordering the Service Kit.
Tech Note 3: Matching Parts
QU10131 Shift Tower Seal or Boot for 1996-1997 Dodge NV4500 Top Covers
QK1107 Late Plug Kit for 1996-2007 Covers
QU10222 Top Cover Small Parts Kit
QU10186 Plunger, Shift Rail Detent Except 2002-2007 GM
QU10110 Poppet Spring, Green Medium Compression
QU10160 Top Cover Oil Baffle
QU10052 1-2 Shift Fork
QU10219 1-2 Shift Rail
QU10032 OE 3-4 Fork or QU10082 Replacement 3-4 Shift Fork
QU10230 3-4 Shift Rail except 2002-2007 GM
QU10080 Reverse Shift Fork for 1992-1997 Covers with Integral Shift Towers
QU10050 Reverse Shift Fork for 1994.5-2007 Covers with Bolt-On Shift Towers
QU10220 5th-Reverse Shift Rail
QK1123 Shift Stub Kit
QK1027 Shift Lever and Stub Kit
QU10262 Bare Cover Plate for 1992-1997 Transmissions with Integral Shift Tower
QU10263 Bare Cover Plate for 1995-2007 Transmissions with Bolt-On Towers
QK1094 Reverse Shift Fork Pad Kit for 1992-1997 Reverse Forks with Straight Tips
QK1095 Reverse Shift Fork Pad Kit for 1997-2007 Reverse Forks with Curved Tips
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Medium Strength Blue Threadlocker
S9978 1 gram Medium Strength Blue Threadlocker
S9979 1 gram High Strength Red Threadlocker
S24026 High Temperature Threadlocker for Mainshaft Nut
QU90020 NV4500 Manual Transmission Oil
TM1003 NV4500 Shop Manual
VSG1003DVD NV4500 Overhaul Video
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals
Tech Note 4: Lubricants, Sealants, Threadlockers
Early production NV4500 Transmissions used an anaerobic sealant (QU90003) to seal between the main case and input bearing retainer, top cover, and rear housing. Mid-production units used anaerobic sealant just on the input retainer and RTV for everything else. Later production transmissions used black RTV Sealant (QU90006 or QU90005) for everything. Either type of sealant works fine (except the PTO covers ALWAYS should be sealed with RTV), but I prefer RTV for all components. Regardless of which sealant you use, make sure excess sealant does not block the lube access hole at the top of input retainer pilot that fits into the transmission case! Also, the threaded holes in the main case for the four retainer bolts and 12 PTO bolts are open ended, so you must use new bolts with factory applied threadlocker or apply Threadlocker (S24200) to your existing bolts to prevent oil seepage past the bolt threads. See my TM1003 NV4500 Shop Manual or VSG1003DVD NV4500 Overhaul Video for more information.
Lubricant and Chemical List for NV4500 Transmissions:
QU90020 NV4500 Manual Transmission Oil
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Medium Strength Blue Threadlocker
S9978 1 gram Medium Strength Blue Threadlocker
S9979 1 gram High Strength Red Threadlocker
S24026 High Temperature Threadlocker for Mainshaft Nut
Tech Note 5: Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated NV4500 Rebuild Manual.
You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.
TOOLS for SPECIFIC NV4500 MODELS | ||||||
Component | 23 Spline Dodge 4x4 NV4500LD | 29 Spline Dodge 4x4 NV4500HD | 30 Spline Dodge 4x2 NV4500LD | 31 Spline Dodge 4x2 NV4500HD | 32 Spline GM 4x4 | 35 Spline GM 4x2 |
Mainshaft Nut | QT2002 | QT2001 QT2036 | QT2002 | QT2001 QT2036 | QT2002 QT2028 | 1-1/2" Hex Socket |
Mainshaft Holding | NLA | QT2000 | NLA | QT2011 | N/A | N/A |
5th Gear Nut Torx® Cross Bolt | N/A | QT9205 | N/A | QT9205 | N/A | N/A |
Output Seal Installer | N/A | QT1801 | N/A | QT2058 CALL | Not Used | Not Used |
Tailshaft Bushing Remover and Installer | Not Used | Not Used | Not Used | QT2044 | Not Used | Not Used |
TOOLS For ALL NV4500 MODELS | ||||||
Countershaft Front Bearing Cup Installer | QT1802 | Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal | ||||
Countershaft Front Bearing Installer | QT2004 | Can also use to press 3-4 Synchro Hub on original equipment mainshafts | ||||
Input Bearing & Countershaft Rear Bearing Installer | QT2005 | Can also use to install Input Seal | ||||
Input Bearing Cup Installer | QT1801 | Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle. | ||||
Countershaft Support | QT2006 | Use to support front of countersahft when installing countershaft rear bearing | ||||
1-2 Synchronizer Support | QT2008 | Use to support 1-2 synchronizer hub during synchronizer assembly | ||||
10mm 1/2" Drive 12 Point Socket | QT1020 | USA Made Impact Socket for Factory Tailshaft Housing Bolts | ||||
Long Shank Punch for Shift Lug | QT9300 | 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin |
Applications:
Chevy and GMC:
All with New Venture NV4500 Transmission: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Dodge and Ram:
All with New Venture NV4500 Series Transmissions: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
