QU20283U Used Dana 60 Right Inner Axle Shaft for 1999-2004 F-250, F-350

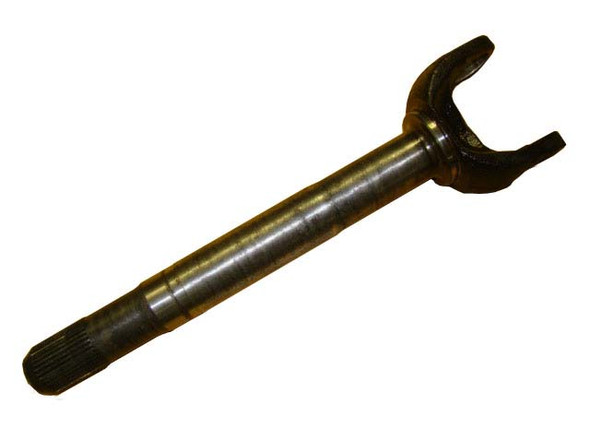

QU20283U Used Dana 60 Right Inner Axle Shaft for 1999-2004 Ford F-250, F-350 will fit any 1999-2004 Ford F250 or F350 Super Duty 4x4 including F350 trucks with dual rear wheels. Our QU20283U axles shafts are from Dana 60 axles that we acquired for our Research and Development Department. These are good, usable right (passenger side in North America) inner axle shafts that we have checked for significant wear or damage before offering them for sale. Most of these shafts will be rusty outboard of the seal location, but the use and function is not impaired. Available while supplies last.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching U-Joints
Tech Help
U-Joint Tools
Axle Models
Matching Parts
Applications

Tech Note 1: Matching U-Joints
QU40318 uses stock size universal joints made to Spicer 1480 Wheel Joint dimensional specifications. The yoke holes are 1-3/8" in diameter cups and the inside span between the yoke ears is 3". The matching u-joints for QU20283U Axle Shaft are: QU30332 (hot-forged, greaseable) TK40715 (cold-forged, non-greaseable), and TK40724 (cold-forged, greaseable).

Tech Note 2: Tech Help
An awful lot of axle shafts and new axle shaft universal joints are wrecked by slam-bang methods of service. Do it right the first time. See my Technical Service Bulletin TSB4610 Super Duty Front Axle Shaft Service or my Super Duty® and Excursion Front Axle Service Manuals TM4688 or TM4637.

Tech Note 3: U-Joint Tools
Most axle shaft universal joint service is done using makeshift tools and hammering on the parts until something gives. Axle Shafts and Axle universal joints are precise components that can be easily damaged by such slam-bang work. There is a better way to perform u-joint service using application specific press tooling and approved service procedures. See our U-Joint Tools web page or our individual Tool Pages for QT1065 C-Frame Press, QT4009 Large U-Joint Separator Yoke, QT4011 Press Tip and QT4015 Press Anvil.

Tech Note 4: Axle Models
Ford initially used a Dana 50 front axle on Super Duty F-250 and single Rear Wheel (SRW) F350 4x4 trucks. As far as I have seen all the dually F350's have a Dana 60, but for 2000-2002 you have to verify which axle you have for F-250 and F-350 SRW models as both Dana 50 and Dana 60 axles were subsequently used for these trucks. Externally, the two axles appear identical so you must be sure which axle you have before ordering inner axles shafts and differential parts as they NOT interchangeable between the two axle models. As far as I can determine, the Dana 50 was last used in 2002 in the F250/F350, however there good be some base engine or fleet models with a 50 through 2004. If you are unsure of which axle model you have, call us with the seven digit axle take number that begins with a "6" (ex: 611159-2)

Tech Note 5: Matching Parts
Matching Parts for QU20283U Right Inner Axle Shaft are:
QU40318 Outer Axle Shaft
QU30332 hot-forged, greaseable axle u-joint
TK40715 cold-forged, non-greaseable and TK40724 cold-forged, greaseable axle u-joints
QU40243 Outboard Dust Seal for Inner Axle Shaft (goes next to yoke)
QU40244 Inner Axle Shaft Oil Seal
QK4643 and QK4808 Inner Axle Seal and Tool Kits
QU20039 Dana OE Inner Axle Shaft Guide
QU40331 Diff "Spider Gear" Kit
QU40143 Outer Axle Shaft Support Bearing
QU40242 Inner Thrust Washer (for outer axle shaft)
QU40385 Outer 3 Piece Thrust Washer Set (for outer axle shaft)
QU40233 1999-2002 Unshielded Outer Axle Shaft to Knuckle Seal
QU20035 2003-2005 Shielded Outer Axle Shaft to Knuckle Seal
QU40155 Outer Axle Shaft Snap Ring
QU20283U Right Inner Axle Shaft
QK4637 Hub and Knuckle Seal Kit with UnShielded Seal (fits 1999-2005)
QK4845 Hub and Knuckle Seal Kit with Shielded Seal (2002.5-2005)
QK4610 Hub and Knuckle Seal Kit with UnShielded Seal and Knuckle Seal Installer (fits 1999-2005)
QK4846 Hub and Knuckle Seal Kit with Shielded Seal and Knuckle Seal Installer (fits 2002.5-2005)
QT1515 Knuckle Seal Installer

Applications:
Ford:
F-350 Super Duty 4x4 Trucks with Dana 60 Front Axles: 1999, 2000, 2001, 2002, 2003, 2004
F-250 Super Duty 4x4 Trucks with Dana 60 Front Axles: 2002, 2003, 2004
