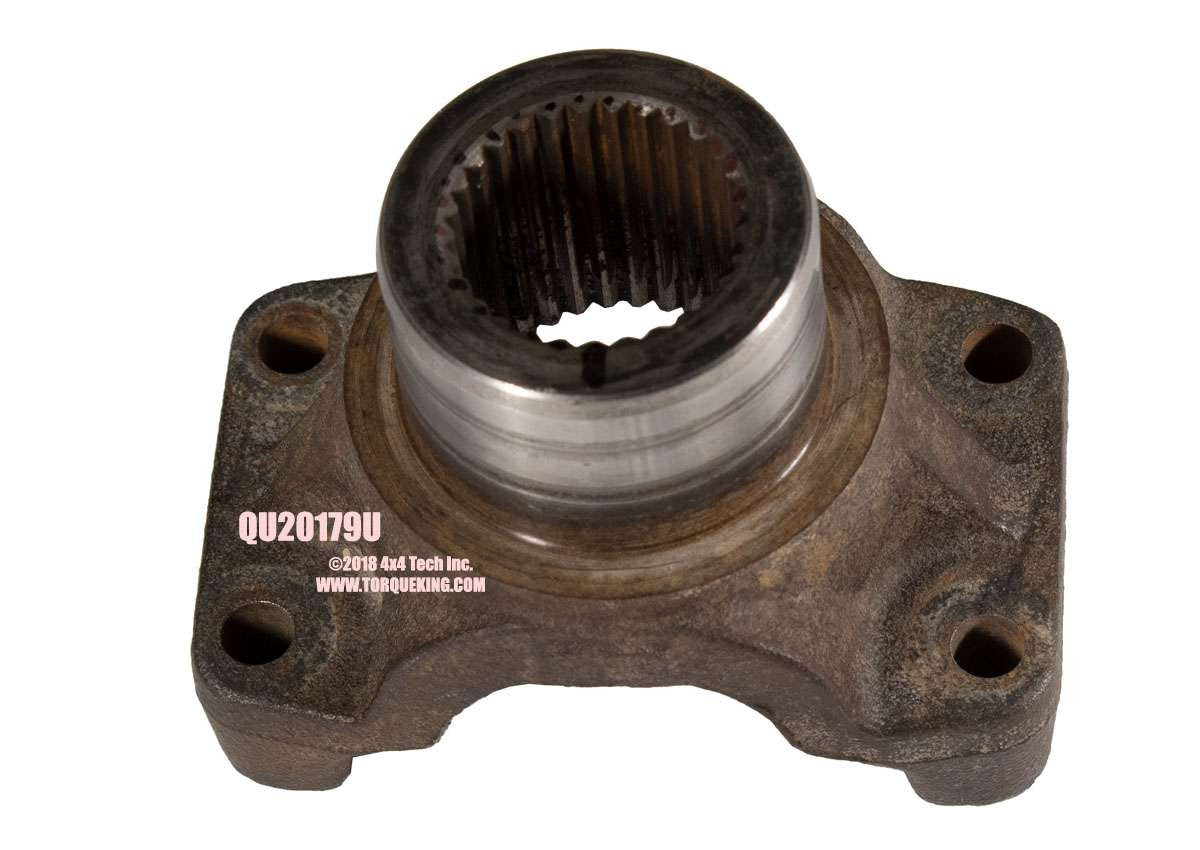

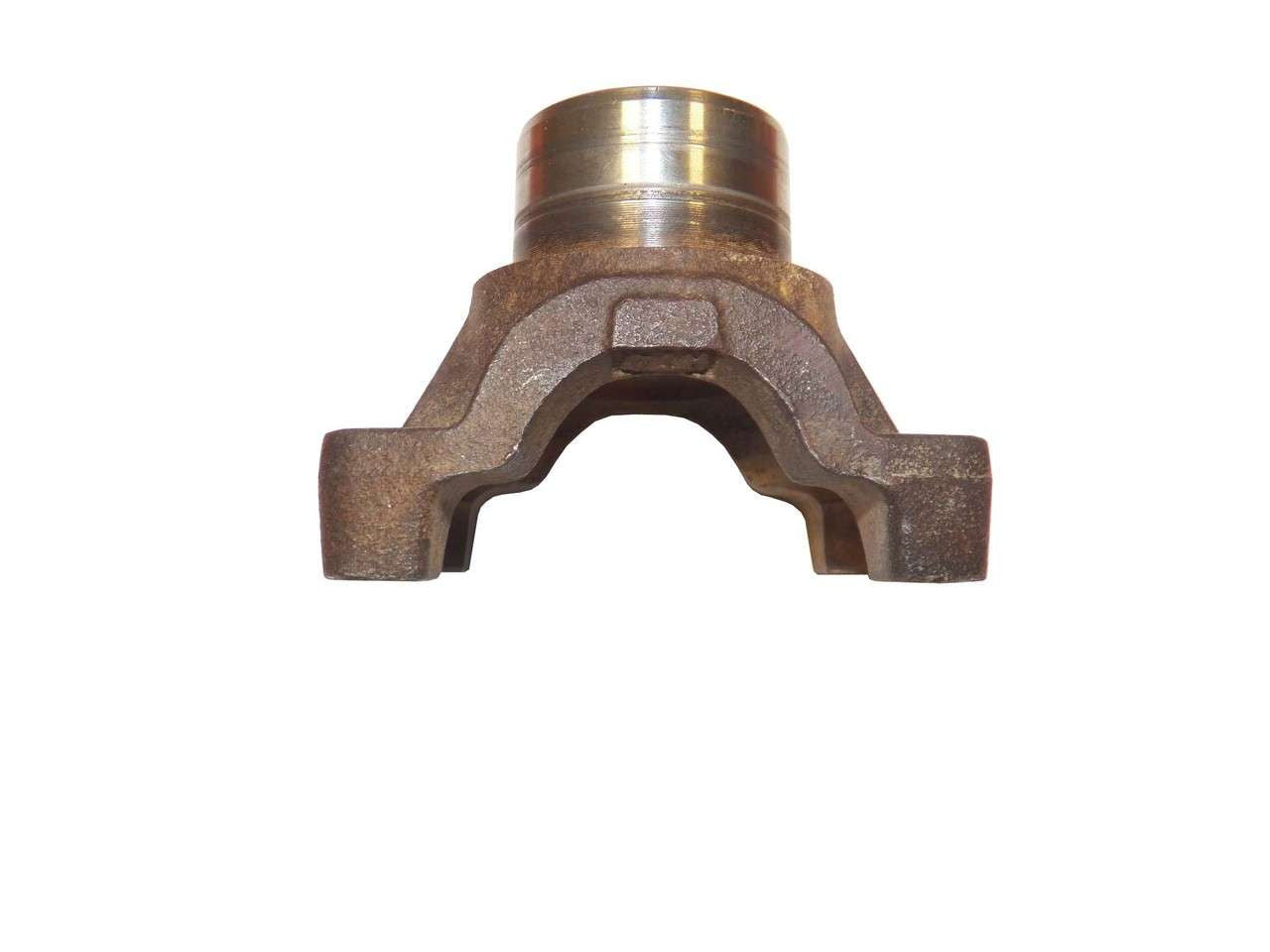

QU20179U Used 1330F Front Dana 60 Pinion Yoke without Slinger

QU20179U Used 1330F Front Dana 60 Pinion Yoke (no slinger) for 1985-1997 Ford F-350 Front Dana 60 axles and many 1983-1993 Ford Dana 60 and Dana 61 Rear Axles. Available while supplies last.

Also See: QU20179 New Dana 60 Pinion Yoke

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
29 Spline Pinion
Matching Parts
Applications

Tech Note 1: 29 Spline Pinion
QU20179U is a 29 spline Dana 60, Dana 61, or Dana 70 pinion yoke made to couple with driveshaft universal joints made to Spicer 1330F specifications. A 1330F u-joint is a Ford specific external snap ring type u-joint with two 1-1/16" diameter cups for the driveshaft and two 1-1/8" diameter cups for the pinion yoke. Overall width is 3-5/8". See TK40723 and QU40776 universal joints. Use QU40841 U-bolts to attach the universal joint to the pinion yoke.

Tech Note 2: Matching Parts
Matching pinion seal is QU40097 and Pinion Nut is QU40022. See QU40356 Crush Sleeve for later model Dana 60 axles in Dodge and Ford trucks that use a collapsible spacer instead of shims to set pinion rotating preload.

Applications:
Ford:
F-350 Dana 60 front axles: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Dana 60 and 61 rear axles: 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
