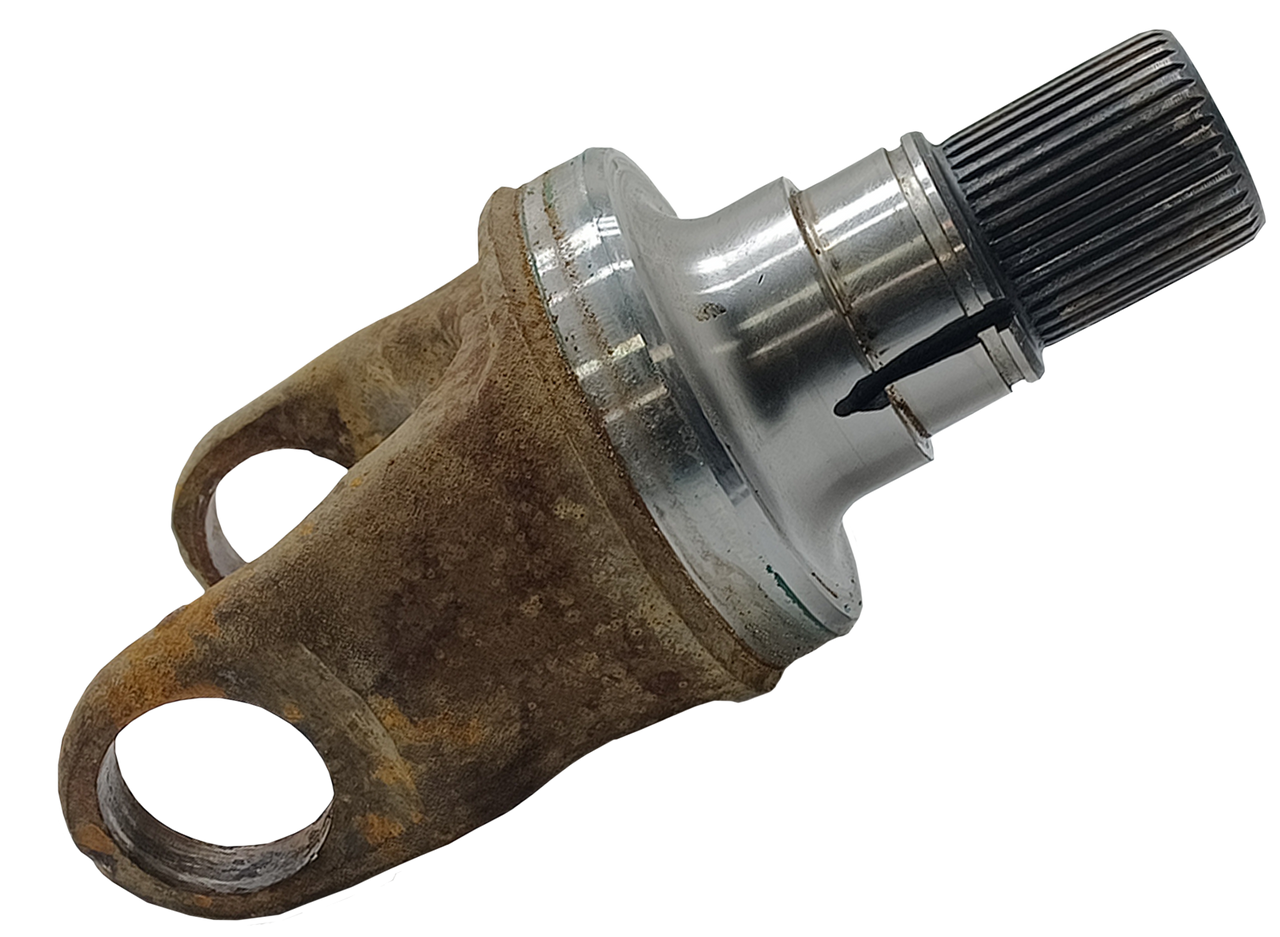

QU20042U Used 1480 Series Outer Axle Shaft

QU20042U Used 1480 Series Outer Axle Shaft for 2005-2019 Ford Super Duty® F250, F350. Original equipment replacement outer axle for a worn or broken axle shaft in your 2005 to 2019 Ford F-250 or F-350 Super Duty® 4x4 truck.

Need More Info?  Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:

1480 and 1550 Series U-Joint
Reasons to Replace
Matching Parts
Saved for Future Use
Applications

Tech Note 1: 1480 and 1550 Series U-Joint
In 2018 Ford updated both right and left axle shaft assemblies to a larger premium greaseable 1550 series u-joint. QU20042U Outer Axle Shaft uses a 1480 series u-joint will NOT fit the inner shafts that are used with the bigger 1550 u-joint. The larger 1550 outer axle shaft is not available separately. If you are unsure which series of axle shafts you have under your truck, simply measure the u-joints across the flats.
1480 Series U-Joints measure 4.188" in length with 1.375" u-joint caps
1550 Series U-Joints measure 4.964" in length with 1.375" u-joint caps

Tech Note 2: Reasons to Replace
The two most common replacement reasons for 2005-2010 Ford Super Duty® outer axle shafts is breakage from u-joint failure and wear from the Axle Support Ball Bearing.

Tech Note 3: Matching Parts
QU20461 Bare 1480 Series Outer Axle Shaft
QU20052 Axle to Knuckle Seal
QU20305 1550 Series Right Axle Shaft Assembly
QU20582 1550 Series Left Axle Shaft Assembly
QU20049 Axle Tube Dust Seal
QU20463 Inner Axle Shaft Oil Seal without Slinger
QK4807 Fixed Depth Inner Axle Seal Kit for Dana/Super 60
QK4644 Adjustable Depth Inner Axle Seal Kit for Dana/Super 60
QK4808 Fixed Depth Inner Axle Seal Kit for Dana 50
QK4643 Adjustable Depth Inner Axle Seal Kit for Dana 50
TSB4643 Inner Axle Seal Replacement Tech Service Bulletin for 99-04 Super Duty and Excursion
TM4637 Front Axle Tech Manual for 99-04 Super Duty and Excursion
TM4688 4x4 Hub, Axle Shaft, Ball Joint, Axle Shaft Seal Service Manual for 99-04 Super Duty and Excursion
Ford Shop Manuals

Tech Note 4: Saved for Future Use
text

Tech Note 5: Applications
Ford Super Duty F-250, F-350 pickups and standard width F350 Chassis Cab 4x4s: 2005, 2006, 2007, 2008,2009, 2010. 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
