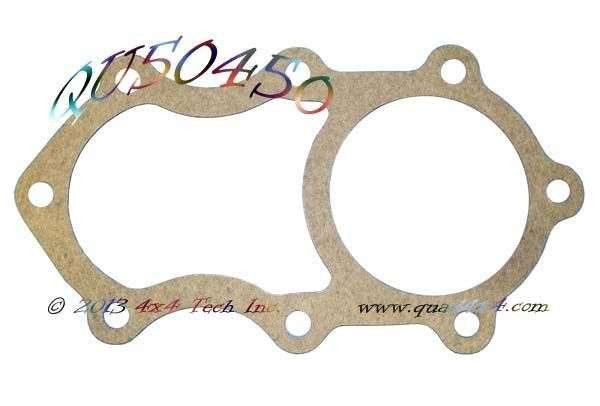

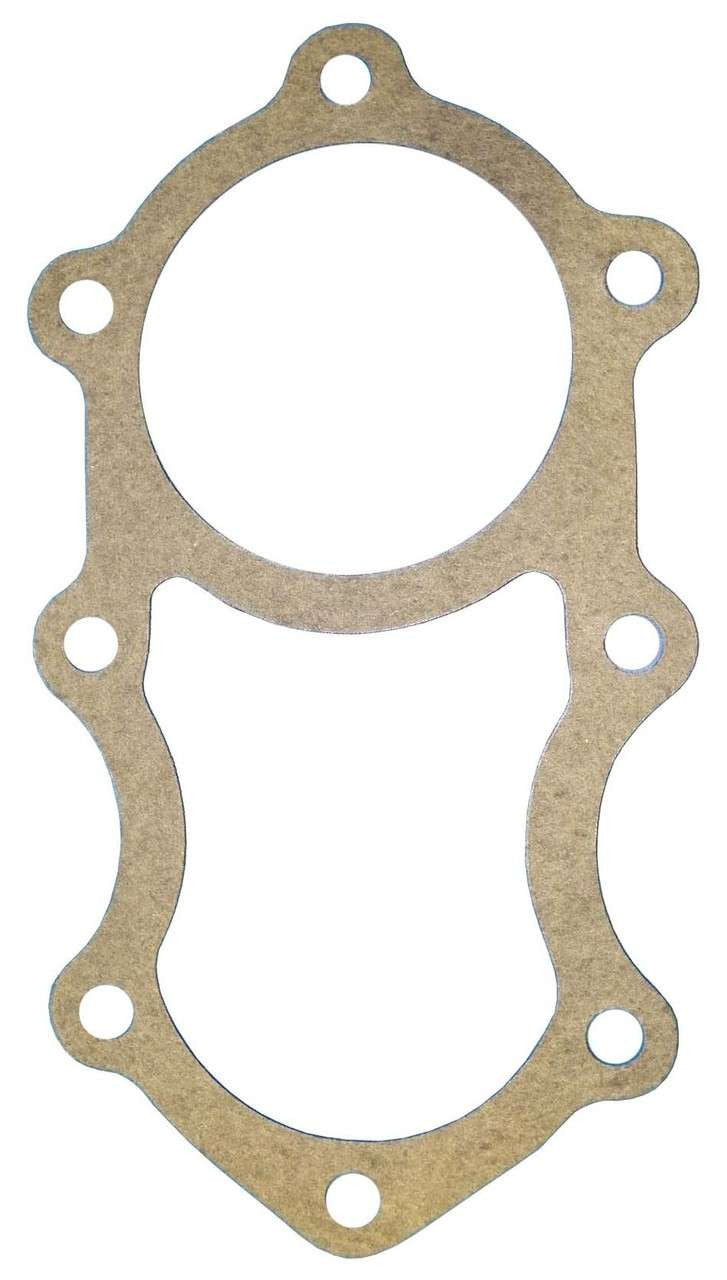

QU50450 Aftermarket Replacement Hourglass Adapter Gasket

QU50450 Aftermarket Replacement Adapter Gasket is a typical aftermarket gasket that does not meet original equipment specs for die cut dimensions, thickness or paper quality, however, for the low budget repair, it is far better to use one of these instead of assembling your case without gaskets. QU50450 fits all Chevy/GMC 10 or 27 spline and Dodge 23 spline New Process NP205 transfer cases.

Also Available: TK10516 Premium, Original equipment Spec Standard Bore NP205 Transfer Case to Adapter Gasket

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Fairly Thick Gasket
Applications

Tech Note 1: Fairly Thick Gasket
The NP205 Transfer Case was designed to have paper gaskets of specific thicknesses between mating parts. This gasket is a fairly thick gasket. The precise thickness of this gasket is to ensure there is adequate clearance between the adapter and transfer case input bearing. Also, on Dodge applications, the thickness of the two adapter gaskets insures the snap ring in the center of the female splined coupler will not be jammed between the transmission output shaft and transfer case input shaft, a condition that can lead to input bearing failure. Do not substitute chemical sealers such as RTV for paper gaskets on any NP205 mating parts except for the PTO cover.

Tech Note 2: Not for Large Bore Input Bearings
QU50450 and TK10516 Hourglass Adapter Gaskets do NOT fit Dodge 29 spline or GM 32 spline NP205 Transfer Cases which have Large Bore Input Bearings. For these applications, see TK10529.

Applications:
GM 4x4s 10-Spline SM465 4-speed Manual Transmission: up through the 1984 model year
GM 4x4s 27-Spline all years with Turbo 350 or pre 1973 Turbo 400 automatic transmissions
