QU5001 1989-1993 Dodge Cummins Diesel to NV4500 Heavy Duty Bellhousing

QU5001 1989-1993 Dodge Cummins Diesel to NV4500 or NV5000 Heavy Duty Bellhousing replacing Getrag G360 5 speed transmission.  Fits 1989-1993 Dodge Diesel, but 1992-1993 will require the use of TK11680 bracket. Note: As of September 2024, the all new NV5000 5 speed is now available to use for this conversion as a heavy-duty upgrade instead of using a used or reman NV4500.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Components
Matching Parts
NV5000 Backup Light Switch
Input Retainer Modifications
Check Bellhousing Clearances
Applications
Video

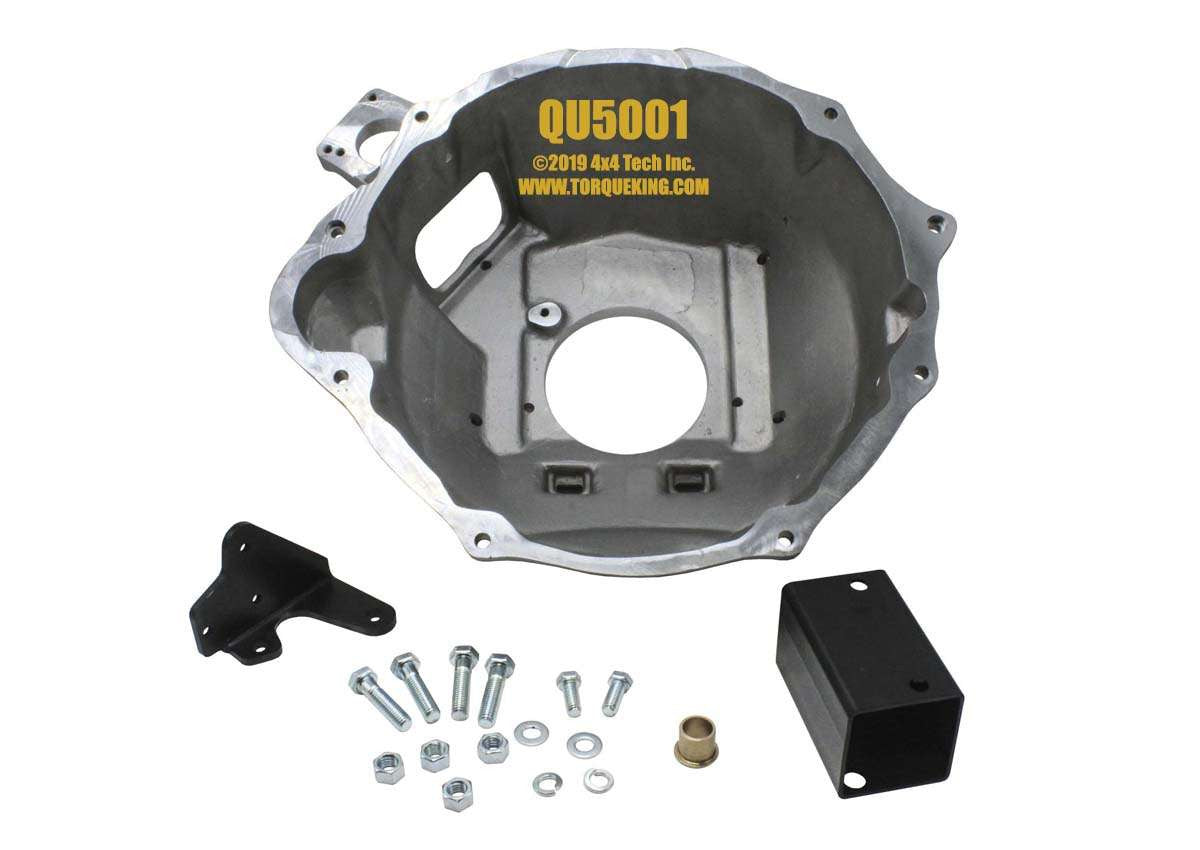

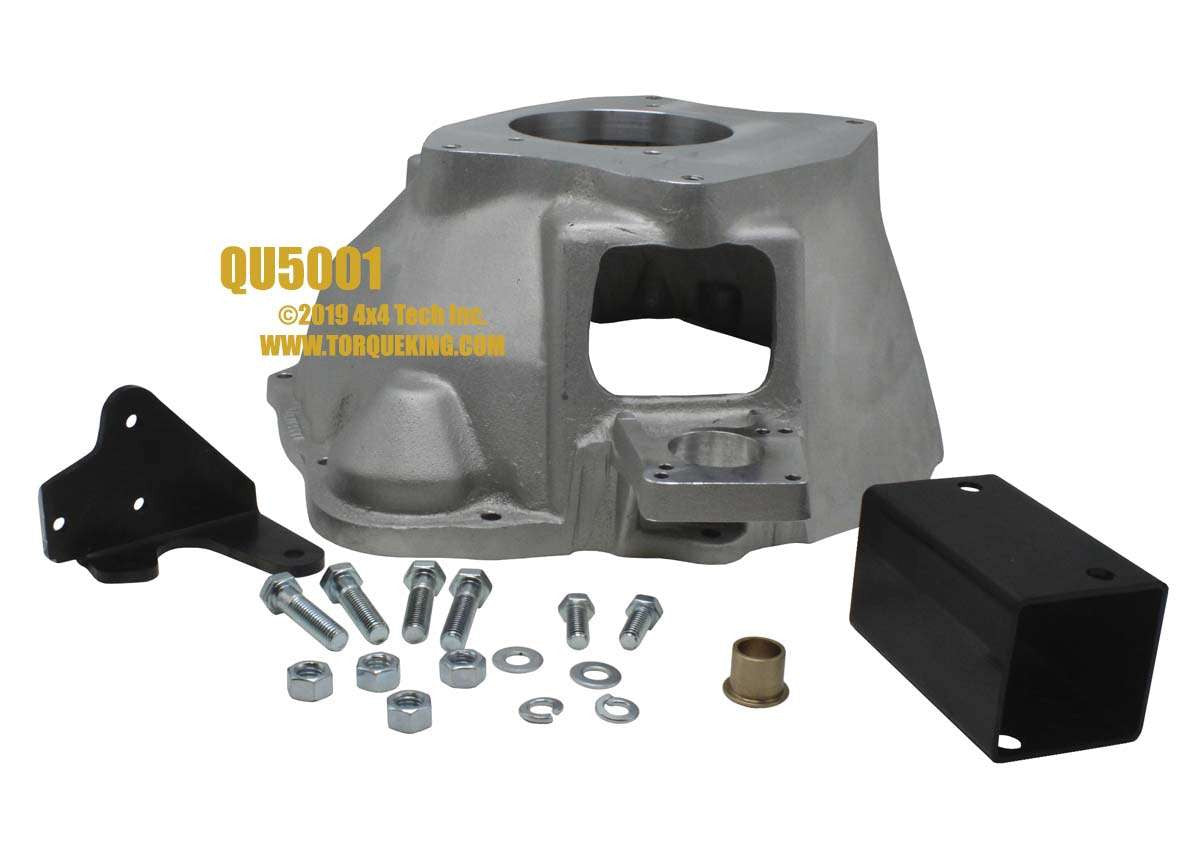

Tech Note 1: Kit Components
NV4500 Bellhousing
Pilot Bushing
Crossmember Shifter Bracket (for 89-91)
TK11679 LD Crossmember Mount Spacer
Hardware

Tech Note 2: Matching Parts
QU5000 Heavy Duty Transmission Mount
TK1044 Floor Plate Kit

Tech Note 3: NV5000 Backup Light Switch
The NV5000 does not include a backup light switch. Your old G360 switch will fit the NV5000, however since the switch location is on the back of the cover, your original wires may not be long enough to reach the switch. To solve this problem add these parts to your order: QU10132 switch, QU10147 gasket, and QU90002 pigtail.

Tech Note 4: Input Retainer Modifications
If you are using the original Sachs type, 13" clutch you will need to slightly modify the input bearing retainer nose with either the NV4500 or NV5000 transmission. The bearing retainer must be removed from the front of the 5 speed and shortened to a length that is 4.297" long (this is between 1/4" and 3/8" shorter than the original length). This can be done by using a hacksaw or engine lathe. By shortening the bearing retainer, this will prevent any interference with the hub on the clutch disc. I recommend you shorten the nose regardless of the clutch you use, but if you are using a different clutch such as the Luk type 12.4", you can check the difference in the clutch hub height to determine if you will need to shorten the input nose.

Tech Note 5: Check Bellhousing Clearances
Before final bellhousing installation, fit the bellhousing up to the back of the Cummins block to check flywheel and clutch assembly clearance on the inside of the new bellhousing. After installing the bellhousing to the engine, turn the engine over by hand to check of any interference. You may need to slightly grind on the inside of the bellhousing for added clearance for the ring gear or 13" original cast iron clutch cover.

Applications
Dodge Conversions Replacing G360 5 Speed Transmissions with New Venture NV4500 4x4 5 Speed Transmissions: 1989, 1990, 1991
Dodge Conversions Replacing G360 5 Speed Transmissions with New Venture NV4500 4x4 5 Speed Transmissions (with gated type shifter, requires TK11680 bracket): 1992, 1993

Video of Getrag G360 to NV4500 Conversion. Note: The QK5001 Kit does NOT include the Non-bellhousing parts referenced in this older video!
