Description

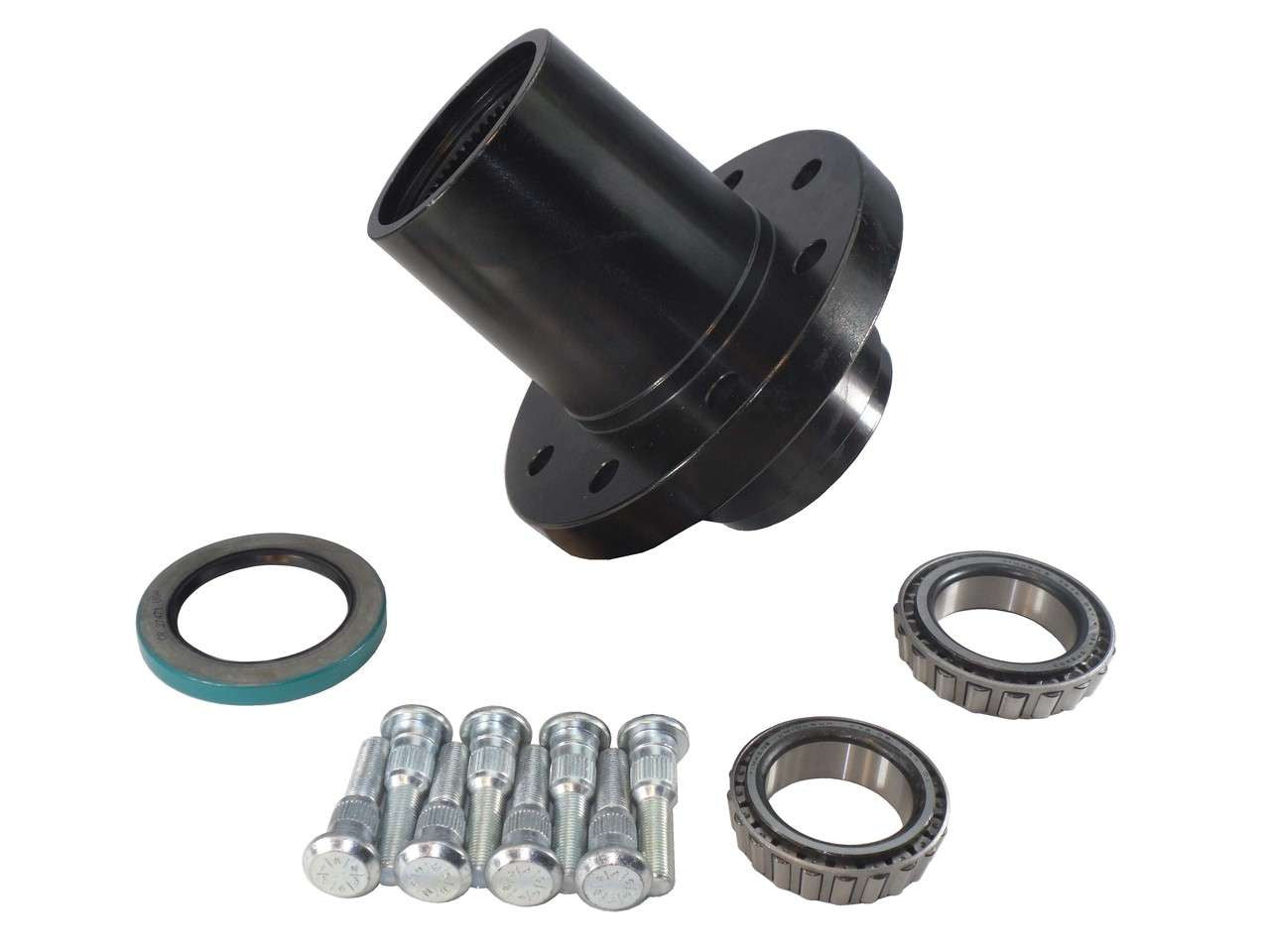

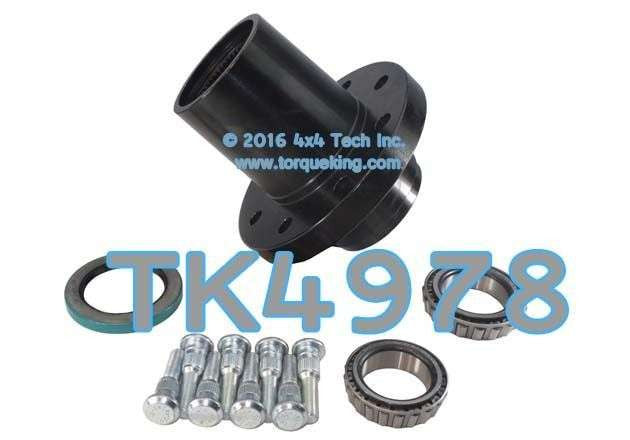

TK4978 Torque King® Heavy-Duty Splined Front Wheel Hub Kit for 1990.5-1993 single rear wheel Dodge W250, W350 Dana 60 or Dana 61 front axles includes Wheel Hub with Timken® Bearing Cups Installed, Timken® Bearings, Dana Wheel Seal, and eight 1/2" studs. Hub is 100% USA Made from high-strength nodular cast iron for increased strength over stock. Precision CNC machined. Plated for corrosion protection.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Parts Included
Never Reuse Wheel Bolts
Check Rotor Thickness
Matching Parts
Applications
Tech Note 1: Parts Included
TKA4962 Torque King® Front Splined Wheel Hub with Timken® Bearing Cups installed
QU50412 Timken® Wheel Bearing
QU50398 Timken® Wheel Bearing
QU40119 Wheel Seal
QU50774 Wheel Studs
Tech Note 2: Never Reuse Wheel Bolts
For safety reasons, never reuse wheel bolts (studs). New wheel bolts do not cost very much and they are way cheaper than hospital or funeral bills.
Tech Note 3: Check Rotor Thickness
It is relatively unusual for a big 4x4 brake rotor to have less than the maximum allowable runout and rotor thickness variation once it is assembled to a wheel hub. This is due to manufacturing tolerances of the parts and the pressures exerted on the hub and rotor when pressing in the wheel studs. After assembling your brake rotor to the new hub, the rotor should be checked for thickness variation (0.001" {0.025 mm} maximum) and runout (0.005" {0.127 mm} maximum with 0.003" or less preferred). A rotor that is out of tolerance should be machined with an on-the-vehicle brake lathe if possible or on an accurate bench type brake lathe.
Tech Note 4: Matching Parts

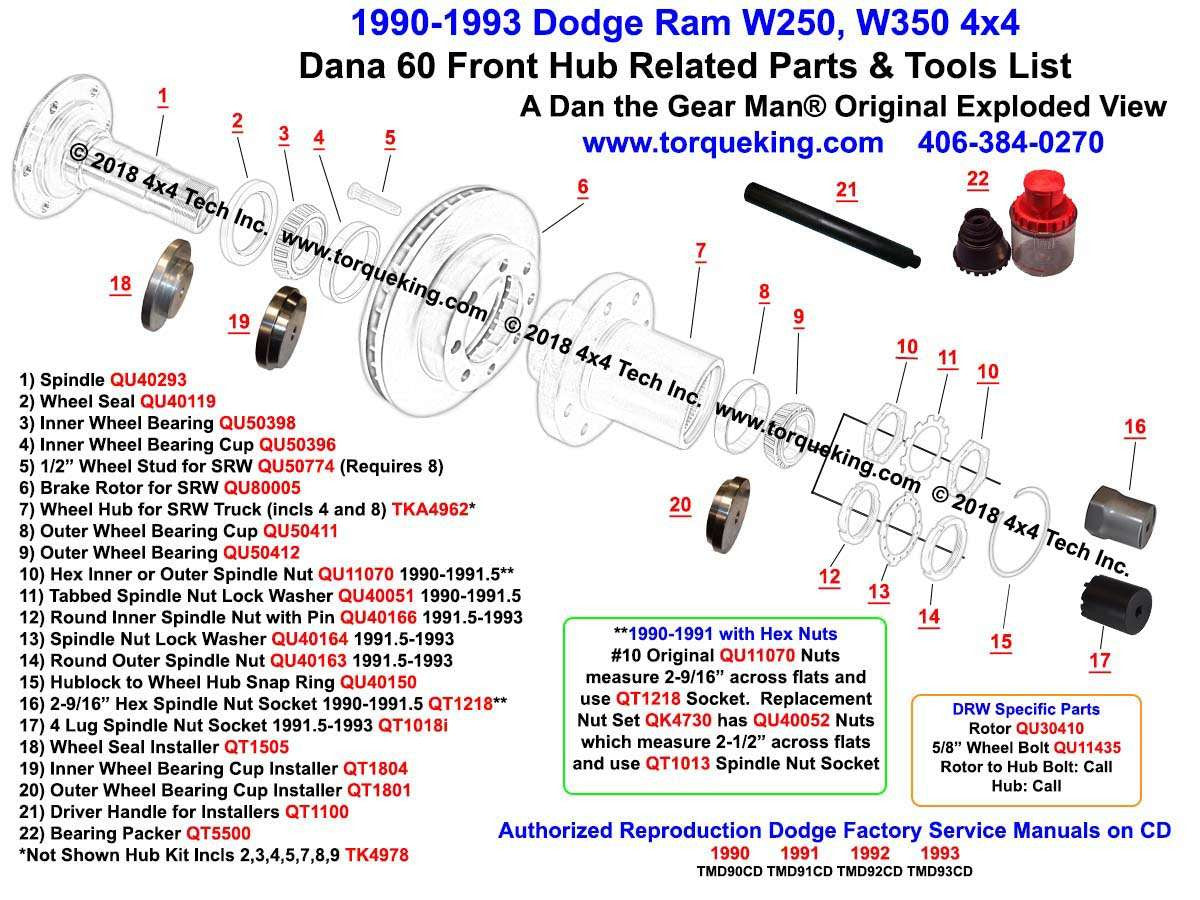

Exploded View XV1004 1990-1993 Dodge W250, W350 Dana 60/61 Front Axle
QU80005 Brake Rotor
QU40119 Wheel Seal
QU50412 Timken® Outer Wheel Bearing
QU50398 Timken® Inner Wheel Bearing
QU50774 9/16" Wheel Bolt
QU40293 Spindle
QK4729 4 Slot Spindle Nut Kit (1992-1993)
QK4730 6 Slot Spindle Nut Kit (1975-1991)
QU40541 Spindle to Knuckle Bolt
QU95037 Spindle Lock Nut
QU90018 Protection ES Synthetic Wheel Bearing Grease
QT1505 Wheel Seal Installer
QT1100 Driver Handle for Installers
QT1013 or QT1013i 6 Lug Spindle Nut Socket
QT1110 or QT1110i 4 Lug Spindle Nut Socket
QT5500 Wheel Bearing Packer
Applications:
Dodge:
Single Rear Wheel W250, W350 Dana 60 or Dana 61 front axles: 1990.5, 1991, 1992, 1993
Warranty
Product Reviews
-
HD Hub Kit
Heavy Duty Quality. Take your time to install the studs and seal correctly. This is a well made hub and timken bearings.
