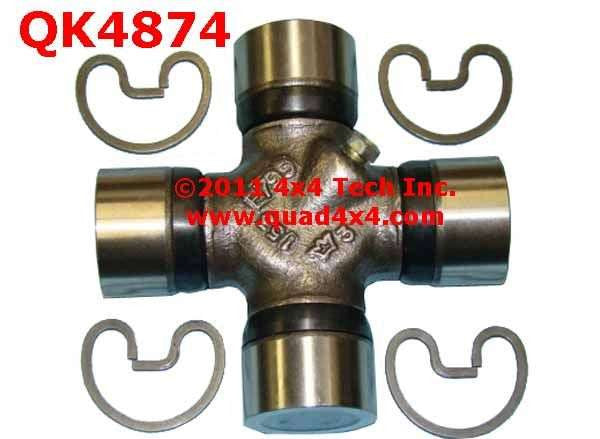

QA4874 Greaseable External Snap Ring Axle Universal Joint

QA4874 Greaseable External Snap Ring Axle Universal Joint for Ford 4x4 trucks. Fits 1976-1977 Ford F-250 Crew Cab 4x4 Dana 60 front axles and 1980 to 1997 Ford Dana 50IFS Twin Traction Beam® front axles which were available on F-250 trucks for all years, plus 1980 to early 1985 F-350s. USA Made.

Interactive Exploded View XV1010DT 1995, 1996, 1997 Ford F250 Dana 50IFS Axle

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Only Used By Ford
U-Joint Press Tooling
Lubricate
Applications

Tech Note 1: Only Used By Ford
These 1-3/16" cup size external snap ring axle u-joints were only used by Ford. 1976 and 1977 Ford F-250 crew cab trucks have a Dana 60 front axle that uses two of these u-joints. Ford introduced the Dana 50 Traction Beam® independent front suspension axle for the 1980 model year as an option on F-250 and standard equipment on F-350 4x4s. The Dana 50 IFS axle has 3 axle universal joints, one for the left side and two for the right side. For the 460 gas engine and later diesel trucks, this size u-joint is a bit on the small size. We offer these QA4874 Greaseable U-joint as an inexpensive alternative to our D471390 solid cross original equipment, non-greaseable u-joint which is our maximum strength option for these axles. QA4874 Greaseable U-joint is a whole lot cheaper compared to D471390, but there is some strength loss since it is cross-drilled for grease passage.

Tech Note 2: U-Joint Press Tooling
The beefed up axle yokes on Ford Dana 50IFS and Dana 60 axles can pose installation problems. With new or good condition axle shafts, D471390 and QA4874 just barely clear the yokes as you pivot the cross into place. However due to heavy corrosion or improper removal procedures, the yoke ears may get compressed when removing the old u-joint which can cause installation problems getting the cross in place and make you curse a blue streak when you try to install the second snap ring in the sprung yoke. For axle and driveshaft U-Joint press tooling, see our U-Joint Tools web page.

Tech Note 3: Lubricate
Lubricate the universal joint periodically with QU90018 Pyroplex® Plus Synthetic Grease or other quality, water resistant NLGI #2 GC-LB grease. Service intervals for this greaseable universal joint will vary with your driving conditions and type of grease you use, but as a minimum, you should grease your u-joints at every oil change or every three months whichever comes sooner. Lube more frequently in extremely wet conditions or after submersion under water. Remember, a greaseable joint that is not regularly lubed will prematurely fail from water contamination or grease loss.

Applications:
Ford F-250 Crew Cab 4x4 Dana 60: 1976, 1977
Ford Dana 50IFS: 1980, 1981 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
