QK4867 Fixed Depth 1975-1997 Dana 60 Inner Axle Seal Kit

QK4867 Fixed Depth 1975-1997 Dana 60 Inner Axle Seal Kit Includes genuine original equipment Dana-Spicer axle shaft seals and the special tools you need to quickly and easily install the QU40059 Inner Axle Seals to a precise depth in all Chevy, Dodge, Ford, GMC, and International 4x4 trucks with open knuckle Dana 60 and Dana 61 front drive axles with King Pins. Our unique installer design will press in your new Inner Axle Seals without damage because the CNC Precision Machined Installation Tool cups the seal so force is only applied on the steel seal shell. See TS4867 for a Tool Only Set.

See QK4656 for Adjustable Depth Seal and Tools Set
See TS4656 for Adjustable Depth Tool Only Set

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Includes
Must Remove
Seal Type
Seal Depth
Before Installing
Dodge 1975-1993
GM 1977-1991
Ford 1978-1979; 1985-1991 Ford 1992-1997
Applications

Tech Note 1: Includes

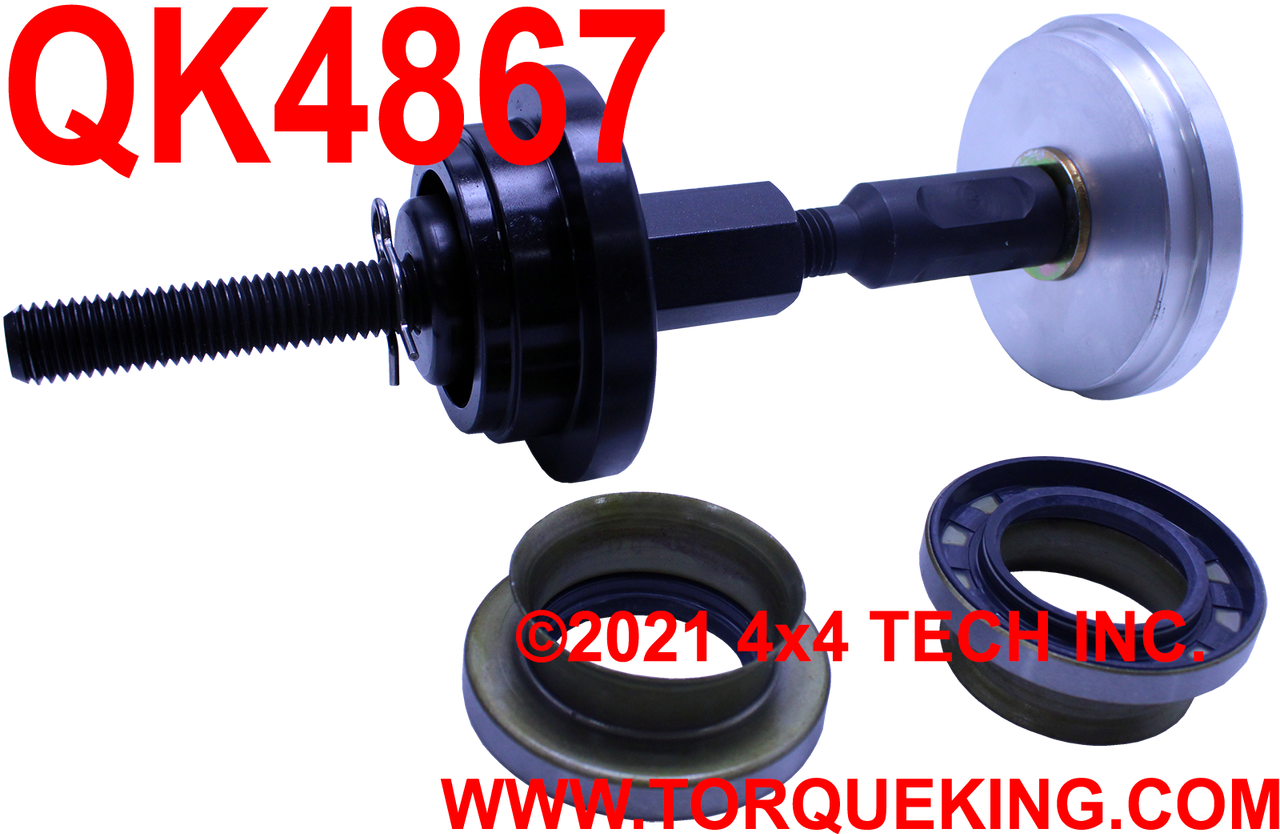

Kit Includes 2 QU40059 Inner Axle Seals, QT1130 Thrust Plate, QT1156 Installer, QT1170 Press Nut, QTA1133 Press Screw and QT9905 Retaining Pin.

Tech Note 2: Must Remove
Your brakes, wheel hubs, axle shafts, and differential must be removed from the housing to replace your QU40059 inner axle shaft seals.

Tech Note 3: Seal Type
The inner axle seals used on all Chevy, Dodge, Ford, GMC, and IHC King Pin type, open knuckle Dana Model 60 and Model 61 Front Axles is the same. The seals and tools are different for 1976 and prior closed knuckle Dana 60 front axles and on all 1992 and newer Ford and 1994 and newer Dodge trucks with ball joint type Model 60 axles.

Tech Note 4: Seal Depth
QK4867 Seal Installer Set uses QT1156 Model 60 specific Depth Stop Seal Installer which has a raised flange on it that will stop against the axle bore face when the seal is at the correct depth. This is a more fool-proof setup than our adjustable depth tool, but it is a little more expensive and you cannot vary the seal depth to miss a groove worn in the axle shaft. We also offer QK4656 Seal and Tool Set that uses QT1042 adjustable depth installer which allows you to offset the seal to miss a worn spot on the axle shaft. This is a valuable feature, however, YOU have to determine the final depth of the seal. It is possible to seat the seal too deep with QT1042 installer which can put the seal beyond they machined seal surface of the axle shaft.

Tech Note 5: Before Installing
For the 1992-1997 model years Ford F350 axles came from the factory with a now discontinued oil bath type inner axle oil seal instead of the QU40059 seal used in 1991 and prior axles. Production of the oil bath seal ended in 1999 when QU40244 redesigned seal was introduced for the new Super Duty. Although the new seal has the correct ID and OD, the outside diameter of the axle shaft guide has an interference problem with the 1992-1997 era axle tubes. For 2011, Ford replaced the QU40244 seal with a new QU20463 oil bath seal which will work in the 1992-1997 axles. If you prefer the oil bath type seal for your 1975-1993 King Pin Dana 60 or 1992-1997 era Ford F350, see QK4983 Kit.

Tech Note 6: Dodge 1975-1993
Matching Parts for 1975-1993 Dodge Dana 60 Axles:
QU40367 Spicer OEM Dana 60 Differential Cover Gasket
QU42029 Spicer Reuseable High-Performance Dana 60 Cover Gasket
S82194 Gray RTV Sealant for Diff Cover (in lieu of gasket)
QU30332 Standard Greaseable Axle U-Joint
TK40715 Premium Factory Lubed Axle U-Joint
TK40724 Premium Greaseable Axle U-Joint
QU40329 Right Inner Axle Shaft
QU40328 Left Inner Axle Shaft
QU40119 Wheel Seal
TK4738 Wheel Bearing Kit with Dana Seals, Timken Bearings, and Install Tools
TK4744 Wheel Bearing Kit with Dana Seals and Timken Bearings
QK4512 King Pin Kit
QK4730 Hex Spindle Nut Kit for 1975-1991
QK4729 Round Spindle Nut Kit for 1992-1993
QU40051 Spindle Lock Washer for 1975-1991 with Hex Spindle Nuts
QU50216 8 Bolt Front Hub Gasket for 1975-1990.5
QK4916 Hub Service Kit for 1990.5-1993 Warn Factory or Replacement Hub Locks
QU95037 Lock Nut, Spindle to Knuckle
QA40168 Spindle Bearing and Seal Kit
QU90018 Pyroplex Extended Service Premium Synthetic Wheel Bearing Grease
TS4862 Axle Seal Remover Tool Set
QT1032 Differential Case Spreader
QT5500 Wheel Bearing Packer
QT1218 2-9/16" Hex Spindle Nut Socket for 1975-1991 with Factory Spindle Nuts
QT1013i 2-1/2' Hex Spindle Nut Socket for 1975-1991 with Replacement Spindle Nuts
QT1018i and QT1110i Spindle Nut Sockets for 1992-1993
QT1023 and QT1024 Spindle Pullers

Tech Note 7: GM 1977-1991
Matching Parts for 1977-1991 GM Dana 60 Axles:
QU40367 Spicer OEM Dana 60 Differential Cover Gasket
QU42029 Spicer Reuseable High-Performance Dana 60 Cover Gasket
S82194 Gray RTV Sealant for Diff Cover (in lieu of gasket)
QU30332 Standard Greaseable Axle U-Joint
TK40715 Premium Factory Lubed Axle U-Joint
TK40724 Premium Greaseable Axle U-Joint
QU40533 Right Inner Axle Shaft
QU40531 Left Inner Axle Shaft
QU40119 Wheel Seal
TK4738 Wheel Bearing Kit with Dana Seals, Timken Bearings, and Install Tools
TK4744 Wheel Bearing Kit with Dana Seals and Timken Bearings
QK4512 King Pin Kit
QK4728 6 Slot Spindle Nut Kit for 1977-1981
QK4729 4 Slot Spindle Nut Kit for 1982-1991
QU40037 Spindle Lock Washer for 1977-1981 with 6 Slot Spindle Nuts
QK4916 Hub Service Kit for Warn Factory or Replacement Hub Locks
QU95037 Lock Nut, Spindle to Knuckle
QA40168 Spindle Bearing and Seal Kit
QU90018 Pyroplex Extended Service Premium Synthetic Wheel Bearing Grease
TS4862 Axle Seal Remover Tool Set
QT1032 Differential Case Spreader
QT5500 Wheel Bearing Packer
QT1025 6 Lug Spindle Nut Socket for 1977-1981
QT1018i and QT1110i 4 Lug Spindle Nut Sockets for 1982-1991
QT1023 and QT1024 Spindle Pullers

Tech Note 8: Ford 1978-1979; 1985-1991
Matching Parts for 1978-1979 and 1985-1991 Ford Dana 60 Axles:
QU40367 Spicer OEM Dana 60 Differential Cover Gasket
QU42029 Spicer Reuseable High-Performance Dana 60 Cover Gasket
S82194 Gray RTV Sealant for Diff Cover (in lieu of gasket)
QU30332 Standard Greaseable Axle U-Joint
TK40715 Premium Factory Lubed Axle U-Joint
TK40724 Premium Greaseable Axle U-Joint
QU40529 Right Inner Axle Shaft 1978-1979
QU40530 Left Inner Axle Shaft 1978-1979
QU40532 Right Inner Axle Shaft for 1985-1988.5
QU40329 Left Inner Axle Shaft for 1985-1988.5
QU40526 Right Inner Axle Shaft for 1988.5-1991
QU40487 Left Inner Axle Shaft for 1988.5-1991
QU40119 Wheel Seal
TK4738 Wheel Bearing Kit with Dana Seals, Timken Bearings, and Install Tools
TK4744 Wheel Bearing Kit with Dana Seals and Timken Bearings
QK4512 King Pin Kit
QK4728 6 Slot Spindle Nut Kit for 1978-1979 and 1985
QK4729 4 Slot Spindle Nut Kit for 1986-1991
QU40037 Spindle Lock Washer for 1978-1979 and 1985 with 6 Slot Spindle Nuts
QK4916 Hub Service Kit for Warn Factory or Replacement Hub Locks
QU95036 Lock Nut, Spindle to Knuckle
QA40168 Spindle Bearing and Seal Kit
QU90018 Pyroplex Extended Service Premium Synthetic Wheel Bearing Grease
TS4862 Axle Seal Remover Tool Set
QT1032 Differential Case Spreader
QT5500 Wheel Bearing Packer
QT1025 6 Lug Spindle Nut Socket for 1978-1979 and 1985
QT1018i and QT1110i 4 Lug Spindle Nut Sockets for 1986-1991
QT1023 and QT1024 Spindle Pullers

Tech Note 9: Ford 1992-1997
Matching Parts for 1992-1997 Ford Dana 60 Front Axles:
QU40367 Spicer OEM Dana 60 Differential Cover Gasket
QU42029 Spicer Reuseable High-Performance Dana 60 Cover Gasket
S82194 Gray RTV Sealant for Diff Cover (in lieu of gasket)
QU30332 Standard Greaseable Axle U-Joint
TK40715 Premium Factory Lubed Axle U-Joint
TK40724 Premium Greaseable Axle U-Joint
QU40526 Right Inner Axle Shaft
QU40487 Left Inner Axle Shaft
QU40119 Wheel Seal
TK4738 Wheel Bearing Kit with Dana Seals, Timken Bearings, and Install Tools
TK4744 Wheel Bearing Kit with Dana Seals and Timken Bearings
QU40220 Dana OEM Replacement Ball Joint Set
QK4758 Greaseable Ball Joint Kit
TK42057 Dynatrac Heavy-Duty Rebuildable Ball Joints
QK4729 4 Slot Spindle Nut Kit for Manual Hubs
QU20200 Rounded Hex Spindle Nut for Auto Hubs
QU20201 Spindle Nut Retaining Lock for Auto Hubs
QK4916 Hub Service Kit for Warn Factory or Replacement Hub Locks
QU20087 Auto Hub Service Kit for 1995-1997
QU95036 Lock Nut, Spindle to Knuckle
QA40372 Spindle Bearing and Seal Kit
QU20085 3 Piece Outer Axle Shaft 30 Spline Thrust Washer Kit
QU40459 Dust Seal for Inner Axle Shaft to Outer End of Axle Tube
QU90018 Pyroplex Extended Service Premium Synthetic Wheel Bearing Grease
TS4862 Axle Seal Remover Tool Set
QT1032 Differential Case Spreader
QT5500 Wheel Bearing Packer
QT1018i and QT1110i 4 Lug Spindle Nut Sockets for 4 Slot Nuts-Manual Hubs
QT1058i Rounded Hex Spindle Nut Socket for 1994-1997 Auto Hubs
QT1023 and QT1024 Spindle Pullers

Applications:
Chevrolet Dana 60:
K30, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991

Dodge Dana 60, 61:
W-350 1 Ton*: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W-250 all with Cummins Diesel: 1989, 1990, 1991, 1992, 1993
*For some reason, a few mid 1980's W-350 single rear wheel trucks have a wimpy Model 44 axle!

Ford Dana 60:
Heavy-Duty F-250, F-350: 1978, 1979
F-350 with King Pins: 1985.5, 1986, 1987, 1988, 1989, 1990, 1991
F350 with Ball Joints (replaces now discontinued oil bath seal): 1992, 1993, 1994, 1995, 1996, 1997

GMC Dana 60:
K35, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991

International Dana 60:
1975 1300 Camper Special or Auto Hubs: 1994, 1995, 1996, 1997
