D442032 Dana 60 5.86 Ratio Genuine Dana Ring & Pinion Kit

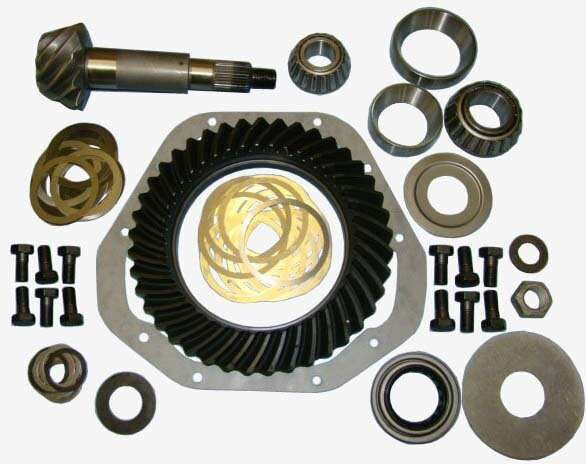

D442032 Dana 60 and 61 5.86 Ratio Genuine Dana Ring and Pinion Kit Need a new high quality original equipment Gear Set for your 1960s to 1990s Dana Model 60 or 61 axle? This genuine Dana Spicer Ring and Pinion Kit includes a matched 5.86 ratio Ring Gear/Pinion Gear Set, Inner and Outer Pinion Bearings with Cups. 12 QU40086 Ring Gear Bolts, QU40097 Pinion Seal, QU40022 Pinion Nut, QU40023 Pinion Washer, QU40099 Outer Pinion Slinger, QU50503 Inner Pinion Slinger, QU40030 Inner Pinion Baffle, QU40367 Diff Cover Gasket, Pinion Depth Shims, Pinion Preload Shims, and Differential Adjusting Shims. Gear Set Made in Mexico, other components Made in U.S.A.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Fits
Bearings
Gear Compound
Exploded Views
Applications

Tech Note 1: Fits
Fits many front and rear axle applications over a three decade span. Some axles will use QU50503 Inner Pinion Slinger and/or QU40030 Inner Pinion Baffle. If your axle was originally built with either or both of these parts you replace them as they have a lubrication function and they are part of your pinion depth shim stack. Do not use an inner baffle and/or inner slinger in an application that did not originally have the part!!!

Tech Note 2: Bearings
Dana usually supplies original equipment USA made Koyo pinion bearings with this Kit.

Tech Note 3: Gear Compound
Need Gear Marking Compound to check the tooth pattern? See QU90008 web page for Order and Information.

Tech Note 4: Exploded Views
Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle

Applications
Most Dana 60 axles with 5.86 ratio gear sets built between 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
