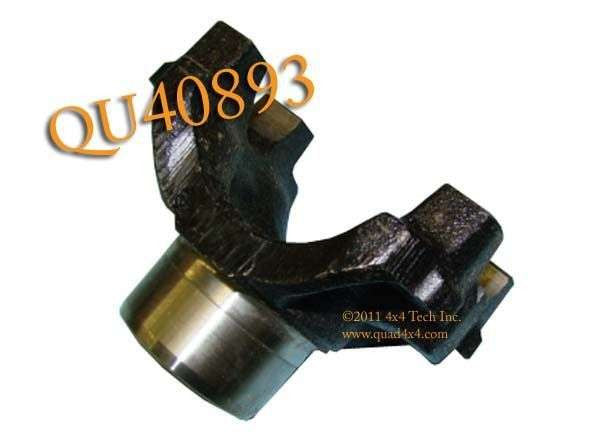

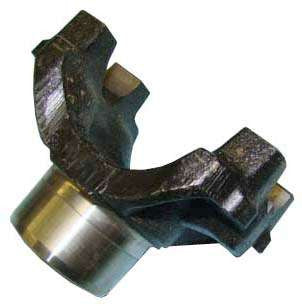

QU40893 Ford Dana 60 and Super 60 29 Spline Pinion Yoke without Slinger

QU40893 1999-2019.5 Ford Dana 60 and Super 60 29 Spline Pinion Yoke without Slinger is a genuine Dana original equipment 29 spline front Pinion Yoke that fits all 1999-2004 Ford F250, F350, F450, and F550 Super Duty® Dana 60 front axles PLUS all Dana Super 60 front axles in 2005-2019.5 Ford F250, F350, F450, and F550 Super Duty® 4x4 truck with a build date up to April 1, 2019 (4-01-2019).

Also available while supplies last: QU40893U Used Pinion Yoke

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
U-Joint Type
Collapsible Spacer
Matching Parts
Applications

Tech Note 1: U-Joint type
QU40893 Dana 60 Pinion Yoke is made for external snap ring type universal joints made to Spicer 1350 series dimensional specifications. Outside diameter of the u-joint cups is 1-3/16". Overall installed width of the u-joint is 3-5/8". Matching 1350 Universal Joints are QU40731 and TK40719.

Tech Note 2: Collapsible Spacer
1999 and newer Ford Dana 50 and Dana Super 60 front axles use QU40356 collapsible spacer (crush sleeve) to set the pinion rotating torque. I recommend you replace this spacer, the pinion nut, and the pinion seals when installing your new yoke.

Tech Note 3: Matching Parts
QU40348 1999-2000.5 Pinion Oil Seal
QU40402 2000.5-2010 Pinion Oil Seal
QU40397 1999-2010 Pinion Outer Wiper Seal
QU40022 Pinion Nut
QU40023 Pinion Washer
QU40356 Pinion Crush Sleeve
QU40099 Outer Pinion Slinger (fits between the yoke and outer pinion bearing)
QU40709 U-Joint Strap and Bolt Kit
QU40731 Greaseable Universal Joint
TK40719 Premium Torque King U-Joint with cold-forged cross
Ford Shop Manuals

Applications:
Ford:
Super Duty F250, F350 4x4 trucks with Dana 60 Front Axle: 1999, 2000, 2001, 2002, 2003, 2004
Super Duty F250, F350 4x4 trucks: 2005, 2006, 2007, 2008, 2009, 2010
Super Duty F450, F550 4x4 trucks: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019.5 (build date up to April 1, 2019)
