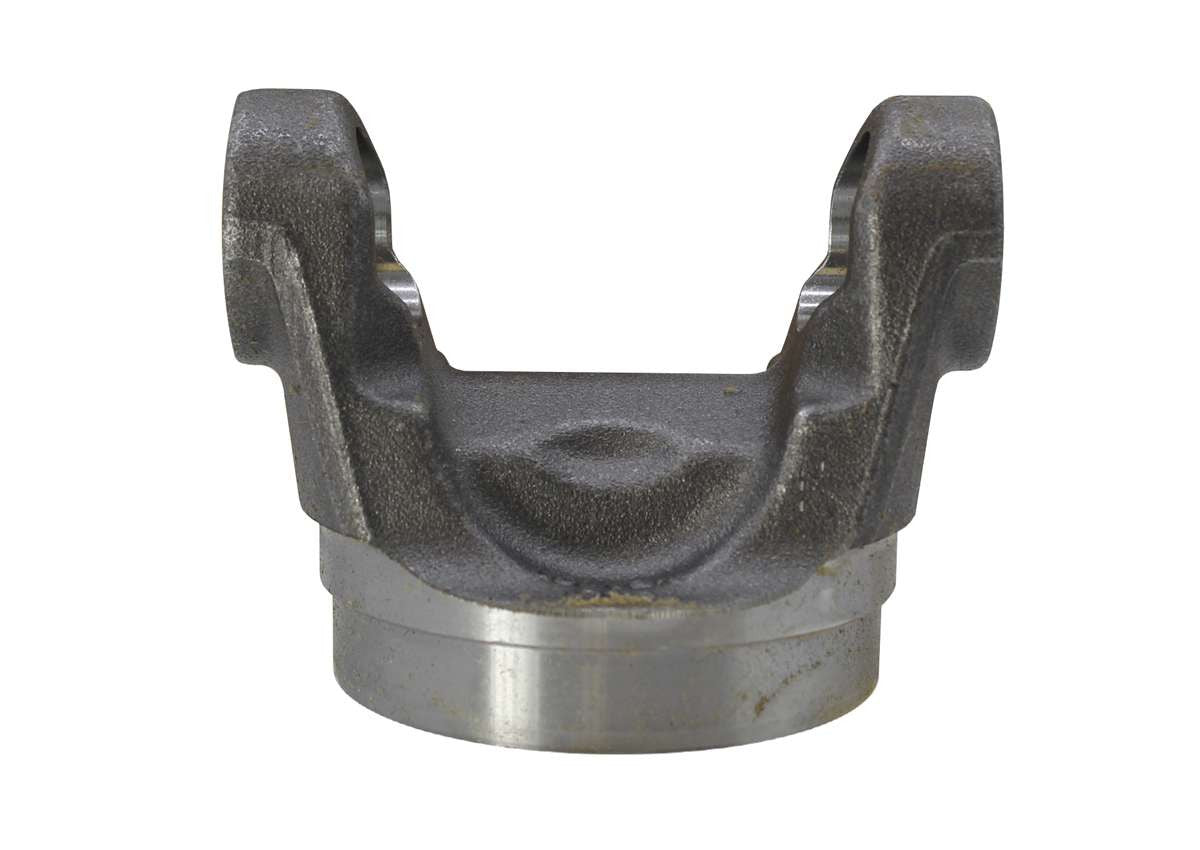

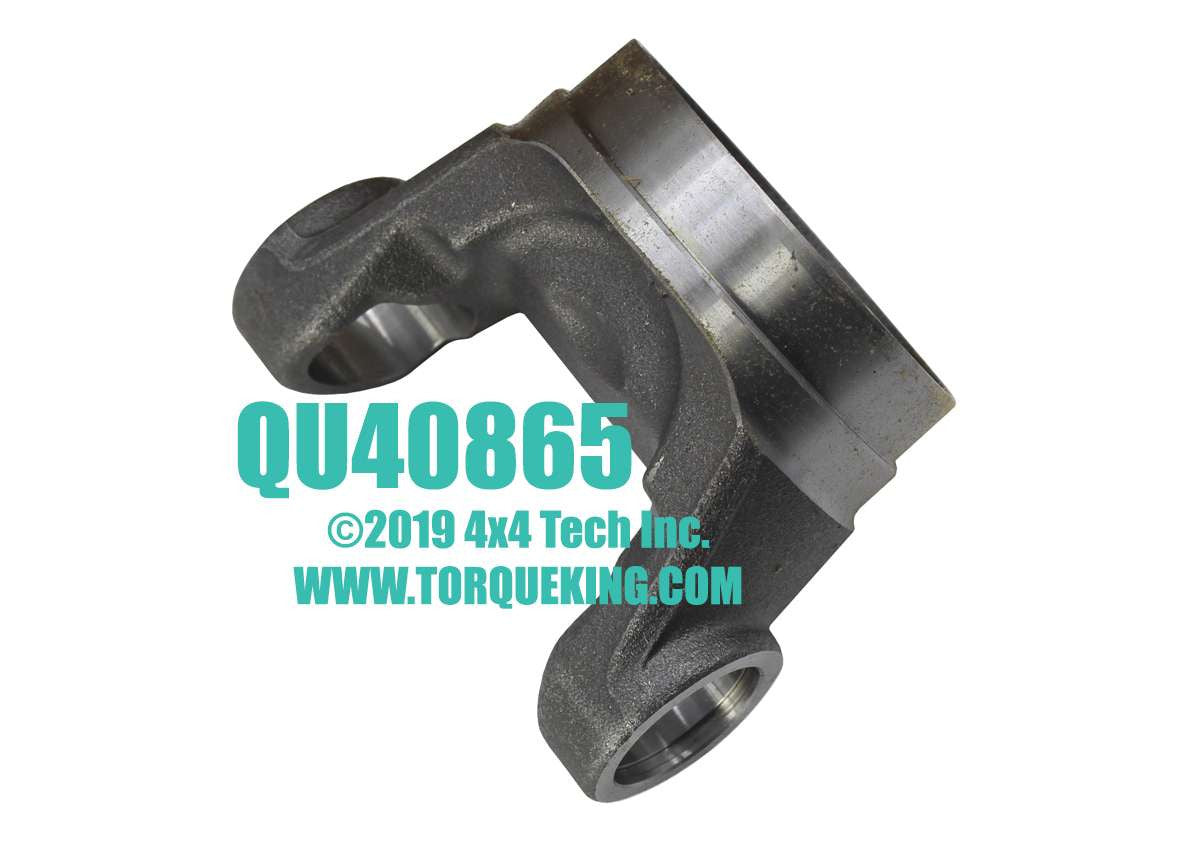

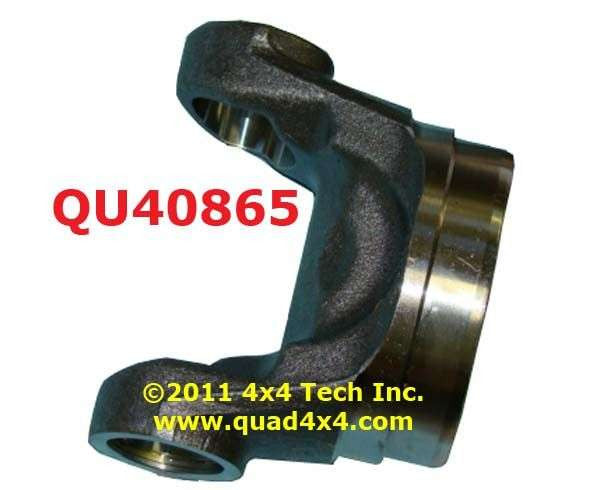

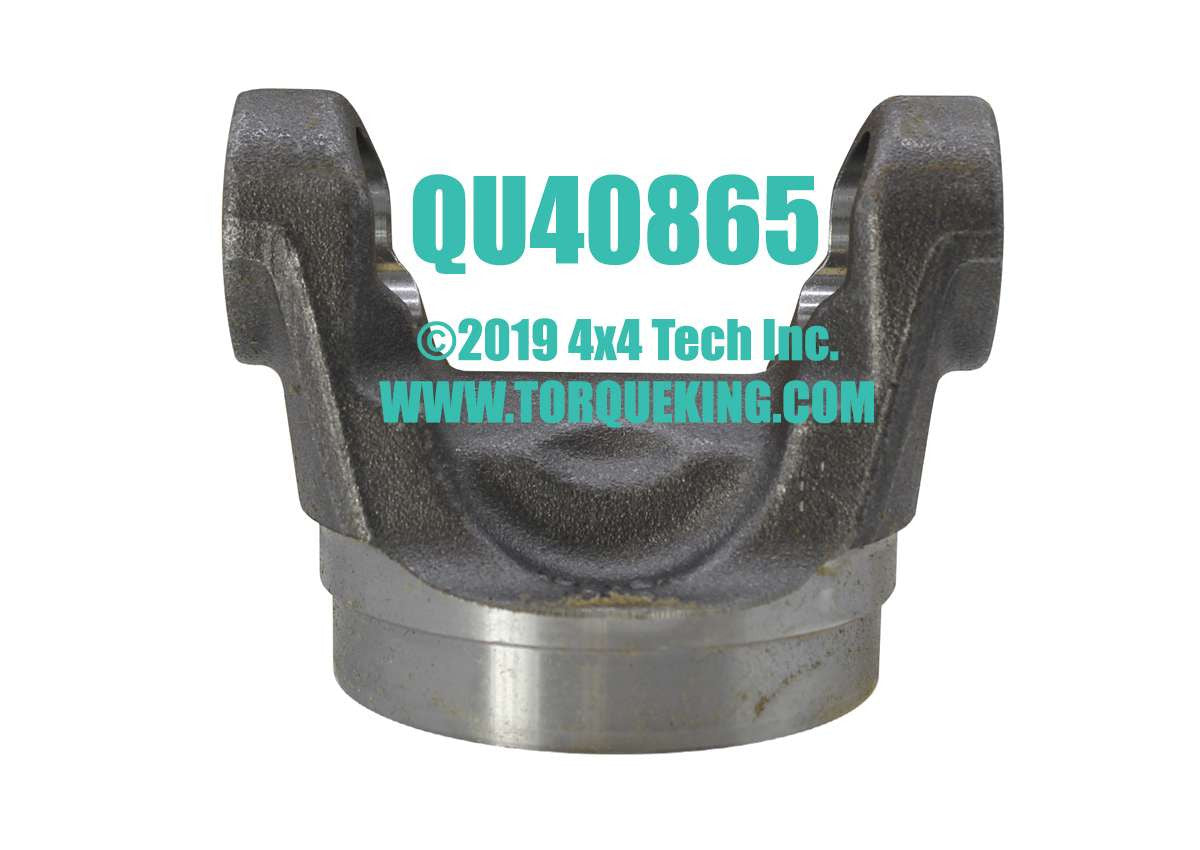

QU40865 1410 Series Tube Weld Yoke for 3.5 OD x 0.083" Wall Driveshafts

QU40865 1410 Series Tube Weld Yoke for 3.5 Diameter x 0.083" Wall Driveshafts replaces broken or bent original equipment tube yokes. This yoke fits 3-1/2" x 0.083" Driveshaft Tubing and it can be can be found on light and medium truck rear driveshafts using Spicer 1410 series universal joints from the 1950's to current.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Before Installing
U-Joint Type
4x4 Tech Help Publications
Applications

Tech Note 1: Before Installing
Make sure the outside diameter of your driveshaft tube is 3.5". Measure the distance from the center of the weld to the center of the u-joint hole. If that dimension is approximately 2-1/8", then this is the part for your driveshaft if the wall tube wall thickness is 0.083.

Tech Note 2: U-Joint Type
QU40865 Tube Yoke takes external snap ring type universal joints made to Spicer 1410 series specifications. The u-joint cup diameter is 1-3/16". The overall u-joint width is 4-3/16". See TK40705 and QU40789 universal joints.

Tech Note 3: 4x4 Tech Help Publications
Driveshafts need to be re-tubed anytime the tubing gets bent or dented. Driveshaft assembly can be done by any competent machinist, but best results are usually obtained from dedicated driveshaft specialists who can both build and balance the finished shaft. For information on driveshaft run-out and balance, see my TM3000 Driveshaft and Universal Joint Service Manual or TM3000 Excerpt TSB3510 Vibration, Balance, Angles, Ratings, Run Out, Torque Specs.

Applications:
Dodge:
Ram 2500, Ram 3500 with 3.5" Rear Driveshaft: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

Ford:
Super Duty & Excursion with 3.5" Rear Driveshaft: 1999, 2000, 2001, 2002, 2003, 2004

Other Applications universal by size
