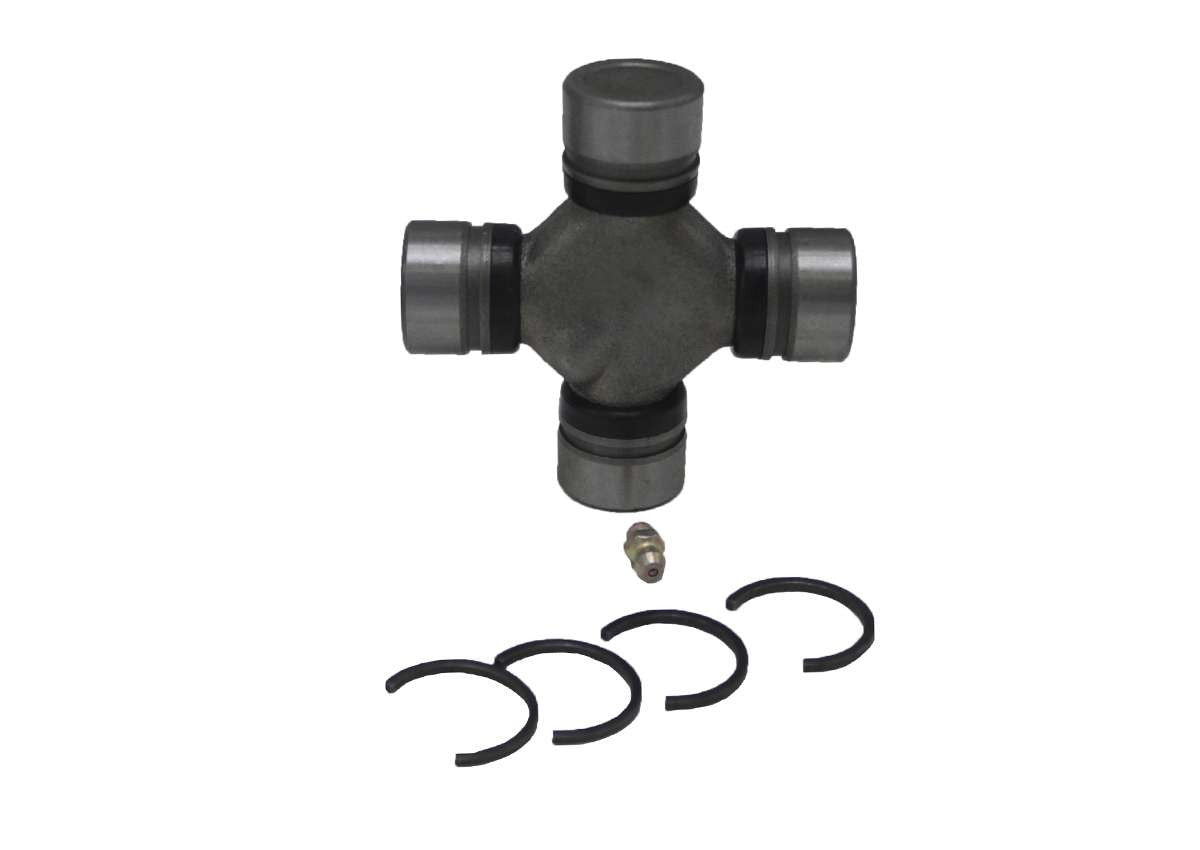

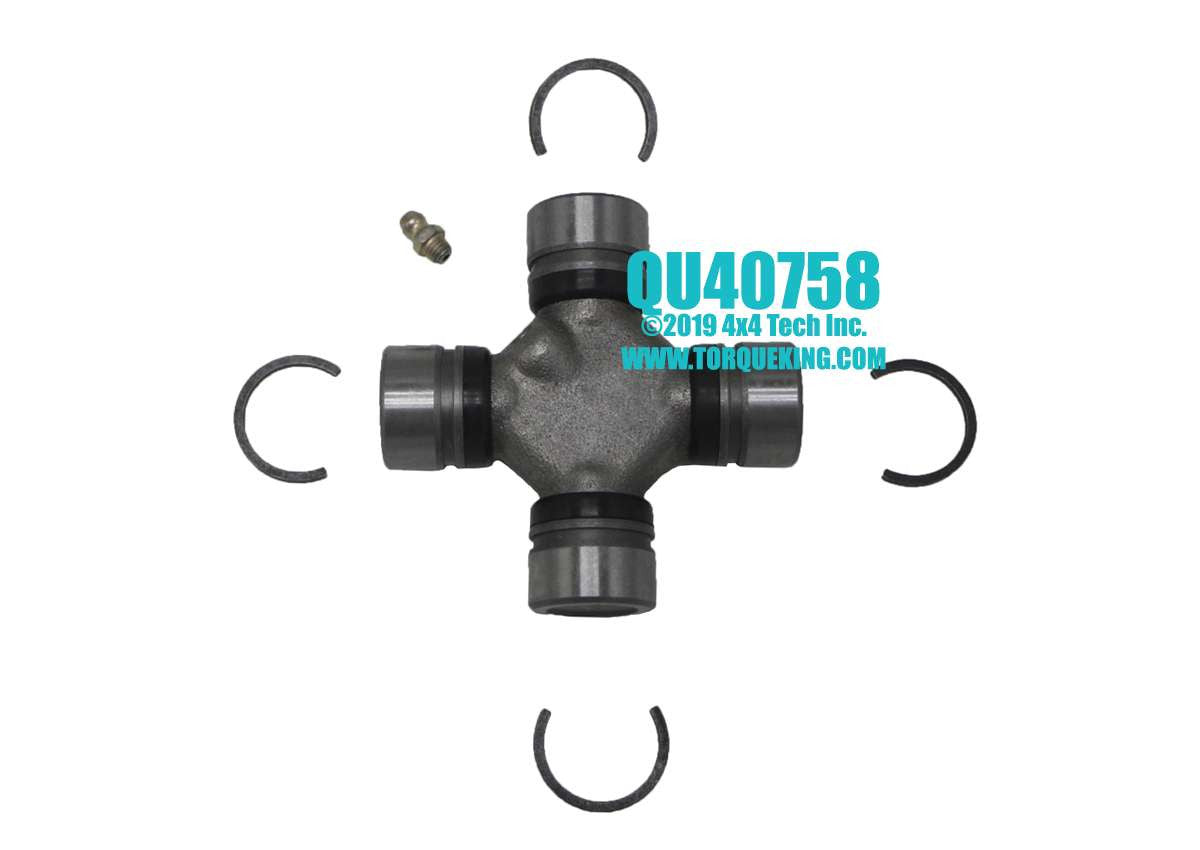

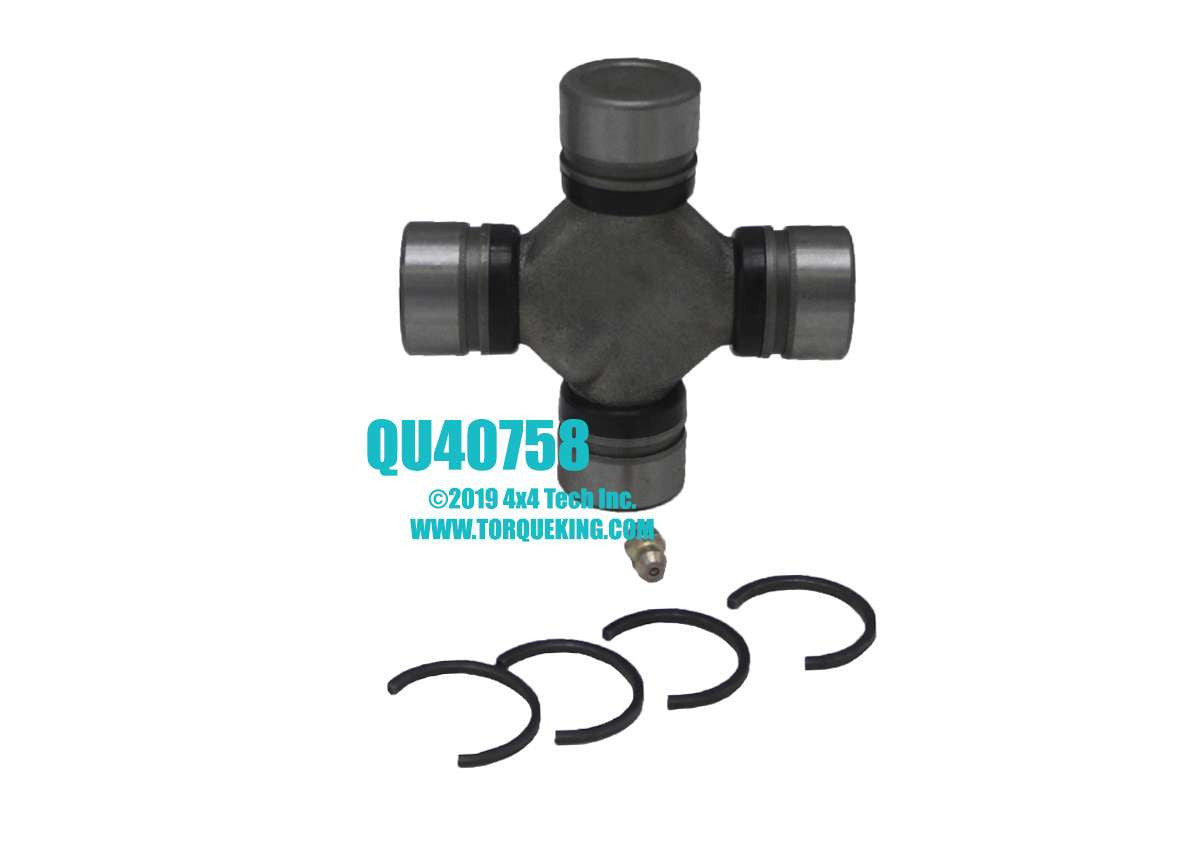

QU40758 Greaseable Driveshaft U-Joint for AAM 1344, S44 or 3R Series

QU40758 Greaseable S44, AAM 1344, or 3R Series Driveshaft Universal Joint for many Dodge and General Motors front or rear driveshafts from the mid 1970's to current. QU40758 is a hot-forged, alloy steel, greaseable u-joint with nitrile rubber seals. You will find this u-joint used in both CV and non CV applications. On Double-Cardan Constant Velocity Joints, two of these u-joints are used in the CV head.

QU40758 universal joint is made to Mechanics 3R and Saginaw S44 dimensional specifications. The cup diameter is 1-1/8" and it will fit yokes that have an inside width of 2-9/16".

Also See: TK40725 Torque King® Premium Factory-Lubed Universal Joint with Cold-Forged Cross.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
C-Clips
4x4 Tech Publications
Matching Parts for 2003-2009 Dodge OEM Driveshaft
Matching Parts for 2003-2009 Dodge Replacement Driveshaft
Matching Parts-Saved for Future Use
Matching Parts-Saved for Future Use
Applications

Tech Note 1: C-Clips
This universal joint uses c-clips that fit against the inside of the yoke ears to retain the cups in the yokes. Original equipment universal joints did not use c-clips, instead, molten plastic was injected into the grooves machined in the yokes and factory u-joint cups. If your driveshaft still has factory universal joints, you will need to shear the injected plastic retainers before you can remove the old u-joint.

Tech Note 2: 4x4 Tech Publications
Service procedures for these universal joints can be found in your factory Shop Manual or my TM3000 Driveshaft and Universal Joint Manual or TSB3510 Saginaw Type Constant Velocity Service.

Tech Note 3: Matching Parts for 2003-2009 Dodge OEM Driveshaft
Exploded View XV508 2003-2013 Ram 2500 and Ram 3500 Front CV Driveshaft
QU40832 2.5" x 0.095" Wall Driveshaft Tubing
QU50230 Splined Stub Shaft
QU50138 Driveshaft Boot Clamp
QU50233 Driveshaft Boot with Clamps
QU50231 Slip Yoke
QU50232 Serrated Flange Yoke
QU70008 Hex Head Bolt, CV Driveshaft to Axle Flange

Tech Note 4: Matching Parts for 2003-2009 Dodge Replacement Driveshaft
Exploded View XV508 2003-2013 Ram 2500 and Ram 3500 Front CV Driveshaft
TK40980 2.5" x 0.083" Wall Driveshaft Tubing
QU40936 Splined Slip Stub
QU40906 Greaseable Slip Yoke with Press On Seal
QU41006 Slip Yoke Press-On Seal
QU50232 Serrated Flange Yoke
QU70008 Hex Head Bolt, CV Driveshaft to Axle Flange

Tech Note 5: Matching Parts
Saved for Future Use

Tech Note 6: Matching Parts
Saved for Future Use

Applications
(More to be added)

Chevy/GMC:
K-Series 4x4 Pickups 1/2 ton and 3/4 ton: 1977.5, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Full Size Blazer, Jimmy, Suburban, and 1 ton pickups: 1977.5, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Dodge/Plymouth:
Ramcharger, Trailduster, W-100, W150, W200, W250, W300, W350: 1975.5, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Ram 2500 and Ram 3500 Front CV Driveshafts: 2003, 2004, 2005, 2006, 2007, 2008, 2009

Rear Driveshaft Applications will be added as time permits
