Description

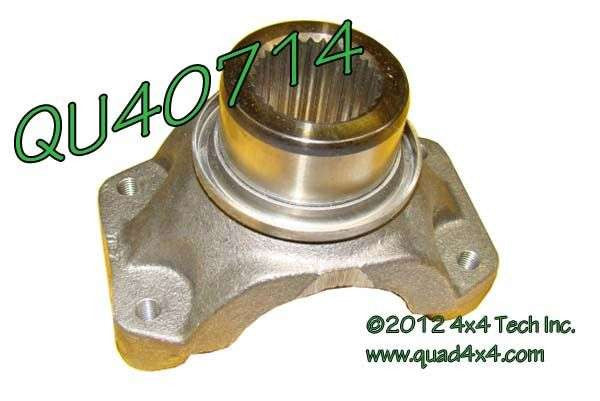

QU40714 1410 Series Pinion Yoke for Dana Model 60 and 70 Axles is a genuine Dana Spicer original equipment replacement part for most trucks and vans with Dana 60, 61, or 70 rear drive axles. Includes a U-shaped slinger that fits over protruding lip on our QU40097 Pinion Seal. Can also be used to upgrade other late 1960's to late 1990's Dana 60, Dana 61, Dana 70, and Dana 70HD front or rear axles to take 1410 series universal joints. Made in India.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
U-Joints
Different Pinion Yokes
Strap and Bolt Kit
Matching Parts
Applications
Tech Note 1: U-Joints
QU40714 Pinion Yoke takes external snap ring type universal joints made to Spicer 1410 series specifications. The u-joint cup diameter is 1-3/16". The overall u-joint width is 4-3/16". See TK40705 and QU40789 universal joints.
Tech Note 2: Different Pinion Yokes
QU40714 will fit almost all 1999 and prior Dana 60 or Dana 70 axles with 29 spline pinion stems, however if you have a 1989 to 1999 Dodge you should use QU40727 due to the shorter length of the Dodge yoke.
Tech Note 3: Strap and Bolt Kit
Use QU40709 Strap and Bolt Kit to attach the driveshaft universal joint to the pinion yoke.
Tech Note 4: Matching Parts
Matching Parts for QU40714 Dana 60, Dana 70 Pinion Yoke:
QU40022 Stock Pinion Nut
QU40023 Pinion Washer
QU10918 Flanged Pinion Nut for Heavy Duty applications
QU40099 Outer Pinion Oil Slinger
QU40097 Pinion Seal
Tech Note 5: Applications
For Most Trucks and Vans with Dana 60, 61, or 70 Rear Drive Axles
Can also be used to upgrade other late 1960's to late 1990's Dana 60, 61, 70, 70HD Front or Rear Axles to take 1410 Series Universal Joints
