QU40711 New Process NP205 1410 Series Rear Output Yoke

QU40711 New Process NP205 1410 Series Rear Output Yoke is a Genuine Original Equipment Replacement part for all 1989 to 1993 Dodge 4x4 trucks with the Cummins Diesel Engine. QU40711 can be used to upgrade any Chevy, Dodge, Ford, GMC, or International NP205 Transfer Case with 32 spline remote input or front/rear output shafts having smaller series output yokes to couple with beefy 1410 series universal joints.

Also See QK2016 NP205 1410 Series Rear Output Yoke Kit

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Convert to Remote Input or Front Output
Matching U-Joints
Matching Parts
Upgrade Shaft
Applications

Tech Note 1: Convert to Remote Input or Front Ouput
To convert QU40711 rear output yoke to a Remote Input or Front Output Yoke, simply add QU20030 Front Yoke Slinger.

Tech Note 2: Matching U-Joints
QU40711 NP205 End Yoke accepts external snap ring type universal joints made to Spicer 1410 series dimensional specifications. The u-joint cup diameter is 1-3/16" and the overall width of the installed universal joint is 4-3/16". Matching universal joints are TK40705 and QU40789.

Tech Note 3: Matching Parts
Optional matching parts for QU40711 Yoke are:
Exploded View XV4005 1980-1993 Dodge NP205 Transfer Case
Exploded View XV4006 1969-1974 Dodge NP205 Transfer Case
Exploded View XV4007 1969-1975 IHC NP205 Transfer Case
Exploded View XV4008 1973-1977.5 Ford F250 Remote NP205 Transfer Case
QU40709 Strap and Bolt Kit to secure the driveshaft universal joint
TK50123 Standard, 2-1/8" ID Original Equipment Type Single Seal
TK50092 2-1/8" Double Rear Output Seal Set for maximum oil retention
TK10513 Rubber Spline Seal to seal oil from leaking past the inside splines
QK2036 Output Yoke Nut and Washer Set
TK10503 5 Bolt Gasket for Rear Output Bearing Flange

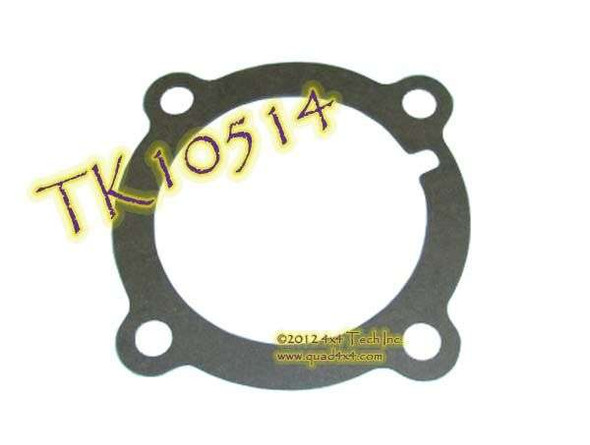

TK10514 4 Bolt Gasket for Front Output or Remote Input Bearing Flanges
S9978 Threadlocker

Tech Note 4: Upgrade Shaft
For high performance rear output applications, I recommend you replace your weak original NP205 32 spline rear output shaft with our TK50084 shaft. The redesigned, stronger part which was exclusively used in 1989-1993 Dodge Cummins Diesel Trucks with 5 speed manual transmissions.

Applications
Specific to 1989, 1990, 1991, 1992, 1993 Dodge 4x4 trucks with the Cummins Diesel Engine but can be used to upgrade any Chevy, Dodge, Ford, GMC, or International NP205 Transfer Case with 32 spline remote input or front/rear output shafts having smaller series output yokes to couple with beefy 1410 series universal joints.
