QU40704 CV Joint Ball Seal 1985-up Spicer Type Constant Velocity Joints

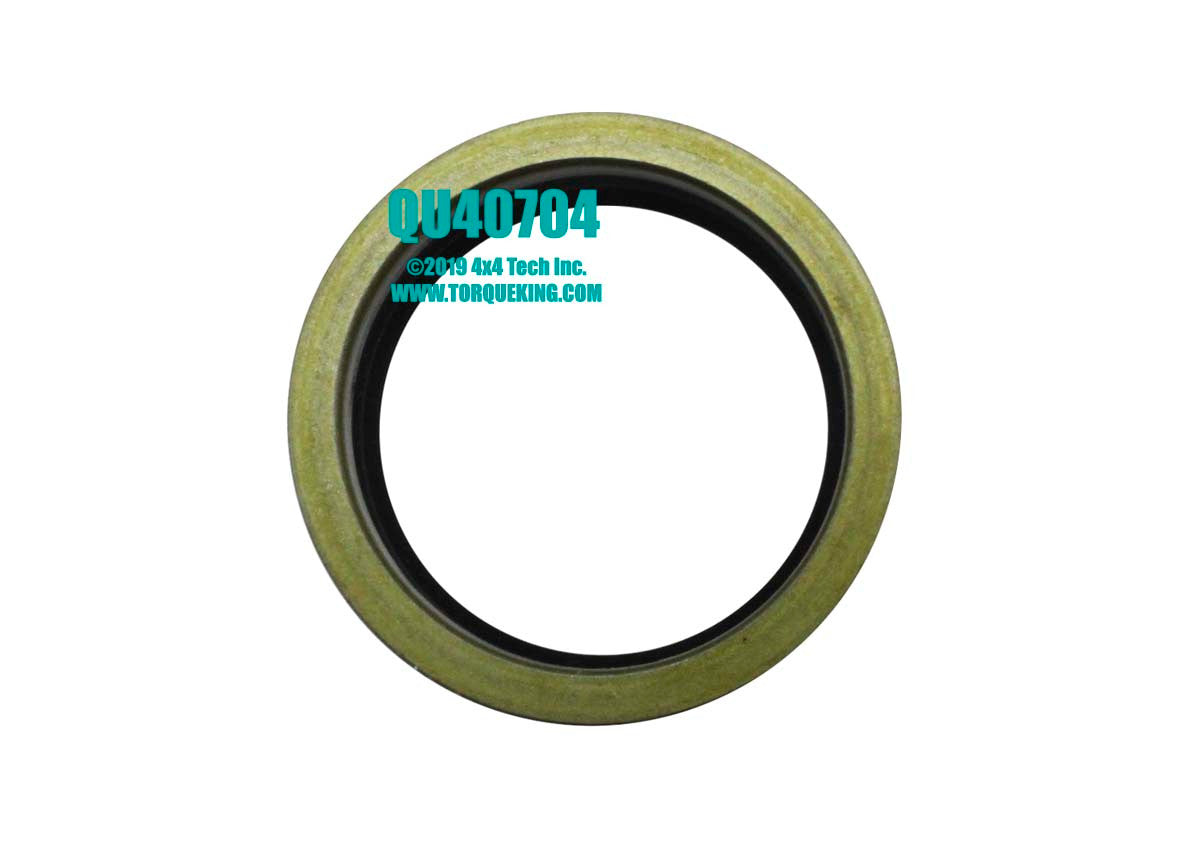

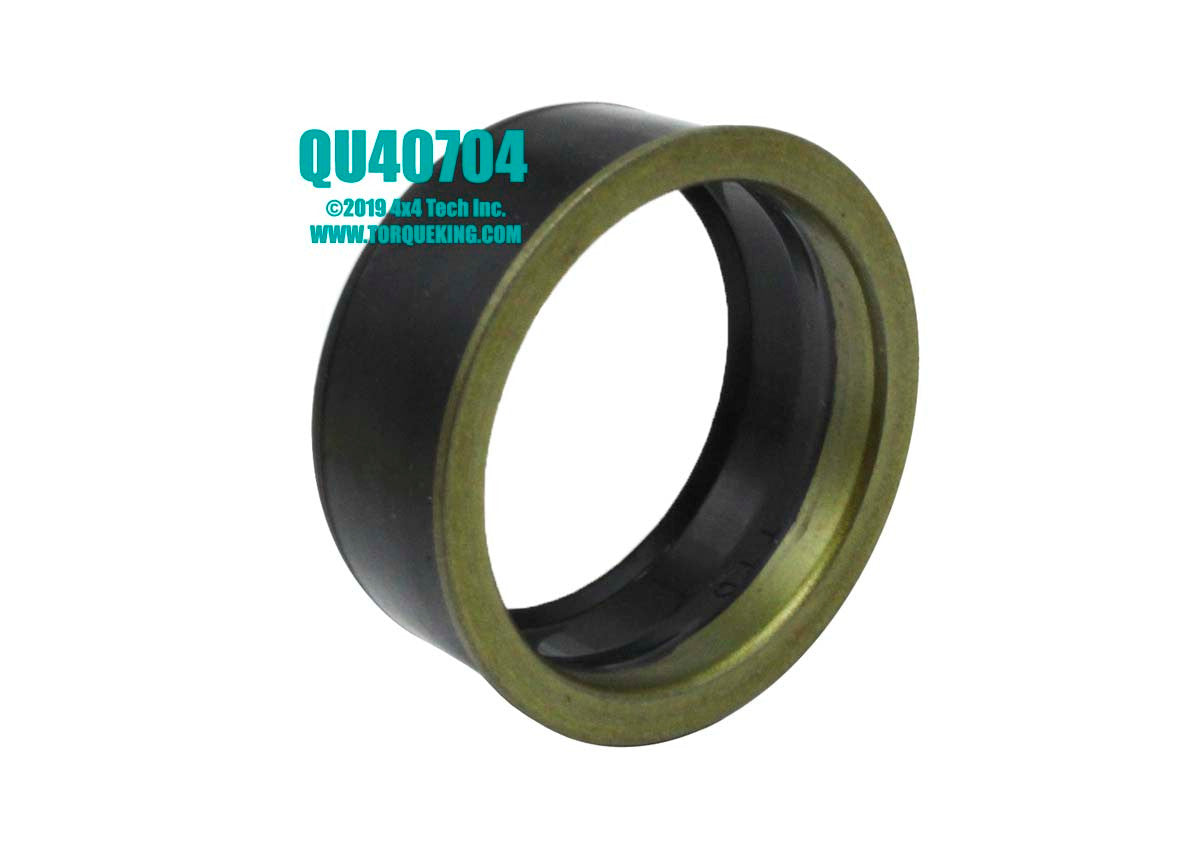

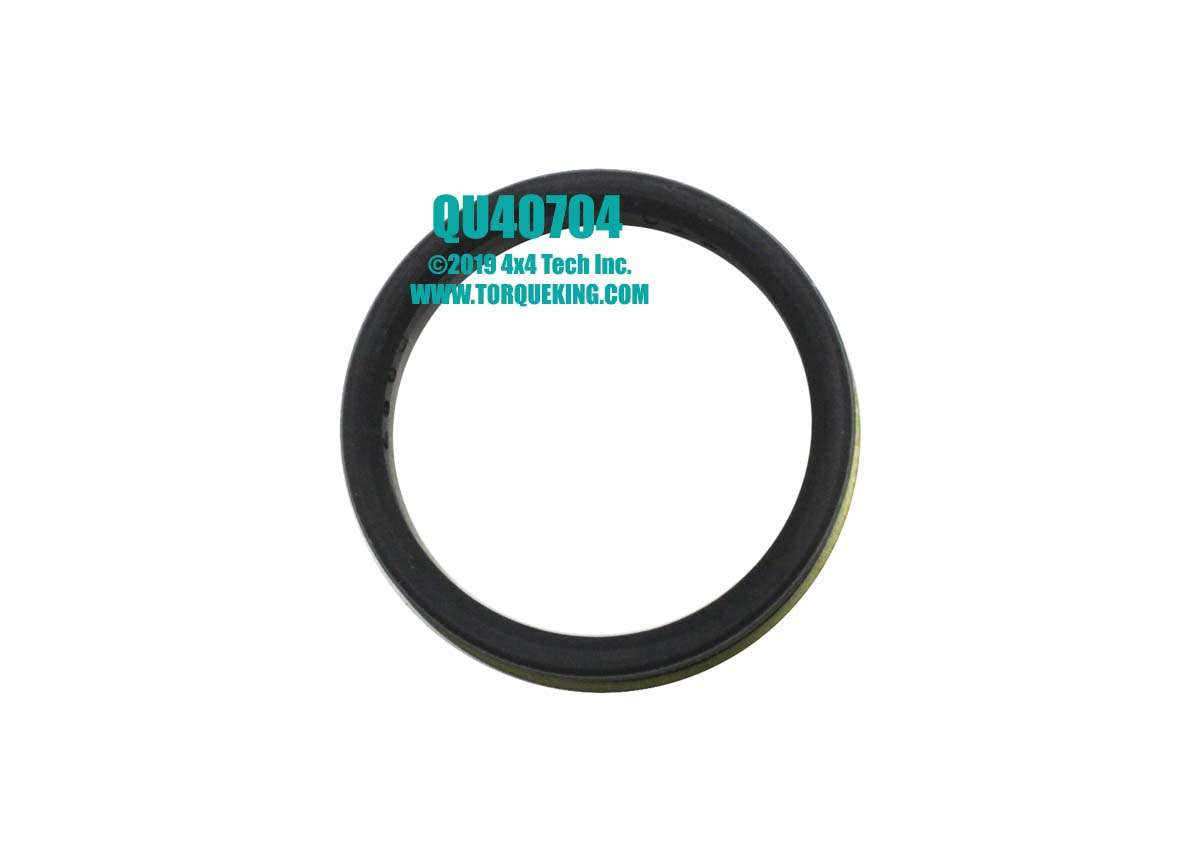

QU40704 CV Joint Press On Dust Seal for CV Ball fits 1985-up Spicer-Type Non-Greaseable and 2004-up Greaseable Double-Cardan Driveshaft Constant Velocity Joints. This rubber & metal seal helps protect the CV Centering Ball from road splash and should be replaced anytime the u-joints are changed. It is a bit under 2" in diameter and just over 3/4" high. The seal is pressed onto the Ball Stud Tube Yoke (the CV yoke welded to the shaft). Over time, these seals are subject to dry rot and cracking. Replacement is recommended anytime the CV joint is rebuilt. This seal is primarily found on late 1980's to current CV shafts with non-greaseable CV Balls, however, it is also used on late model greaseable shafts such as those found in Dodge Ram trucks starting in 2005. USA Made. Also order optional QT4002 Installer for quick and easy installation.

For Related Parts see QU40131 1330 Series CV Flange Yoke Assembly and QU40759 CV Center Yoke. For U-Joint Service Tools, See our U-Joint Tools Web Page.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Installation
Matching Parts for 2005-2016 Ford Super Duty
Matching Parts for 2003-2018 Ram 2500/3500 Front CV Driveshaft
Matching Parts-Saved for Future Use
Matching Parts-Saved for Future Use
Matching Parts-Saved for Future Use
Applications

Tech Note 1: Installation
These seals are a bit tricky to press onto the Ball Stud Tube Yoke as they are a fairly tight fit, but the metal seal flange you press against is not very wide so you may need to use a piece of pipe.

Tech Note 2: Matching Parts for 2005-2016 Ford Super Duty
Exploded View XV514 2005-2016 Ford Super Duty Front CV Driveshaft
QU20103 Driveshaft Bolt
QU40805 Replacement CV Flange Yoke
QU40524 OE CV Flange Yoke
QU40829 CV Ball Seal
QU40835 CV Joint Tension Spring
QU40744 CV Ball and Seal Kit
QU40800 CV Center Yoke
QU40825 CV Ball Stud Tube Weld Yoke
QU40863 CV Joint Head Assembly
TK40981 Premium 2.75" x 0.083" DOM Driveshaft Tubing
QU20373U Used Splined Slip Yoke Socket
QU50586 Boot Clamp
QU20138 Boot Kit
QU20372 Splined Slip Yoke Shaft
QU40874 Replacement Slip Stub
QU40802 Screw-On Slip Yoke Seal
QU40875 Slip Yoke
QU40709 Strap and Bolt Kit
TK40719 Premium U-Joint
QU40731 Greaseable U-Joint
QU40873 EZ-Grease U-Joint

Tech Note 3: Matching Parts for 2003-2018 Ram 2500/3500 Front CV Driveshaft
Exploded View XV508 2003-2013 Ram 2500 and Ram 3500 Front CV Driveshaft
Exploded View XV509 2013-2018 Ram 2500 and Ram 3500 Front CV Driveshaft
QU10806 Grade 8 Driveshaft Bolt
QU40131 1330 Series Front CV Flange Yoke Assembly
QU40803 1350 Series CV Flange Yoke Assembly
QU40953 1410 Series Double Cardan CV Head Assembly
QU40829 CV Ball Seal
QU40835 CV Joint Tension Spring
QU40744 CV Ball and Seal Kit
TK40721 Premium 1330 Series U-Joint
QU40774 Greaseable 1330 Series U-Joint
TK40719 Premium 1350 Series U-Joint
QU40731 Greaseable 1350 Series U-Joint
TK51182 Premium 1355 Series U-Joint
QU40759 CV Center H Yoke
QU40807 CV Ball Stud Tube Yoke for 1330
QU40810 Greaseable Ball Stud Tube Yoke for 1350

Tech Note 4: Matching Parts
Saved for Future Use

Tech Note 5: Matching Parts
Saved for Future Use

Tech Note 6: Matching Parts
Saved for Future Use

Applications
QU40704 is a Replacement part for the following 4x4 vehicles equipped with Spicer-Type original equipment front CV driveshafts:

Dodge
All Ram 1500, Ram 2500, Ram 3500: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Dakota: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

Ford
Explorer: 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Super Duty*: 1998, 1999, 2000, 2001, 2002, 2003, 2004
Excursion*: 2000, 2001, 2002, 2003, 2004, 2005
All Super Duty: 2005, 2006, 2007, 2008, 2009, 2010
*Dan the Gear Man Tech Note: Some Excursions and early Super Duty's also came with Saginaw type CV shafts which use a different type CV Joint

Jeep
All 1995.5 and newer Jeeps with Double-Cardan Spicer-Type CV shafts: (1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)
*Dan the Gear Man Tech Note: Some early 1995 Jeeps came equipped with a greaseable CV Ball and do not use this seal
