QU40534 Right Side Diff Output Bearing and Seal Kit for Ford Dana IFS

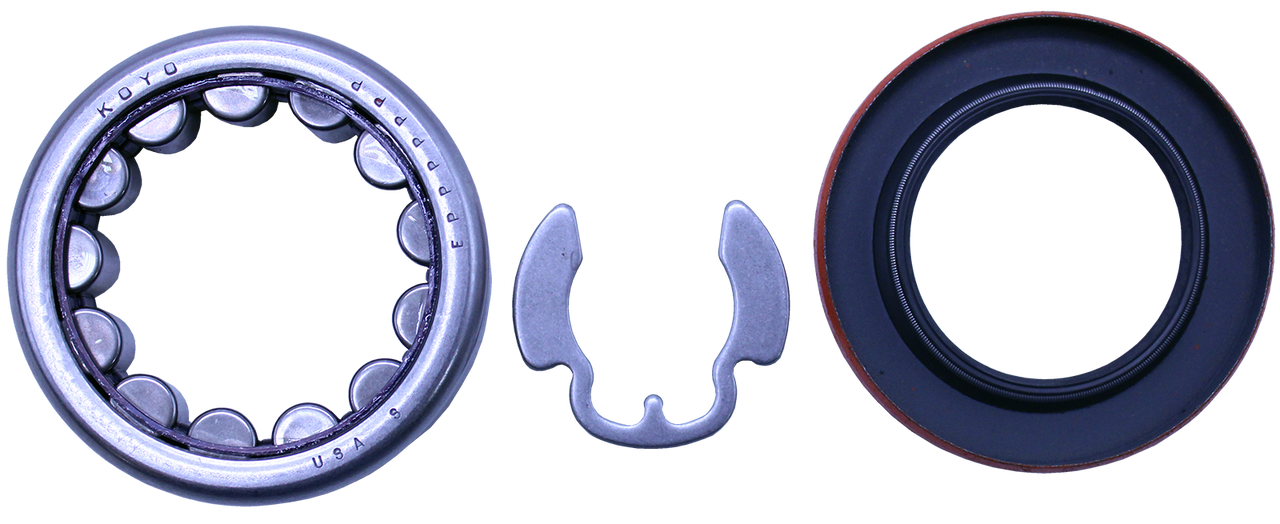

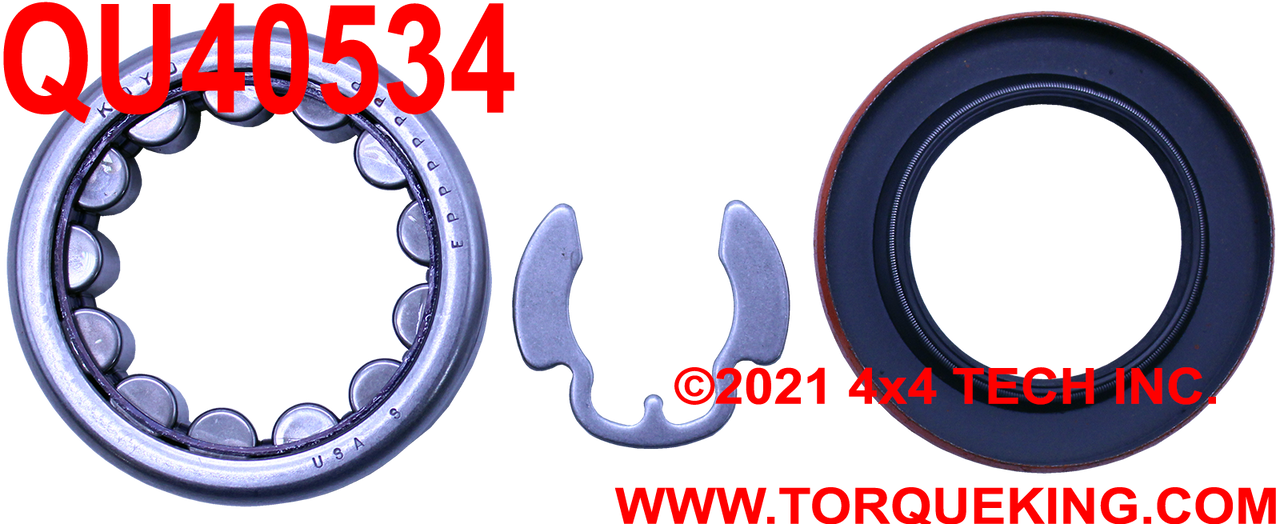

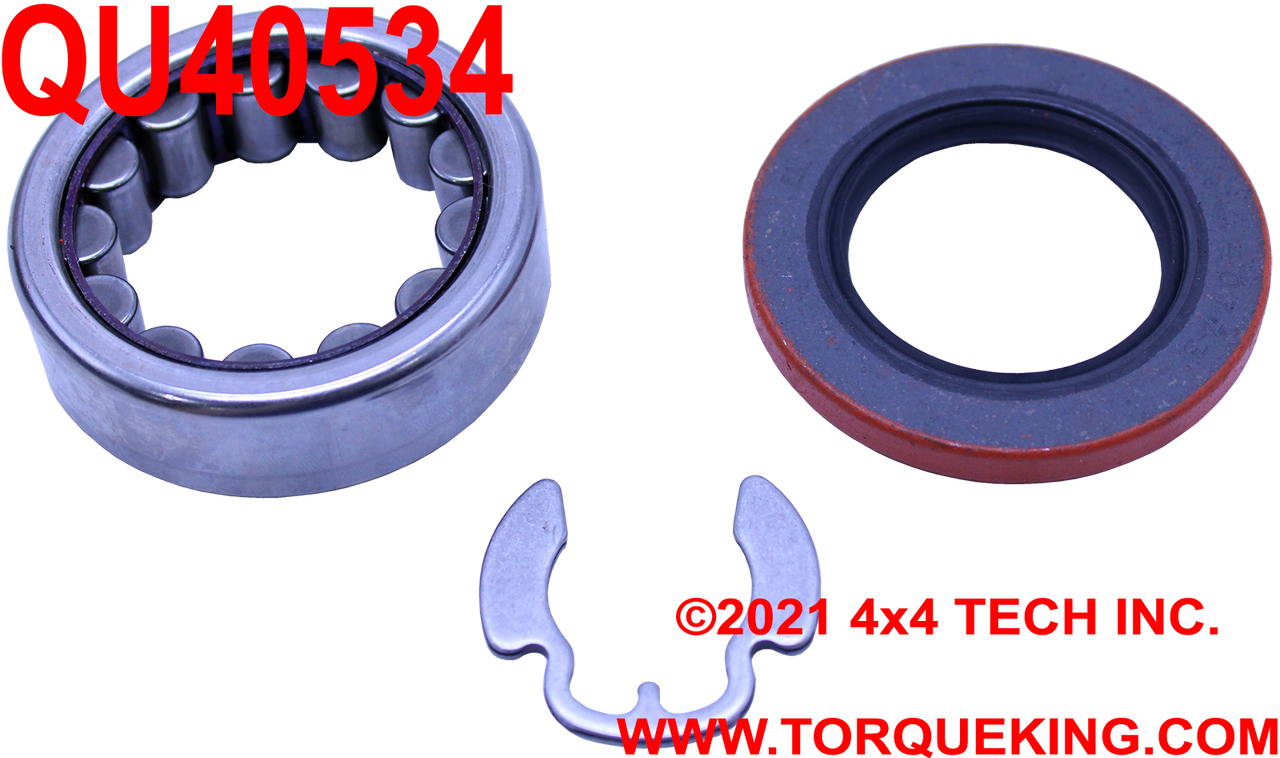

QU40534 1983-1997 Right Side Differential Output Bearing and Seal Kit for Ford Dana 44 and Dana 50 IFS Front Axles is a genuine original equipment Kit that includes the right Axle Shaft Support Bearing, Right Axle Shaft Oil Seal and Axle Shaft Retaining Clip. Fits 1983.5-1996 Ford Bronco, F150, standard F250 Dana 44 and 1983.5-1997 F250, F350 Dana 50 Twin Traction Beam IFS front drive axles.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Placement
Shafts
To Install
Lubrication
Verify
Maintenance
Matching Parts
Applications

Tech Note 1: Placement
QU40515 Bearing and QU40088 Seal press into your differential housing. QU40226 Snap Ring fits the groove in the inboard side of QU40571 Differential Output Shaft.

Tech Note 2: Shafts
The Axle Shaft Slip Yoke u-joint connects to the right differential output shaft. Ford used two types of diff output shafts. Early production diff output shafts use QU40173 Tapered Roller Bearing Kit and can be removed by unbolting the 3 bolt external bearing retainer flange from the diff housing. Later production diff output shafts (circa 1983 and after) that use QU40534 Kit are retained by a snap ring at the inboard end of the diff output shaft. For these axles, you must remove the differential housing from the left axle beam to access the snap ring (It is not as big a job as it sounds, just 12 bolts and some grunt work).

Tech Note 3: To Install
To install these parts, you MUST unbolt and remove the whole differential housing from the left axle beam. Once the diff assembly is out of the vehicle, you can remove QU40226 Snap Ring from the groove in the diff output shaft after which you can pull the diff output shaft from the diff housing./p>

Tech Note 4: Lubrication
Always pregrease the roller bearing and seal lip before installing the axle shaft in your diff housing with QU90018 or similar NLGI #2 GC-LB water resistant grease.

Tech Note 5: Verify
When starting the axle shaft splines into your Slip Yoke, verify that the Slip Yoke and Right Axle Shaft are as close to being in phase as possible. (The center line of the yoke holes line up to each other with little or no offset.)

Tech Note 6: Maintenance
IFS Right Diff Output Shaft operating failures are usually a result of a broken axle u-joint. Good preventative maintenance can usually prevent those type of failures. A good number of axle shafts are also wrecked by poor service procedures during u-joint replacement. Over the years I have seen a lot of axle shafts with bent or broken yokes caused by the slam-bang u-joint removal and installation methods. A C-Frame Press with the correct adapters is both the safest and best way to remove or install axle u-joints.

Tech Note 7: Matching Parts
Interactive XV1010 Exploded View, 1995-1997 Ford F250 Dana 50IFS Front Axle
TK40719 and QK4874 Universal Joints
QU40085 Small Boot Clamp
QU40084 Large Boot Clamp
QU40572 Slip Yoke Boot
QU40557 Inner Slip Yoke Seal
QU40087 Left Axle Shaft Seal
QU40571U Used Differential Output Shaft 1983-1997 Dana 50IFS Front Axle
S82194 Ultra Grey RTV Sealant to seal diff housing to left axle beam
QU90018 Pyroplex® Protection ES NLGI #2 GC-LB Water Resistant Synthetic Grease

Applications:
Ford:
Bronco, F150: 1983.5, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
F-250 with Dana 44IFS Front Axle: 1983.5, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
F-250 with Dana 50IFS Front Axle: 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
F-350: 1983, 1984, early 1985
