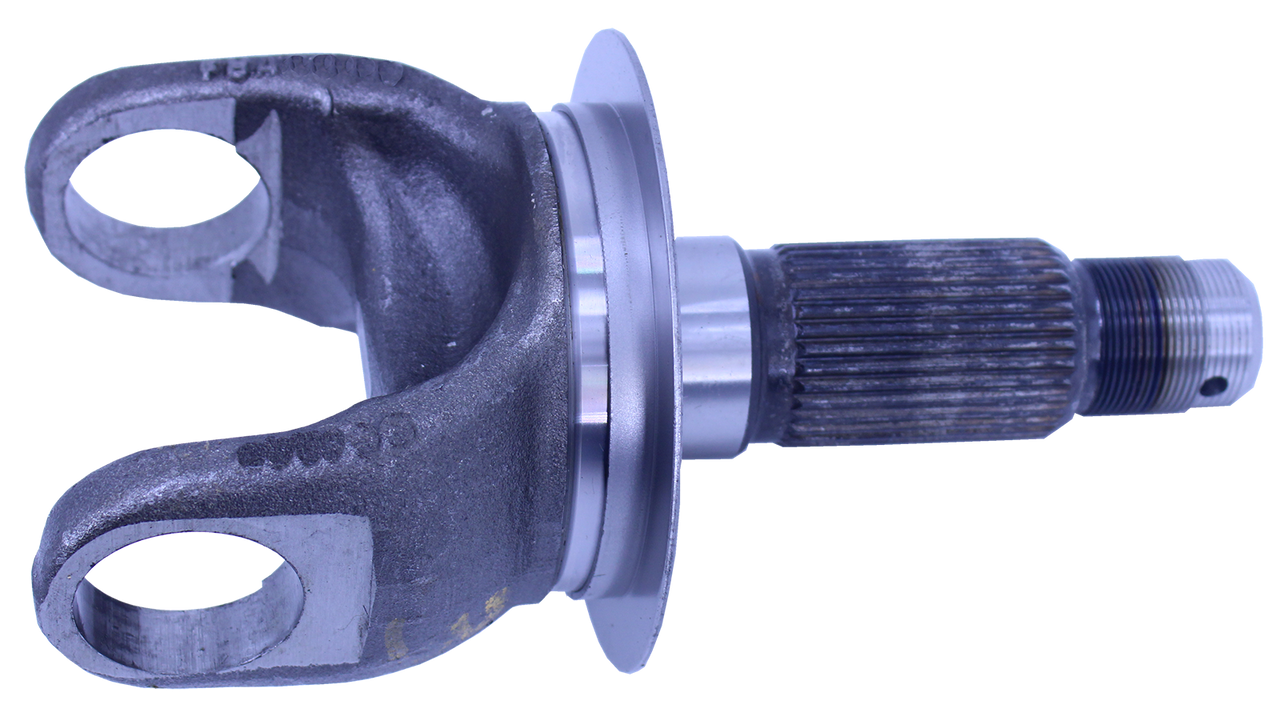

QU40357 2000-2002 Dodge Dana 60 Outer Axle Shaft with Slinger

QU40357 2000-2002 Dodge Dana 60 Outer Axle Shaft with Slinger is a genuine Dana original equipment replacement 33 spline outer axle shaft with factory installed dust slinger for all 2000 Dodge Ram 2500, 2001 Dodge Ram 2500, and 2002 Dodge Ram 2500 4x4 trucks. QU40357 Outer Axle Shaft with Slinger also fits on all 2000 Dodge Ram 3500, 2001 Dodge Ram 3500, and 2002 Dodge Ram 3500 4x4 trucks. Made in USA.

Also See: QU40357U Used 2000-2002 Dodge Dana 60 Outer Axle Shaft with Slinger while supplies last.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Ball Joint Type
C-Clip Type
To Replace
When Replacing Right Outer Axle Shaft
Inner Axle Seals
Available U-Joint Tools
Matching Parts
Applications

Tech Note 1: Ball Joint Type
Dodge used the Ball Joint type Dana 60 front axle in Ram 2500 and Ram 3500 trucks from 1994 to 2002. All early 2002 and prior axles are equipped with CAD. During the 2002 model year, there was a mid-year model change to a no disconnect, constantly engaged front axle. QU40357 fits ALL 2000-2002 Dodge Ram 2500 and Ram 3500 front axles with or without CAD.

Tech Note 2: C-Clip Type
QU40357 takes an internal c-clip type axle universal joint with 1-3/8" diameter cups. The matching axle u-joints are: QU30332 (greaseable hot-forged cross), TK40715 (Premium non-greaseable cold forged cross), and TK40724 (Premium greaseable cold forged cross). For u-joint service tools check out our U-Joint Tools web page.

Tech Note 3: To Replace
To replace your outer axle shaft, you must remove the brake rotor, wheel hub and axle shaft assembly from the axle.

Tech Note 4: When Replacing Right Outer Axle Shaft
If you are replacing the right outer axle shaft on an axle with Central Axle Disconnect (CAD), engage four wheel drive before starting disassembly. This will slide the CAD shift collar to the left and onto the differential output shaft splines. If you pull the shaft in 4x2 mode, the shift collar will drop out of position. If this happens, remove the CAD shift unit from the axle and align the collar. Always replace QU40090 CAD Housing Gasket if you remove the CAD Shift Housing.

Tech Note 5: Inner Axle Seals
Given the era of trucks this shaft fits, it is recommended you replace the inner axle seals which can become hard and brittle with age. For Inner Axle Shaft Seal Kits with oil seals and installation tools see: QK4621 2000-2002 with CAD and QK4802 2002 non-CAD.
Left Seal, All Years: Pressed into the left axle tube next to the differential for all years. Differential removal is required. Use QU40298 Seal.
Right Seal, 2000-2002.5 with CAD: Pressed in the axle tube outboard of the CAD shift unit. CAD shift unit and right axle shaft removal required to replace seal. Use QU40271 Seal.
Right Axle Seal 2002 without CAD: Pressed into the right axle tube next to the differential. Differential removal is required. Use QU40298 Seal.

Tech Note 6: Available U-Joint Tools
Most axle shaft universal joint service is done using makeshift tools and hammering on the parts until something gives. Axle Shafts and Axle universal joints are precise components that can be easily damaged by such slam-bang work. There is a better way to perform u-joint service using application specific press tooling and approved service procedures. See our U-Joint Tools web page or our individual Tool Pages for QT1065 C-Frame Press, QT4009 Large U-Joint Separator Yoke, QT4011 Press Tip and QT4015 Press Anvil.

Tech Note 7: Matching Parts
QU30332 U-Joint with greaseable Hot-Forged Cross
TK40715 Premium non-greaseable U-Joint with Cold Forged Cross
TK40724 Premium greaseable U-Joint with Cold Forged Cross|
QU40090 CAD Housing Gasket for 2000-2002.5 with Central Axle Disconnect
QU40298 Inner Axle Shaft Oil Seal fits left side all 2000-2002 and right side on 2002 axles without CAD
QU40271 Right Inner Axle Shaft Oil Seal for 2000-2002.5 axles with CAD
QK4732 Outer Axle Shaft Nut and Washer Kit
QU40359 18 Spline Right Inner Axle Shaft for 2000-2002 with CAD
TK40574 32 Spline Right Inner Axle Shaft 2002 without CAD
QU40469 Left Inner Axle Shaft
QU10943 Differential Output Shaft 2000-2002.5 with CAD, 32 splines inboard x 18 splines outboard
QU40485 32 Spline Differential Gear Kit
QU10963 Right Brake Shield for 2000-2002 Ram 2500, Ram 3500
QU10964 Left Brake Shield for 2000-2002 Ram 2500, Ram 3500
QU10594 Hub to Knuckle Bolt
QK4555 Wheel Hub Kit for 2000-2002 Ram 2500, Ram 3500 with 4 Wheel ABS
QK4574 Wheel Hub Kit for 2000-2002 Ram 2500, Ram 3500 with Rear Wheel ABS
QU40367 Dana Original Equipment Model 60/70 Differential Cover Pan Gasket
QU42029 Dana Reusable Model 60 Differential Cover Pan Gasket
QK4802 and QK4621 Inner Axle Shaft Seal Kits with Installation Tools
Dodge & Ram Shop Manuals

Applications:
Dodge Ram:
Ram 2500, Ram 3500: 2000, 2001, 2002
