QU40298 2000-2002 Dodge Inner Axle Shaft Seal

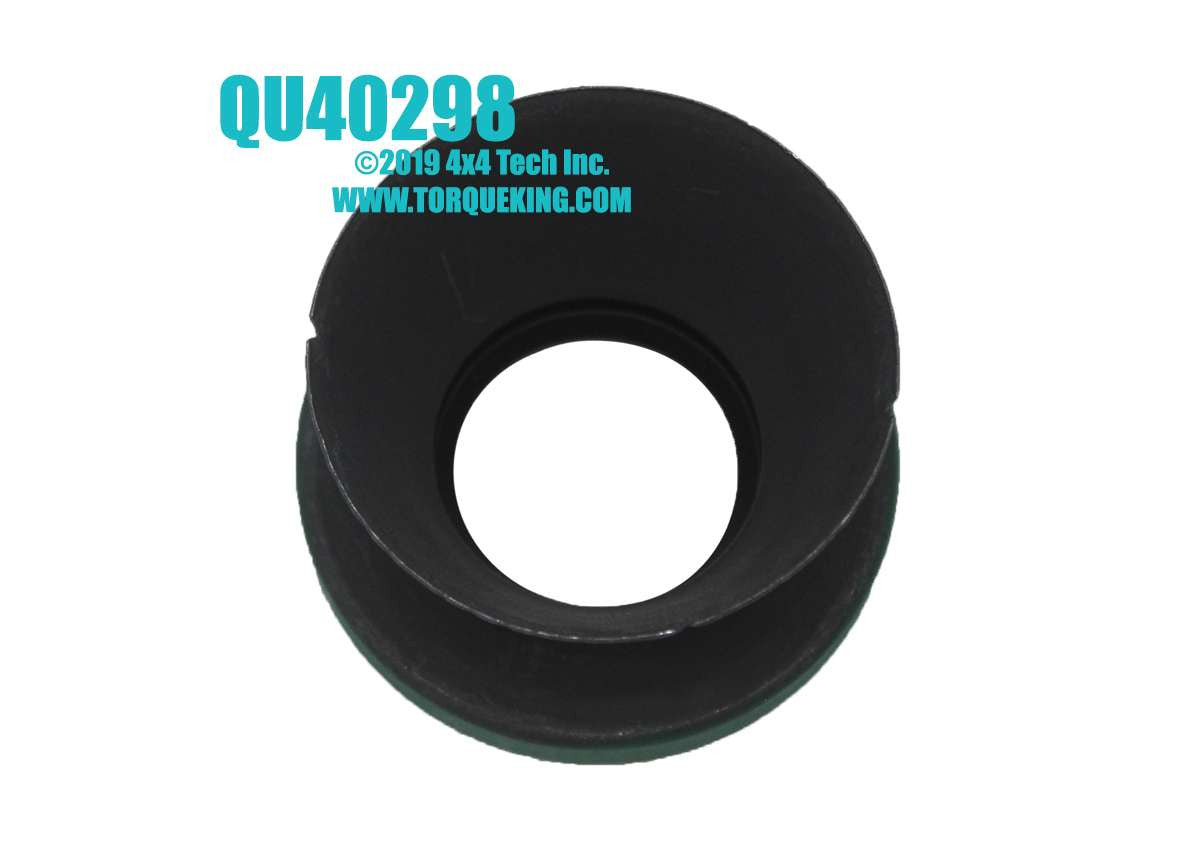

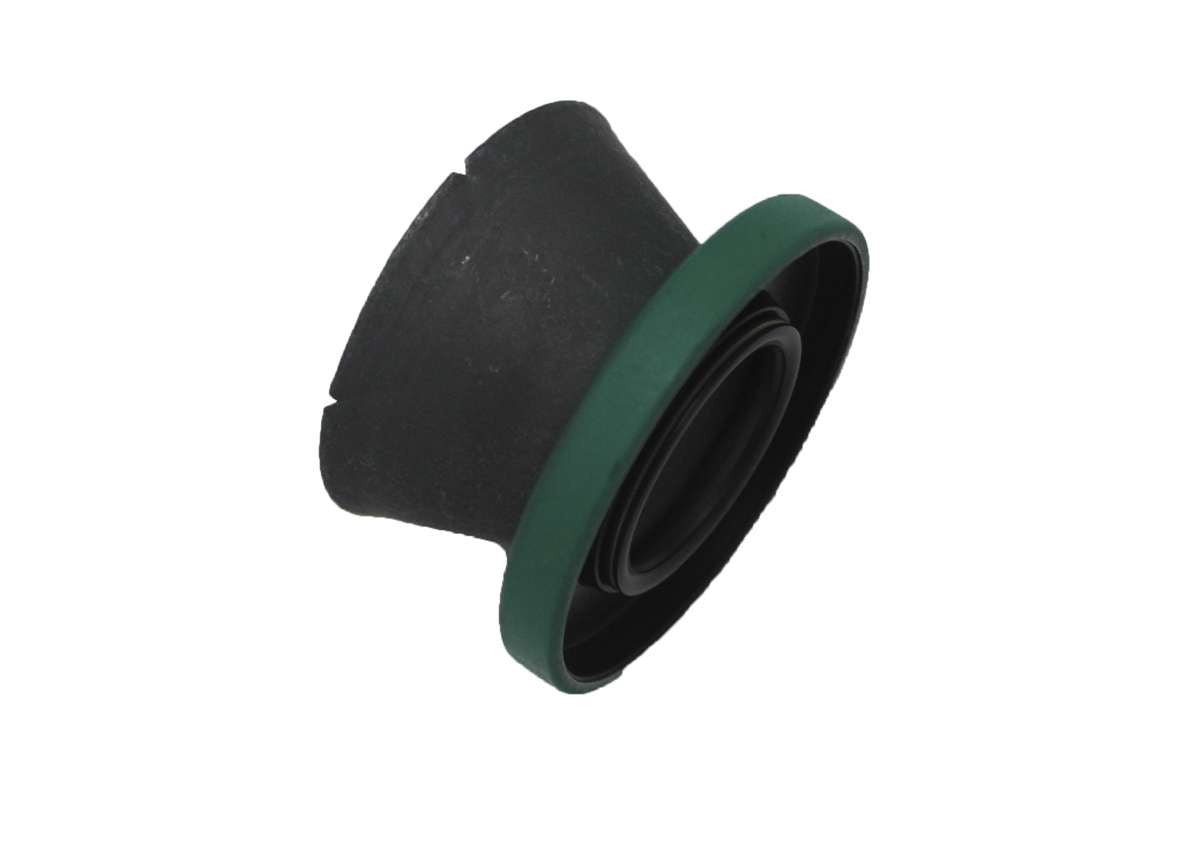

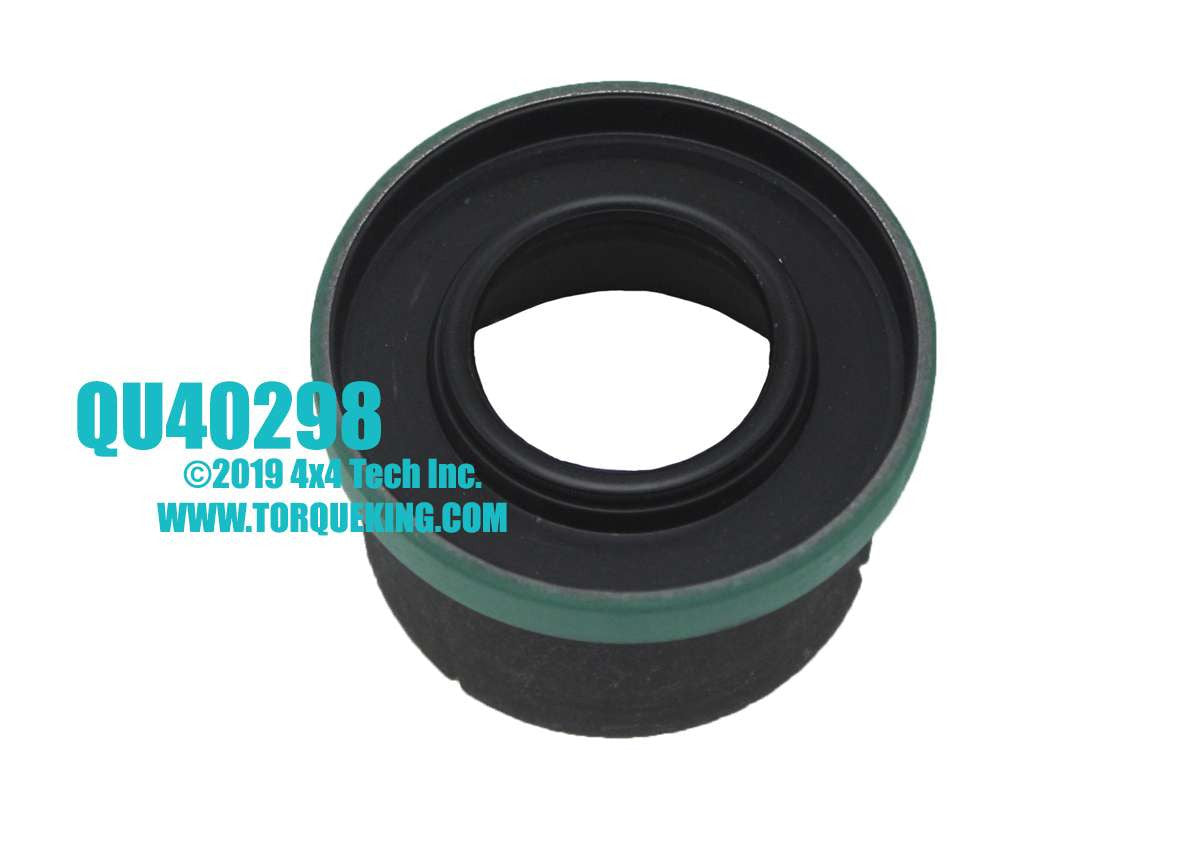

QU40298 2000-2002 Dodge Ram 2500, Ram 3500 Inner Axle Shaft Seal A genuine original equipment seal used as the LEFT Axle Seal on all 2000, 2001, and 2002 Dodge Ram 2500 and Ram 3500 4x4 trucks with or without the vacuum controlled Central Axle Disconnect (CAD) system. QU40298 is also used as the RIGHT Axle Shaft Seal on those later production 2002 models that did not have CAD. Due to the restricted area where these seals press into, it is recommended you use QT1071 Seal Installer (Included in QK4621 and TS4621 Tool Sets) for a trouble and leak free installation. Use one seal for CAD axles and two Seals for those late axles without CAD.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Complete Axle Tear Down Required
Used In
Removal Tools
Upon Removal
Matching Parts
Applications

Tech Note 1: Complete Axle Tear Down Required
Complete axle tear down including Differential removal is required to change these seals which are pressed into the inboard end(s) of your axle tubes right next to the differential.

Tech Note 2: Used In
QU40298 Seal is used for the left axle shaft on all 2000-2002 Dodge Ram 2500, Ram 3500 4x4 Trucks. It is also the seal used for the right axle shaft on 2002 trucks WITHOUT vacuum controlled Central Axle Disconnect (CAD).

Tech Note 3: Removal Tools
Once the axle is disassembled, the old seals can be easily removed with our TS4862 and QT1216 Seal Remover Tools or other suitable tool such as a length of sturdy pipe that will fit inside the axle tube. You will also need to clean the inside of the axle tube to remove dirt and crud that could get pushed into your new seal during reassembly.

Tech Note 4: Upon Removal
Upon removal, check your axle shafts for damage in the seal contact area. If your axle shafts are badly grooved or rust pitted you will need to replace your axle shaft to prevent oil seeps or leaks. Less severe damage can be cleaned up with super-fine abrasive cloth and you can slightly offset the seal with our adjustable depth tool design so the seal lip will contact an undamaged surface. To offset the seal, you first temporarily place the seal installer in your old seal before you knock it out. Mark the depth of our tool in your housing. Remove the tool and old seals. When you install the new seal(s), offset it from the original depth by pressing it in more or less than the original seal depth as indicated by your depth mark.

Tech Note 5: Matching Parts
Matching Parts for QU40298 Dodge Dana 60 Axle Shaft Seal:
QU40271 Right Inner Axle Shaft Oil Seal for 2000-2002.5 axles with CAD
QU30332 U-Joint with greaseable Hot-Forged Cross
TK40715 Premium non-greaseable U-Joint with Cold Forged Cross
TK40724 Premium greaseable U-Joint with Cold Forged Cross
QU40090 CAD Housing Gasket for 2000-2002.5 with Central Axle Disconnect
QK4732 Outer Axle Shaft Nut and Washer Kit
QU40359 18 Spline Right Inner Axle Shaft for 2000-2002 with CAD
TK40574 32 Spline Right Inner Axle Shaft 2002 without CAD
QU40469 Left Inner Axle Shaft
QU10943 Differental Output Shaft 2000-2002.5 with CAD, 32 splines inboard x 18 splines outboard
QU40485 32 Spline Differential Gear Kit
QU10963 Right Brake Shield for 2000-2002 Ram 2500, Ram 3500
QU10964 Left Brake Shield for 2000-2002 Ram 2500, Ram 3500
QU10594 Hub to Knuckle Bolt
QK4555 Wheel Hub Kit for 2000-2002 Ram 2500, Ram 3500 with 4 Wheel ABS
QK4574 Wheel Hub Kit for 2000-2002 Ram 2500, Ram 3500 with Rear Wheel ABS
QU40367 Dana Original Equipment Model 60/70 Differential Cover Pan Gasket
QU42029 Dana Reusable Model 60 Differential Cover Pan Gasket
QK4802 and QK4621 Inner Axle Shaft Seal Kits with Installation Tools
Dodge & Ram Shop Manuals

Applications:
Dodge Ram:
Left Side Ram 2500, Ram 3500: 2000, 2001, 2002
Right Side Ram 2500, Ram 3500 without Central Axle Disconnect: 2002
