QU40293 Dana 60 Front Spindle Kit 1975-1993 Dodge and 1977-1991 GM

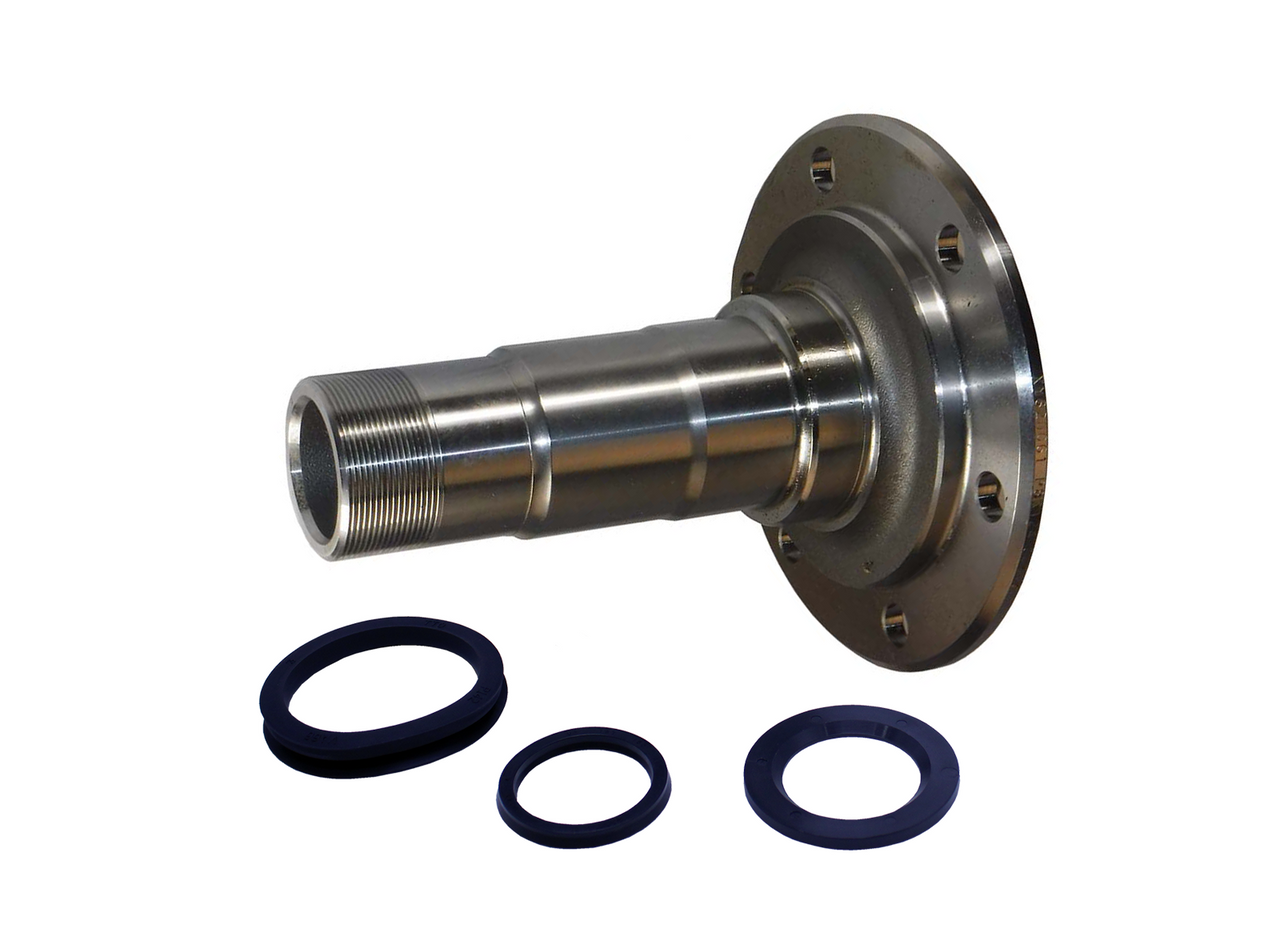

QU40293 1975-1993 Dodge and 1977-1991 GM Dana 60, Dana 61 Front Spindle Kit for all 1977-1991 Chevy or GMC 1 ton 4x4s and 1975-1993 Dodge W300 and W-350 4x4 trucks with Dana-Spicer Model 60 and Model 61 Front Axles. QU40293 Also fits ALL 1989 to 1993 Dodge Ram W-250 4x4 trucks with the Cummins Diesel engine or Snow Plow package. QU40293 includes Spindle, QU40065 Large V-Seal, QU40066 Thrust Washer, QU40148 Small V-Seal, and pre-installed QU40149 Spindle Bearing. Bearing and Thrust Washer USA Made. Spindle and Seals are imported.

Also See QU40293U Used Spindle Available while supplies last.
Also See Y440293 Replacement Spindle

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Before Installing
Assembly Order
Spindle to Knuckle Nut
Diff Output Shaft Type
Matching Parts
Applications

Tech Note 1: Before Installing
Before installing your new spindle, lube the bearing, seals, and thrust washer with QU90018 grease. Also, apply some Anti-Seize Compound to the mating surfaces between the spindle and steering knuckle.

Tech Note 2: Assembly Order
On 1975-1993 Dodge and 1977-1991 GM Dana 60 Front Axles, the assembly order is: Spindle, Caliper Anchor Plate, Disc Brake Splash Shield.

Tech Note 3: Spindle to Knuckle Nut
The spindle, caliper anchor plate, and brake splash shield are secured to the steering knuckle with six 1/2" Class C metal lock nuts. I STRONGLY recommend you replace these nuts with new QU95037 nuts as locking nuts will usually lose some locking strength with each reuse. As an alternative, you can apply threadlocker to the threads. To protect my customers, I used to apply threadlocker to NEW nuts to minimize the chances of my customers losing a spindle. That and the proper installation torque is really cheap insurance.

Tech Note 4: Matching Parts for Dodge

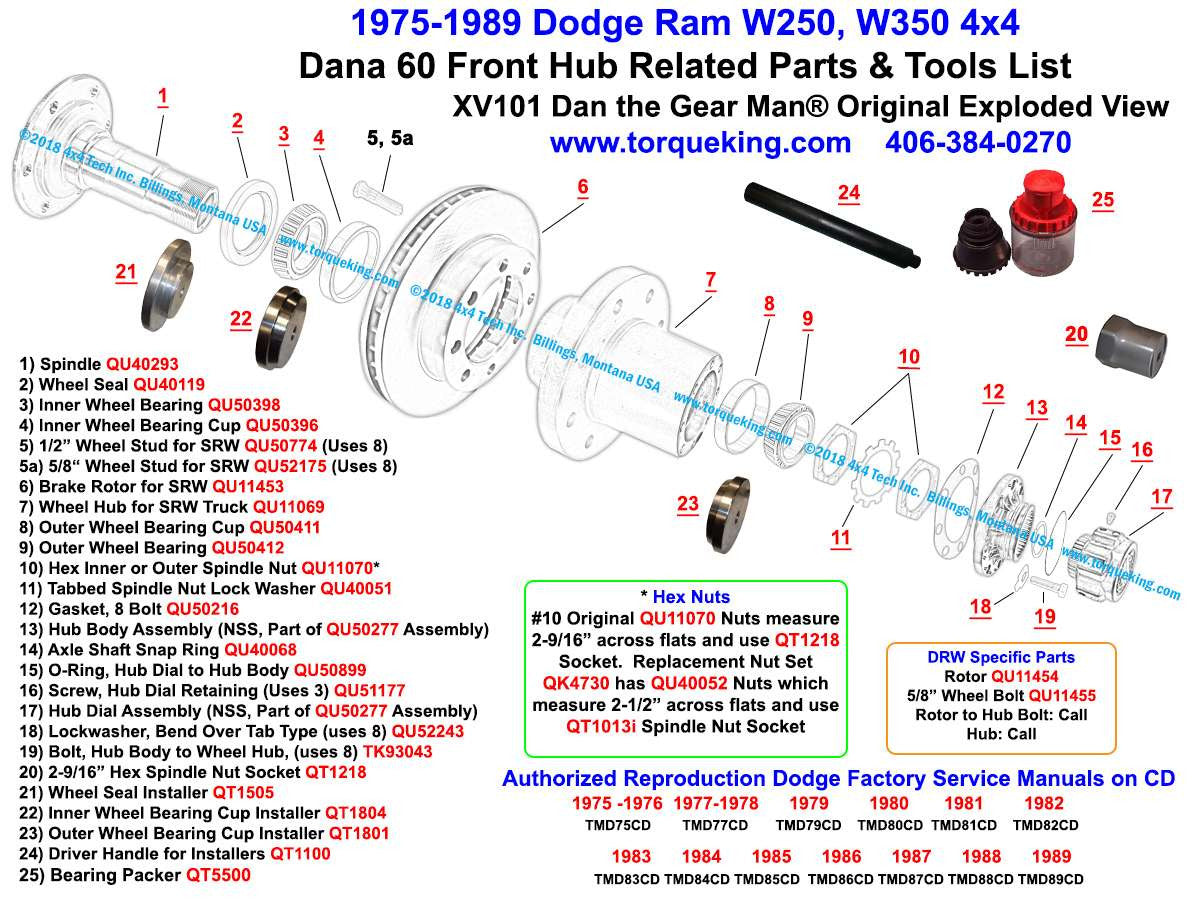

Exploded View XV1001 1975-1989 Dodge W250, W350 Dana 60/61 Front Axle

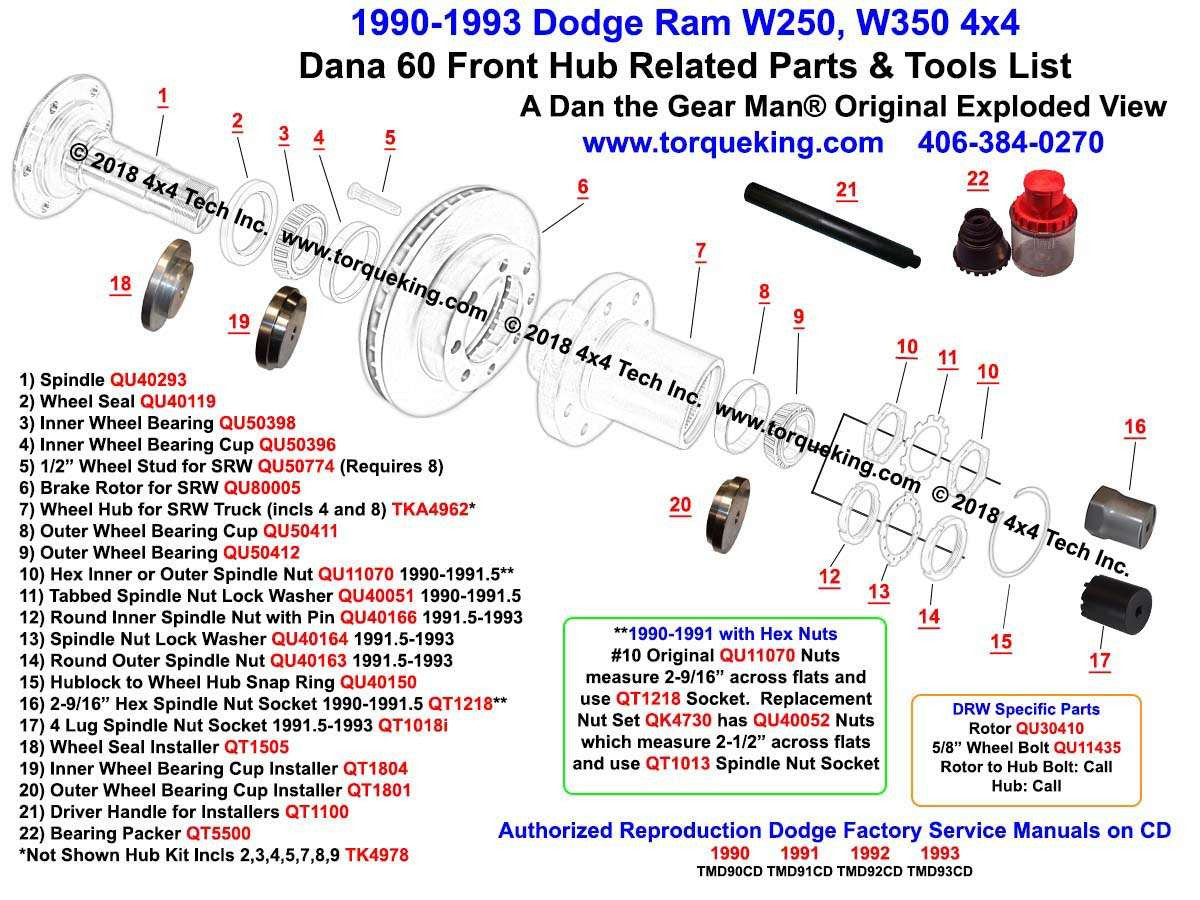

Exploded View XV1004 1990-1993 Dodge W250, W350 Dana 60/61 Front Axle
QU40541 Spindle to Knuckle Bolt
QU95037 Lock Nut for Spindle Bolt
QU40119 Wheel Seal
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
TK4744 Wheel Bearing and Seal Kit
QU50216 8 Bolt Hub Gasket for 1975-1991.5
QU40051 Spindle Nut Lockwasher for 1975-1991.5
QU11070 Hex Spindle Nut for 1975-1991.5
QK4730 Replacement Hex Spindle Nut Kit for 1975-1991.5
QK4729 Round, 4 Slot Spindle Nut Kit for 1991.5-1993
QU90018 Protection ES Synthetic Wheel Bearing Grease
QT1023 and QT1024 Spindle Pullers
QT1505 Wheel Seal Installer
QT1801 Outer Wheel Bearing Cup Installer
QT1804 Inner Wheel Bearing Cup Installer
QT1100 Driver Handle for Installers
QT1218 Hex Spindle Nut Socket for 1975-1991.5
QT1018i and QT1110i 4 Lug Spindle Nut Sockets for 1991.5-1993

Tech Note 5: Matching Parts for Chevy and GMC

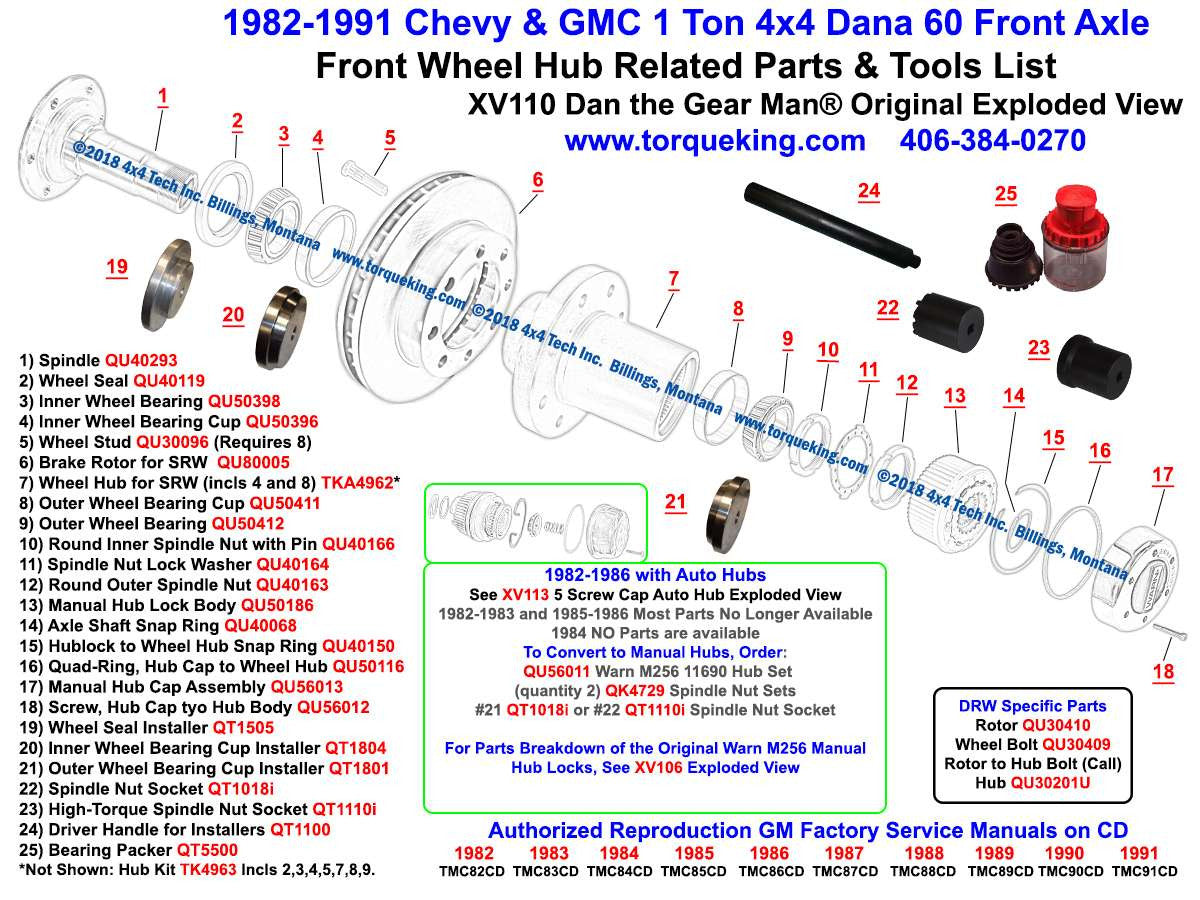

Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle
QU40541 Spindle to Knuckle Bolt
QU95037 Lock Nut for Spindle Bolt
QU40119 Wheel Seal
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
TK4744 Wheel Bearing and Seal Kit
QK4729 Round, 4 Slot Spindle Nut Kit
QU90018 Protection ES Synthetic Wheel Bearing Grease
QT1023 and QT1024 Spindle Pullers
QT1505 Wheel Seal Installer
QT1801 Outer Wheel Bearing Cup Installer
QT1804 Inner Wheel Bearing Cup Installer
QT1100 Driver Handle for Installers
QT1018i and QT1110i 4 Lug Spindle Nut Sockets

Applications:

Chevy or GMC:
K30, K35, K3500, CUCV: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
V3500: 1988, 1989, 1990, 1991

Dodge or Ram:
Dodge W-350: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Dodge W-250 Diesel or Snow Plow truck: 1989, 1990, 1991, 1992, 1993
