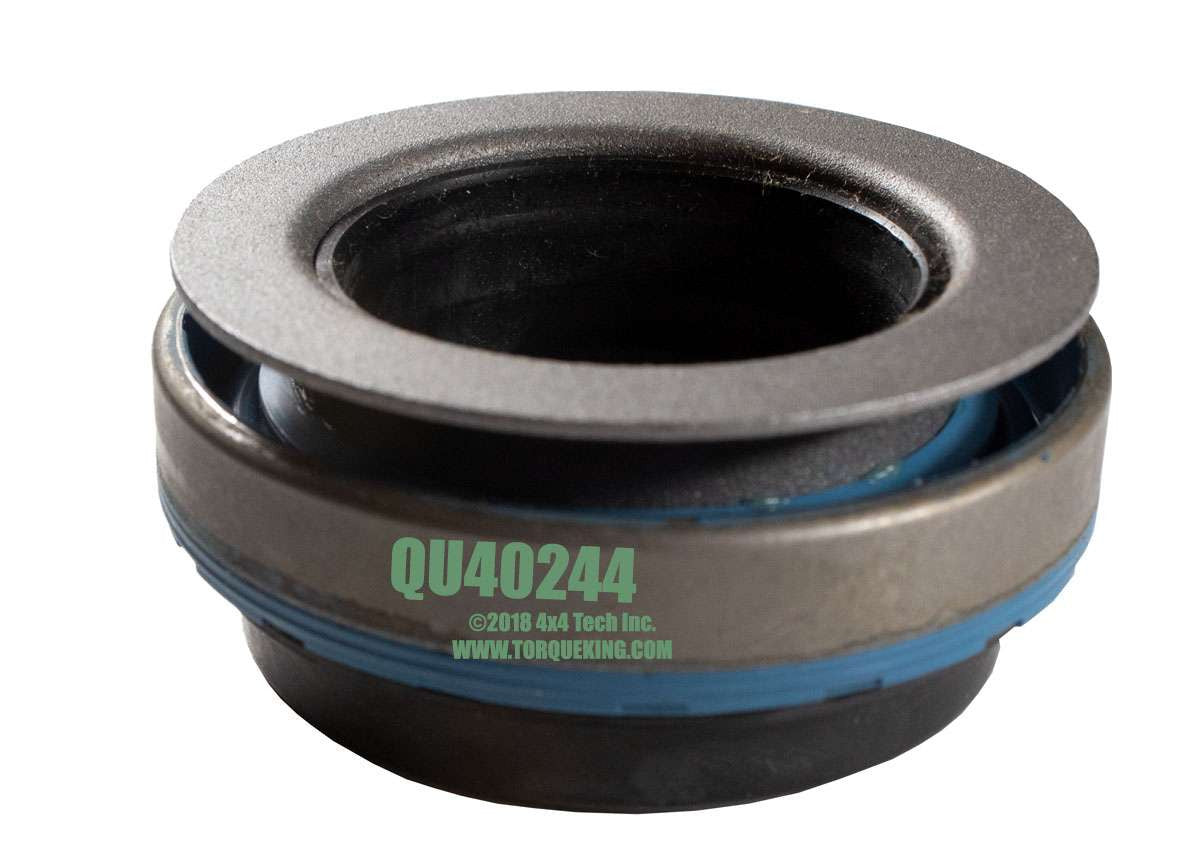

QU40244 Inner Axle Shaft Oil Seal with Slinger Ford Dana 50, 60 & GM Dana Super 70

QU40244 Inner Axle Shaft Oil Seal with Slinger For Ford and Chevy/GMC 4x4s. This is an original equipment type Oil Bath Type Inner Axle Shaft Oil Seal that is specific to 1999-2010 Ford Super Duty, 2000-2005 Ford Excursion, and 2005-2009 Chevy or GMC C4500, C55004x4s, but it also will fit 2011 and newer Ford Super Duty Dana Super 60 Front Axles as a replacement for QU20463 Seal without Slinger. QU40244 fits all 1999 and newer Ford F-series trucks and Excursions with Dana-Spicer Model 50 and Model 60 solid front drive axles. Your Inner Axle Shaft Seals are located in the differential housing just outboard of the differential bearings. Imported. Order 2 seals per vehicle.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Axle Tubes Leaking Oil?
Must Remove
Installation Tool Sets Available
4x4 Tech Publications
Matching Part for Ford
Matching Parts for GM
Applications

Tech Note 1: Axle Tubes Leaking Oil?
If you are leaking oil out the end of your axle tubes, these are the seals that need to be replaced.

Tech Note 2: Must Remove
Your brakes, wheel hubs, axle shafts, and differential must be removed from the housing to replace these seals. Refer to these 4x4 Tech Publications for service procedures for 1999-2004 Super Duty and 2000-2005 Excursion: TSB4643, TM4637, and TM4688. QU40244 is item 35 in the Differential Parts Full Color Exploded View that is included in these 4x4 Tech Publications.

Tech Note 3: Installation Tool Sets Available
To Install these seals without wrecking them, see TS4643 and TS4808 if you have a Model 50 axle or TS4644 and TS4807 Tool Sets.

Tech Note 4: 4x4 Tech Publications
QU40244 is item 35 in the Differential Parts Full Color Exploded View that is included in these 4x4 Tech Publications: TSB4644, TM4637, and TM4688.

Tech Note 5: Matching Parts for Ford
Matching Parts for QU40244 Oil Seal:
QU20463 Seal without Slinger
TS4807 Fixed Depth Inner Axle Seal Kit for Dana/Super 60
TS4644 Adjustable Depth Inner Axle Seal Kit for Dana/Super 60
TS4808 Fixed Depth Inner Axle Seal Kit for Dana 50
TS4643 Adjustable Depth Inner Axle Seal Kit for Dana 50
TSB4643 Inner Axle Seal Replacement Tech Service Bulletin for 99-04 Super Duty and Excursion
TM4637 Front Axle Tech Manual for 99-04 Super Duty and Excursion
TM4688 4x4 Hub, Axle Shaft, Ball Joint, Axle Shaft Seal Service Manual for 99-04 Super Duty and Excursion
Ford Shop Manuals

Tech Note 6: Matching Parts and Axle Tools for GM:
QK4988 Greaseable Ball Joint set, 1 Side
QA40372  Spindle Bearing and Seal Kit incls QU40243 Seal, QU40496 Seal/Thrust washer, QU40149 Bearing
QU40538 Dust Seal, Inner Axle Shaft
QU40244 Inner Axle Shaft Oil Seal
QU30468 Wheel Seal
QU52356 Hub Cap O-Ring
TK4783 Wheel Bearing Kit
TK40562 Axle U-Joint
QU20088 Spindle Nut
QT1126 Seal Installer
QT1215 Spindle Nut Socket

Applications:

Chevy and GMC:
C4500, C5500 4x4 Trucks: 2005, 2006, 2007, 2008, 2009

Ford:
F-250, F-350, F-450, F550: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Excursion: 2000, 2002, 2003, 2004, 2005
