QU40191 Dana 60 Lower King Pin Bearing and Seal Kit

Quad 4x4
No reviews yet Write a Review
$120.79
SKU:
40191
UPC:
198345393649
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: Stocking Item, usually ships within 1-2 business days
Current Stock:Only left:

Description

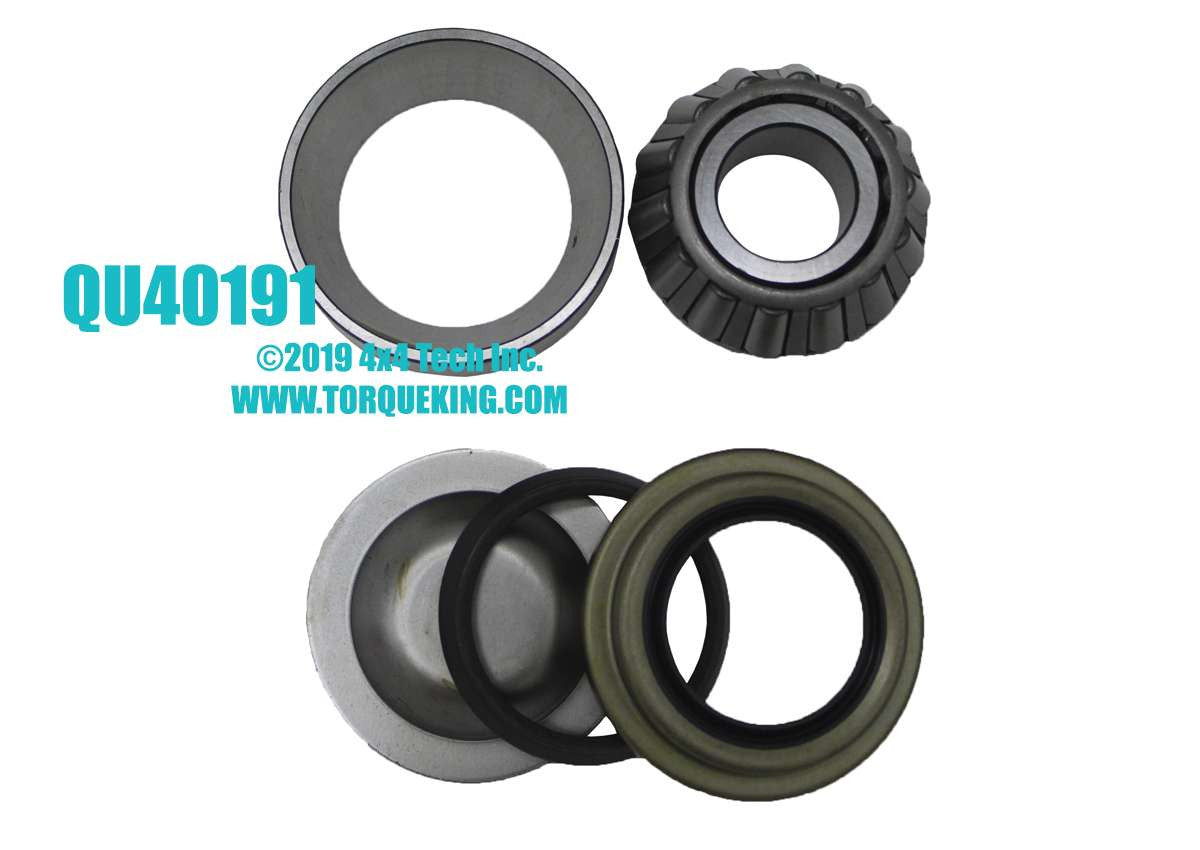

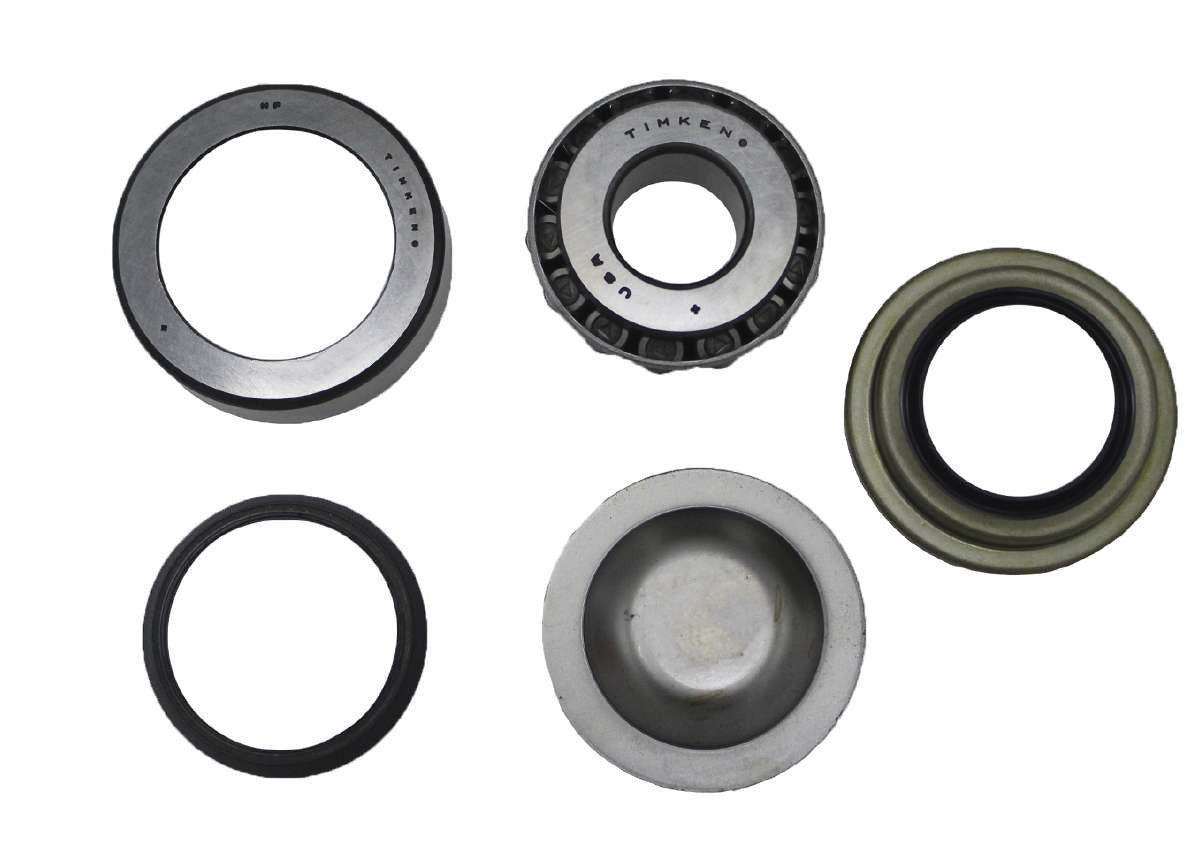

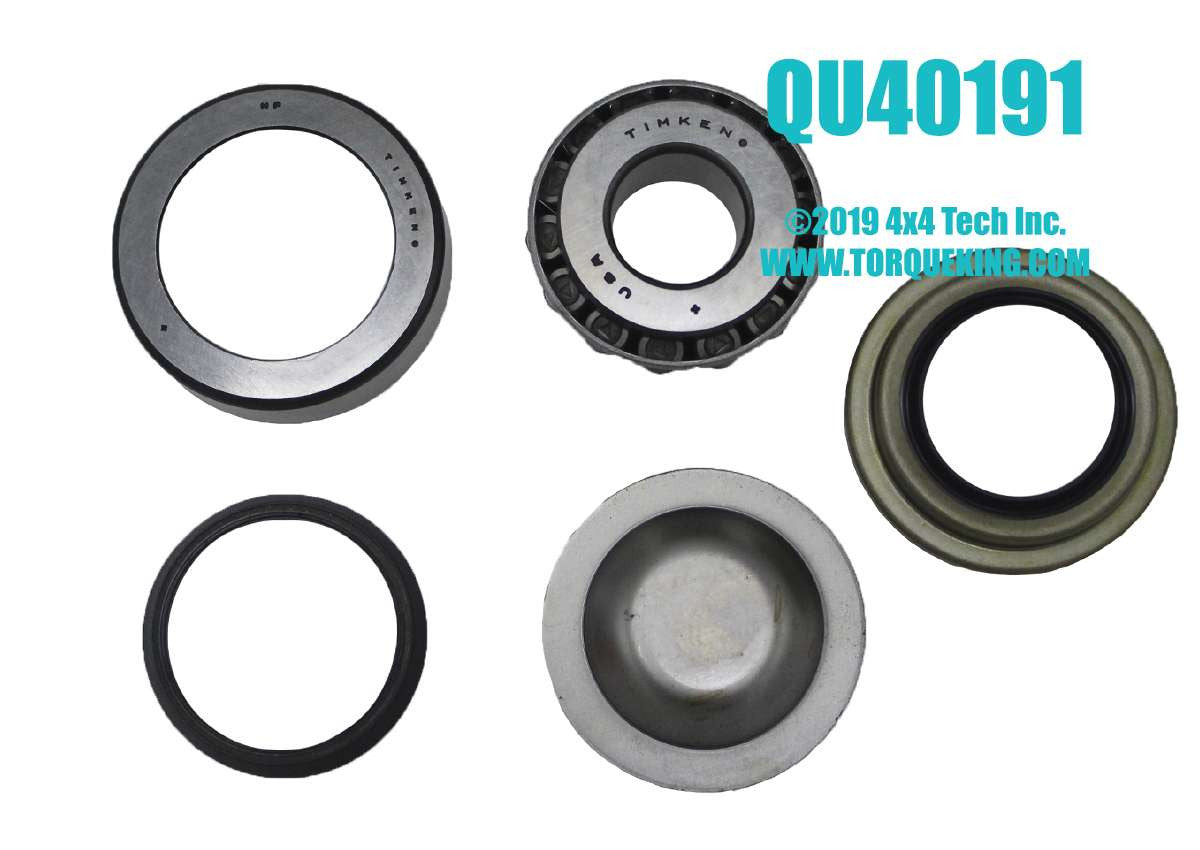

QU40191 Dana 60 Lower King Pin Bearing and Seal Kit for 1975 to 1993 1 ton and heavy duty 3/4 ton 4x4s equipped with Dana Spicer Model 60 or 61 front drive axles includes one each these genuine Dana replacement parts: QU40062 Lower Gease Retainer, QU50600 Lower King Pin Bearing, QU50601 Lower King Pin Bearing Cup, QU40092 Lower King Pin Seal, QU40147 Upper King Pin Seal. Order two Kits per vehicle.

Also See QK4512 King Pin Kit.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Parts You May Need
Service Guide
Bearing Nut & Wheel Hub Configurations
Applications

Tech Note 1: Parts You May Need
Other King Pin Parts you may need: QU40266 Upper King Pin, QU40157 Upper King Pin Spring Retainer Plate, QU40265 Upper King Pin Tension Spring, QU40093 Upper King Pin Bushing, and QU40063 Upper King Pin Gasket.

Tech Note 2: Service Guide
Need help servicing your King Pins? See my VSG4506 King Pin Service Video Service Guide!

Tech Note 3: Bearing Nut & Wheel Hub Configurations
Several spindle bearing nut and wheel hub configurations were used on King Pin equipped axles. Additional stocking service parts you will need for:
Chevy/GMC: 1977-1981 order QU40037 Spindle Lock Washer separately
Dodge: 1976-1990 order QU40051 Spindle Lock Washer and QU50216 Hub Flange Gasket separately
Ford: 1978-1979, 1985 order QU40037 Spindle Lock Washer separately

Applications:
Chevrolet Dana 60:
K30, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991

Dodge Dana 60, 61:
W-350 1 Ton*: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W-250 all with Cummins Diesel: 1989, 1990, 1991, 1992, 1993
*For some reason, a few mid 1980's W-350 single rear wheel trucks have a wimpy Model 44 axle!

Ford Dana 50IFS:
F-250 with 4600 pound front axle: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
F-350: 1980, 1981, 1982, 1983, 1984, 1985-1/2

Ford Dana 60:
Heavy-Duty F-250, F-350: 1978, 1979
F-350: 1985-1/2, 1986, 1987, 1988, 1989, 1990, 1991

GMC Dana 60:
K35, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991

International:
1300 Camper Special: 1975
